BDS Suspension FOX88406317 - Kit: BDS, 14-On F-150 4wd Front Coilover 2.5 PEF Series, R/R 5.5" 0-3" Lift, DSC

BDS Suspension FOX88406317 - Kit: BDS, 14-On F-150 4wd Front Coilover 2.5 PEF Series, R/R 5.5" 0-3" Lift, DSC

Kit: BDS, 14-On F-150 4wd Front Coilover 2.5 PEF Series, R/R 5.5" 0-3" Lift, DSC

Give your 2014-2020 Ford F150 a race-winning technology upgrade to improve damping in any terrain with FOX Performance Elite Series 2.5 Coil-Over shocks with Dual Speed Compression (DSC) Reservoir Adjusters. Designed to work in conjunction with a BDS 0 to 3-inch lift kit suspension system. Before any FOX shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel in a bolt-on solution.

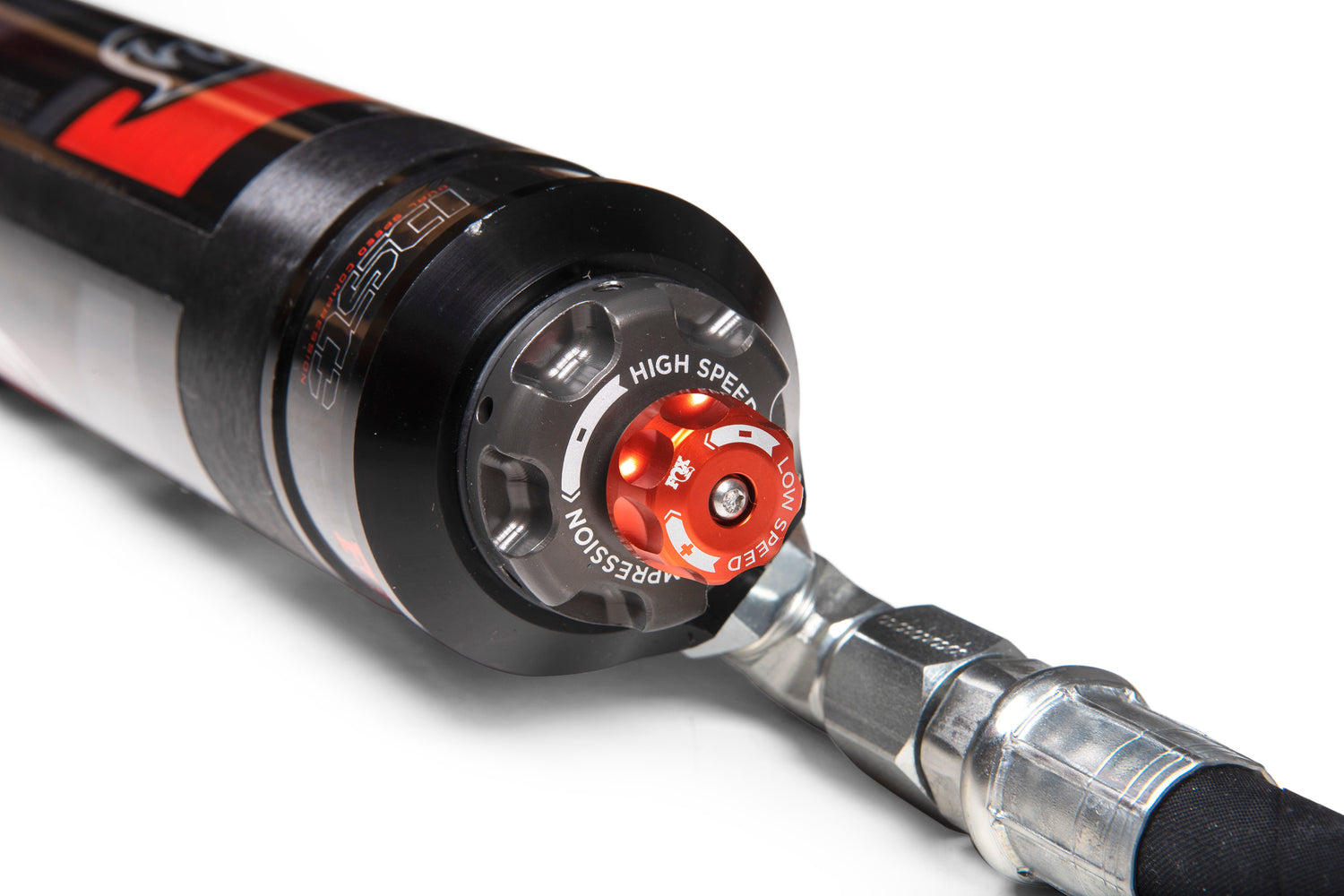

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

• • 2.5-inch Impact extruded and CNC machined 6061-T6 aluminum body resists rust over time
  • Hard-anodized for a durable finish
  • Black-anodized, CNC-machined 6061-T6 billet aluminum
  • Application-specific, adjusta
  Adjustable: Yes

  Compressed Length: 17.6400

  Cylinder Diameter: 2_5

  Cylinder Material: Aluminum

  Extended Length: 23.1800

  Gas Charged: Yes

  Installation Time: 2-3 Hrs

  Lower Mount Type: Bar Pin

  Pvg Product Status: Active

  Reservoir Type: Remote

  Shaft Diameter: 7_8

  Shaft Material: Chrome Plated Steel

  Shocks Included: No

  Travel Length: 5.5400

  Type: Coil Over

  Upper Mount Type: OEM
