BDS Suspension BDS824FDSC - 3 Inch Lift Kit FOX 2.5 Coil-Over Toyota Tundra 07-21 2/4WD Fox 2.5 Performance Shocks

BDS Suspension BDS824FDSC - 3 Inch Lift Kit FOX 2.5 Coil-Over Toyota Tundra 07-21 2/4WD Fox 2.5 Performance Shocks

Take your 2007-2021 Toyota Tundra truck to the next level and improve the ride with this 3-inch lift kit featuring FOX 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks, heavy duty tubular upper control arms for increased strength, and front differential spacers to keep CV angles at a minimum. In the rear this kit utilizes 1 Inch Lift shackles to level the truck and a set of FOX 2.0 Performance shocks for the smoothest ride.

Dual Speed Compression Adjust Adjustment

FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Shackle
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1 inch

1. This kit will work on TRD Pro models, but only net 2 inch of lift due to the taller factory ride height.
2. Can be installed on 2WD models, differential drop brackets are not used during installation.

• FOX 2.5 Factory series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Coil-Over Option FOX 2.5 Coil-Overs

• 2.5-inch smooth bore zinc plated seamless steel body
• Zinc-plated and double-clear coated for long lasting finish
• Black-anodized, CNC-machined 6061-T6 billet aluminum
• Application-specific, adjustable 3.0 Eibach racing springs
• 7/8-inch hard chrome-plated steel shafts
• Application specific valving to maximize performance

FOX 2.5 Coil-Overs with Dual Speed Compression Adjust Adjuster

All the FOX Coil-Over Advantages Plus:

• Dual Speed Compression (Dual Speed Compression Adjust) Adjuster
• Increases both low and high-speed compression levels up to 25 percent
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road

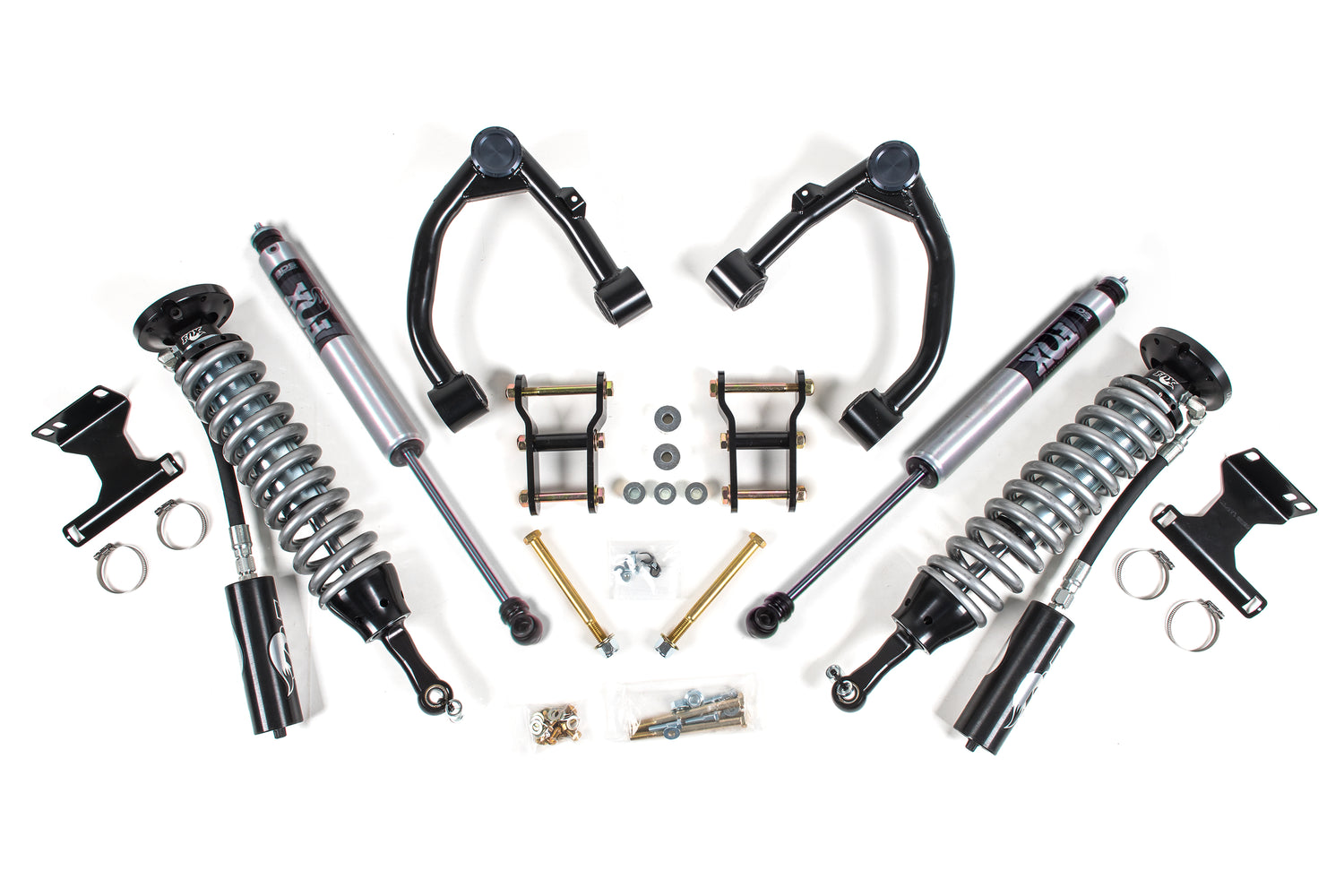

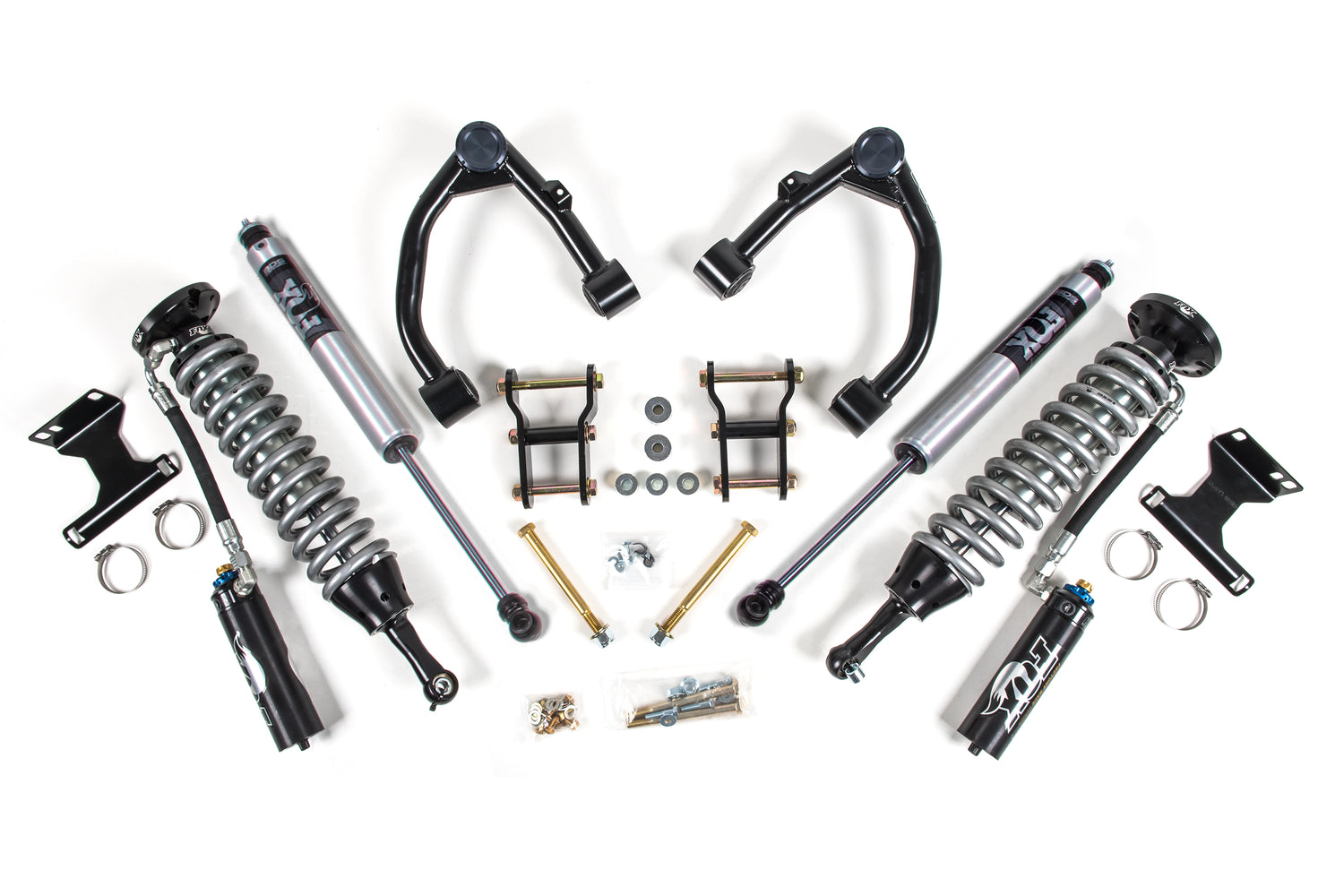

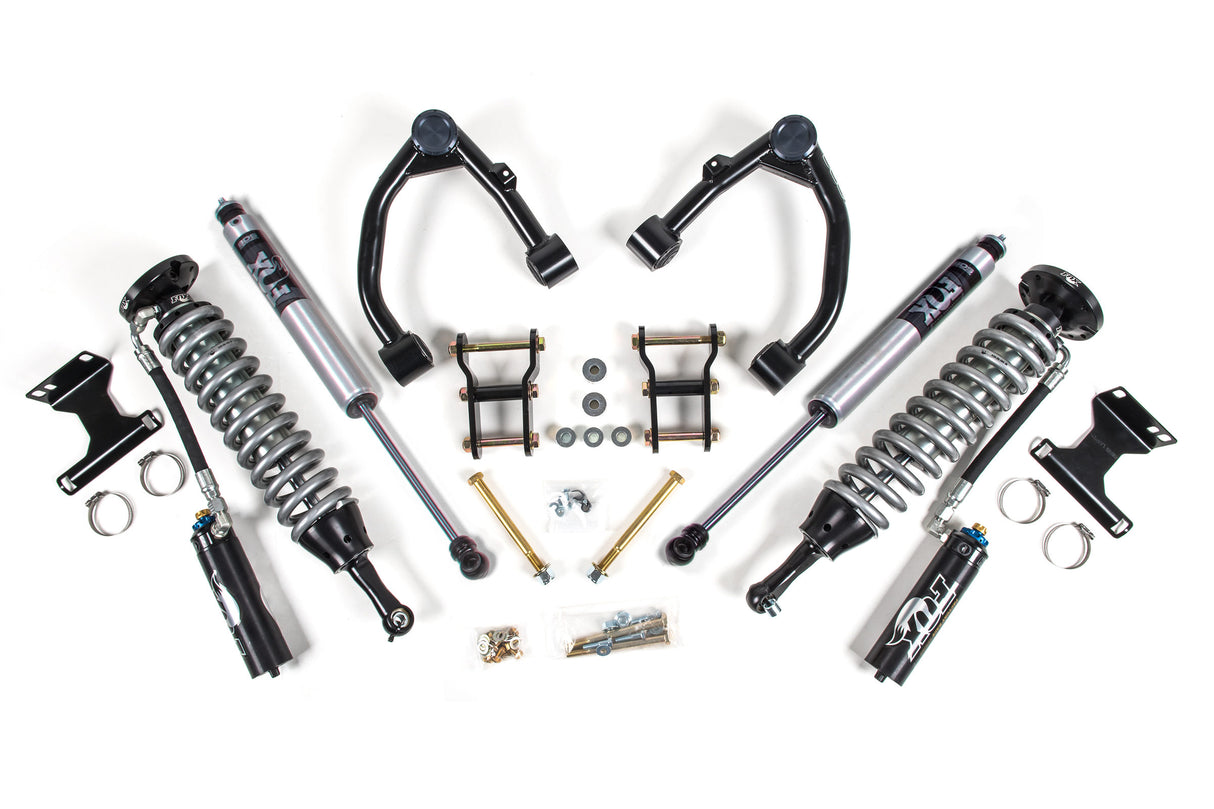

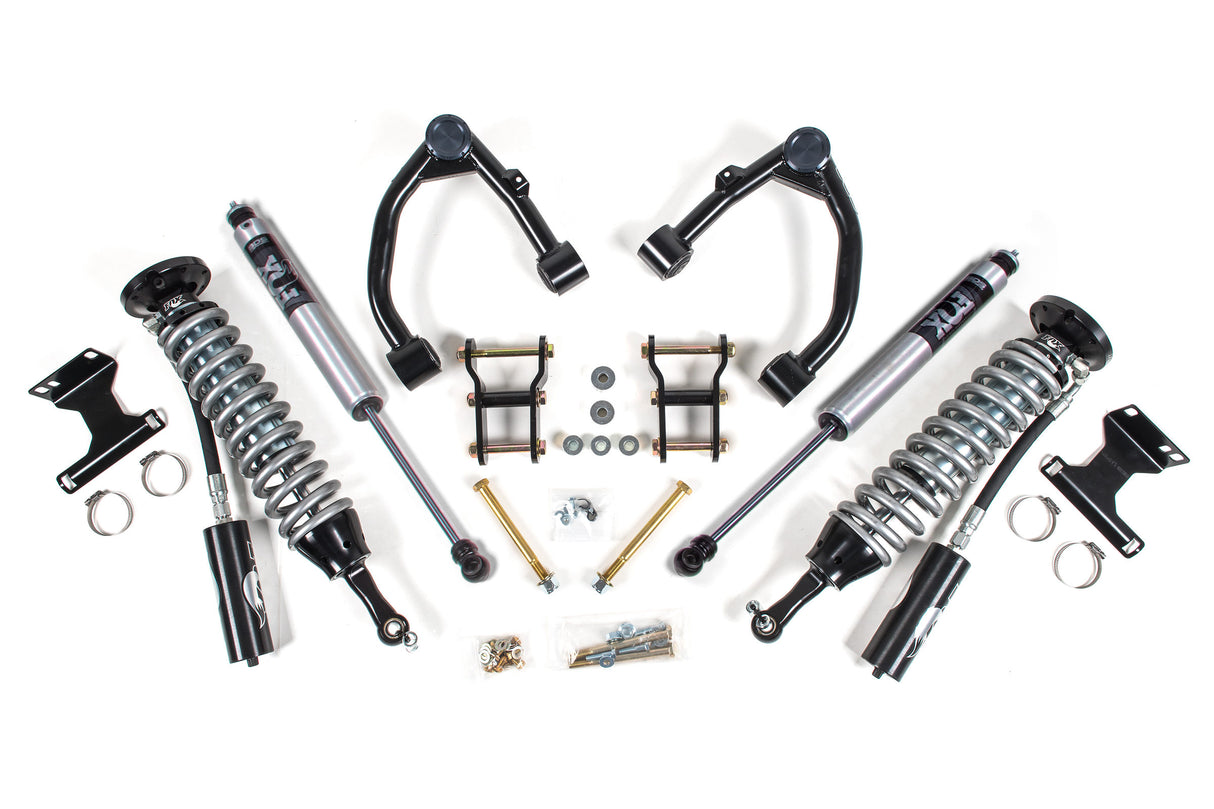

Kit Components:

• Includes one BDS028305, 2007-2021 Toyota Tundra 3 inch Box Kit, UPC Code 658848616169
• Includes one FOX88006947, Kit: 07-ON Toyota Tundra w/ UCA, Front Coilover, 2.5 Series, R/R, 6.7 inch, 0-3 inch Lift, Dual Speed Compression Adjust, UPC Code 714686851671
• Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
