BDS Suspension BDS690F - 03-13 Ram 3/2 C/O w/ 4in axle- Dsl

BDS Suspension BDS690F - 03-13 Ram 3/2 C/O w/ 4in axle- Dsl

03-13 Ram 3/2 C/O w/ 4in axle- Dsl

Maximize the capability of your 2003-2013 Dodge RAM 2500 and 2003-2012 RAM 3500 4WD diesel truck with this 3-inch lift kit with FOX 2.5 Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Additionally, BDS engineered fixed length, greaseable, heavy-duty round tubular construction upper and lower control arms that position the axle properly and adjust for proper caster and pinion angles.

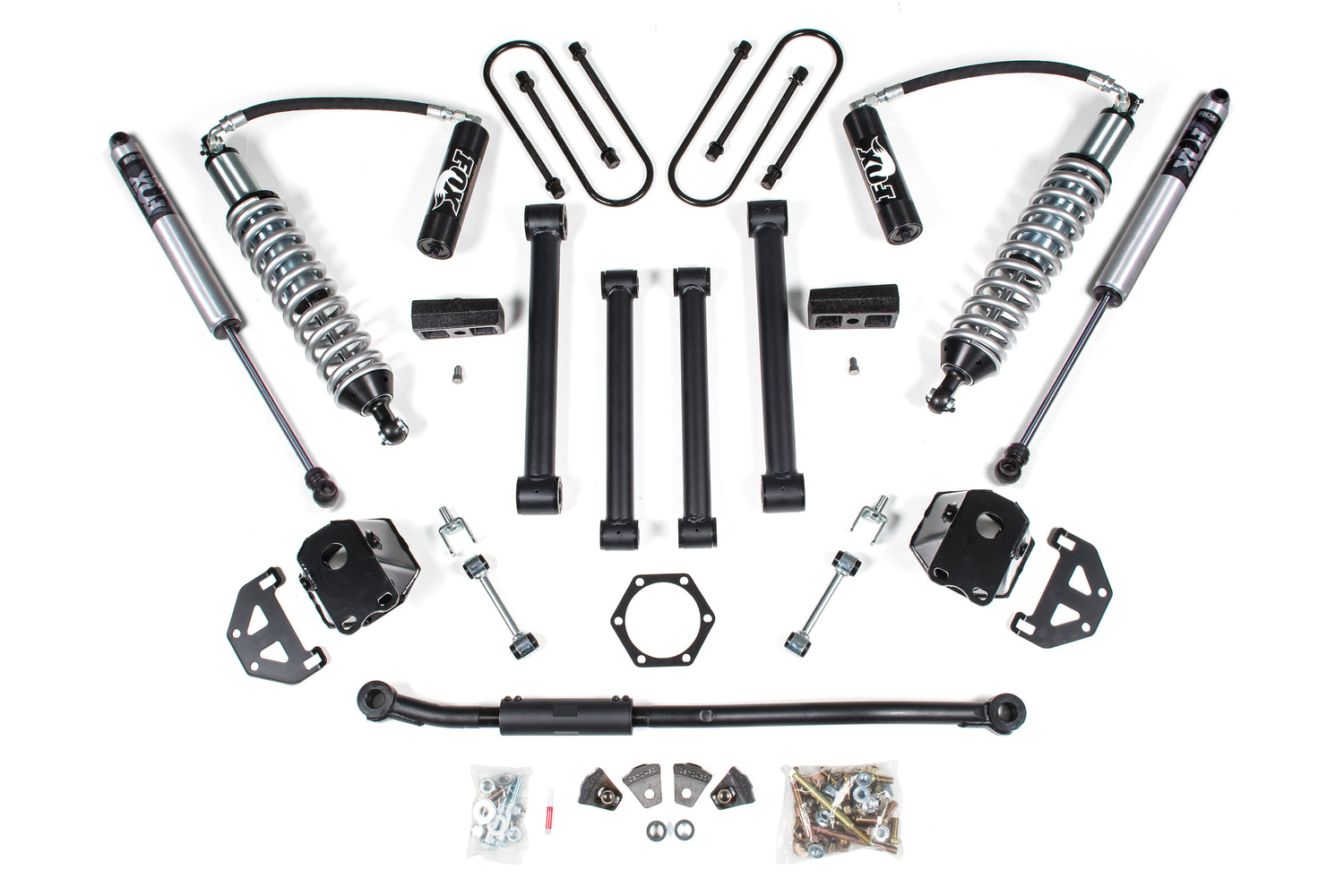

Up front the lift kit includes FOX 2.5 Coil-Over shocks, coil-over mounting brackets, heavy duty adjustable track bar, fixed length tubular upper and lower control arms, fixed length sway bar links with stud eliminator, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of FOX 2.0 Performance shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8" solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• • FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
  • Heavy duty tubular short arms improve strength, handling and caster control
  • Front high strength progressive rate coil s
  Front Lift Height: 3

  Front Lift Method: Coil Over

  Installation Difficulty: moderate

  Installation Time: 6-8 Hrs

  Installation Tools: Cut Off Wheel or Equiv

  Rear Axle Option: 4_Inch_Axle

  Rear Lift Height: 2

  Rear Lift Method: Block

  Shocks Included: Yes
