BDS Suspension BDS2202FPE - 2024-2025 Ford F250/F350 4wd 3" Radius Arm Suspension Lift Kit, 1" Rear Lift, Bl

BDS Suspension BDS2202FPE - 2024-2025 Ford F250/F350 4wd 3" Radius Arm Suspension Lift Kit, 1" Rear Lift, Bl

2024-2025 Ford F250/F350 4wd 3" Radius Arm Suspension Lift Kit, 1" Rear Lift, Bl

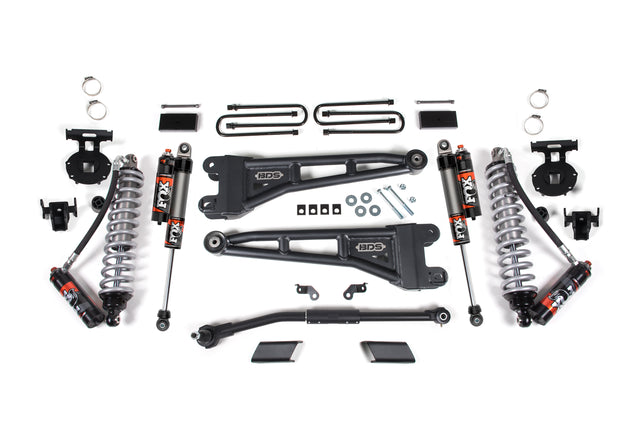

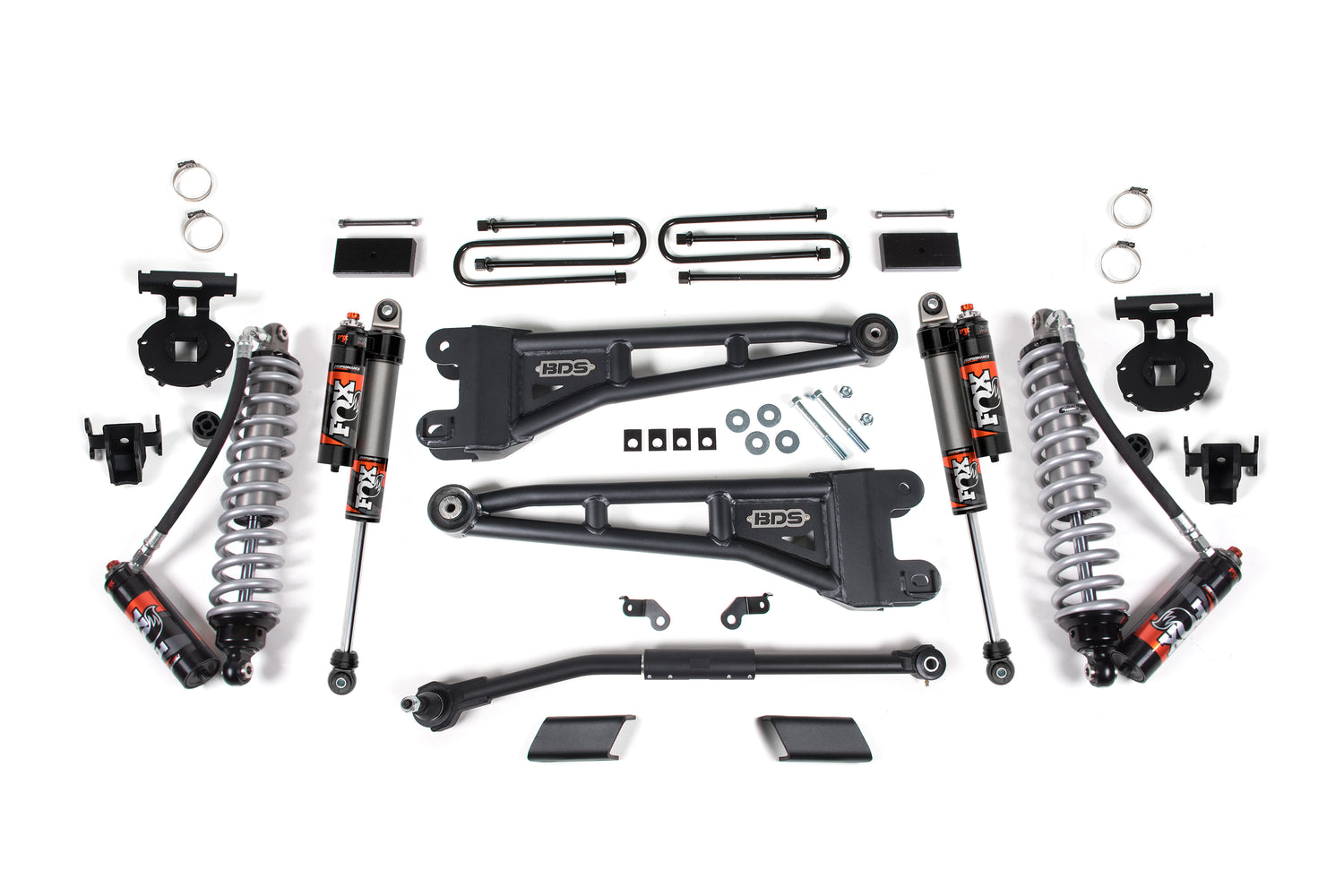

Built to Outperform, take your 23-25 Ford Super Duty diesel powered truck with this 3-inch radius arm lift kit with FOX 2.5 Performance Elite Coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Radius Arms

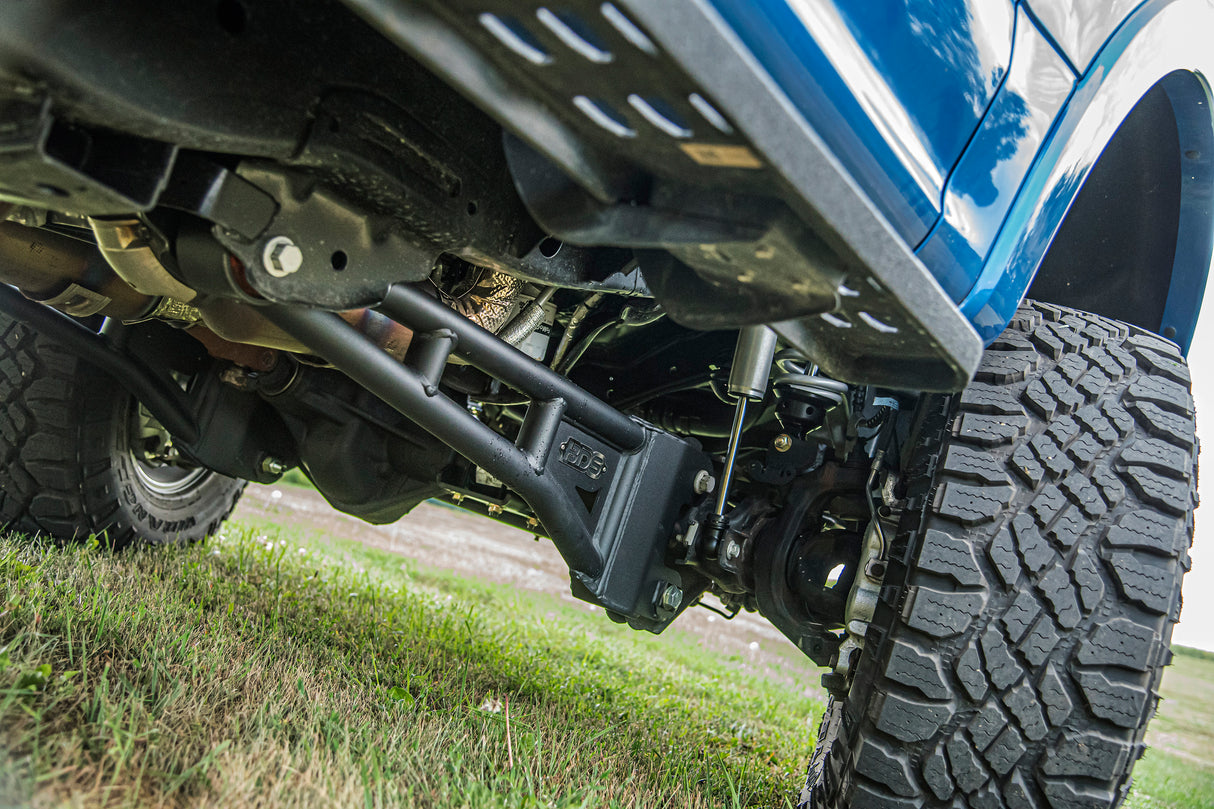

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a

• • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid
  Front Lift Height: 3

  Front Lift Method: Coil Over

  Installation Difficulty: difficult

  Installation Time: 6 Hrs

  Installation Tools: 30mm socket-Torque Wrench-drill-puller pitmanArm-saw reciprocating

  Rear Lift Height: 1

  Rear Lift Method: Block

  Shocks Included: Yes
