BDS Suspension BDS1923H - 99-04 F250/350 Square 6/4.5 w/o Overload

BDS Suspension BDS1923H - 99-04 F250/350 Square 6/4.5 w/o Overload

99-04 F250/350 Square 6/4.5 w/o Overload

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

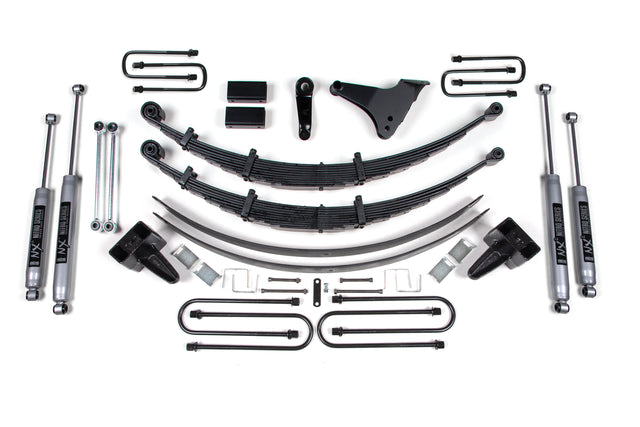

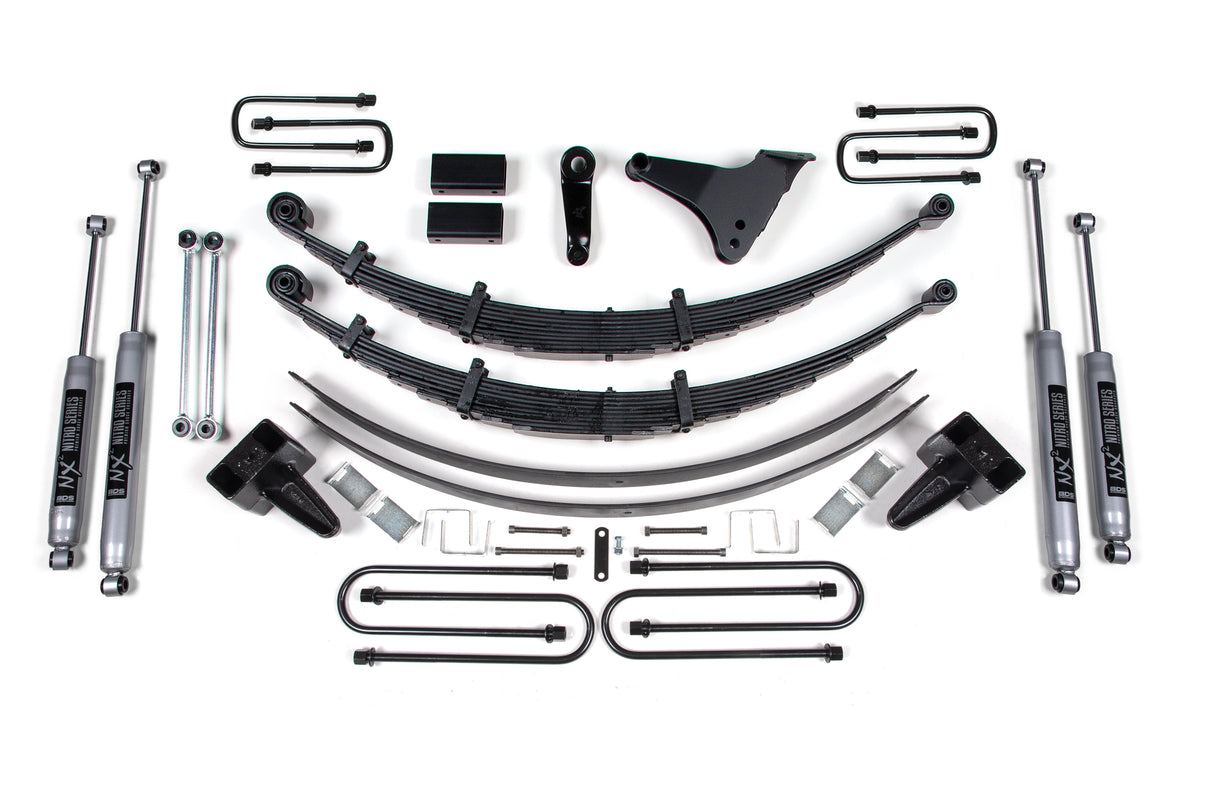

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stop brackets and precision tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks. Optional replacement full leaf spring packs for an improved ride on or off-road.

Glide-Ride Leaf Springs

Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• • Easy, 100% Bolt-on installation
  • Glideride leaf springs to provide full lift height and increased capacity
  • Track bar relocation bracket and pitman arm maintains proper steering angles for improved handling
  • C
  Front Lift Height: 6

  Front Lift Method: Leaf Spring

  Front U Bolt Type: square mfg prior to 2 28 99

  Installation Difficulty: moderate

  Installation Time: 8-10 Hrs

  Rear Lift Height: 5

  Rear Lift Method: Block Add A Leaf

  Rear Lift Option: Block Kit Without Factory Overload

  Shocks Included: Yes
