BDS Suspension BDS180H - 1999-06 K1500 Silver HC 6/5.5 Spring

BDS Suspension BDS180H - 1999-06 K1500 Silver HC 6/5.5 Spring

1999-06 K1500 Silver HC 6/5.5 Spring

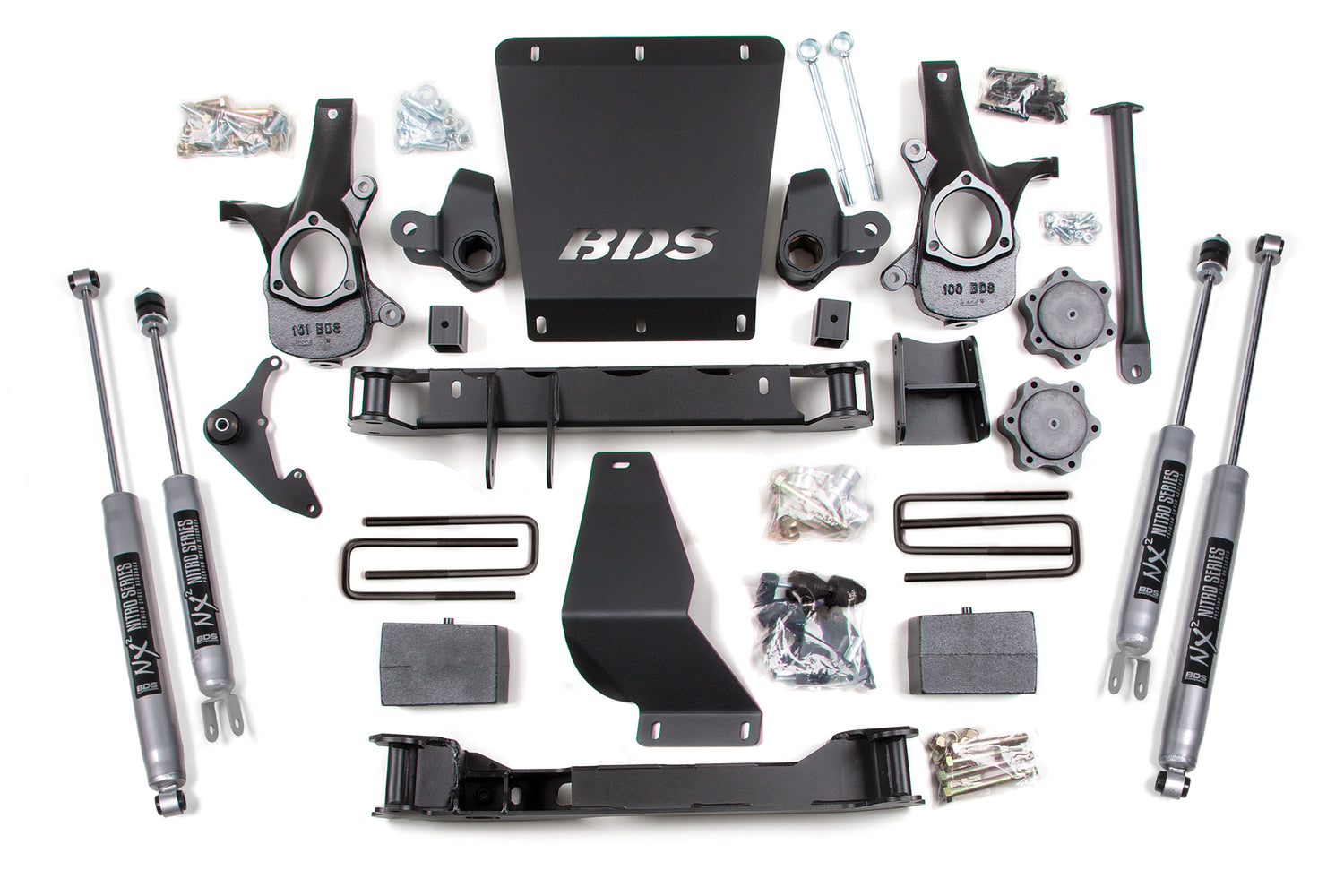

Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1999-2006 Chevy Silverado and GMC Sierra 1500 4WD is a must have upgrade. For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

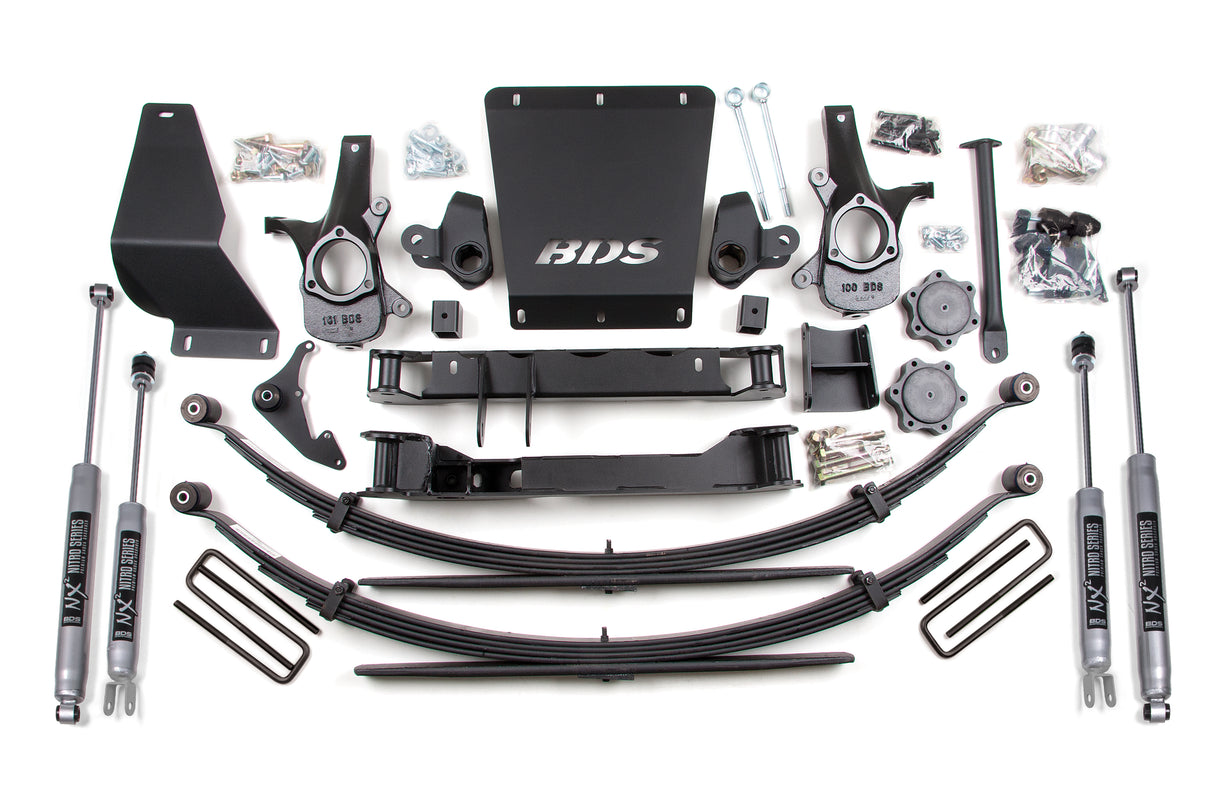

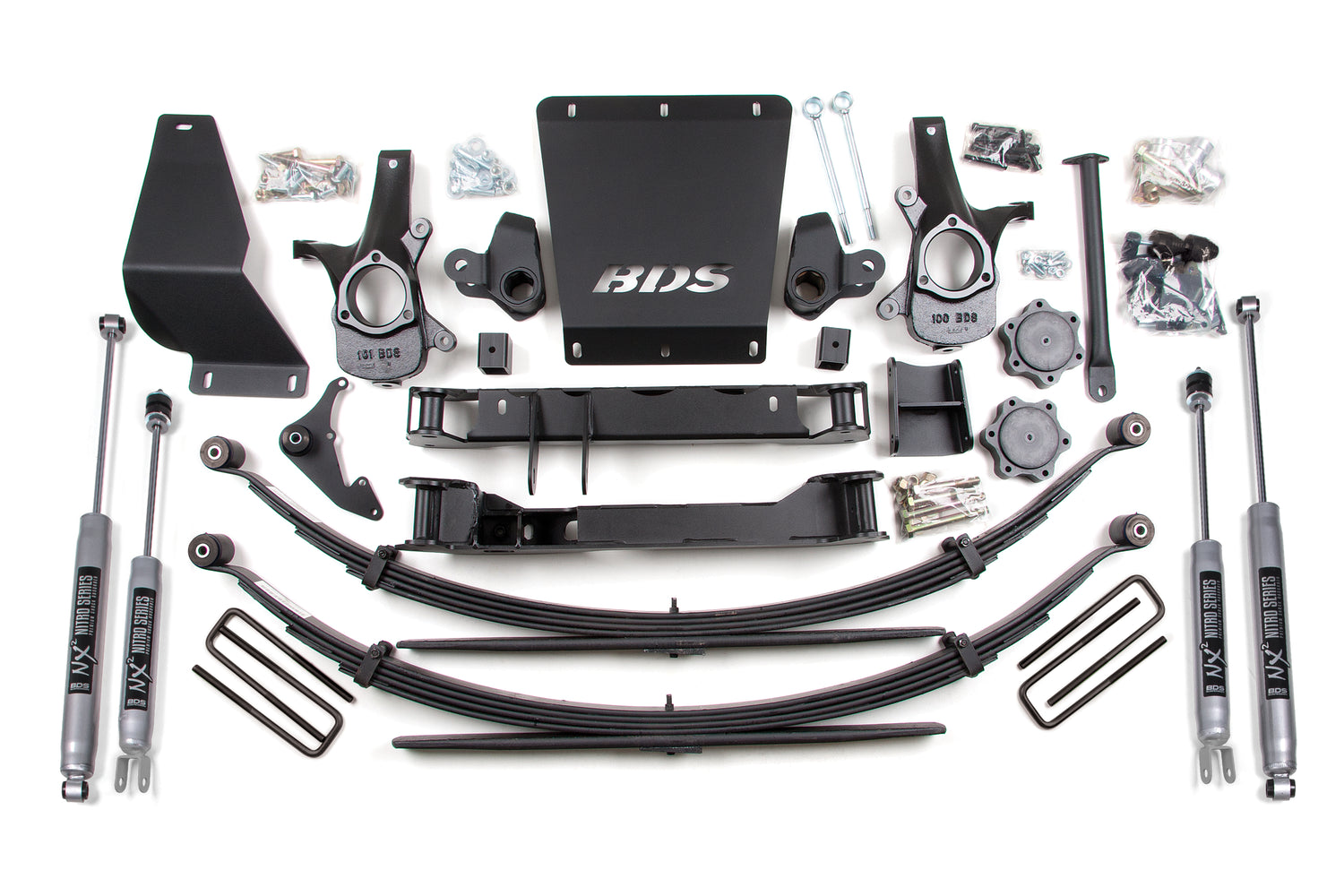

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength

• • High Clearance design w/ no torsion bar drop maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved offroad protection
  • Multipoint differential rel
  Front Lift Height: 6

  Front Lift Method: Cross Member

  Installation Difficulty: difficult

  Installation Time: 8-10 Hrs

  Installation Tools: Cut Off Wheel or Equiv-saw reciprocating-torsionBar unloadingTool-welder

  Rear Lift Height: 5

  Rear Lift Method: Leaf Spring

  Rear Lift Option: Leaf Springs

  Shocks Included: Yes
