BDS Suspension BDS1581FPE - 2017-2019 Ford F250/F350 4wd 6" Radius Arm Suspension Lift Kit, 5" Rear, Block

BDS Suspension BDS1581FPE - 2017-2019 Ford F250/F350 4wd 6" Radius Arm Suspension Lift Kit, 5" Rear, Block

2017-2019 Ford F250/F350 4wd 6" Radius Arm Suspension Lift Kit, 5" Rear, Block,

Raise the bar on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires.

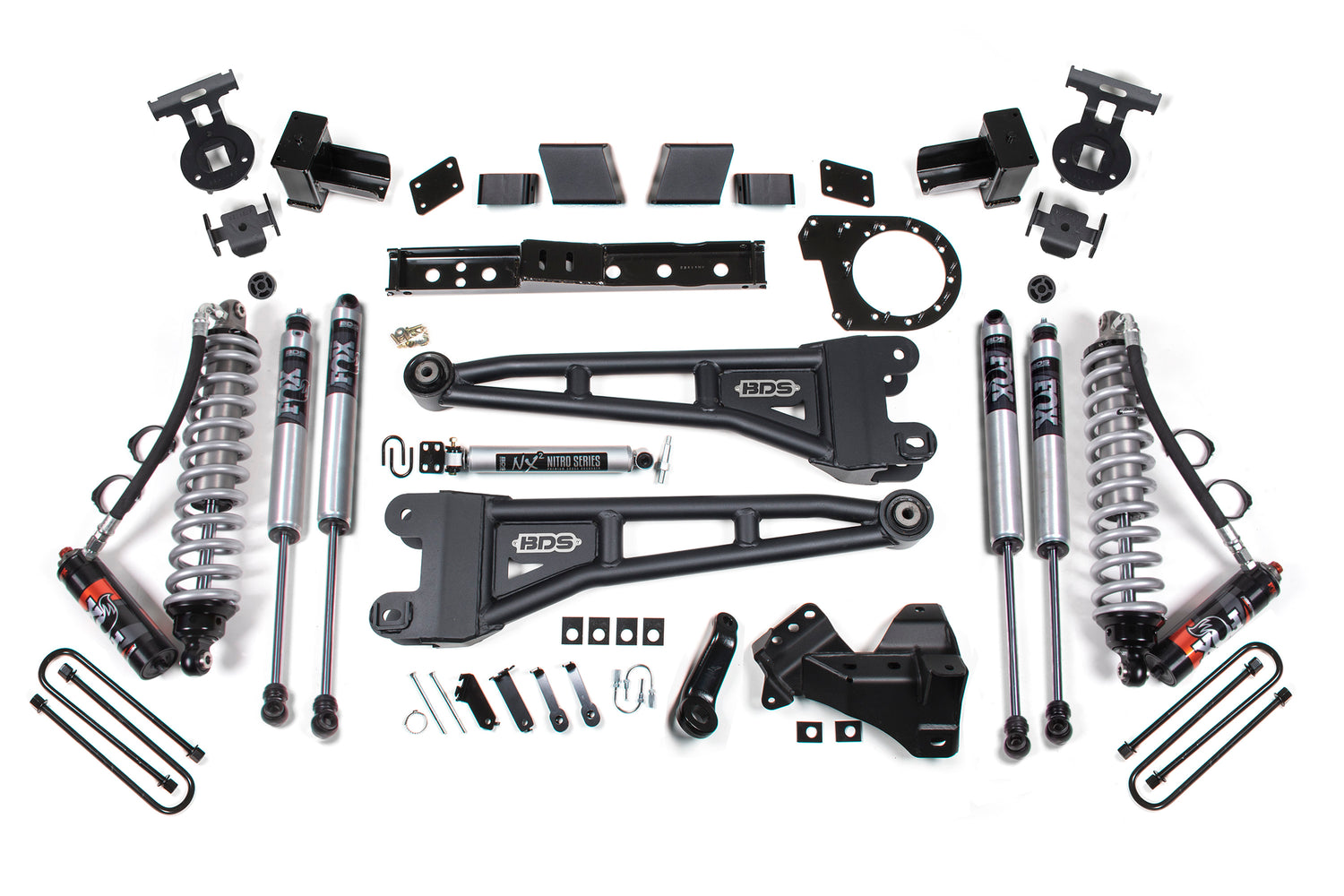

Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling eff

• • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel r
  Front Lift Height: 6

  Front Lift Method: Coil Over

  Installation Difficulty: difficult

  Installation Time: 10 Hrs

  Installation Tools: 30mm socket-40mm Socket-drill-puller pitmanArm

  Rear Lift Height: 5

  Rear Lift Method: Block

  Rear Lift Option: 5 Inch Block with 3 Leaf Main

  Shocks Included: Yes
