BDS Suspension BDS1519H - 2 Inch Leveling Kit Coil Spacer Ford F250/F350 Super Duty 17-22 4WD NX2 Nitro Shocks

BDS Suspension BDS1519H - 2 Inch Leveling Kit Coil Spacer Ford F250/F350 Super Duty 17-22 4WD NX2 Nitro Shocks

Level the stance of your 2017-2019 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires at an affordable price.

Up front the lift kit includes billet aluminum coil spacers, track bar bracket for steering correction, alignment cams, and custom-tuned nitrogen charged shocks.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spacer
• Rear Lift Method: None
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

• Front Lift Method: Coil Spacer
• Rear Lift Method: None
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch

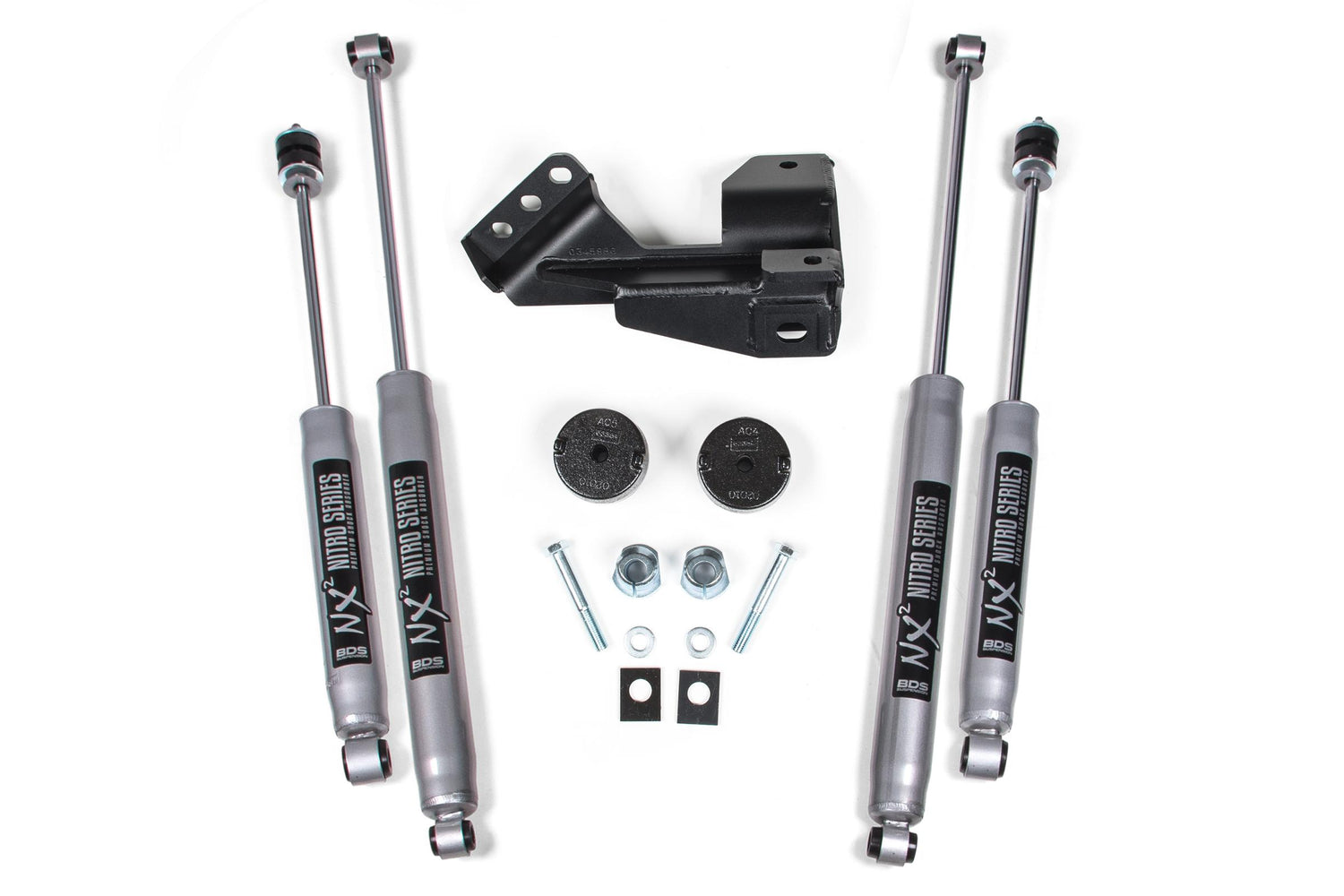

Kit Components:

• Includes one BDS013202, 2017 Super Duty 2 Inch Front Spacer Box Kit, UPC Code 658848613090
• Includes two BDS85710, Shock- 22.50 x 13.50 x 2-3/8 - S50/EB2, UPC Code 711745609518
• Includes two BDS85717, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609556
