BD Diesel 1064294 - BD TowMaster Dodge 68RFE Transmission 2019-2024 4wd
BD Diesel | SKU:
BDD-1064294
Sale price
$7,33999
Regular price
$8,07399
Unit price
/
Unavailable
$734.00 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

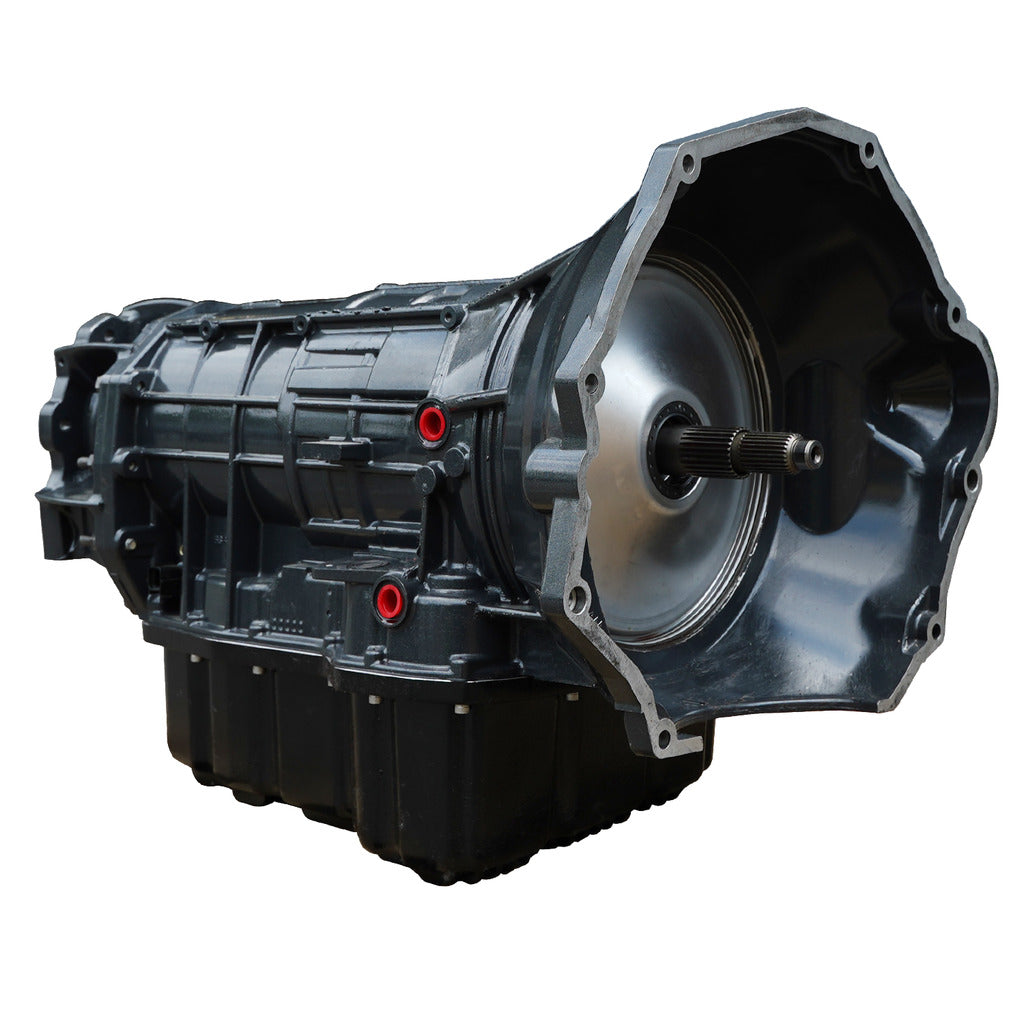

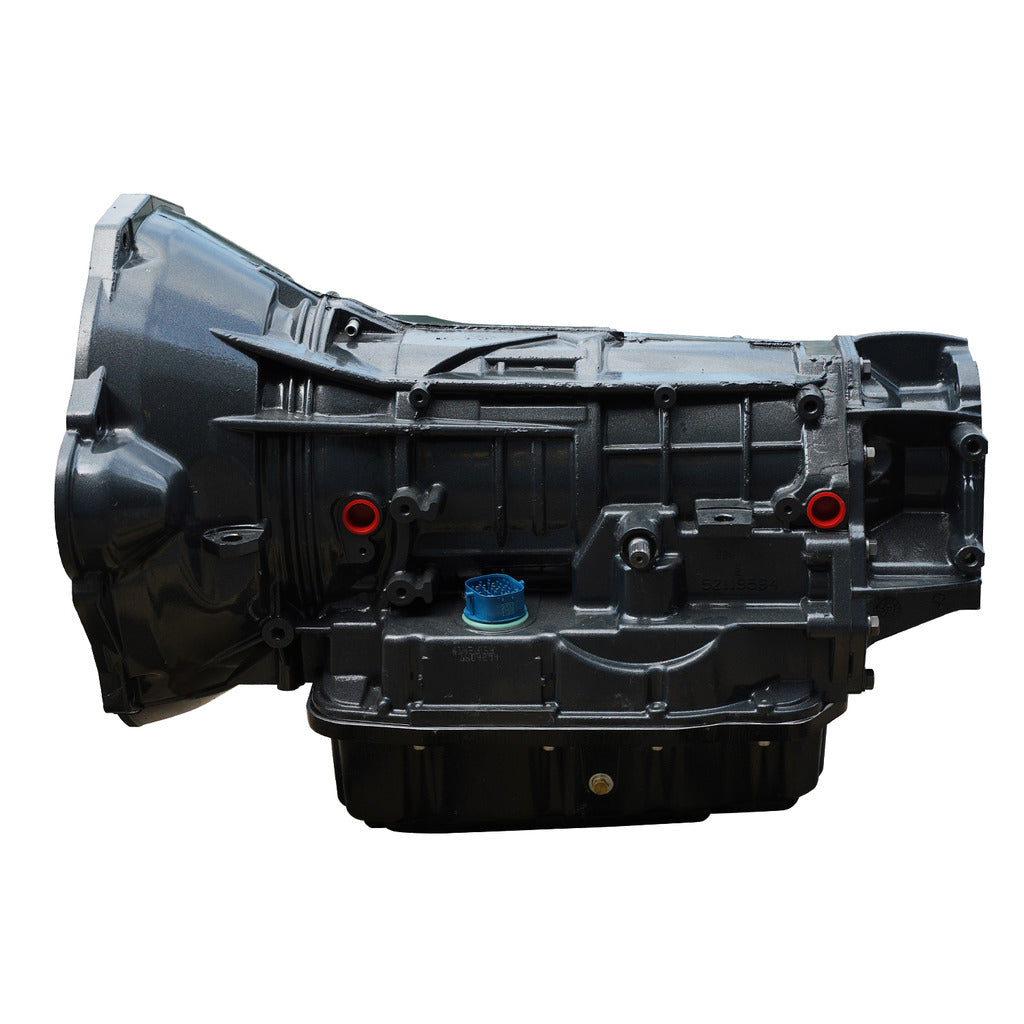

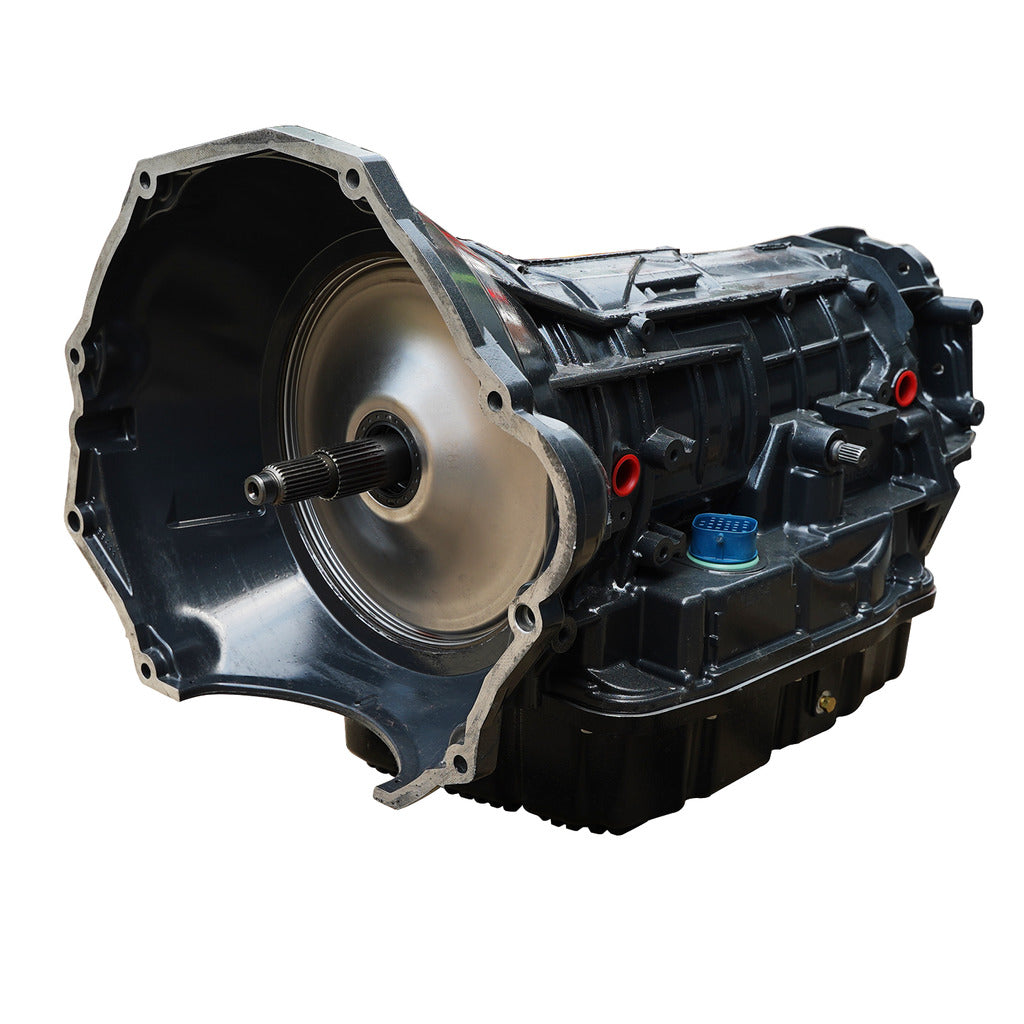

BD Diesel 1064294 - BD TowMaster Dodge 68RFE Transmission 2019-2024 4wd

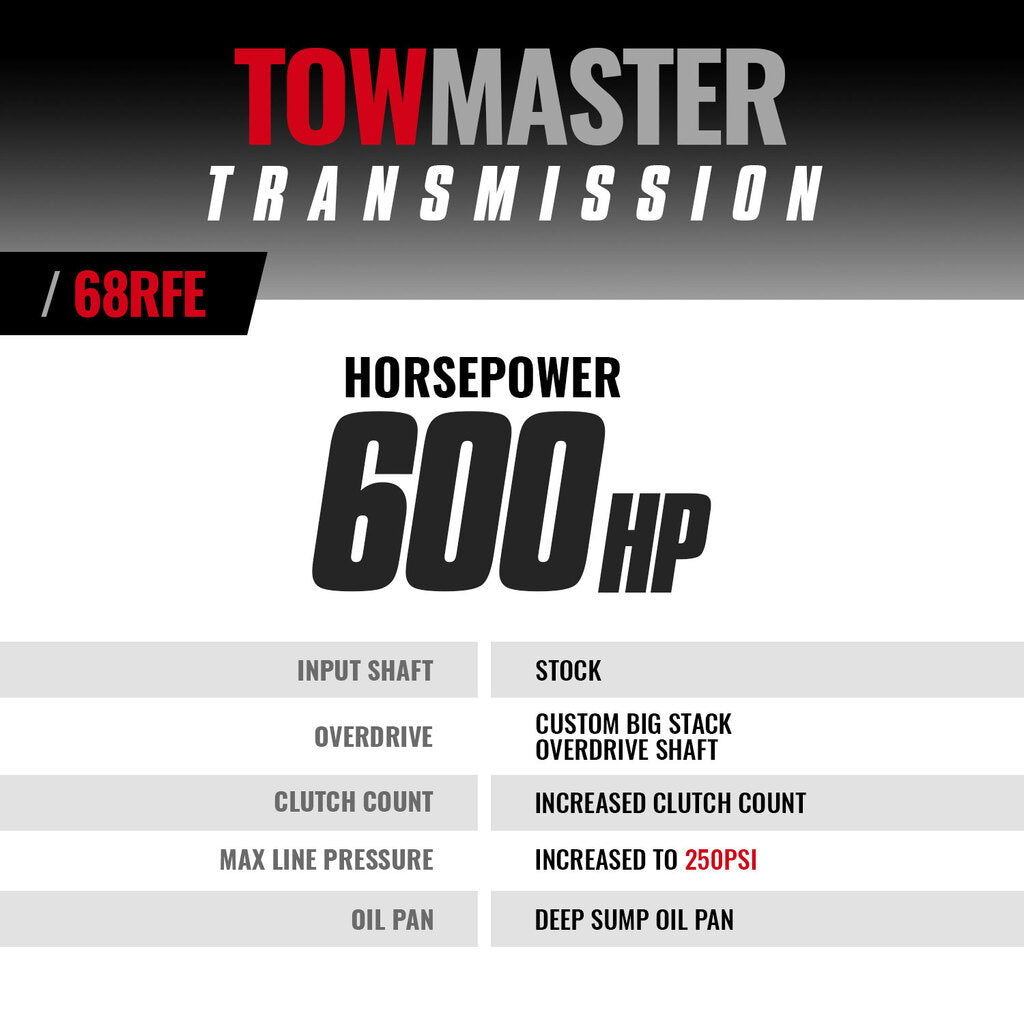

BD TowMaster Dodge 68RFE Transmission - 2019-2024 4wd
BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces.
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
Suggested Product: 1071220X
Category: Automatic Transmissions
Drivetrain: 4WD
Engine: 6.7L Cummins 19-up
Make: Dodge
