BD Diesel 1030606-5/8 - Xtrude Transmission Cooler with Fan Complete Kit for 5/8in Lines (Silverado/Sierra)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
BD Diesel 1030606-5/8 - Xtrude Transmission Cooler with Fan Complete Kit for 5/8in Lines (Silverado/Sierra)

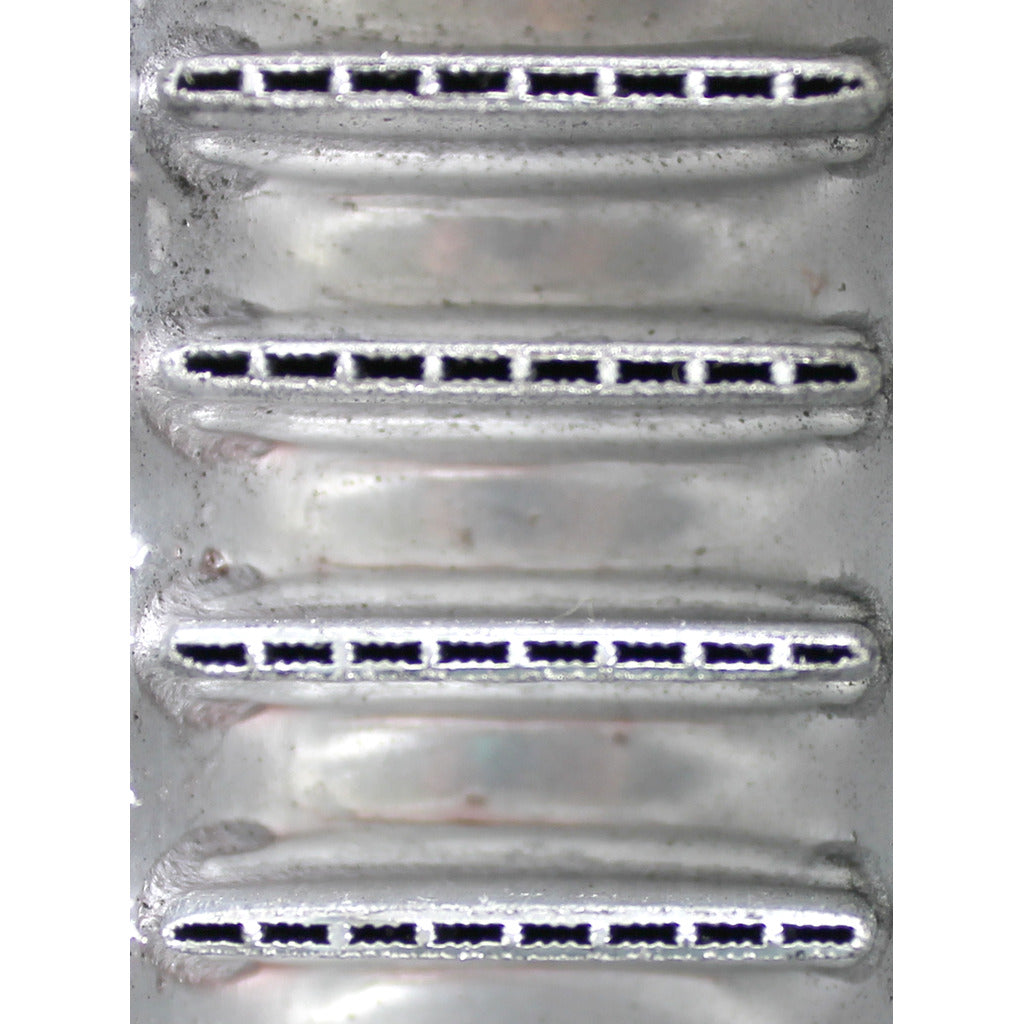

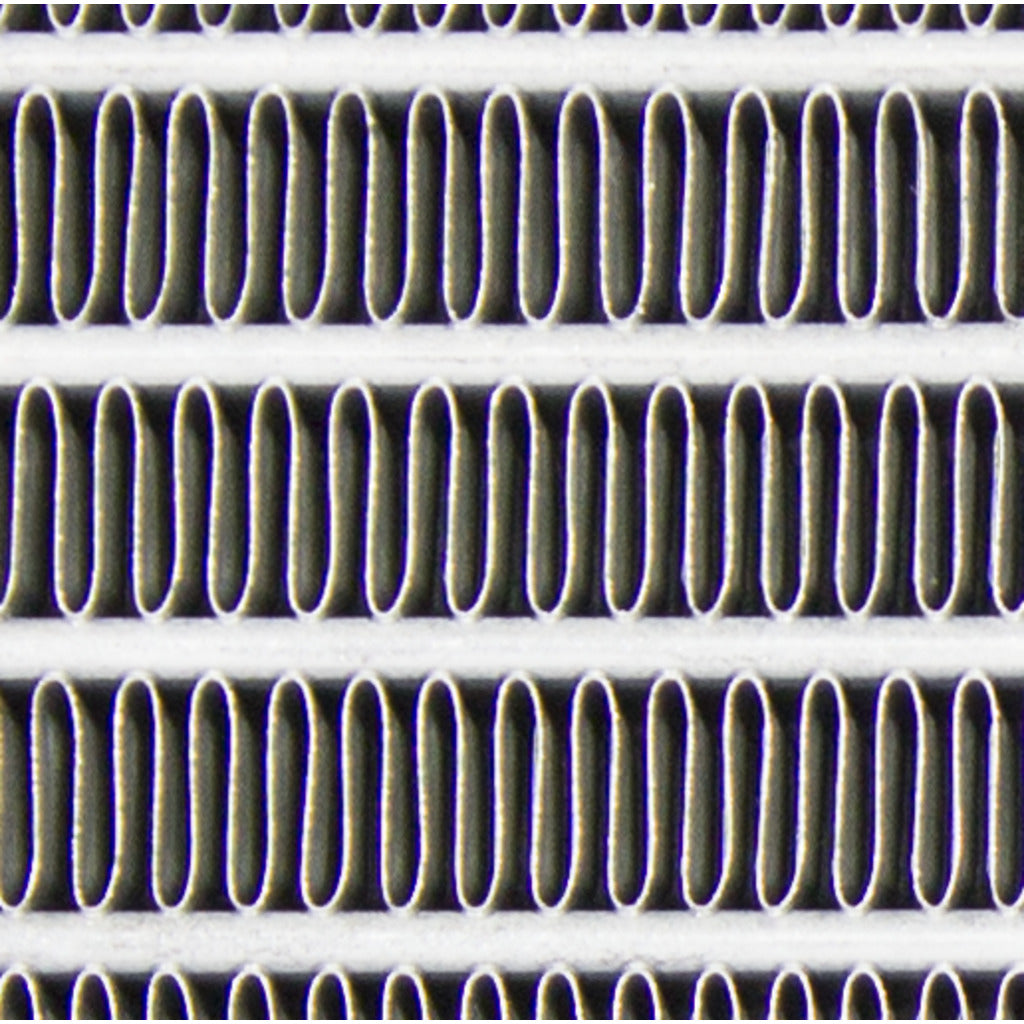

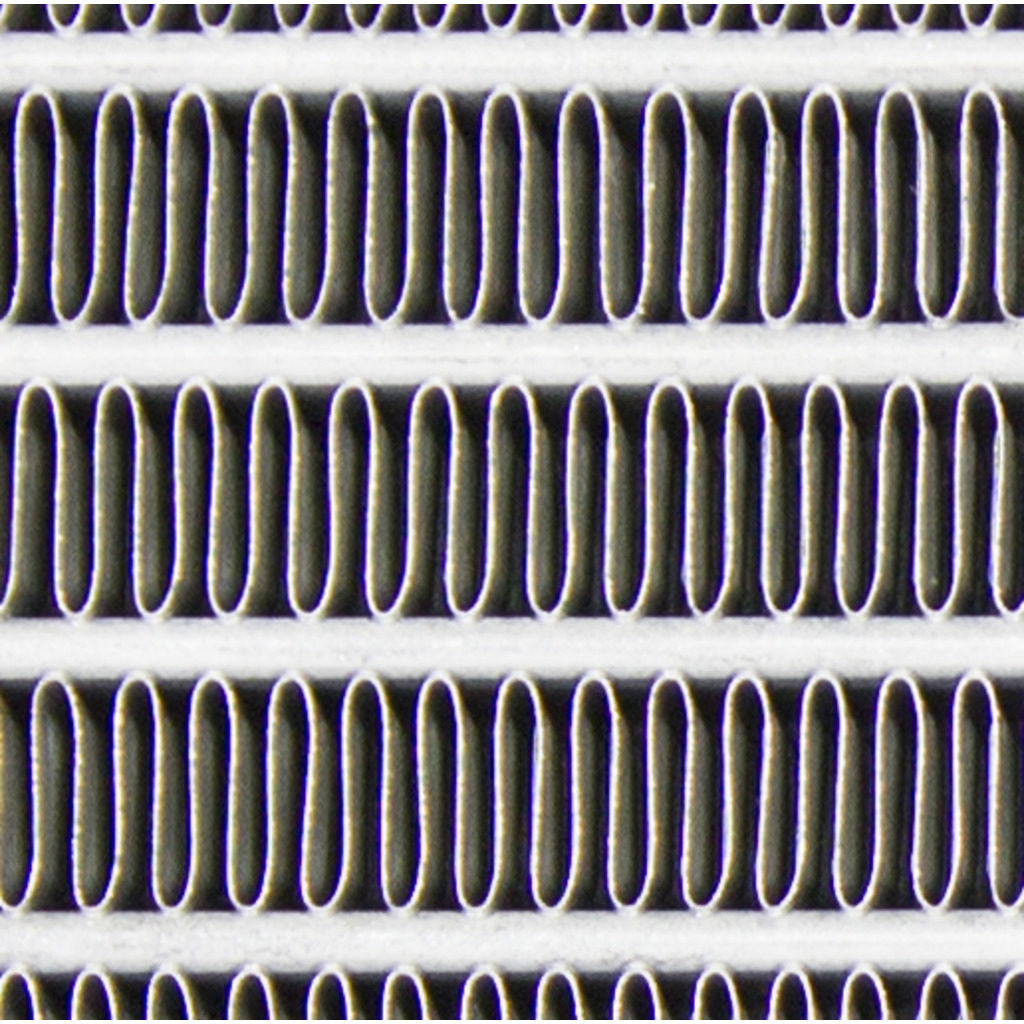

Coolers, providing 22 percent more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling.
Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control.

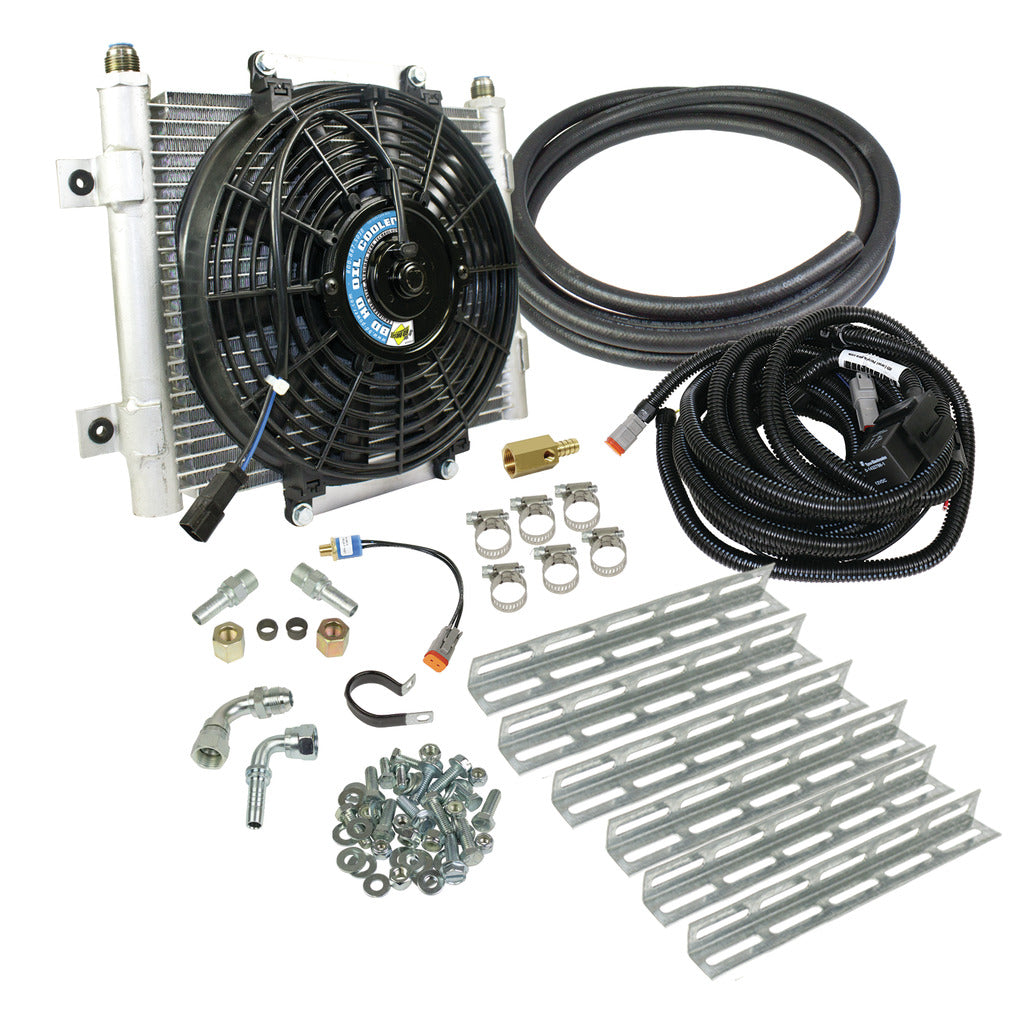

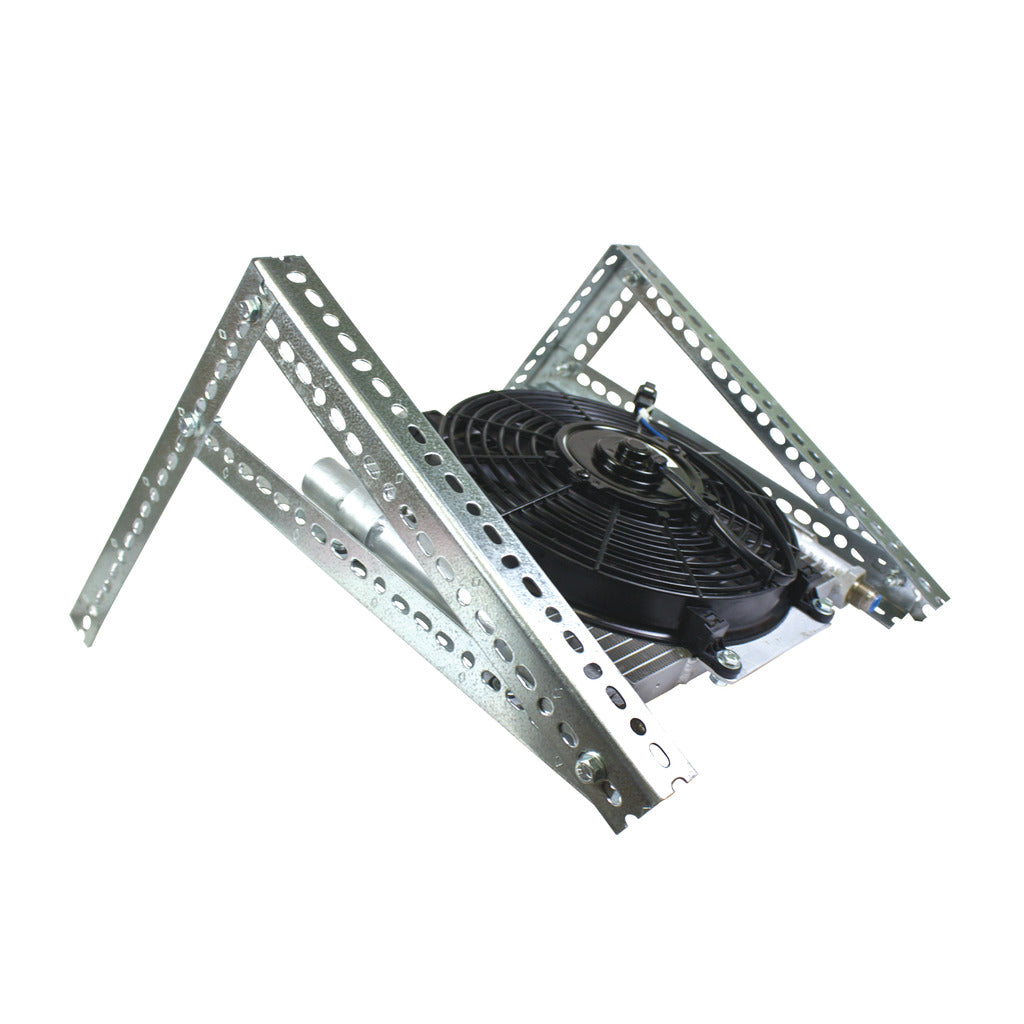

This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal.
The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
Details:
- Series: Xtrude
- Ems Code: 4
- Engine Years: Universal
- Installation Time: 3.5 Hours
- Fits: 2001-2016 Silverado/Sierra 2500 HD/3500
- Shipping Restriction: This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states
- Sold As: Kit
- Warranty: 12-Months/24,000 Miles
