Baer Brakes 6801328RP - FORD SN95 '99-04 Hydroboost Remaster, Black

Name: Baer Brakes 6801328RP - FORD SN95 '99-04 Hydroboost Remaster, Black
Brand: Baer Brakes
SKU: HKMJ-6801328RP
Price: 460.95 USD
Availability: InStock

Baer Brakes | SKU: HKMJ-6801328RP

$460⁹⁵ $518⁹⁵

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Baer Brakes 6801328RP - FORD SN95 '99-04 Hydroboost Remaster, Black

Master Cylinder - Remaster - 1.125 in Bore - Integral Reservoir - Passenger Side Port - Aluminum - Black Anodized - Each

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1-1/8 in. Bore, Right Side Ports, Black Anodized, with a SN95 Hydroboost Mounting Flange.

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1-1/8" bore, right side ports and a 2-bolt mounting flange designed specifically for the 1999-04 SN95 Mustang hydroboost. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings.

2-Bolt SN95 Hydrboost Firewall Mounting Bracket
Fully machined 6061 T6 billet aluminum construction
Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
Right Side Ports

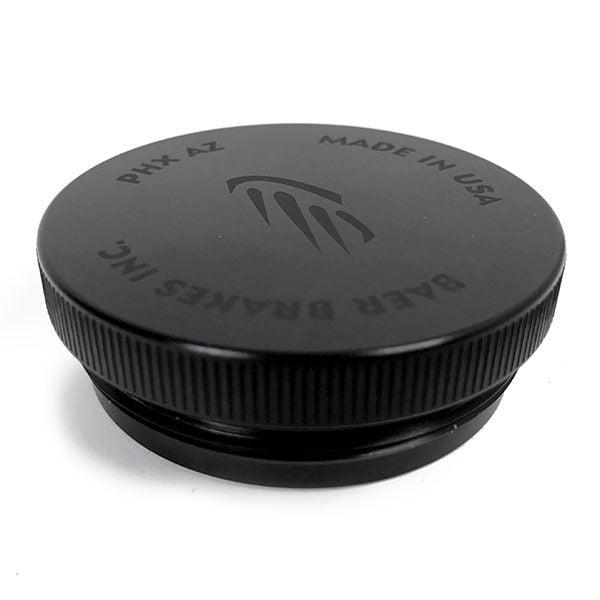

Machined and knurled screw-on caps for easy access to fill without spillage
Anodized Remasters feature laser-etched logos

Area: 0.97

Bleeder Hoses Included: No

Bleeder Screw Included: No

Bore Size: 1.125

Box Count: 1

Brake Booster Included: No

Brake Pressure Switch(s) Included: No

Brand: Baer Brakes

Category: Brake

Connector For Warning Light: No

Emission Code: 6

Export Description: Brake Components

Fittings Included: Yes

Flange Type: 2 Bolt, 1999-04 SN95 Mustang hydroboost specific

Gasket Or Seal Included: No

Grade Type: Premium

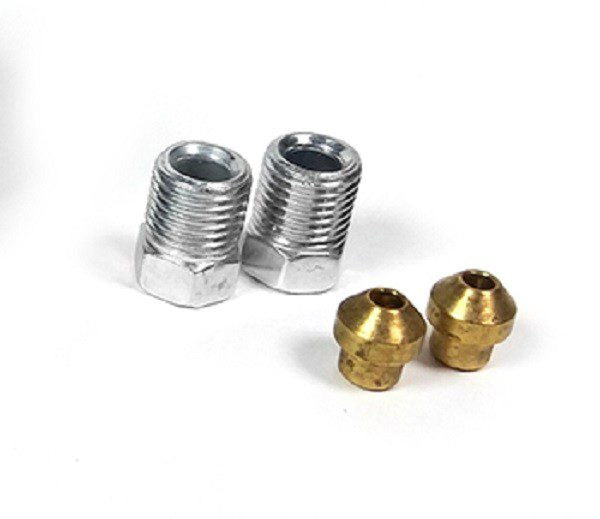

Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts

Master Cylinder Cap Included: Yes

Master Cylinder Material: 6061 T6 billet aluminum

Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat

Master Cylinder Outlet Port Fittings: 3/16" Inverted Flare and Tube Nuts w/ Brass Seat

Master Cylinder Outlet Port Quantity: 2

Master Cylinder Outlet Port Size: 3/8-24

Master Cylinder Port Exit: Right Side

Mounting Hardware Included: No

part type: Brake Master Cylinder

Product Line: Master Cylinder Assembly

Quantity: Sold Individually

Remaster Body Color: Black

Remaster Body Finish: Anodized

Remaster Caps Color: Black

Remaster Caps Finish: Anodized

Remaster lid Color: Black

Remaster lid Finish: Anodized

Removable Seats: Yes

Reservoir Included: Yes

Reservoir Material: 6061 T6 billet aluminum

Reservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoir

Reservoir Style: Integral

Reservoir Type: Dual

Sensor Included: No

Series: ReMaster

Stroke: 1.3

Sub Category: Brake Hydraulics

System Notes: black anodized,1-1/8IN bore,right port

Universal Or Specific Fit: Universal

Volume Ratio: 2:1

Warning: California Proposition 65
