Baer Brakes 6801300RP - ReMastr Gray Anod RP

ReMaster 4-Bolt Mopar Master Cyl Assembly, Gray, 1in bore, Right port

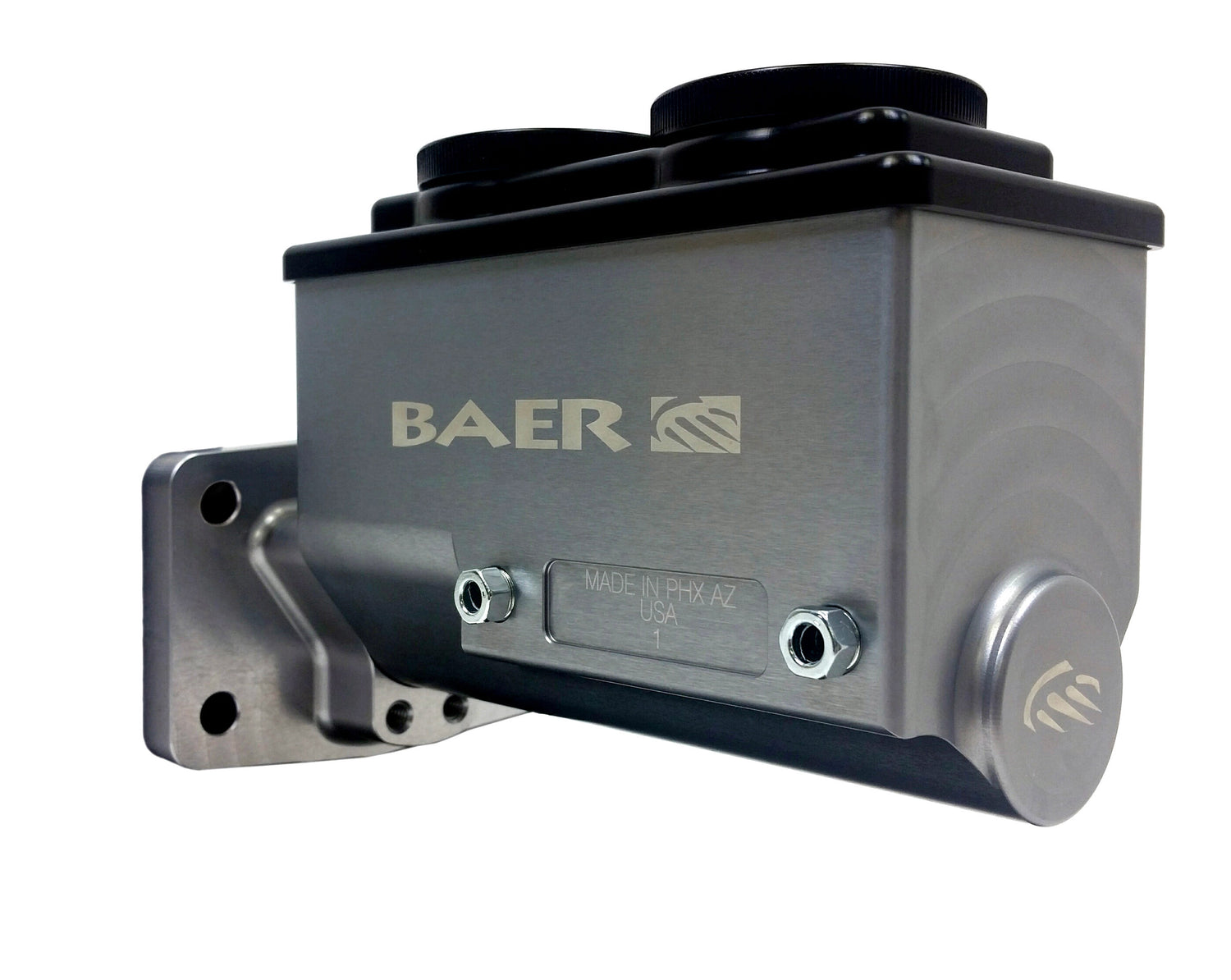

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1.000 in. Bore, Right Side Ports, Gray Anodized, with a early Mopar 4-bolt mounting flange.

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, right side ports and a 4-bolt mounting flange fitting many early Mopar applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available

  • 4-Bolt Mopar Firewall Mounting Bracket
  • Fully machined 6061 T6 billet aluminum construction
  • Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
  • Right Side Ports

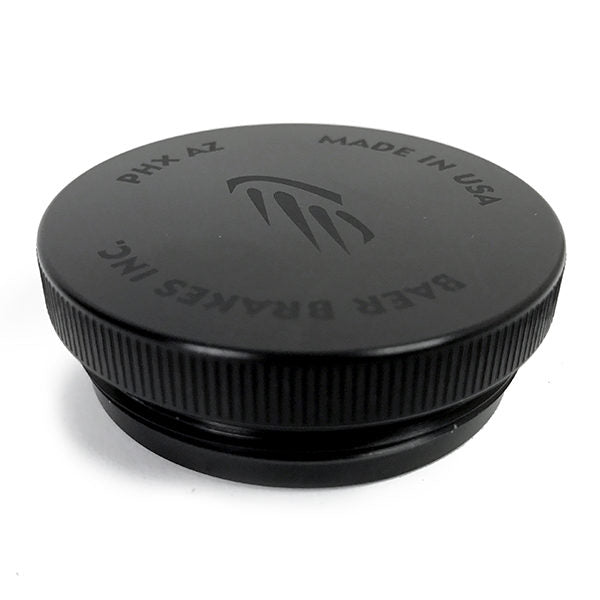

  • Machined and knurled screw-on caps for easy access to fill without spillage
  • Anodized Remasters feature laser-etched logos
Area: 0.78
Bleeder Hoses Included: No
Bleeder Screw Included: No
Bore Size: 1.00
Box Count: 1
Brake Booster Included: No
Brake Pressure Switch(s) Included: No
Brand: Baer Brakes
Category: Brake
Connector For Warning Light: No
Emission Code: 6
Export Description: Brake Components
Fittings Included: Yes
Flange Type: 4 Bolt Mopar
Gasket Or Seal Included: No
Grade Type: Premium

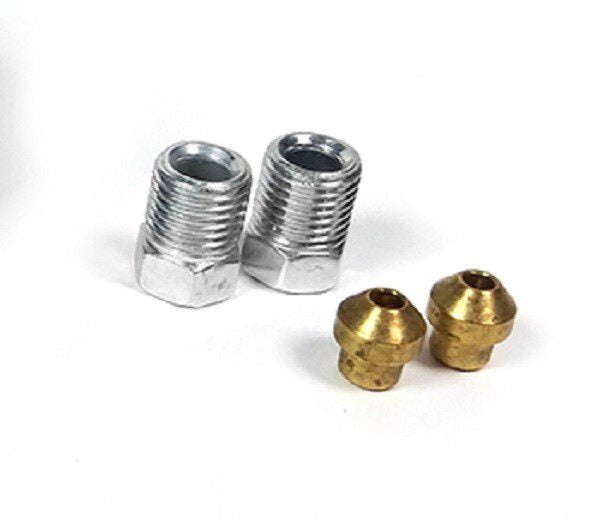

Includes: 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts
Master Cylinder Cap Included: Yes
Master Cylinder Material: 6061 T6 billet aluminum
Master Cylinder Outlet Port Fittings: Banjo w/o Brass Seat
Master Cylinder Outlet Port Fittings: 3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Master Cylinder Outlet Port Quantity: 2
Master Cylinder Outlet Port Size: 3/8-24
Master Cylinder Port Exit: Right Side
Mounting Hardware Included: No
part type: Brake Master Cylinder
Product Line: Master Cylinder Assembly
Quantity: Sold Individually
Remaster Body Color: Gray
Remaster Body Finish: Anodized
Remaster Caps Color: Black
Remaster Caps Finish: Anodized
Remaster lid Color: Black
Remaster lid Finish: Anodized
Removable Seats: Yes
Reservoir Included: Yes
Reservoir Material: 6061 T6 billet aluminum
Reservoir Size: 7oz per reservoir, Fill to 75% or 5.25oz per reservoir
Reservoir Style: Integral
Reservoir Type: Dual
Sensor Included: No
Series: ReMaster
Stroke: 1.1
Sub Category: Brake Hydraulics
System Notes: gray anodized,1IN bore,right port
Universal Or Specific Fit: Universal
Volume Ratio: 2:1
Warning: California Proposition 65
