Baer Brakes 4302501CY - SS4+ Brake System Rear

Baer Brakes  |  SKU: HKMJ-4302501CY
$2,39995 $2,69995

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Baer Brakes 4302501CY - SS4+ Brake System Rear

Baer Brakes 13" SS4+ Rear Brake Kit, Comp Yellow, SDZ

Fits 1971-76 GM Full Size Passenger Cars w/OE Large Pattern 10/12 Bolt Bearing on Axle (BOA) Housing Ends

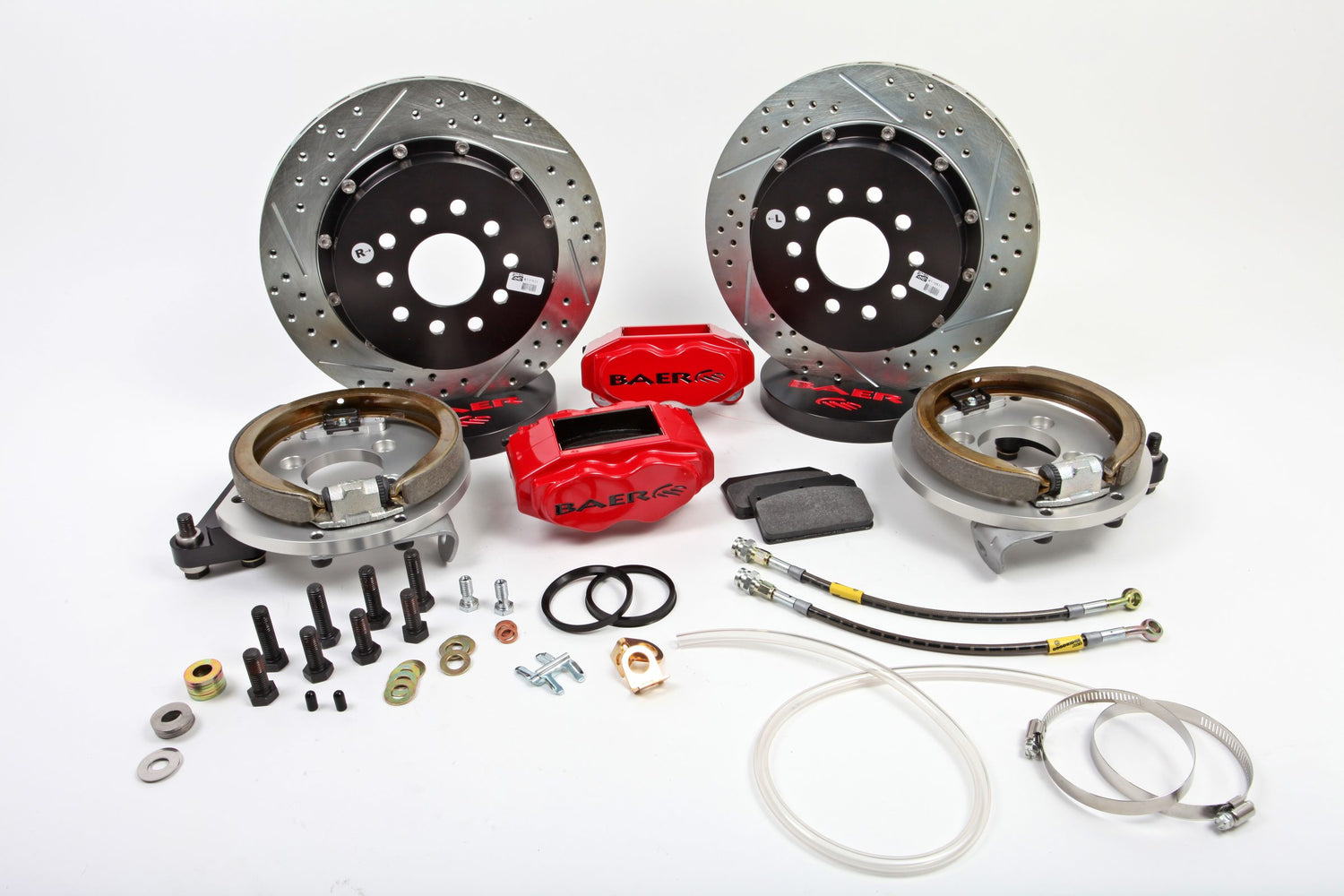

This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot, drill, zinc-plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels.

  • 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced Forged or Billet Aluminum
  • Powder Coated Finish
  • Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
  • Dual Seals, Dust/Weather & Pressure
  • 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Applications: GM Full Size Pass Cars 71-76
Axle: Rear
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: S4

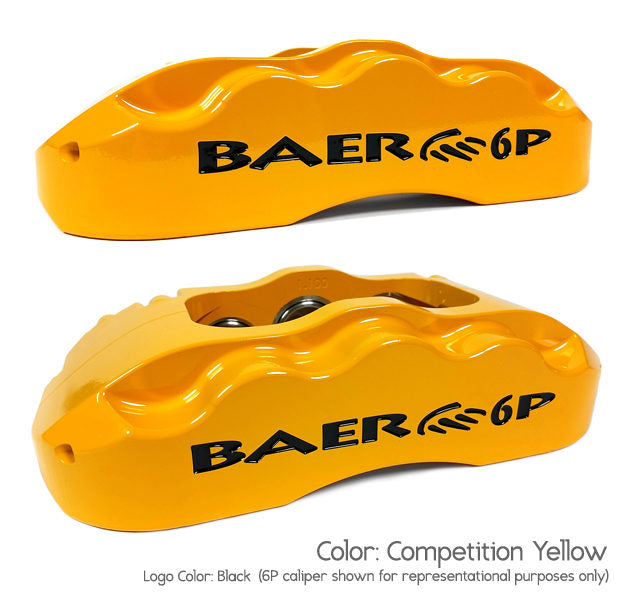

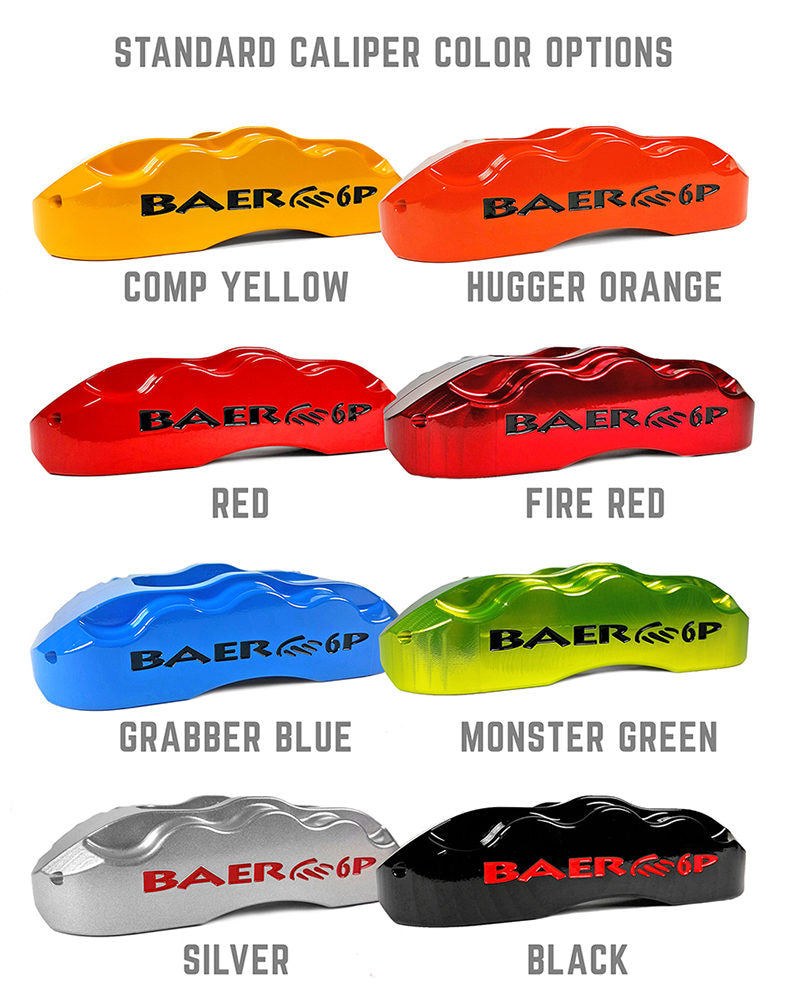

Caliper Color: Comp Yellow
Category: Brake
Disc Brake Caliper (Rear) Piston Quantity: 4
Disc Brake Caliper (Rear) Type: Fixed
Disc Brake Pad FMSI Number: DR1-C
Disc Brake Rotor (Rear) Construction: Vented
Disc Brake Rotor (Rear) Outside Diameter: 13.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Large Pattern 10/12 Bolt Bearing on Axle (BOA) Housing Ends
Grade Type: Performance
Hose Material: Steel Braided
Includes Park Brake: Yes
Includes Park Brake Cables: No
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: 13 Inch SS4+
Product Type: 13 Inch SS4+ Rear Brake Kit
Rotor Thickness: .810
Rotor Type: 2-Piece
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: For stock bearing on axle rear end, 3.060" axle register
Template: S135H
Warning: California Proposition 65

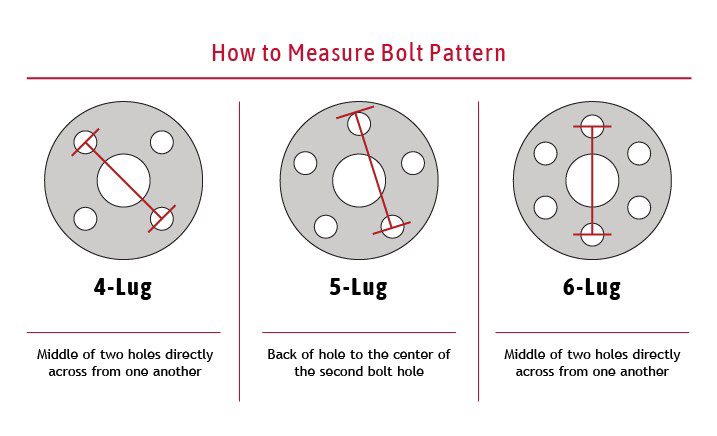

Wheel Lug/Bolt Pattern: 5x5.00
