Baer Brakes 4302135MG - Extreme Brake System Rear

Baer Brakes  |  SKU: HKMJ-4302135MG
$4,55595 $5,01154

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

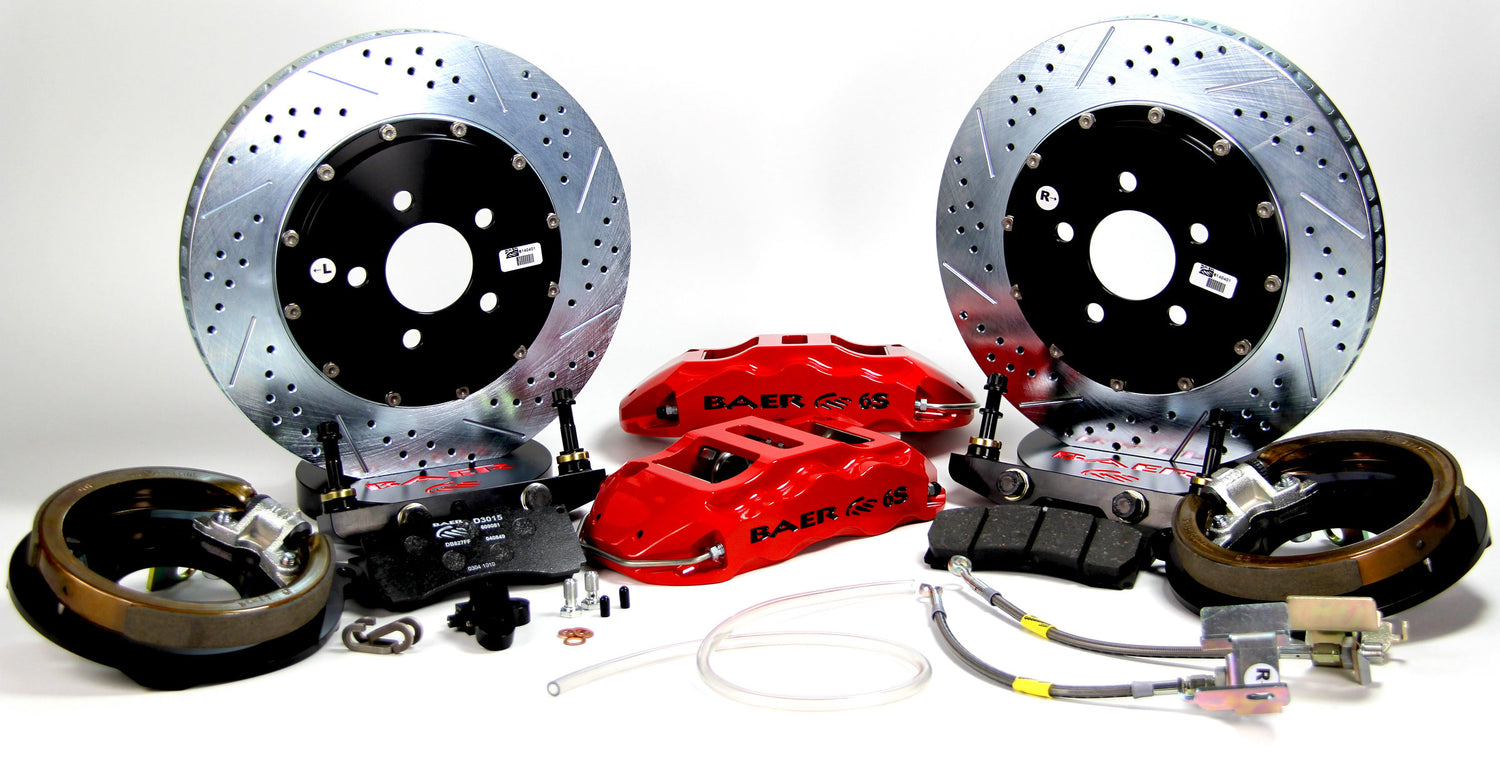

Baer Brakes 4302135MG - Extreme Brake System Rear

Baer Brakes 14" Extreme Rear Brake Kit, Monster Green, SDZ

Fits 2005-14 GM 1500 Trucks w/OE Rear Drum Brakes (Drum to Disc Conversion)

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 1 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme fits most 18” or larger wheels.

  • 1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced 2618 Aluminum Forging
  • Powder Coated Finish
  • Stainless Steel Pistons, Abutments and Noise Suppression Clips
  • Staggered Pistons to Minimize Uneven Pad Wear
  • Dual Seals, Dust/Weather & Pressure
  • 1-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Applications: GM C/K1500 Trucks 99-19
Axle: Rear
Brand: Baer Brakes
Caliper: 6S

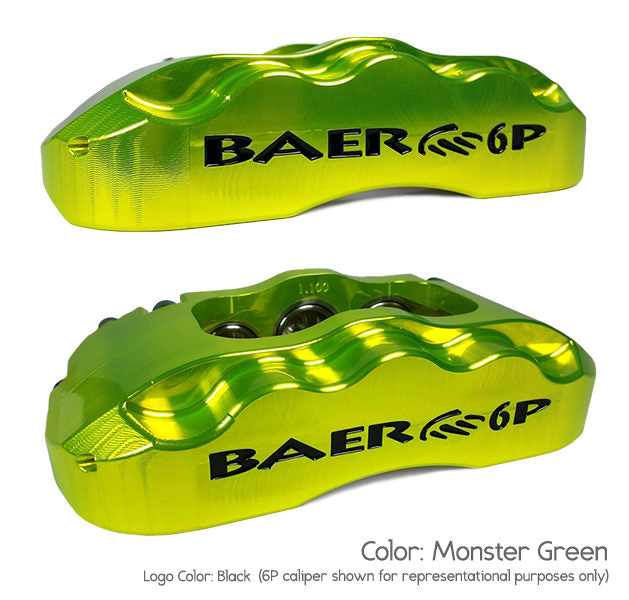

Caliper Color: Monster Green
Category: Brake
Disc Brake Caliper (Rear) Piston Quantity: 6
Disc Brake Caliper (Rear) Type: Floating
Disc Brake Pad FMSI Number: D1247
Disc Brake Rotor (Rear) Construction: Vented
Disc Brake Rotor (Rear) Outside Diameter: 14.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Rear Drum Brakes (Drum to Disc Conversion)
Grade Type: Performance
Hose Material: Stainless Steel
Includes Park Brake: Yes
Includes Park Brake Cables: No, See Note
Lug Count: 6 Lug
Min Wheel Dia (verify using template): 18
part type: Disc Brake Upgrade Kit
Product Line: 14 Inch Extreme
Product Type: 14 Inch Extreme Rear Brake Kit
Rotor Thickness: 1.150
Rotor Type: 1-Piece
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed to fit 2005-14 GM 1500 Trucks w/OE drum brakes. Cust must purchase OE replacement cables from GM. Cab style, bed length, 2/4WD will need to be specified. We recommended cables from the 2004 model year.
Template: N228P
Warning: California Proposition 65

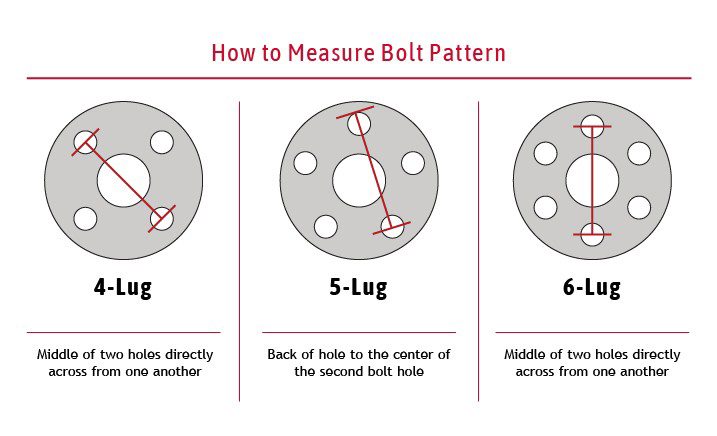

Wheel Lug/Bolt Pattern: 6x5.50
