Baer Brakes 4301586S - Pro+ Brake System Front

Baer Brakes  |  SKU: HKMJ-4301586S
$2,54995 $2,86895

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Baer Brakes 4301586S - Pro+ Brake System Front

Baer Brakes 13" Pro+ Front Brake Kit, Silver, SDZ

Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5" Drop Modular Spindles

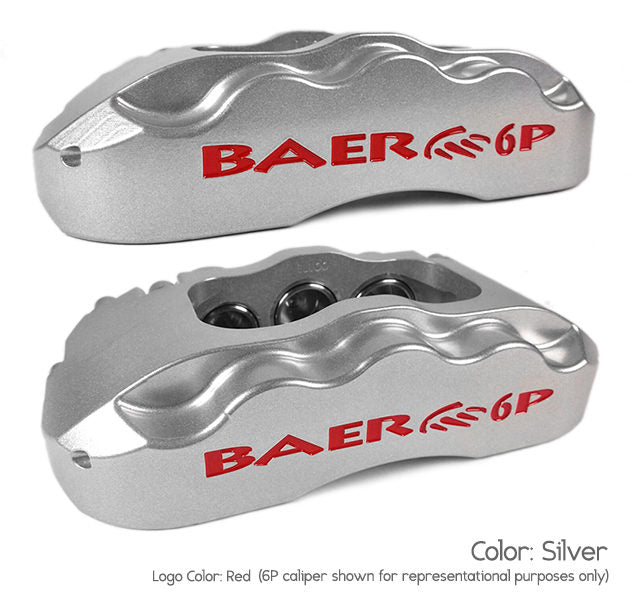

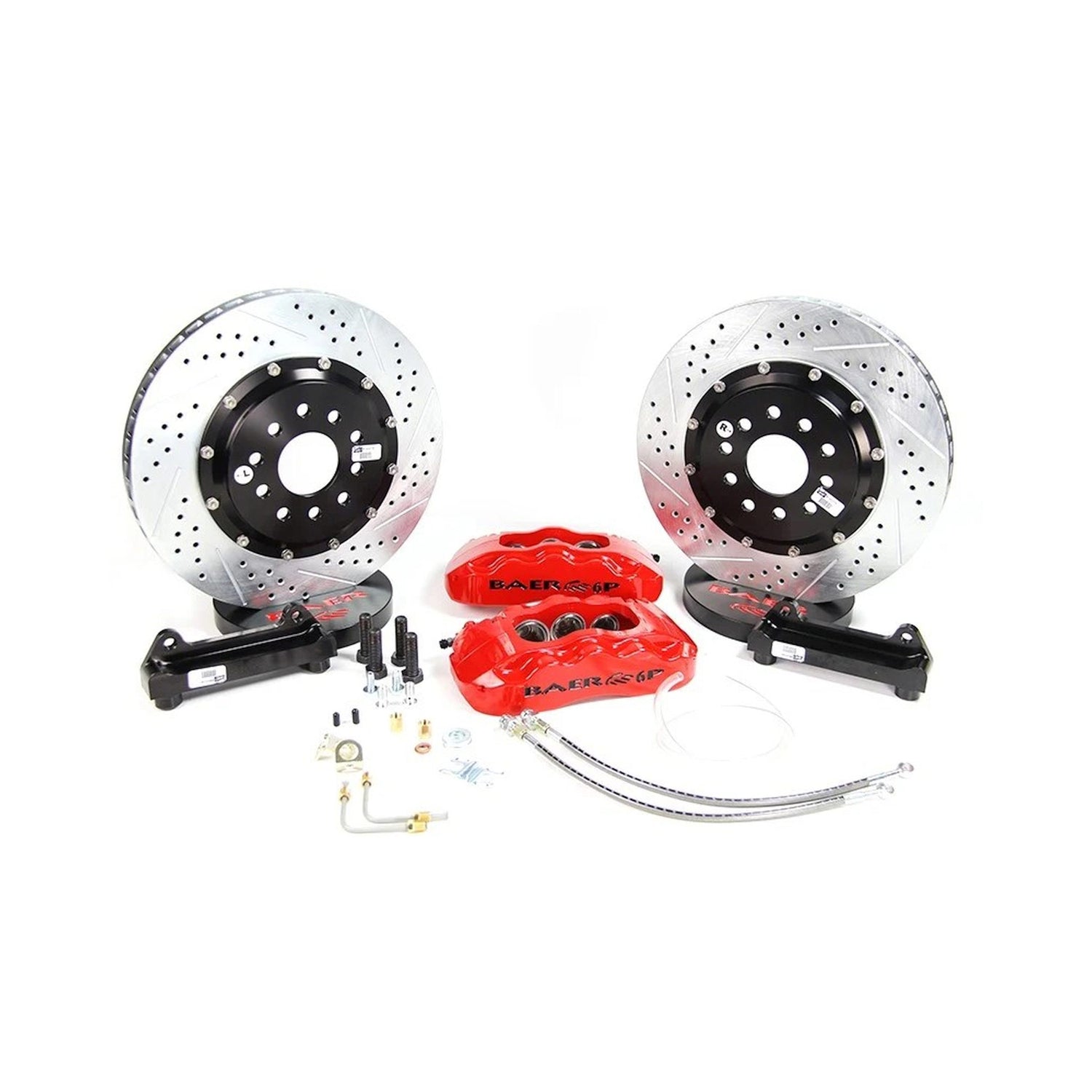

The Pro+ system comes with the 2-piece 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware and all mounting brackets, stainless braided hoses and hardware are also included. The 13" Pro+ is designed to fit most 17” or larger wheels.

  • 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced Forged or Billet Aluminum
  • Powder Coated Finish
  • Stainless Steel Pistons, Abutments and Noise Suppression Clips
  • Staggered Pistons to Minimize Uneven Pad Wear
  • Dual Seals, Dust/Weather & Pressure
  • 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Applications: GM C10 Trucks 60-87
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: 6P
Caliper Color: Silver
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 6
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: D0731
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 13.000
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/DSE Forged Aluminum Modular Spindles
Grade Type: Performance
Hose Material: Steel Braided
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 17
part type: Disc Brake Upgrade Kit
Product Line: 13 Inch Pro+
Product Type: 13 Inch Pro+ Front Brake Kit
Rotor Thickness: 1.100
Rotor Type: 2-Piece
Spindle Type: DSE Forged Alum Modular 2.5" Drop Spindles
Spindles Included: No
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included.
Template: Q072H
Wheel Lug/Bolt Pattern: 5x4.75/5x5.00
