Baer Brakes 4261647S - S4 Brake System Front

Baer Brakes  |  SKU: HKMJ-4261647S
$82495 $1,03195

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Baer Brakes 4261647S - S4 Brake System Front

Baer Brakes 11" SS4 Int Hub, Front Brake Kit, Silver, SDZ

Fits 1970-73 Ford Mustang, 70 Fairlane, 70 Falcon, 70-74 Maverick, 70-71 Torino & 1970-73 Mercury Cougar, 71-74 Comet, 70-71 Montego, 70 Cyclone w/OE Drum Brake Spindle

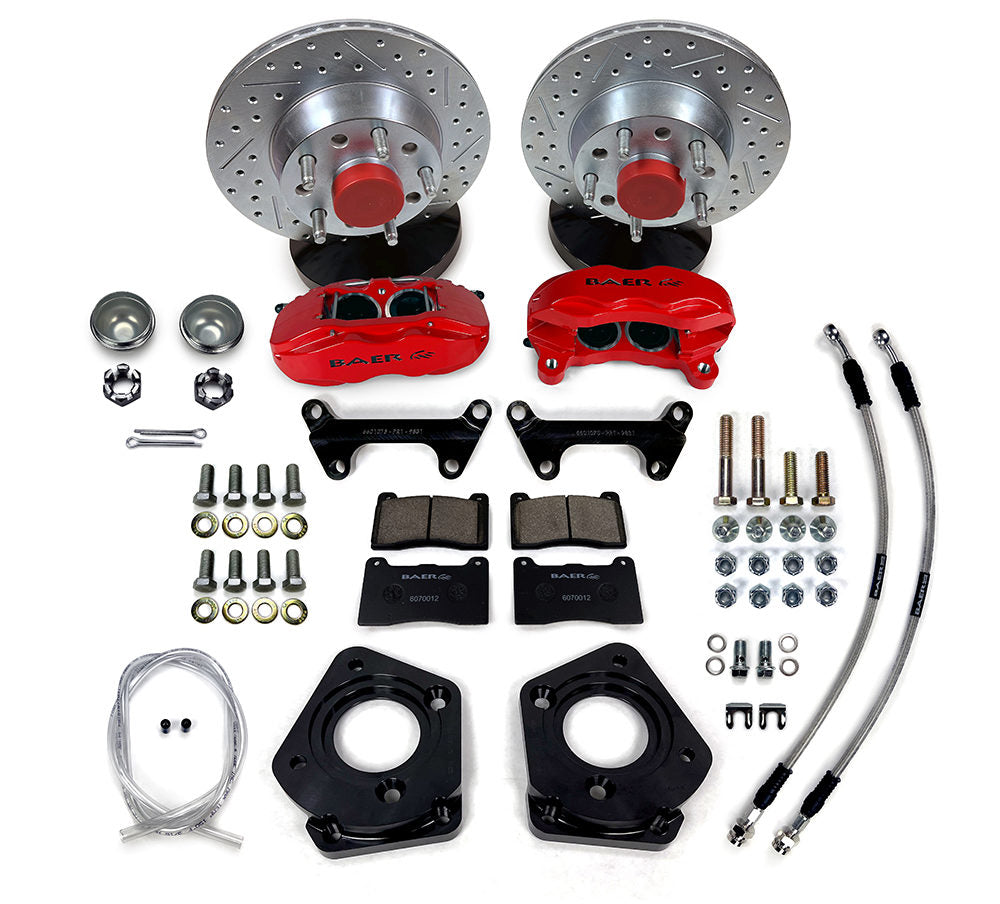

This system features the 4-piston, S4TL caliper mounted to a 11", 1-Piece slot, drill, zinc plated integral hub rotor. The S4TL caliper has D.O.T compliant dust and weather seals with a top load design for quick and simple pad changes. Rotors come with bearing races installed and premium bearings packed with Redline synthetic grease and new dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 11" SS4 is designed just like Baer's larger systems, but in a smaller package for 15" wheels.

  • 2-Piece, 4-Piston, S4TL, Top Loaded Caliper Manufactured in Phoenix, AZ
  • CNC Machined from US Sourced Forged or Billet Aluminum
  • Powder Coated Finish
  • Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
  • Dual Seals, Dust/Weather & Pressure
  • 1-Piece Slot, Drilled, Zinc-Plated Integral Hub Rotor
Applications: Mercury Comet 71-74 (w/Drum)
Applications: Ford Mustang 70-73 (w/Drum)
Applications: Ford Fairlane 70 (w/Drum)
Applications: Ford Falcon 70 (w/Drum)
Applications: Ford Torino 70-71 (w/Drum)
Applications: Mercury Cougar 70-73 (w/Drum)
Applications: Ford Maverick 70-74 (w/Drum)
Applications: Mercury Cyclone 70 (w/Drum)
Applications: Mercury Montego 70-71 (w/Drum)
Axle: Front
Brake Hose DOT Approved: Yes
Brand: Baer Brakes
Caliper: S4TL

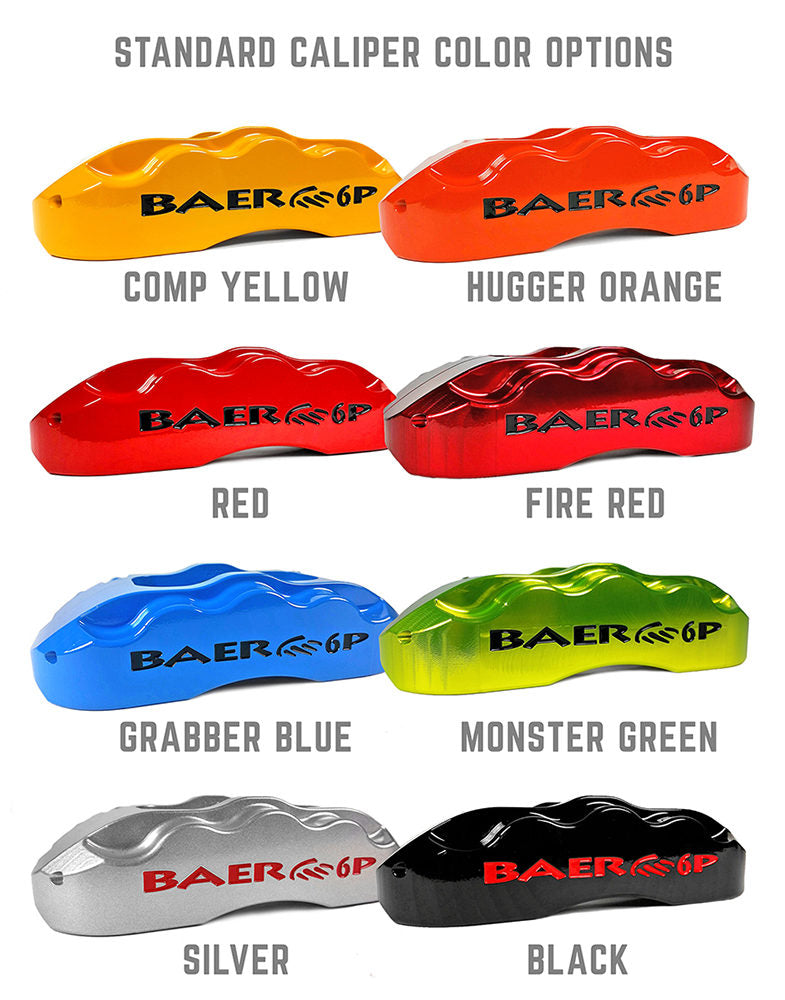

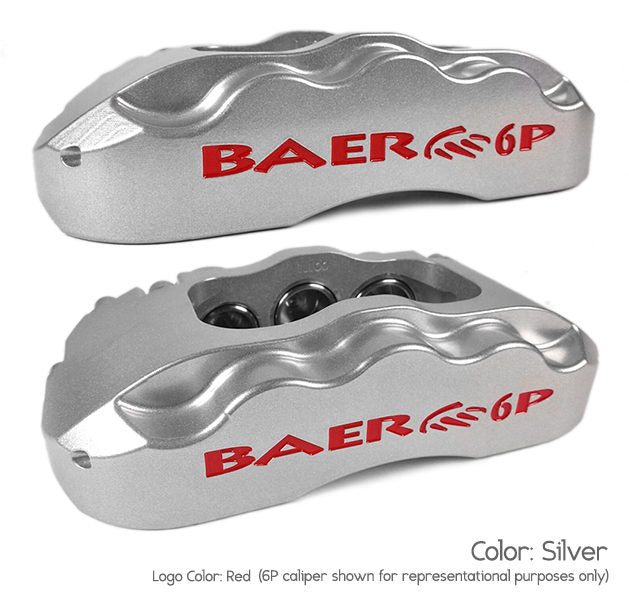

Caliper Color: Silver
Category: Brake
Disc Brake Caliper (Front) Piston Quantity: 4
Disc Brake Caliper (Front) Type: Fixed
Disc Brake Pad FMSI Number: 6070012
Disc Brake Rotor (Front) Construction: Vented
Disc Brake Rotor (Front) Outside Diameter: 11.290
Emission Code: 6
Export Description: Brake Components
Fitment Notes: w/OE Drum Brake Spindles
Grade Type: Performance
Hose Material: Steel Braided
Lug Count: 5 Lug
Min Wheel Dia (verify using template): 15
part type: Disc Brake Upgrade Kit
Product Line: 11 Inch SS4
Product Type: 11 Inch SS4 Front Brake Kit
Rotor Thickness: .940
Rotor Type: 1-Piece Integral Hub
Solid Or Vented Type Rotor: Vented
Sub Category: Service Kits
Surface Type: Slotted, Drilled & Zinc Plated
System Notes: Designed to be used with OE Ford spindles
Template: ST168B
Warning: California Proposition 65

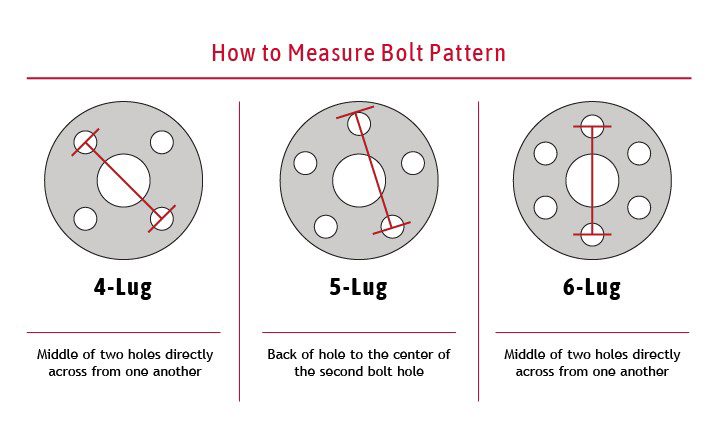

Wheel Lug/Bolt Pattern: 5x4.50
Wheel Stud Size: 1/2-20 x 2.25 inch
