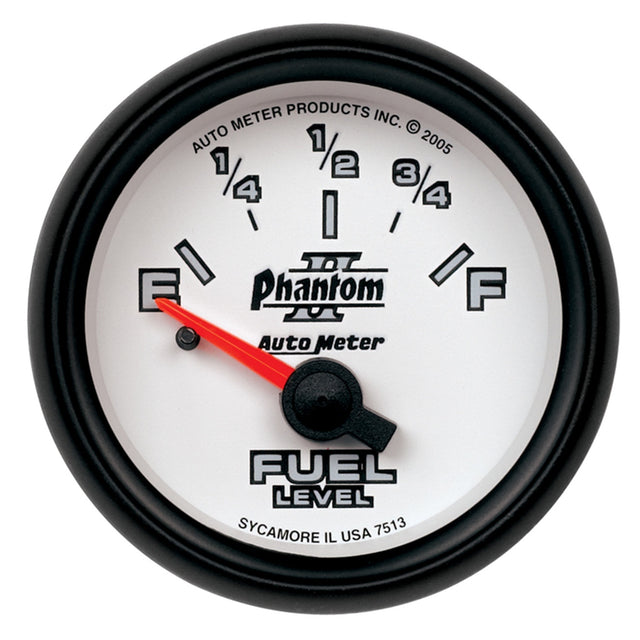

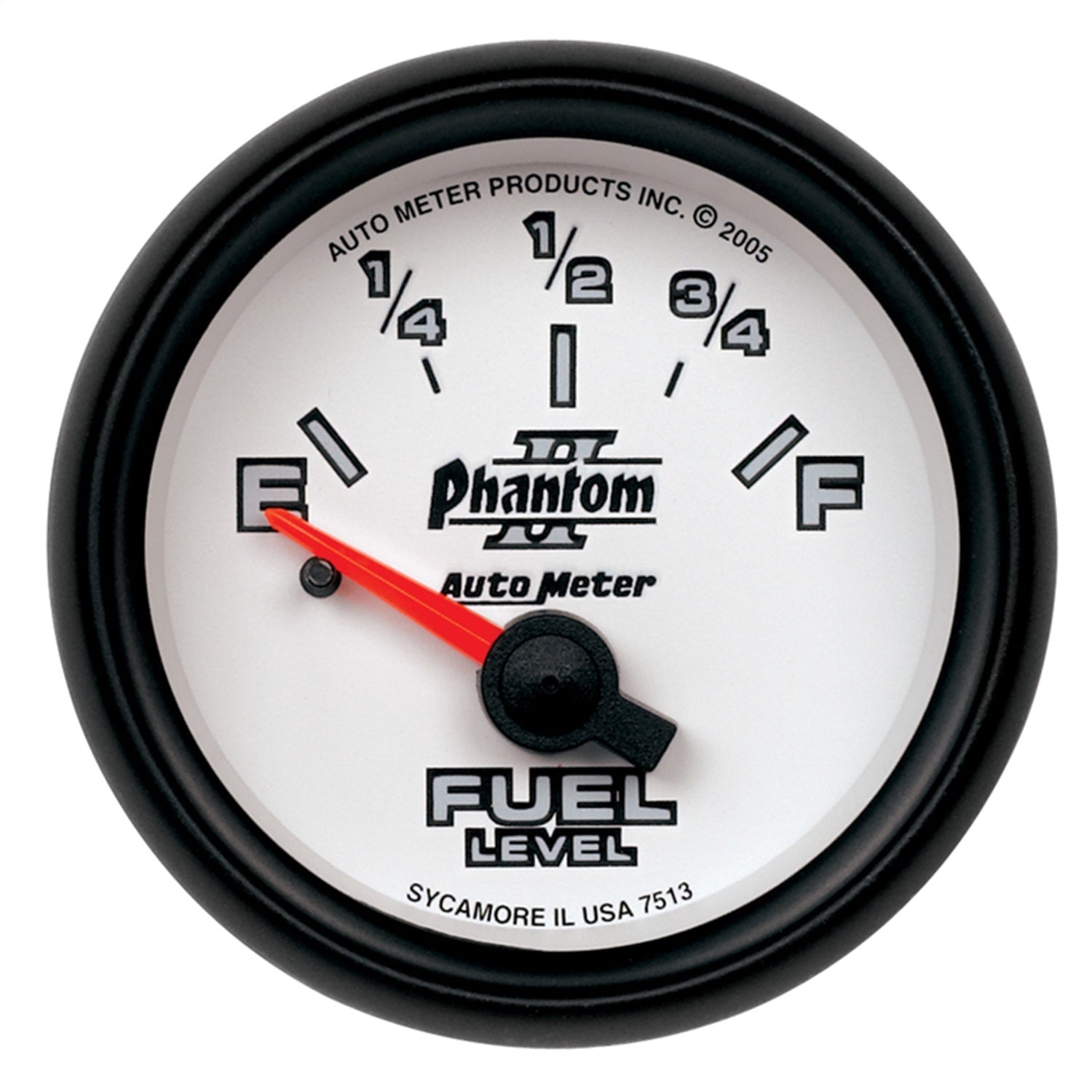

AutoMeter 7513 - Phantom 2-1/16in 0-90 OHM Fuel Level Gauge
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
AutoMeter 7513 - Phantom 2-1/16in 0-90 OHM Fuel Level Gauge
Fuel Level Gauge - Phantom II - 0-90 ohm - Electric - Analog - Short Sweep - 2-1/16 in Diameter - White Face - Each

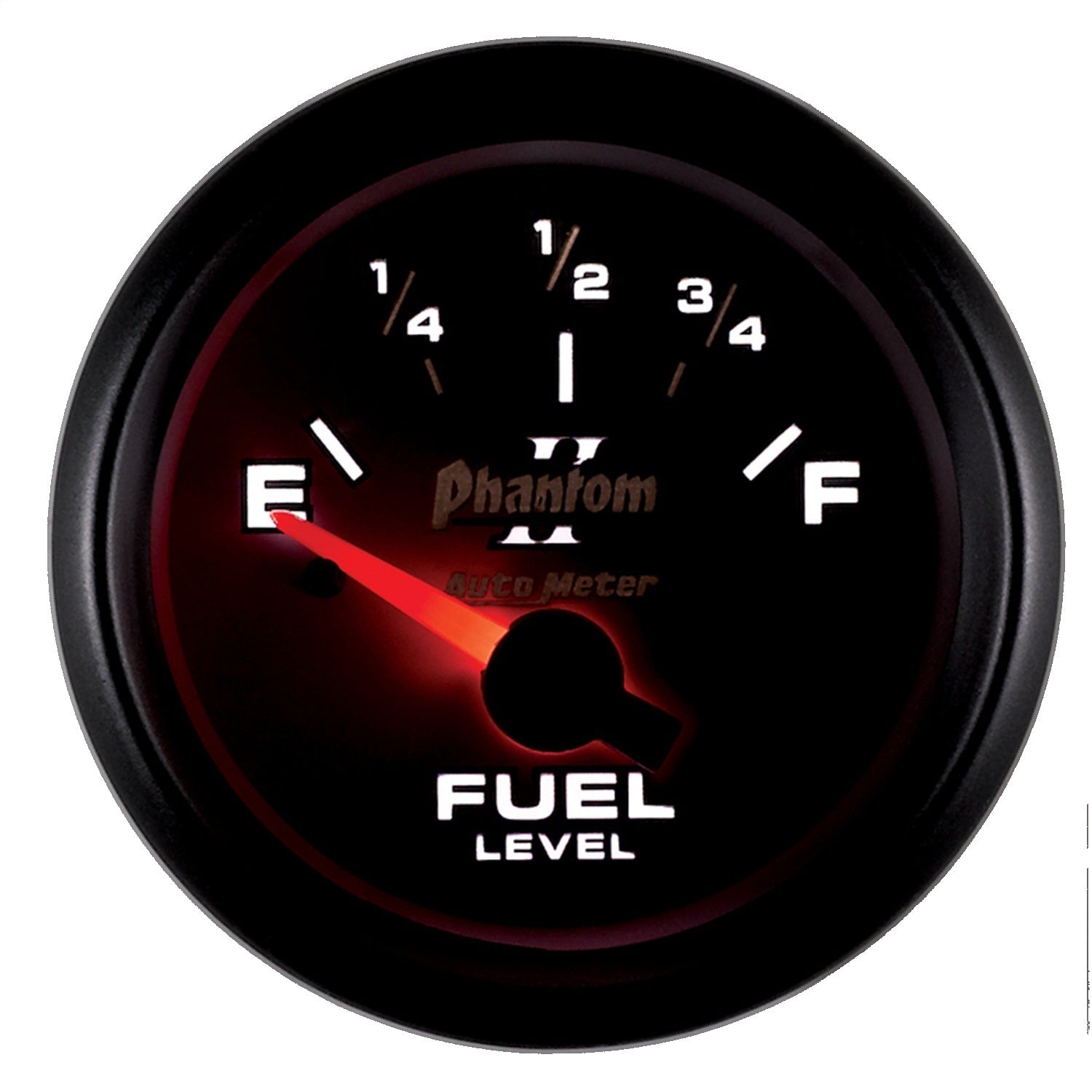

Modern white LED through-the-dial lighting provides clear visibility during nighttime use
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Modern White LED Through-The-Dial Lighting
- 12 And 16V Compatible
- User Definable Resistance Between 0-280 Ohms
- Incl. 20 ft. Wiring Harness
- Incl. Mounting Hardware/Instructions
- Digital Stepper Motor Provides Unmatched Accuracy
