AutoMeter 7503-M2 - Phantom II Gauge Vac/Boost 2 1/16in -1 - +2 Bar Mechanical Phantom II

AutoMeter  |  SKU: AM-7503-M2
Sale price $9599 Regular price $10559

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

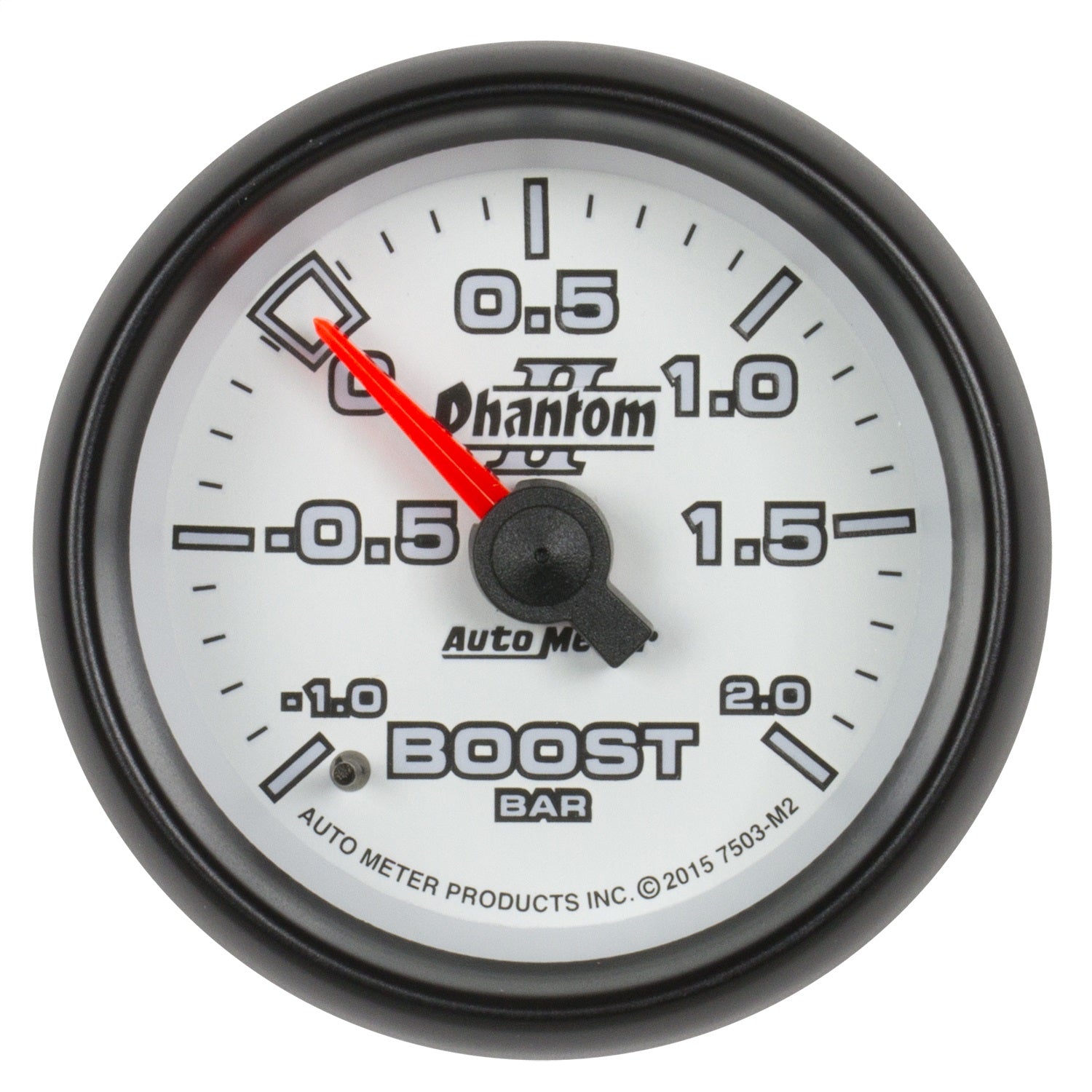

AutoMeter 7503-M2 - Phantom II Gauge Vac/Boost 2 1/16in -1 - +2 Bar Mechanical Phantom II

GAUGE, VAC/BOOST, 2 1/16" , -1 - +2 BAR, MECHANICAL, PHANTOM II

Modern white LED through-the-dial lighting provides clear visibility during nighttime use

The standard in the industry, AutoMeter's Mechanical Boost/Vac Gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn't another gauge on the market that can lay claim to the levels of accuracy or durability you'll find here. A simple 1/8 in. NPT pressure connection requires no electrical hookup for operation. Includes 1/8 in. NPT fittings and nylon line kit.

  • Modern White LED Through The Dial Lighting Provides
  • Clear Visibility During Nighttime Use
  • AutoMeters Race Proven Mechanical Instruments Provide Trusted
  • Accuracy While Being Simple To Install
  • No Electrical System Required For Gauge Operation
  • Compatible With Every Street Or Race Vehicle
  • Gauge Kit Includes 1/8 in Nylon Line/T Fitting/Vacuum Fitting
  • Compression Fittings/Mntng Hrdwr/Detailed Instruc. For Install
  • Mechanical Movements Provide Accuracy
  • And Durability Even In The Harshest Environments
Series: PHANTOM II
Dial Color: White
Lens Style: Flat, Clear
Bezel Color: Black
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: LED
Lighting Color: White
Pointer Color: Fluorescent Red
Movement: Mechanical
Gauge Type: Boost/Vacuum
Range: -1-+2 BAR
Includes Adapter/Fitting: 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Includes Tubing: 10 ft. nylon tubing
Includes Mounting Hardware: 2230
Cross Sell: 3224, 3227, 3228, 3229, 3226
Upsell: 3224, 3227, 3228, 3229, 3226
Related Item: 0423XL, EP-800
