AutoMeter 6013 - Pro-Comp Race Dash Display 0-3-10.5K RPM / MPH / FUELP / OILP / OILT / WTMP / VOLT
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

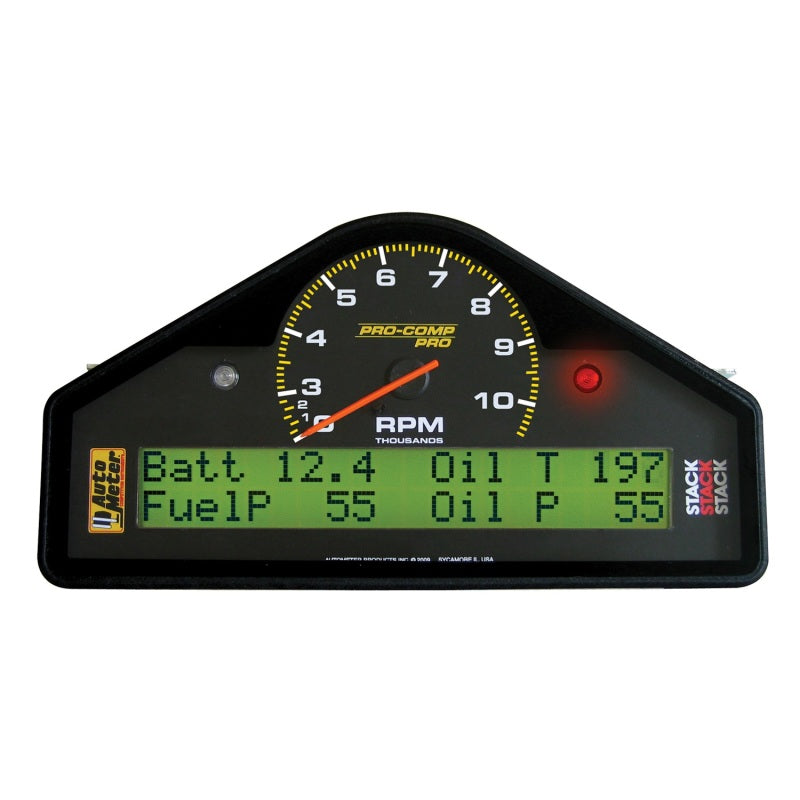

AutoMeter 6013 - Pro-Comp Race Dash Display 0-3-10.5K RPM / MPH / FUELP / OILP / OILT / WTMP / VOLT
RACE DASH DISPLAY, 10.5K RPM/MPH/FUELP/OILP/OILT/WTMP/VOLT, PRO-COMP
Monitors and displays: RPM, Speed, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure.
The AutoMeter Race display systems are designed specifically for the harshest environments. The carbon composite housing is IP67 sealed against water and dust intrusion and will easily withstand 20g of continuous vibration and 50g of shock. The analog pointer provides a quick and clear display for engine RPM while the digital display layout is configurable using preconfigured sensor inputs using multiple pages for your axillary instrumentation needs. User definable warnings display across the digital display and illuminate the warning LED placed to the side of the tachometer to alert the driver to critical information. Record and play back your run right on the face of the dash display.
- Monitors And Displays - RPM; Speed; Oil Pressure; Oil Temperature; Water Temperature; Voltage; Fuel Pressure
- Dimensions 8.3 in. Wide x 5.2-1/16 in. High x 1.4 in. Deep
- Single 19 Pin MIL Spec Connector And Motorsports Wiring Loom
- Includes Oil Pressure; Water Temperature; Oil Temperature And Fuel Pressure Sensors
- Display Features Digital Values For Vehicle Parameters And Configurable Text Warning Messages
- Built-In Warning And Shift Light Leds
- Optional Shift Light Output; Single Stage Or Progressive Shift Light
- Configurable For Engines From 1-12 Cylinders
- Programmable Speed Input
- IP67 Sealed
