AutoMeter 4810 - Carbon Fiber Quad Gauge 5in. 240Ohm (E) - 33Ohm (F) Electric
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

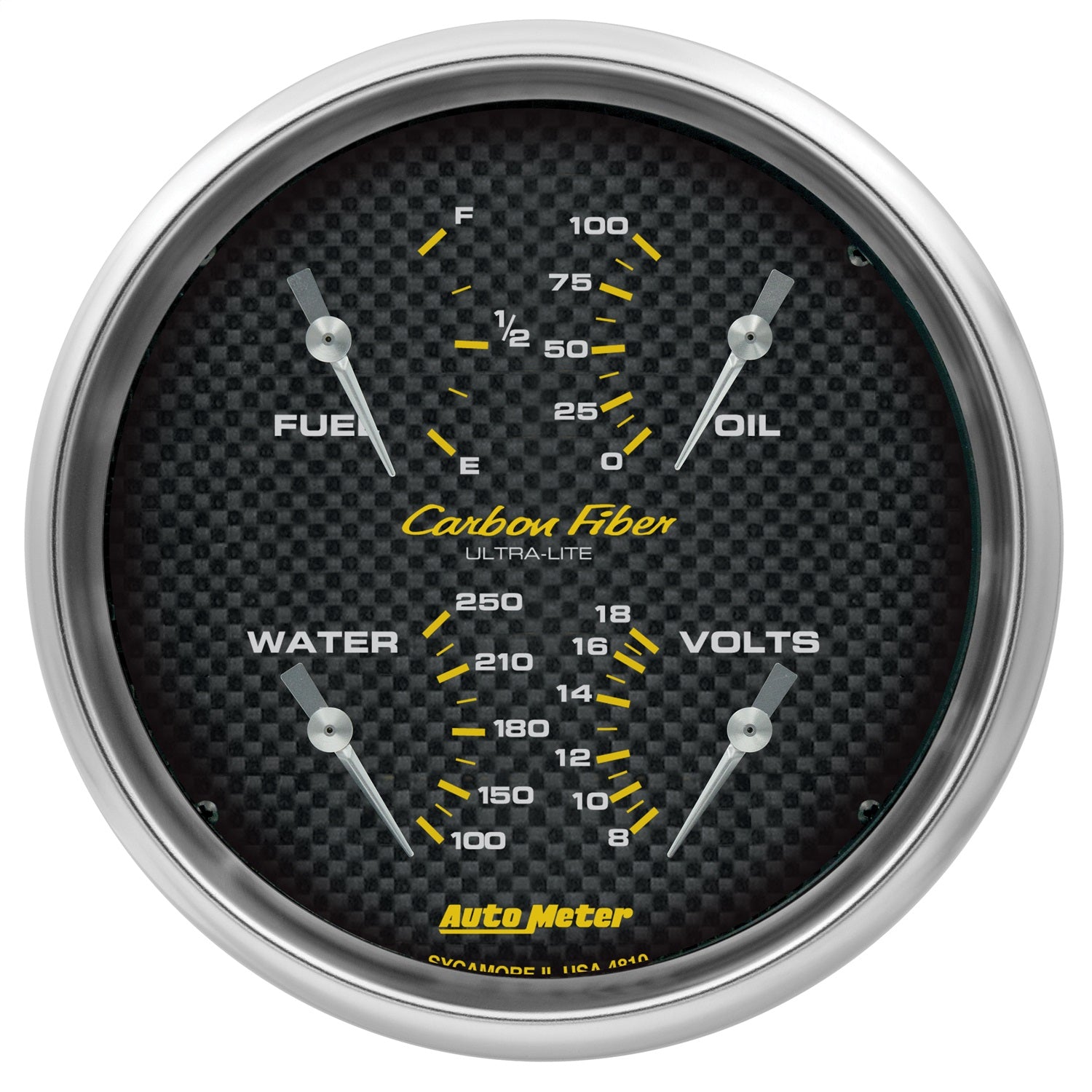

AutoMeter 4810 - Carbon Fiber Quad Gauge 5in. 240Ohm (E) - 33Ohm (F) Electric
5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, CARBON FIBER
5in. QUAD GAUGE; 100 PSI/100-250 F/8-18V/240-33 ?; CARBON FIBER
Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).
- Incl. Bulb/Socket Assembly
- w/Red And Green Bulb Covers
- Resettable Trip Odometer
- Incl. 10 HZ GPS Antenna
- Features Time/Date; Cumulative Distance
- Trip Distance; GPS Coordinates
- Traditional Incandescent Lighting Illuminates Perimeter Of Dial
- Incl.; GPS Antenna; Spade Connectors For Wiring
- Incl. Mounting Hardware/Installation Instructions
- Plug And Play No Calibration
