AutoMeter 3235 - Braided Stainless Steel Line #3 Dia. 4ft Length -3AN and 1/8in NPTF Fittings
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
AutoMeter 3235 - Braided Stainless Steel Line #3 Dia. 4ft Length -3AN and 1/8in NPTF Fittings
Gauge Line Kit - 3 AN - 4 ft - 3 AN Female to 3 AN Female - Fittings Included - Braided Stainless - Mechanical Pressure Gauges - Kit
LINE; BRAIDED STAINLESS STEEL; #3 DIA.; 4FT. LENGTH;-3AN AND 1/8in. NPTF FITTINGS

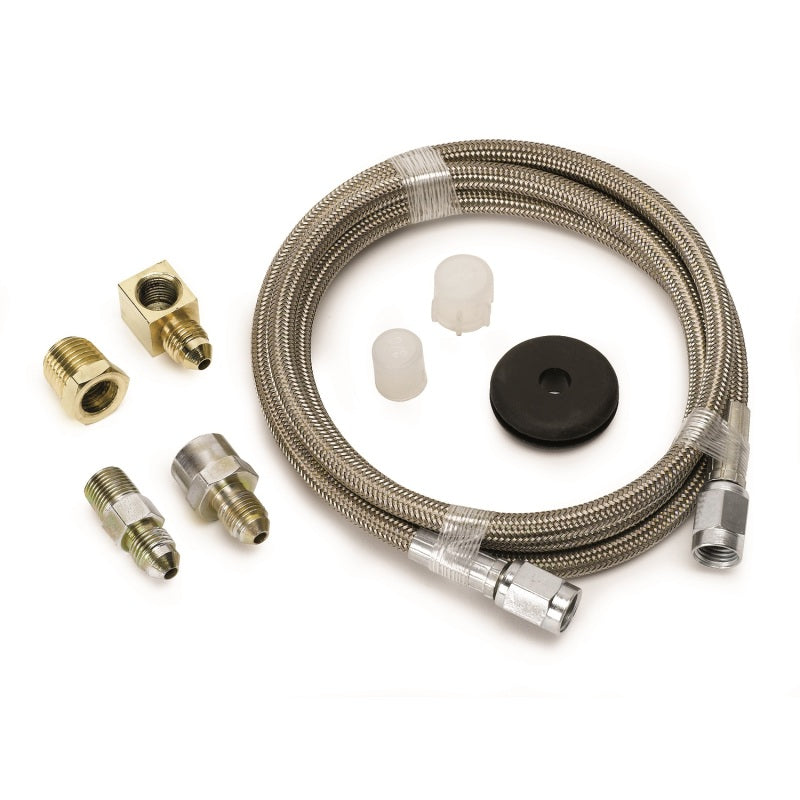

Includes 4ft. of #3 braided stainless steel line, firewall pass through grommet, 1/8 in. NPT female right angle to -3AN male fitting, -3AN male to 1/8 in. NPT male fitting, -3AN male to 1/8 in. NPT female fitting, 1/8 in. NPT to 1/4 in. NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
- For Mechanical Pressure Gauge
- Type 304 Braided Stainless Steel Hose
- 4 ft. Hose Length
- PTFE Lined Hose That Is Resistant To Most Fluids
- Maximum Operating Pressure-3000 PSI
- Operating Temp -65 to 450 Deg. F
- Incl. 1/8 in. NPT Male to 3AN Female Straight
- Incl. 3AN Male; 1/8 in. NPFT to 1/4 in. NPMT Straight
- Incl. 3AN to 1/8 in. NPFT 90 Deg. Fittings
