AutoMeter 200760 - Marine White Gauge 2-1/16in Electric Fuel Level Gauge
AutoMeter | SKU:
AM-200760
Sale price
$6699
Regular price
$7369
Unit price
/
Unavailable
$6.70 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

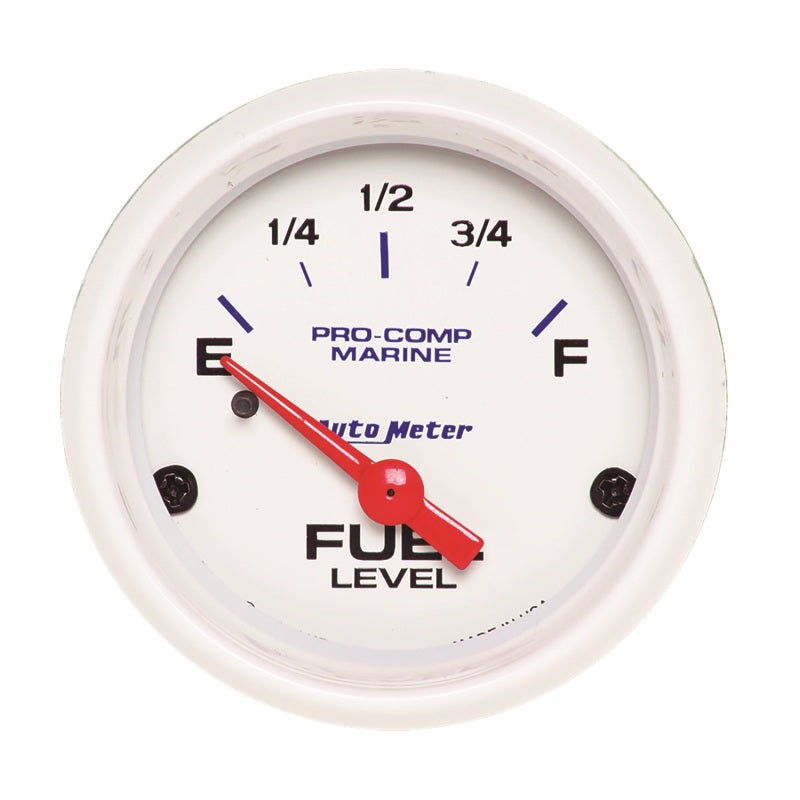

AutoMeter 200760 - Marine White Gauge 2-1/16in Electric Fuel Level Gauge
Fuel Level Gauge - Air Core Marine - 240-33 ohm - Electric - Analog - Short Sweep - 2-1/16 in Diameter - White Face - Each
Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
One of the most necessary gauges on any dashboard! AutoMeter makes it easy with our patented air core meter movement with built-in extra dampening to help combat the effects fuel slosh in non-baffled tanks. Works with AutoMeter fuel sender 990345 or other aftermarket 240 Ohm empty to 33 Ohm full fuel level sending units.
- Front Sealed Bezel Design For Added Water Resistance
- UV Protected Paint On Dial Pointer
- Requires Auto Meter Sending Unit 990345
- 12 And 16V Compatible
- Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
- Incl. Mounting Hardware/Instructions
- 12 Month Limited Warranty
- Quick And Accurate Readings
- Incandescent Lighting Illuminates Perimeter Of Dial
Series: MARINE WHITE
Dial Color: White
Lens Style: Flat, Clear
Bezel Color: White
Bezel Style: Super Bezel
Size - Metric - MM: 52.4mm
Size - Standard - IN: 2-1/16"
Cup/Hole Size - Metric - MM: 52.4mm
Cup/Hole Size - Standard - IN: 2-1/16"
Outer Bezel Diameter - Standard: 2-1/16"
Outer Bezel Diameter: 2-1/4"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air Core
Gauge Type: Fuel Level
Range: 240 O Empty / 33 O Full
Includes Bulb & Socket: 3220
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: 2225
Cross Sell: 990345, 3298, 3288, 3284, 3285
Upsell: 990345, 3298, 3288, 3284, 3285
Related Item: BEX-5000, 0447LXL, EP-800, 0423XL
