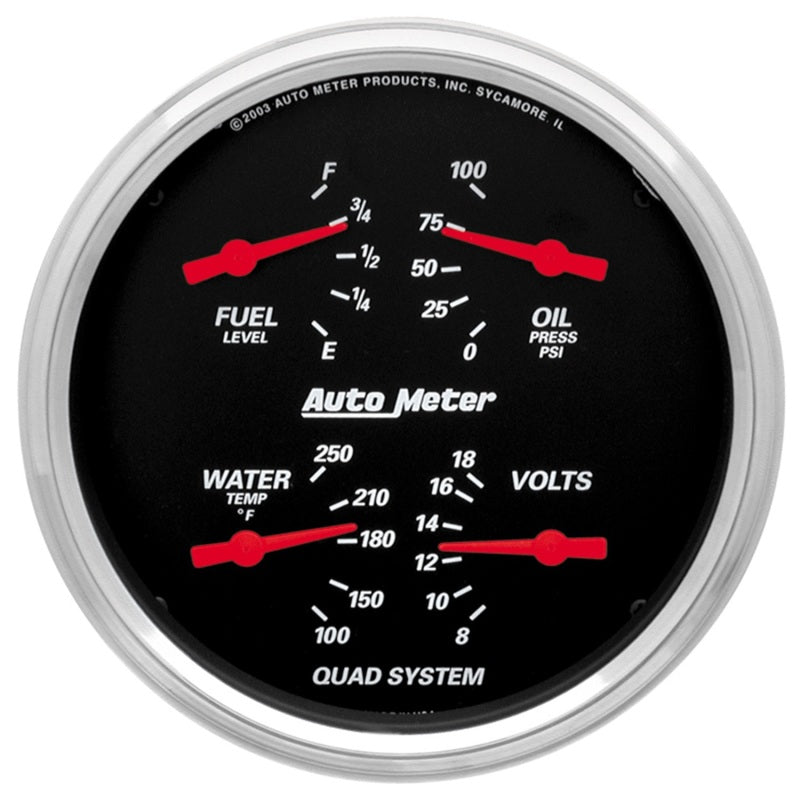

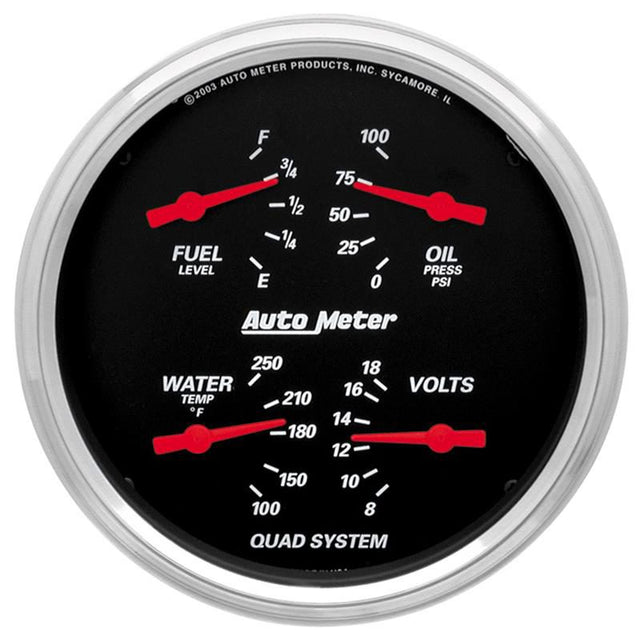

AutoMeter 1410 - Designer Black 5in Quad Gauge - Fuel Level / Oil Pressure / Water Temperature / Voltmeter

AutoMeter  |  SKU: AM-1410
$23099 $25409

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

AutoMeter 1410 - Designer Black 5in Quad Gauge - Fuel Level / Oil Pressure / Water Temperature / Voltmeter

Combination Gauge - Designer Black - Quad - Analog - Fuel Level / Oil Pressure / Voltmeter / Water Temperature - 5 in Diameter - Black Face - Each

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).

  • Domed Lens
  • Quality Construction
  • Black Chrome Bezel
  • 1 Year Limited Warranty
  • Traditional Incandescent Lighting Illuminates Perimeter Of Dial
  • 12 And 16 Volt Compatible
  • 4-1 Gauge Design Saves Valuable Real Estate
  • Incl. 1/8 in. NPT Pressure Sender; 1/4 in. NPT Adapter
  • Incl. 1/8 in. Temp Sender
  • Incl. 3/8 And 1/2 in. NPT Adapters
  • Incl. Bulb And Socket Assembly; Red/Green Bulb Covers
  • Incl. Mounting Hardware/Installation Instructions
Series: DESIGNER BLACK
Dial Color: Black
Lens Style: Domed, Clear
Bezel Color: Chrome
Bezel Style: Street Rod
Size - Metric - MM: 127mm
Size - Standard - IN: 5"
Cup/Hole Size - Metric - MM: 117.5mm
Cup/Hole Size - Standard - IN: 4-5/8"
Outer Bezel Diameter - Standard: 4-5/8"
Outer Bezel Diameter: 4-15/16"
Lighting Type: Incandescent
Lighting Color: White Incandescent
Pointer Color: Fluorescent Red
Movement: Electric, Air-Core
Gauge Type: Quad Gauge
Range: 100 PSI/100-250 °F/8-18V/240OE-33OF
Includes Sensor Unit: Oil Sender 2242 - Water Sender 2258
Includes Adapter/Fitting: 3/8" NPT and 1/2" NPT adapter fittings
Includes Light Covers: Red 3214 & Green 3215
Includes Mounting Hardware: Bracket Included
Cross Sell: 3262, 3263, 2282, 2268, 2277, 2280
Upsell: 3262, 3263, 2282, 2268, 2277, 2280
Related Item: 2160, BEX-1500, EP-800, 0423XL
