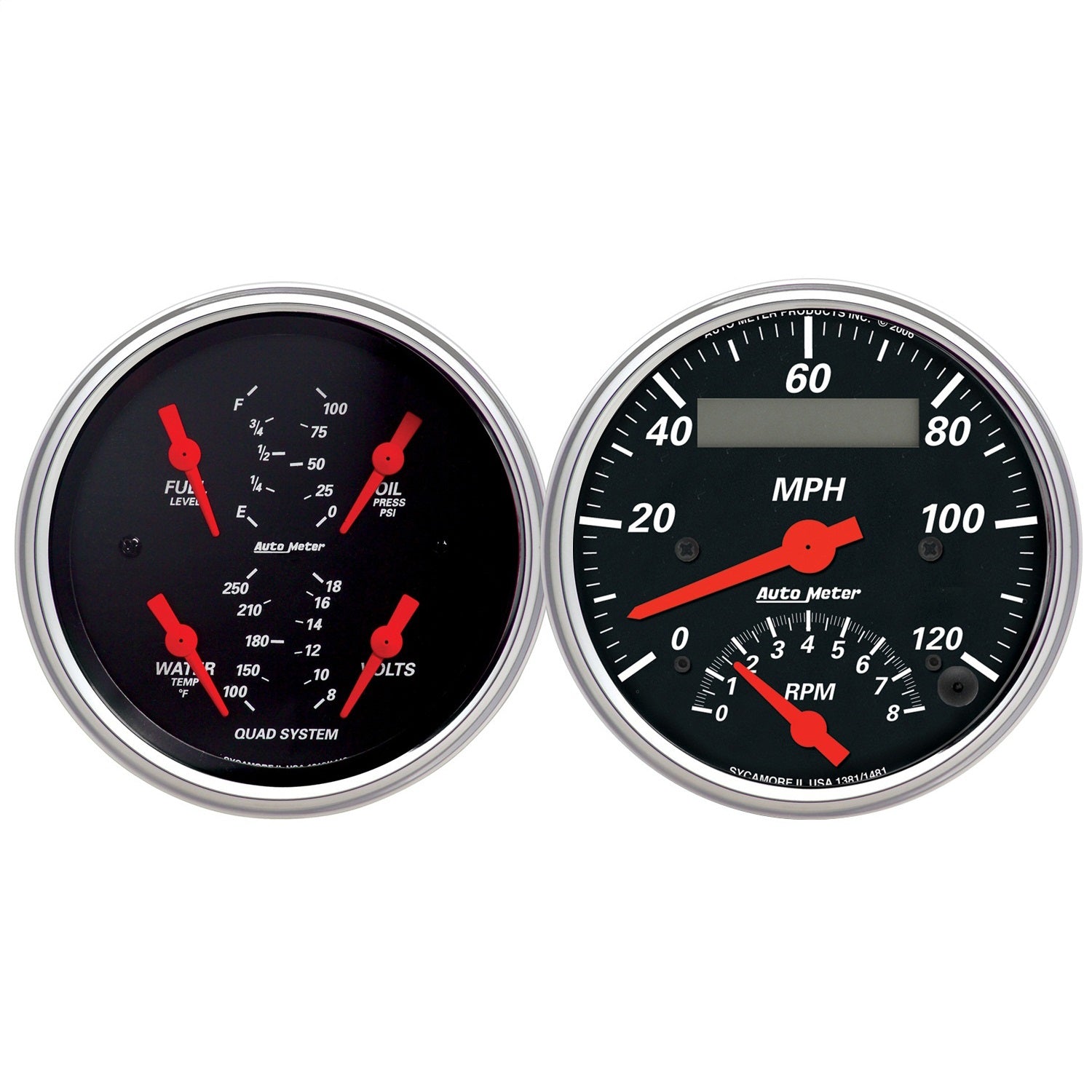

AutoMeter 1409 - Designer 3-3/8in In-Dash Kit Box-Tach Speedo Combo & Elec Oil Press, H2O Temp, Volt, Fuel

AutoMeter 1409 - Designer 3-3/8in In-Dash Kit Box-Tach Speedo Combo & Elec Oil Press, H2O Temp, Volt, Fuel

GAUGE KIT, 2 PC., QUAD & TACH/SPEEDO, 3 3/8" , DESIGNER BLACK

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).

• Domed Lens
• Quality Construction
• Black Chrome Bezel
• 1 Year Limited Warranty
• Traditional Incandescent Lighting Illuminates Perimeter Of Dial
• 12 And 16 Volt Compatible
• Incl. Fuel Level Sender 240E/33F Ohms
• Incl. Oil Pressure Sender; Water Temp Sender
• Incl. 2-Wire Hall-Effect Speed Sender
• Compatible w/.5-6 Pulse Ignition Signals
• 4 in 1 Gauge Design Saves Valuable Real Estate
• Lit LCD Odometer Capable Of Registering One-Million Miles
