ATS Diesel 3139064308 - 2006-2010 LCT1000 6 Speed Stage 6 Rebuild Kit

ATS Diesel 3139064308 - 2006-2010 LCT1000 6 Speed Stage 6 Rebuild Kit

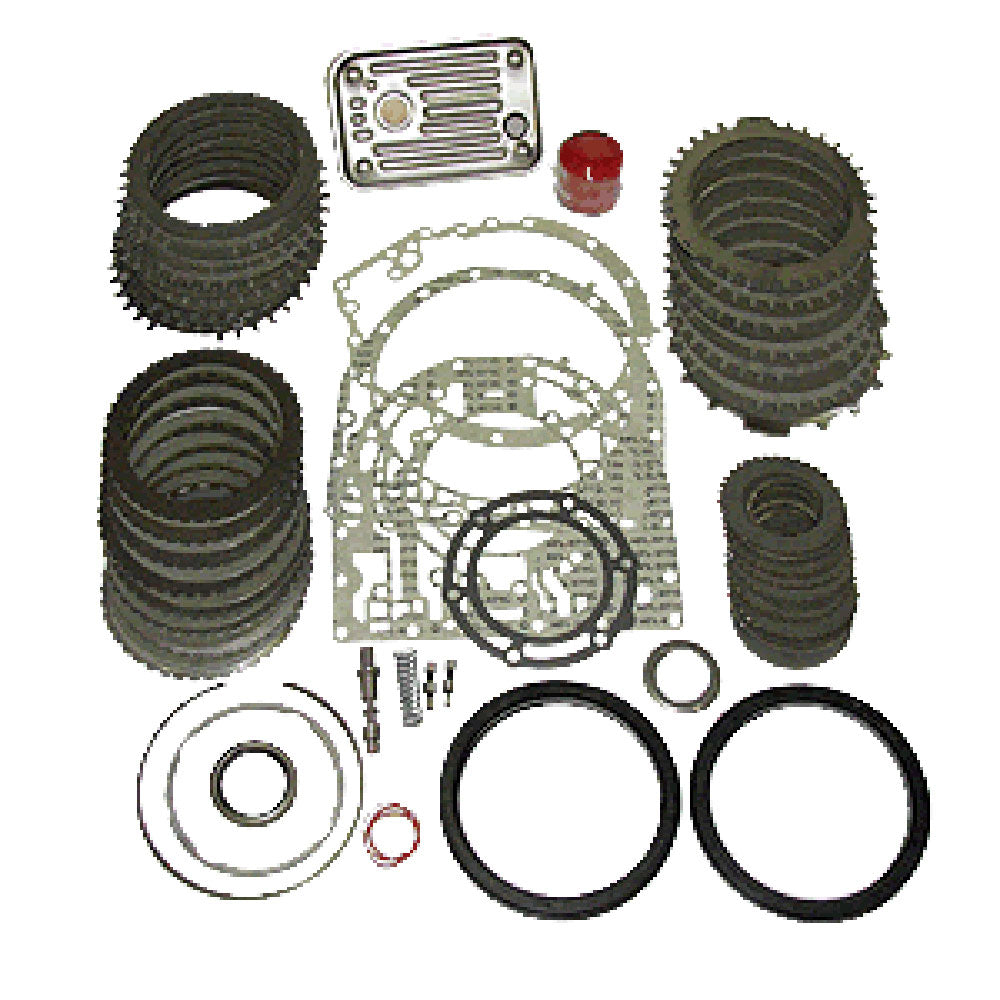

2006-2010 GM Allison 6 speed Kit (Stage 6).
Includes:

• TripleLok Torque Converter (Patented Square tab) Exchange the TripleLok Torque Converter for a 5 Star Viskus Clutch Torque Converter
• Pump Calibration Kit
• Manufactured C1, C2, C3, C4, and C5 clutch packs
• C1 Includes Exclusive 16 single sided friction plates with HD pressure plate
• C2 Includes 8 Friction plates and 8 Laser Cut steel plates with step ground pressure plate
• C3 Includes 5 Exclusive full friction plates and laser cut steel plates with micro ground pressure plate
• C4 Includes 6 frictions and 5 laser cut steels
• C5 includes 6 frictions and 5 laser cut steels
• Valve Body Calibration Kit, A and B Trim Valves
• Seal and Gasket Kit
• Internal and external filters

Built to handle street/strip, sled-pulling, up to 1000rwhp and can still be daily driven. Co-Pilot Sshould be added to this kit to increase hydraulic torque capacity
Application:

• 2006-2010 2500/3500
• Duramax GM Light Duty
• Diesel
