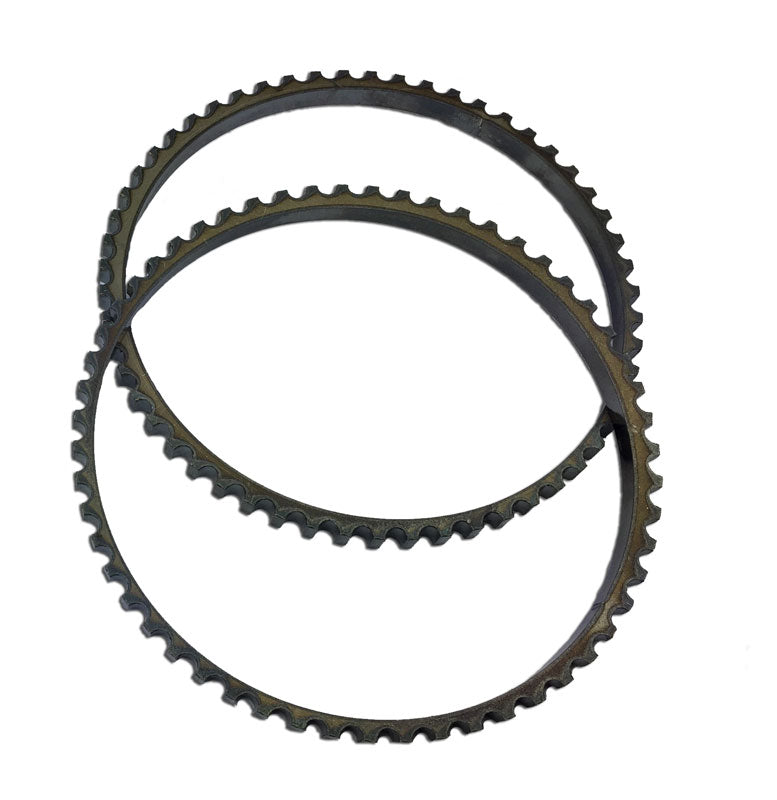

Artec Industries BB1051 - JK 1 Ton Sterling 52 Tooth Tone Ring

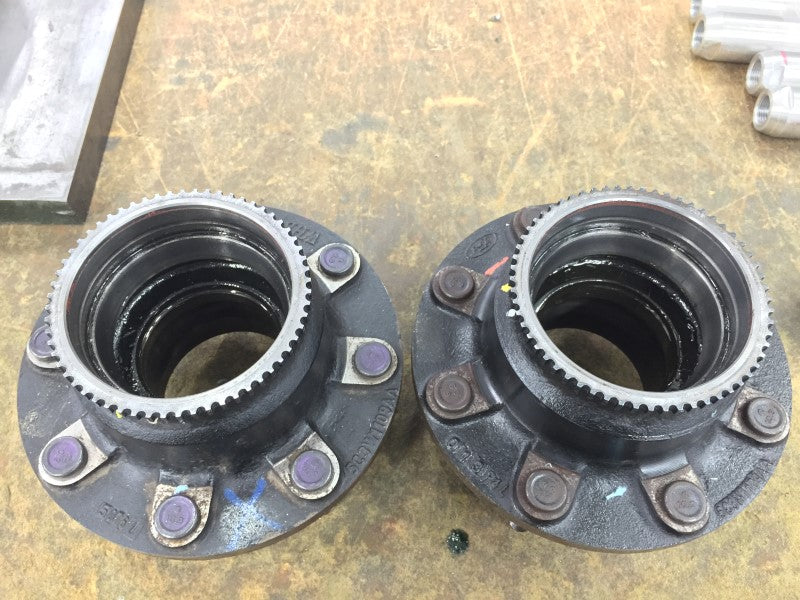

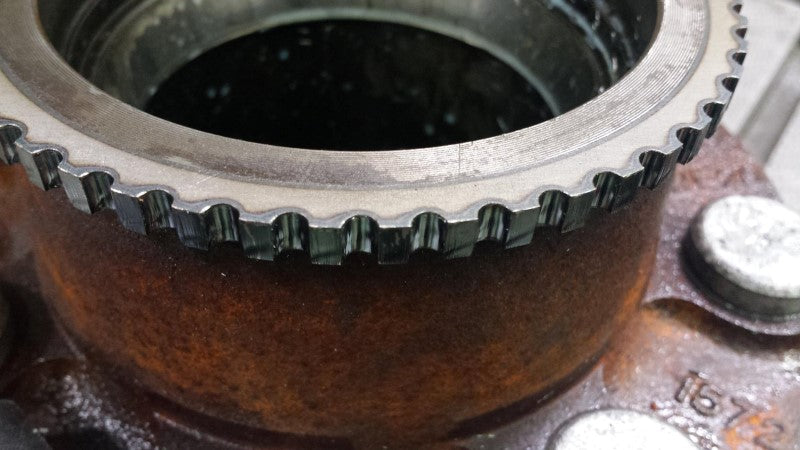

Complete your 1 Ton Swap off by providing the JK computer correct data and eliminating codes and limp mode issues. Use of this Kit may require an optional tuner which has access to adjusting Gear Ratio and Tire size. Your actual programmer settings may differ from the axle ratio and tire size on your vehicle depending on Tone ring tooth count used. If using the 60 tooth option, speedometer may be off 1 - 3 percent. Laser Cut For precision reading from ABS Sensor. Requires machining of Hub and pressing on over machined surface.
Details:
- Zinc plated For corrosion resistance and improved sensor feedback
- 14 Bolt Rear Axle with Factory Disc Brakes
- BB1430: BB1411 ABS Sensor Mount and 52 Tooth Tone rings
- BB1431: BB1411 ABS Sensor Mount and 60 Tooth Tone rings
- Individual parts that are Inch this Kit and available separately:
- BB1411: 14 bolt Sensor mounts
- These mounts are used with JK Factory ABS Sensors. Select the Tooth count to match your front axle, Factory JK and aftermarket axles are typically 52 tooth and the 2005 plus SuperDuty Dana 60 front utilizes a 60 Tooth Tone ring.
- If using a front axle without Tone rings a second BB1411 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.
- 2005 and up Sterling SuperDuty 10.5 inch Axle
- BB1050: Sterling ABS sensor plate mounts with 60 Tooth Tone rings
- BB1052: Sterling ABS sensor plate mounts with 52 Tooth Tone rings
- These mounts are used with JK Factory ABS Sensors. The 2005 plus SuperDuty Dana 60 front utilizes a 60 Tooth Tone ring and this Kit is designed to work with a matching SuperDuty Axle set.
- If using a front axle without Tone rings a second BB1054 can be used to add a second ABS Sensor to each wheel and then splice into the front sensor wiring.
- Individual parts that are Inch this Kit and available separately:
- BB1054: Sterling ABS sensor plate/ mounts
- BB1053: 60 Tooth Tone ring Sterling
- BB1051: 52 Tooth Tone Ring Sterling
