Arizona Desert Shocks 400ADS-10050 - ADS ESS (Engineered Suspension Solution) Kit - BRAVO

Name: Arizona Desert Shocks 400ADS-10050 - ADS ESS (Engineered Suspension Solution) Kit - BRAVO
Brand: Arizona Desert Shocks
SKU: GRML-400ADS-10050
Availability: Backorder

Arizona Desert Shocks | SKU: GRML-400ADS-10050

$0⁰⁰

AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Arizona Desert Shocks 400ADS-10050 - ADS ESS (Engineered Suspension Solution) Kit - BRAVO

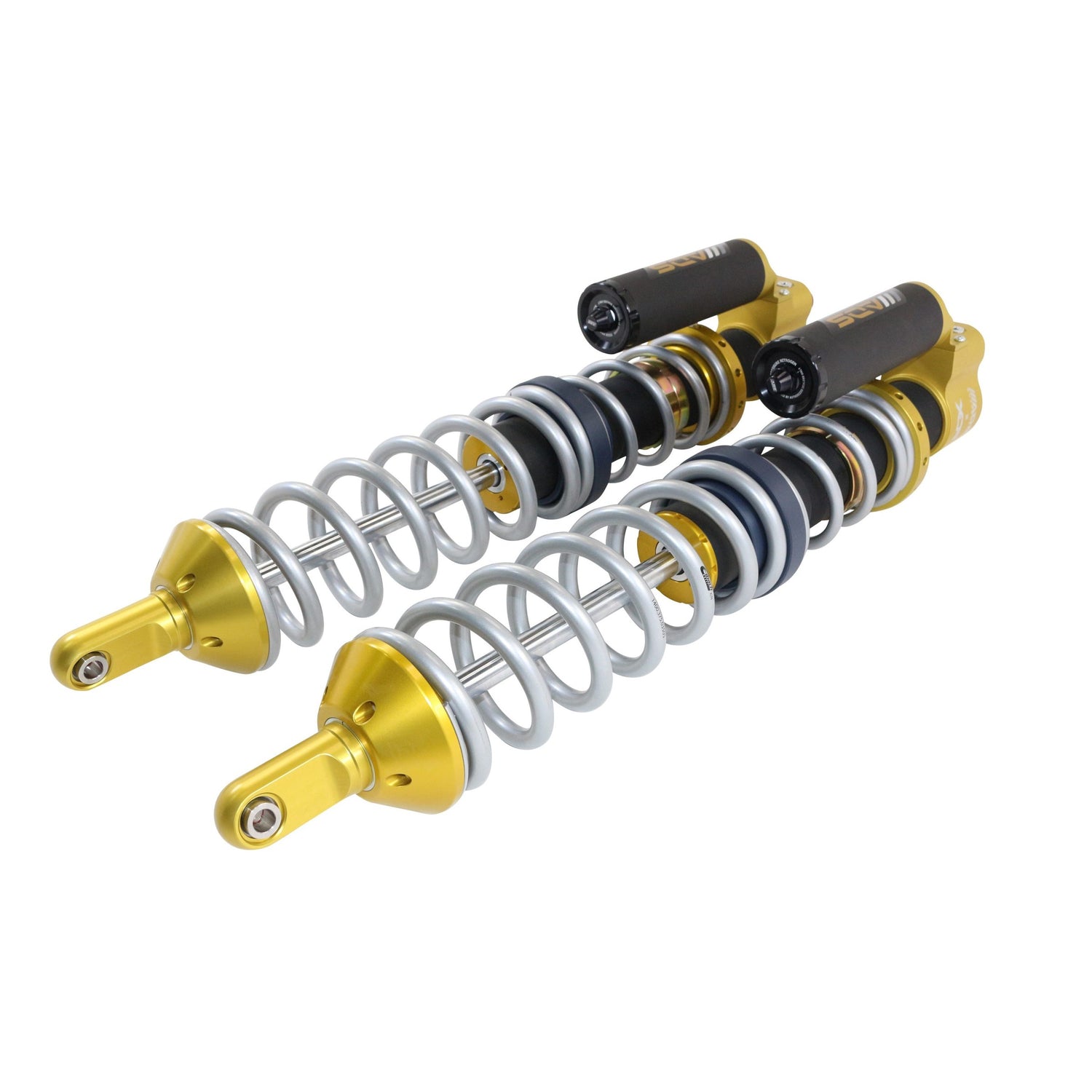

ADS ESS (Engineered Suspension Solution) Kit - BRAVO

2024-2025 Can-Am Maverick R (Note: 2 Seat); 2024-2025 Can-Am Maverick R X RS Smart-Shox (Front and Rear) (Note: Electronic Suspension Must Be Disabled)

Built for elite off-road dominance, ADS delivers a full spectrum of high-performance upgrades engineered specifically for the Can-Am Maverick X3. At the heart of the system is our cutting-edge MBR (Multi-Stage Bypass Ring) shock technology—designed to conquer the harshest terrain with unmatched control and durability. Featuring independently adjustable damping zones, internal free bleed ports, and a true top-out zone with both mechanical and hydraulic control, MBR shocks deliver the kind of precision tuning demanded by professional racers. A 4-way adjustable reservoir paired with a dual-hose recirculating system ensures optimal cooling and maximum tunability, even under extreme conditions. Every shock is vacuum-bled and filled with full synthetic fluid, reducing fade and extending performance life—so you can push harder, longer, and farther.

Large Bore 3.00-inch shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
Patent Pending Damper Technology
True top-out zone provides both mechanical and hydraulic damping

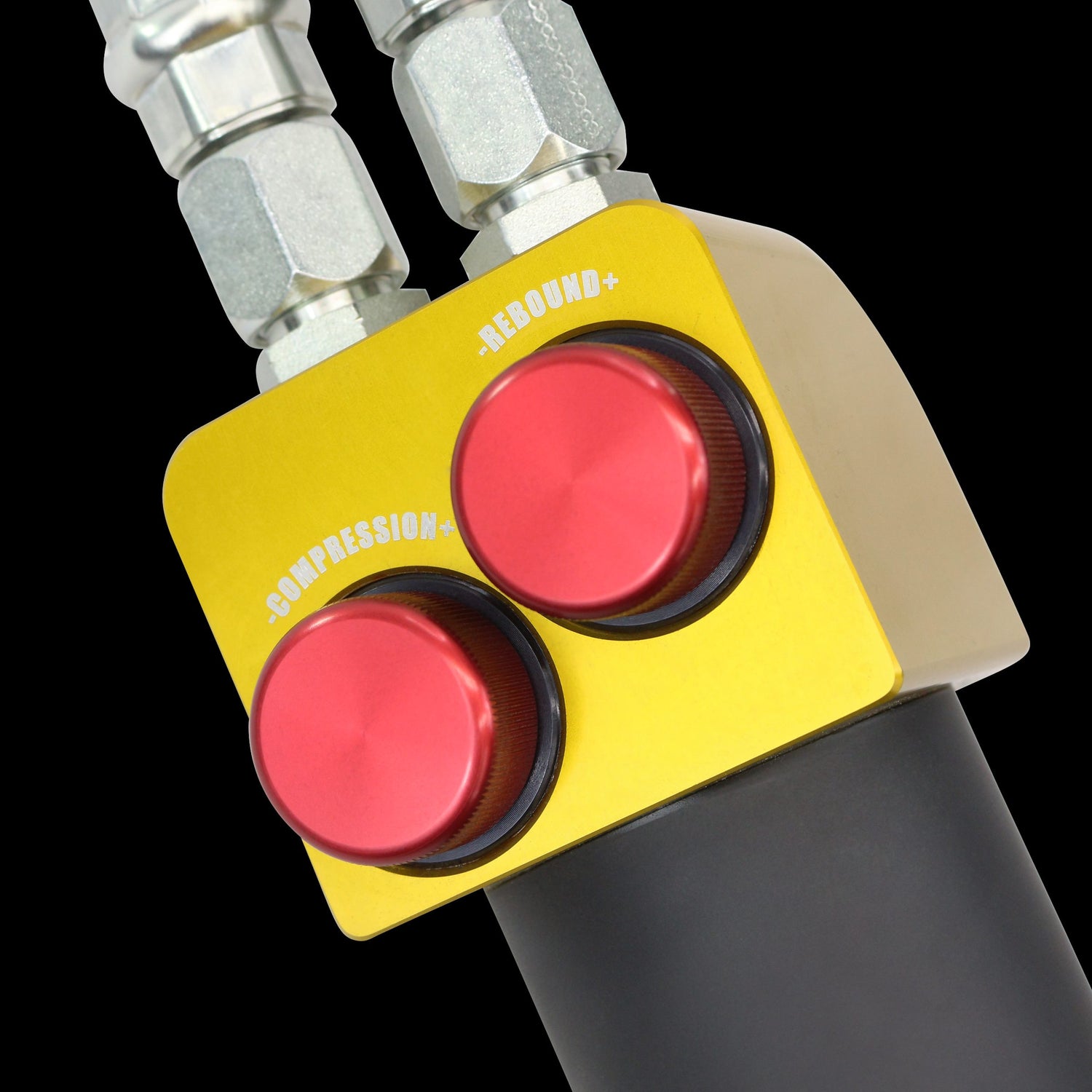

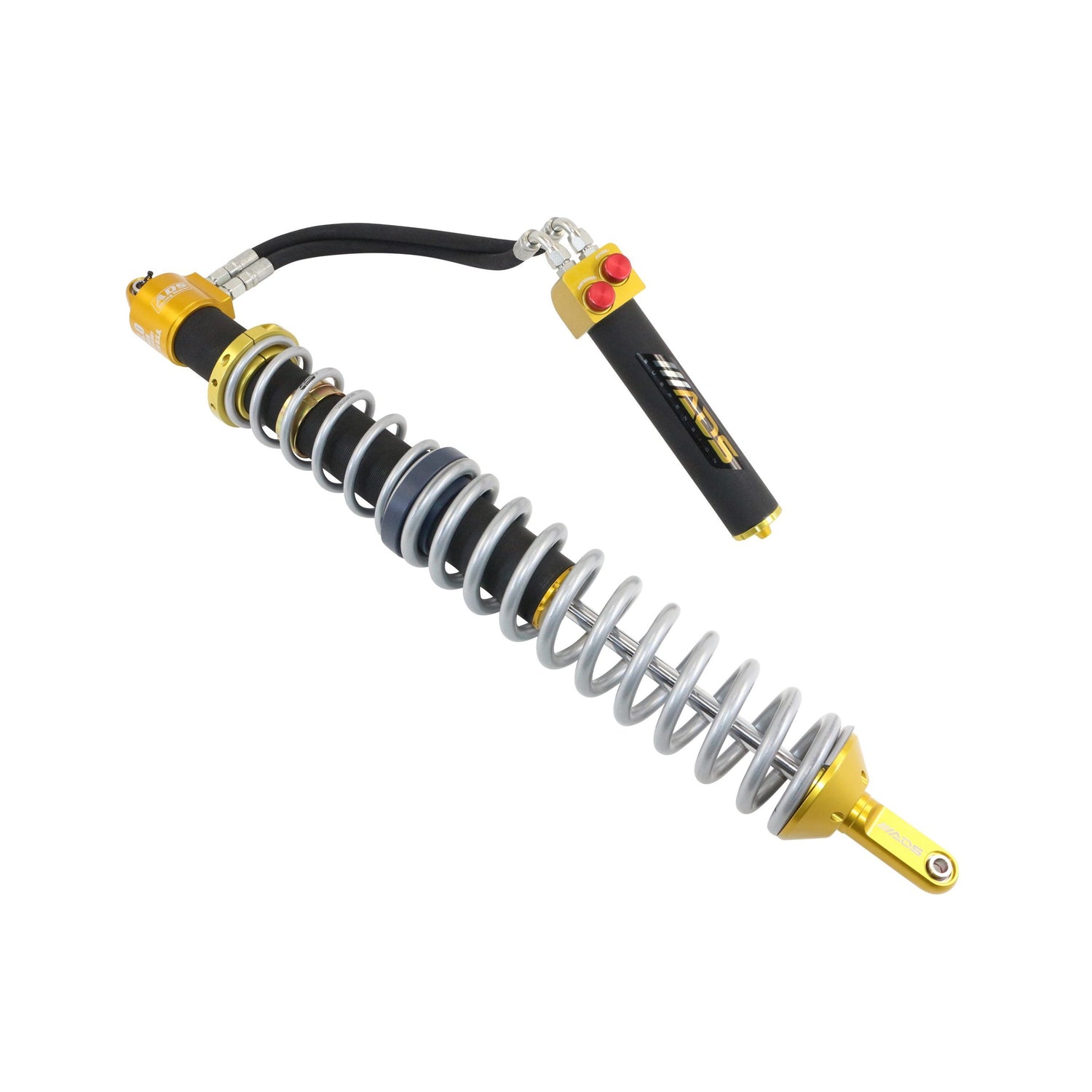

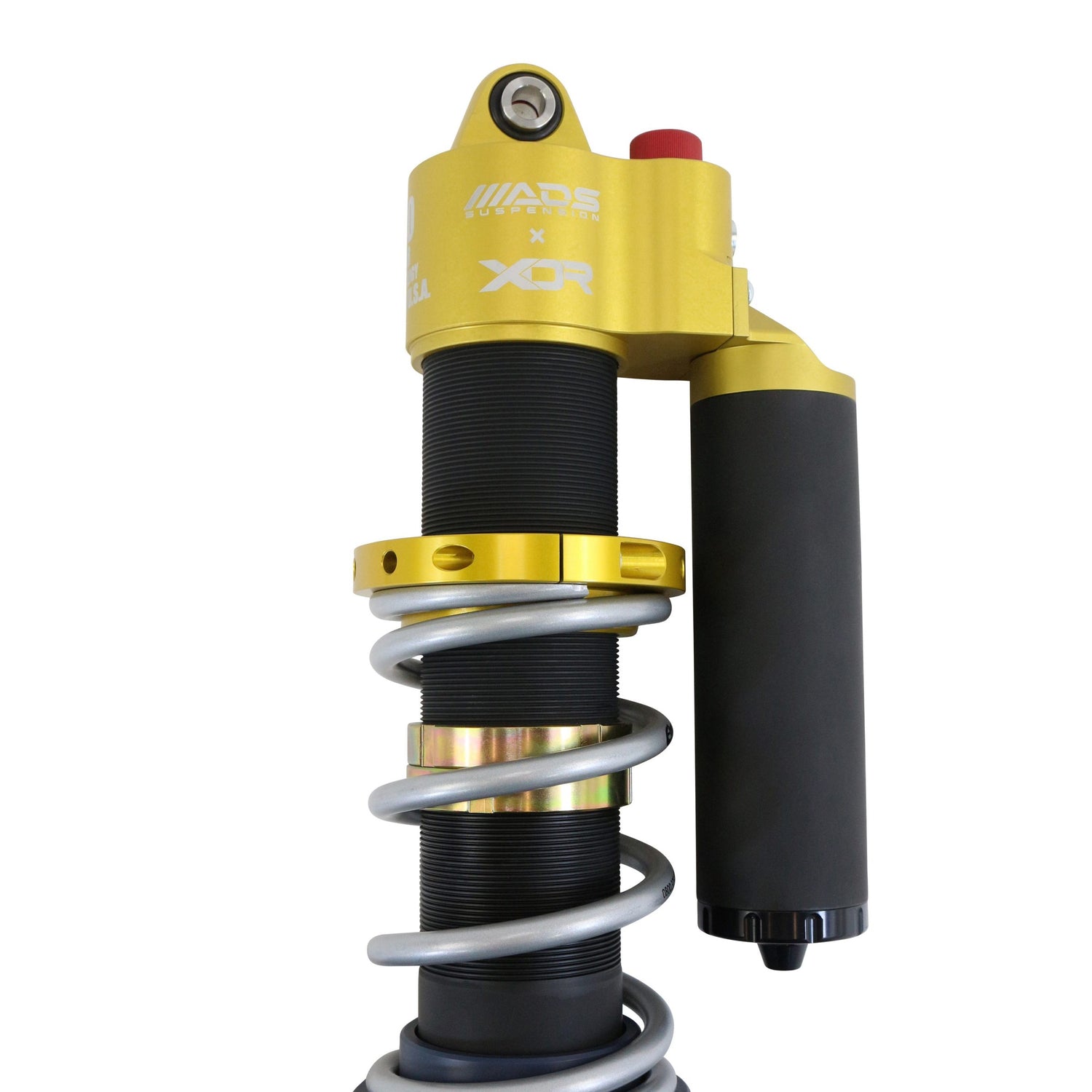

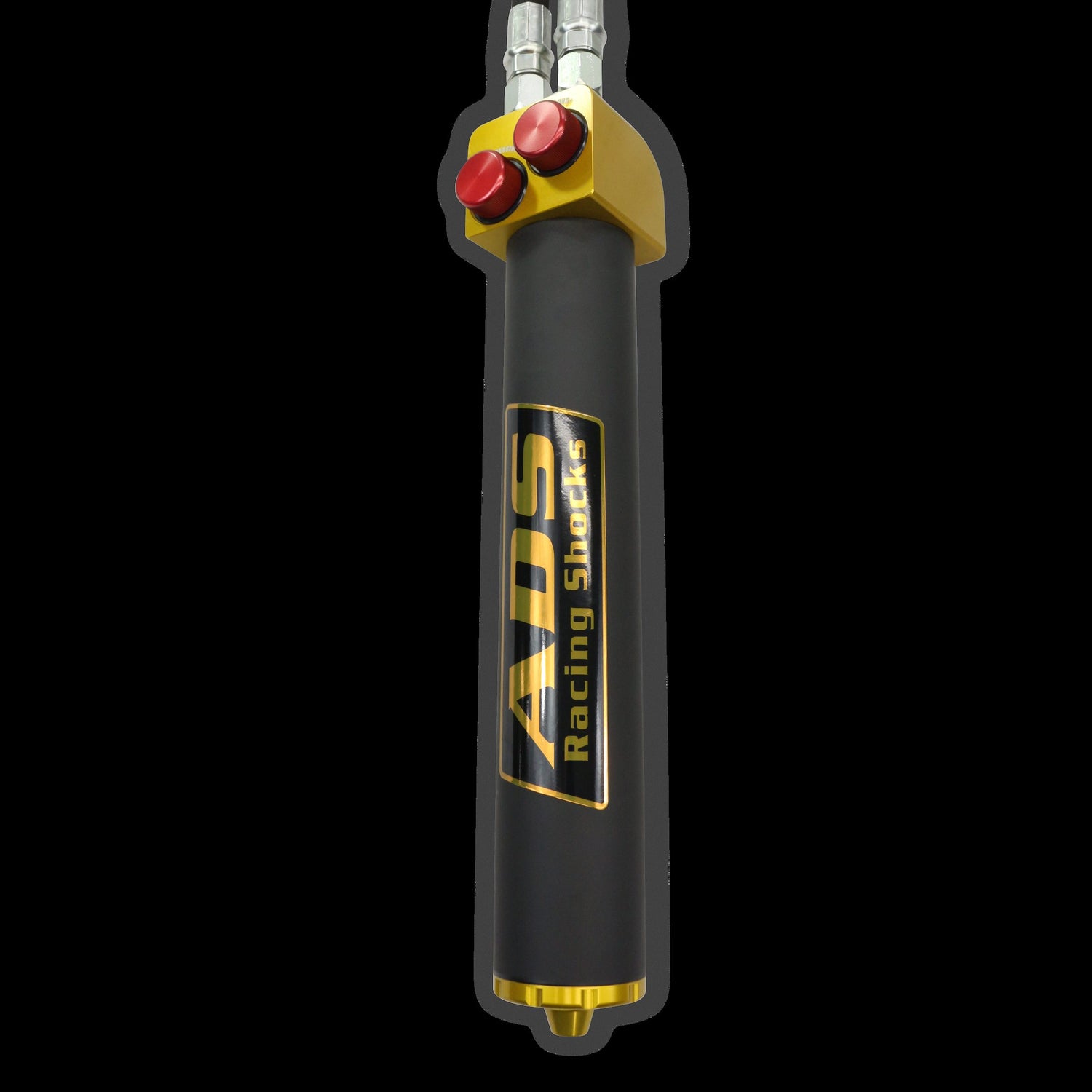

4-way adjustable 2.50-inch external reservoirs connected to main body via dual-hose recirculation fluid path

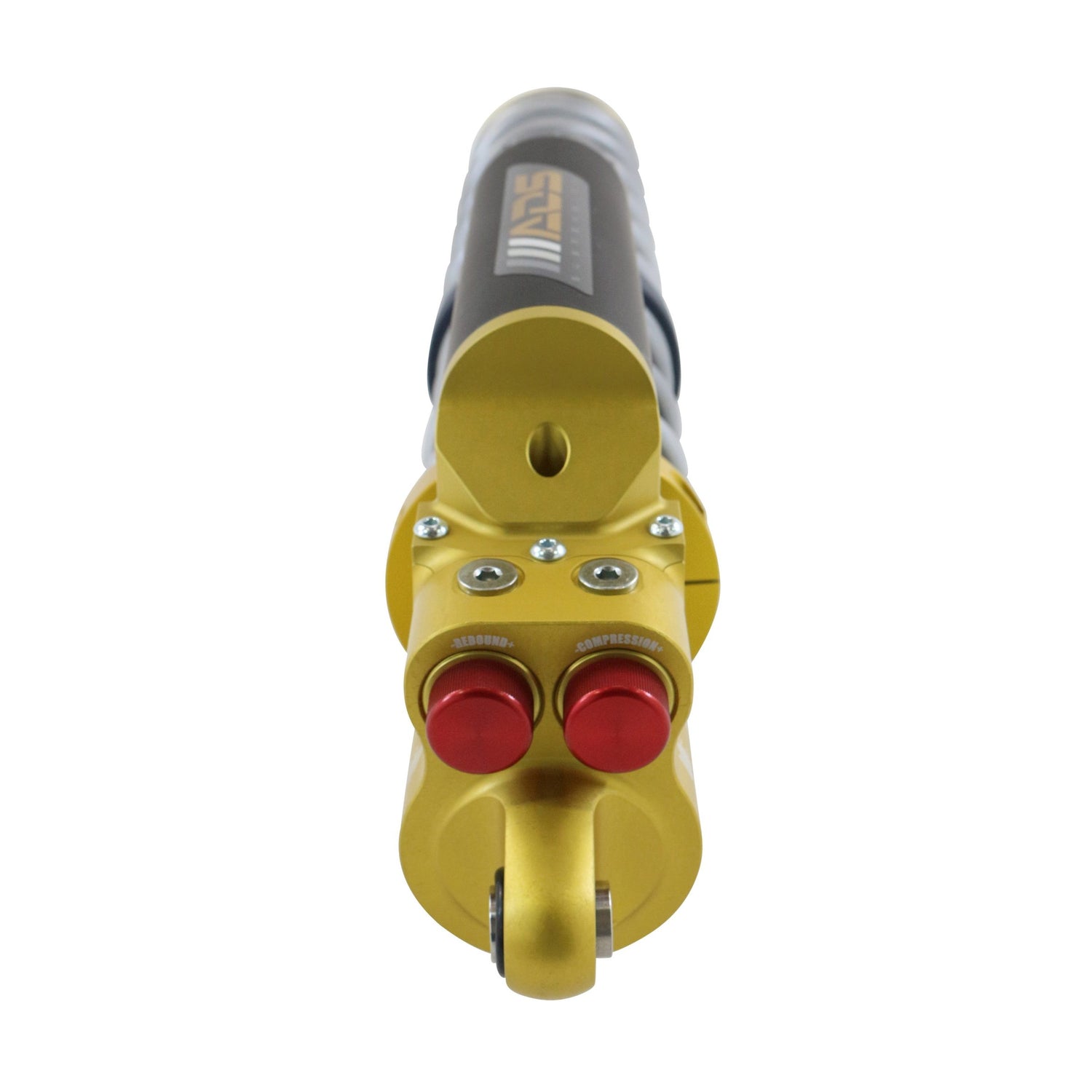

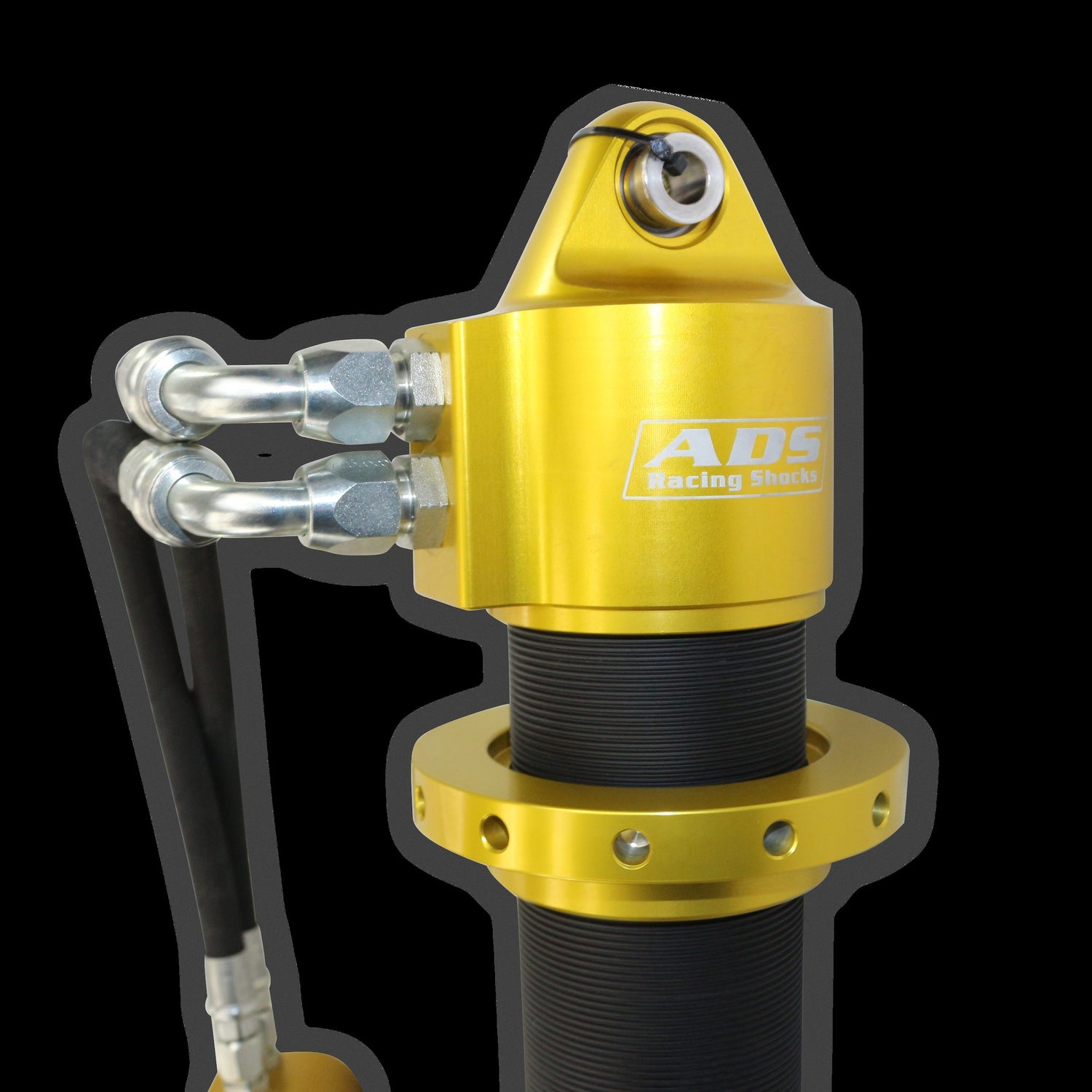

Gold anodized billed aluminum topo and bottom caps
Hard-chrome plated steel shock shafts for superior corrosion resistance
Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance
Made in America

Air Adjustable: No

Bladder Heavy Duty Crimping Rings Included: No

Bladder Material: N/A

Bladder Sleeve(s) Included: No

Bladder(s) Included: No

Brand: ADS

Bushing Color: No

Bushing Inside Diameter: 5/8

Bushing Material: Heim

Bushing Outside Diameter: 1 3/16

Coil Spring Color: Silver

Coil Spring Compressed Length: N/A

Coil Spring Insulator(s) Included: Yes

Coil Spring Material: Mild Steel

Coil Spring Relaxed Length: N/A

Emission Code: 6

Front Shocks Compressed Length: 22.48

Front Shocks Relaxed Length: 34.48

Grade Type: Performance

Link Bolt Bushing Color: N/A

Link Bolt Length: N/A

Link Bolt Thread Diameter: N/A

Link Bolt Thread Size: N/A

Link Bolt Thread Type Standard: N/A

part type: Suspension Kit

Product Type: UTV Coilover Kit

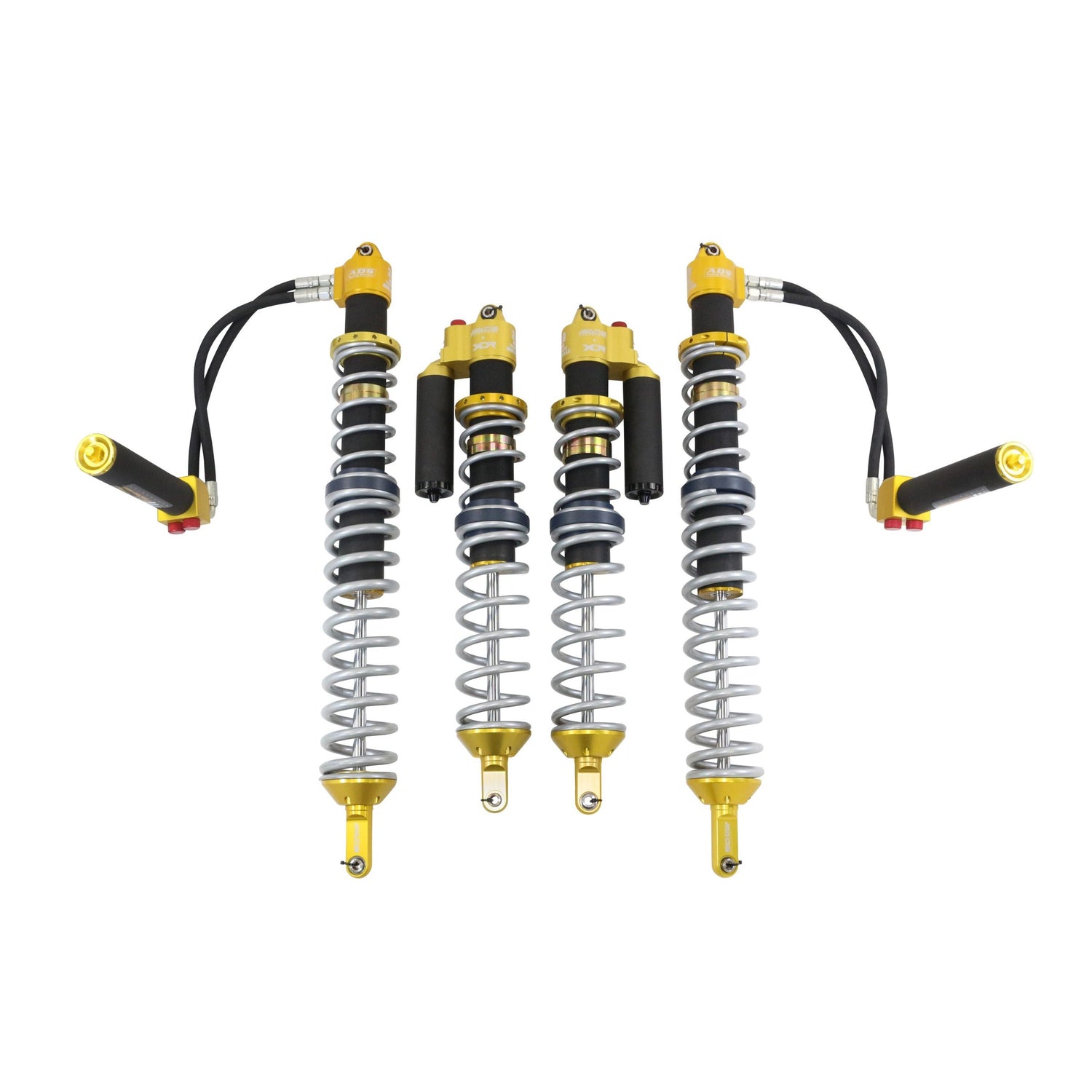

Qty: Sold with front pair and rear pair

Rear Shocks Compressed Length: 30.64

Rear Shocks Relaxed Length: 44.08

Springs Included: Yes

Strut Mount Insulator(s) Included: No

Suspension Type: Spring

Warning: California Proposition 65
