Arizona Desert Shocks 300-10RTR-000 - ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear

Arizona Desert Shocks  |  SKU: GRML-300-10RTR-000
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

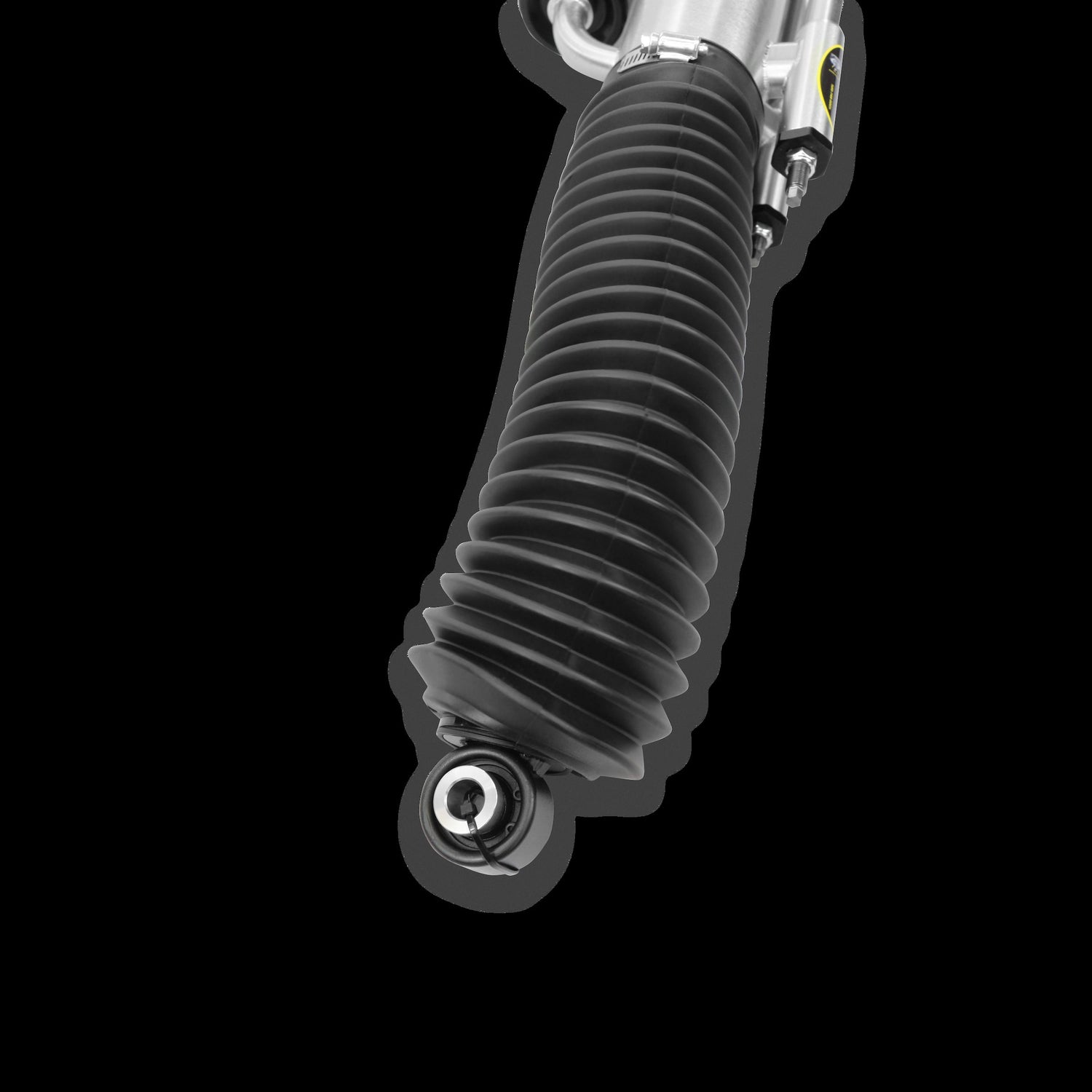

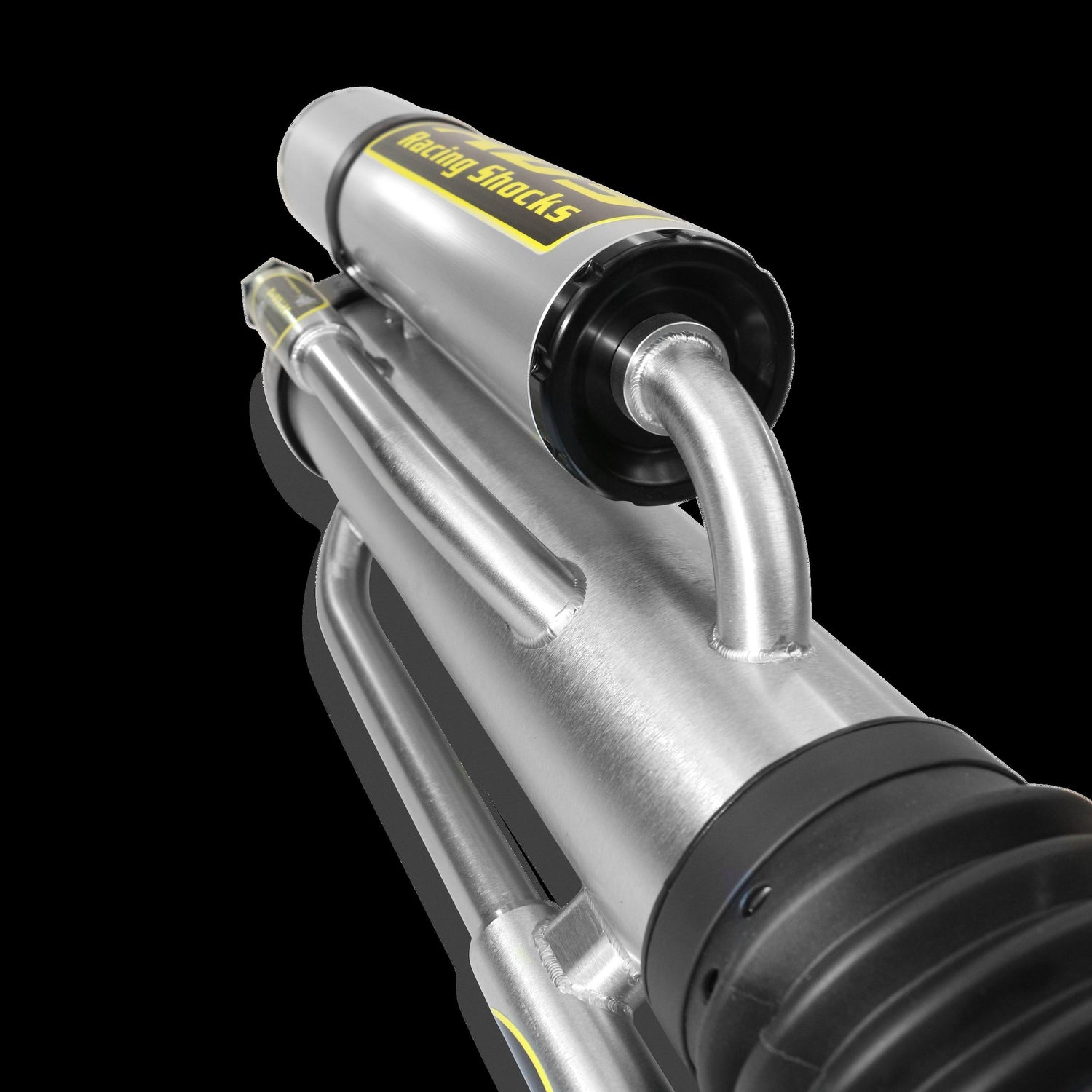

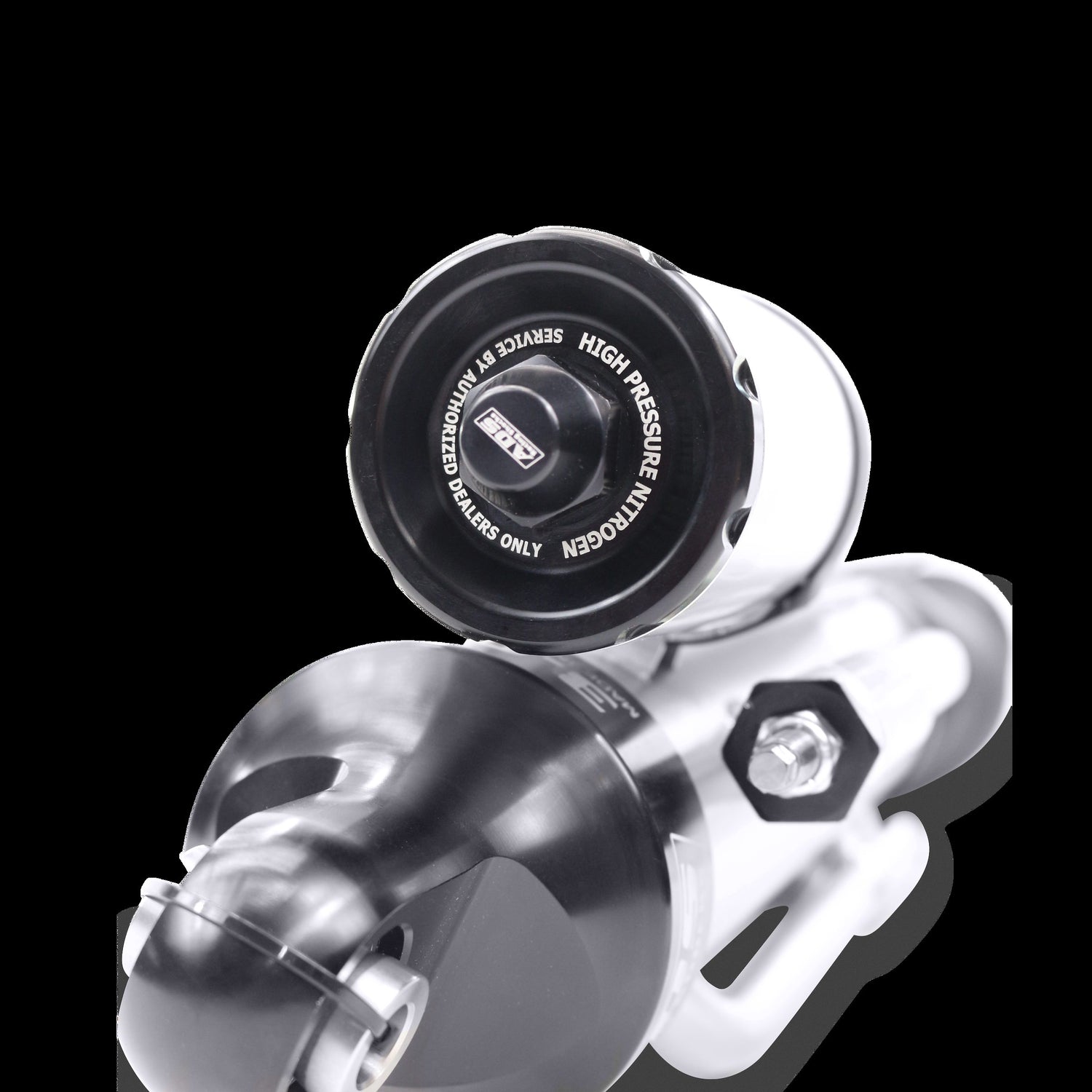

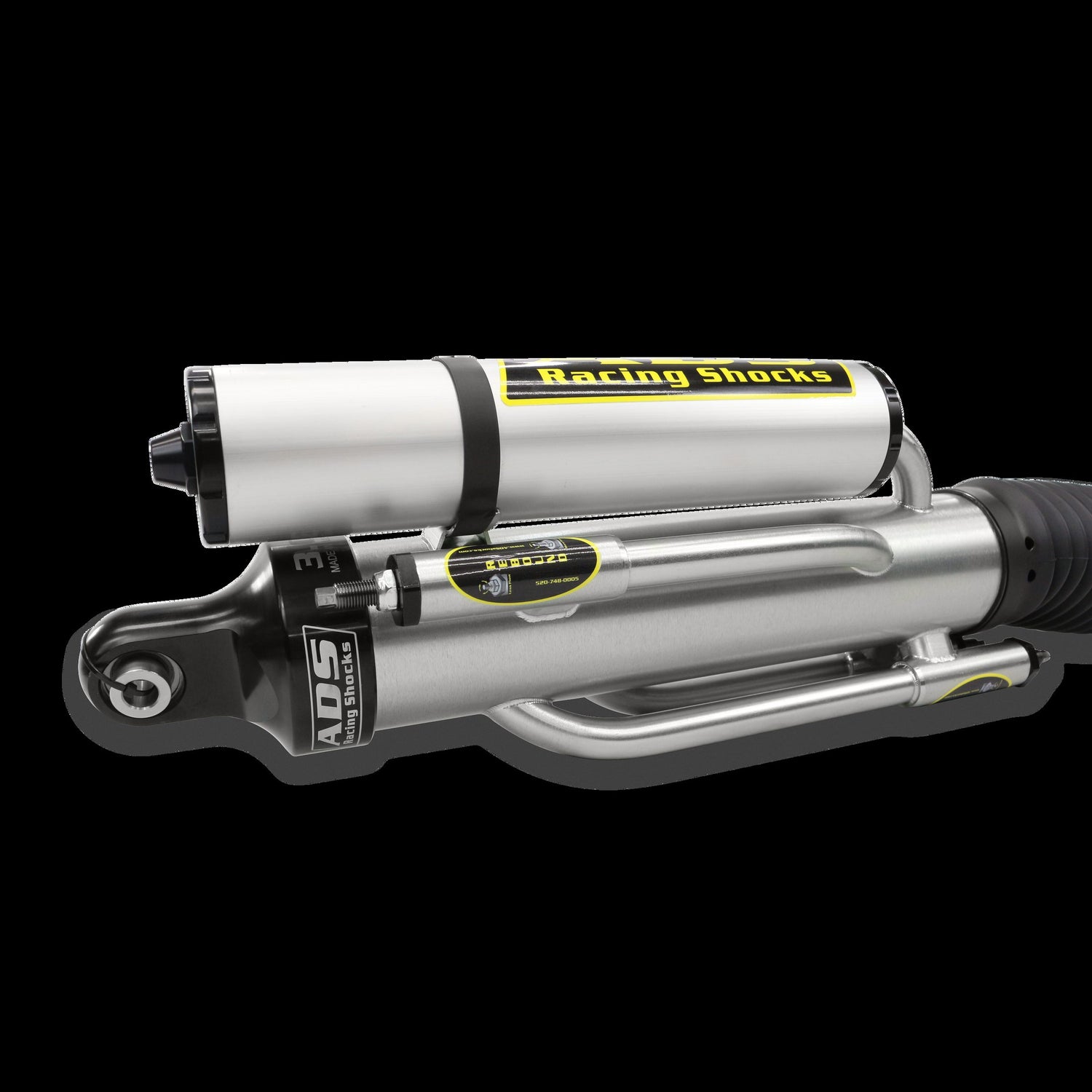

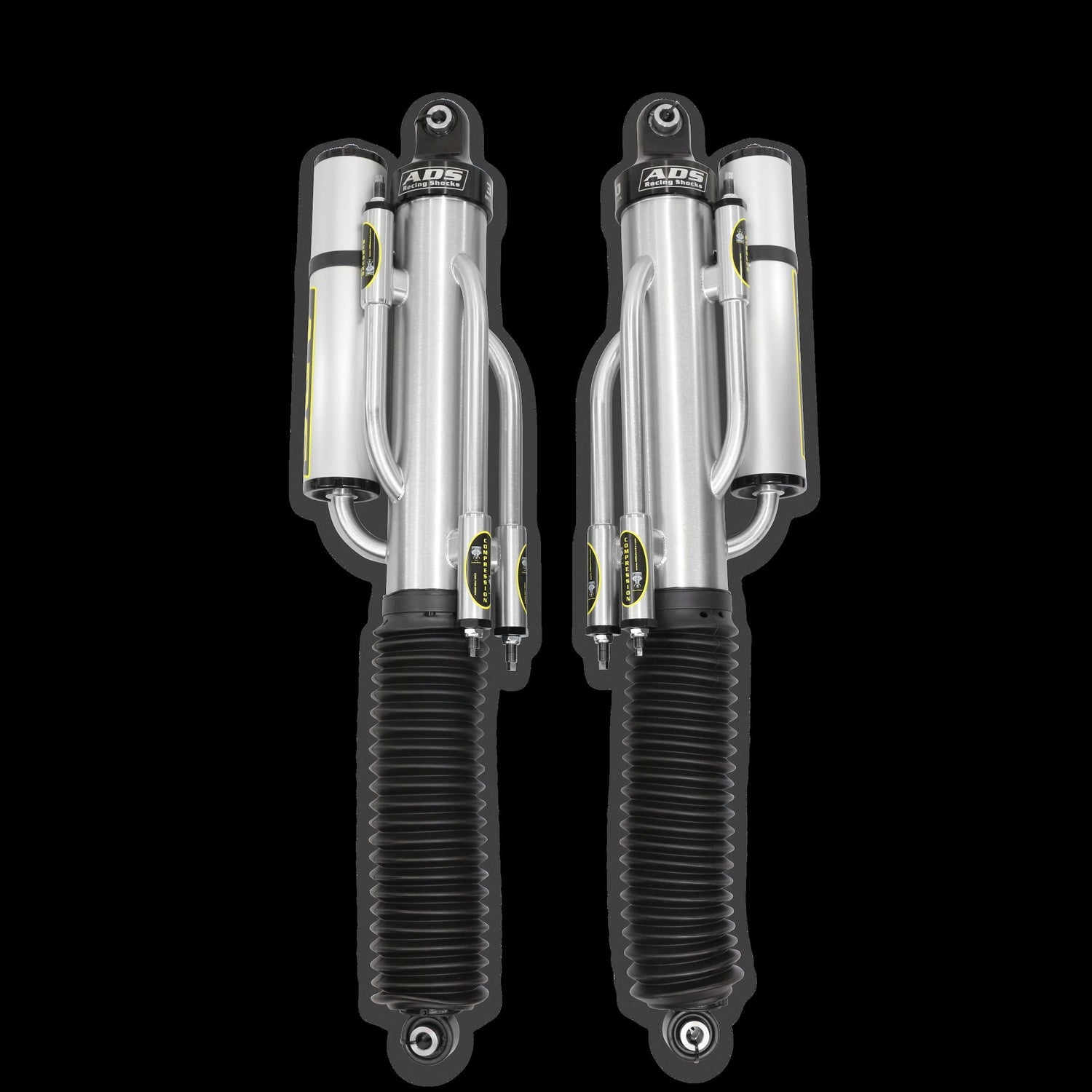

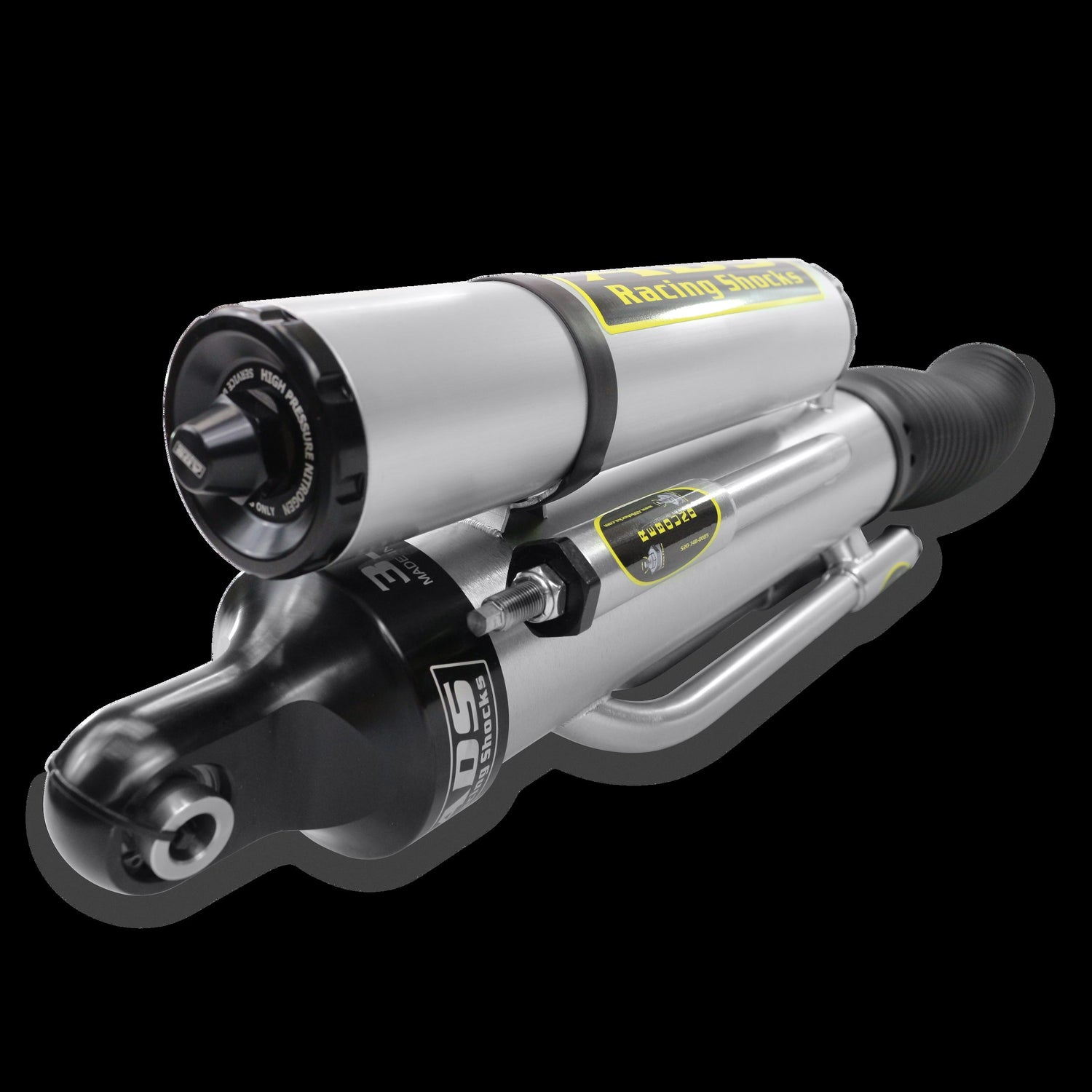

Arizona Desert Shocks 300-10RTR-000 - ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear

ADS Direct Fit 3 in. 3-Tube Bypass Reservoir Shocks - Rear

Fits 2010-2014 Ford F-150 SVT Raptor - Vehicles With 0-3 in. Rear Lift

Race-proven 3-tube bypass rears with external reservoirs provide position-sensitive damping for plush small-bump compliance and firm, controlled bottom-out on big hits. Designed as a direct bolt-on for 2010–2014 Raptors with 0–3" rear lift, these shocks dramatically increase stability, heat capacity, and traction over rough terrain while maintaining on-road manners—perfect for enthusiasts who demand real off-road performance.

  • Large Bore 3.0 shock body provides increased fluid capacity resisting shock fade resulting in increased performance for your off-road adventures
  • Electric zinc plated steel shock body with crystal clear Cerakote® for durability and corrosion resistance.
  • Black anodized billet aluminum top and bottom caps
  • Hard-chrome plated steel shock shafts for superior corrosion resistance
  • Shock eye mounts feature machined rod ends with high strength spherical bearings for increased performance
  • Shaeffer’s high grade temperature stable synthetic hydraulic fluid
  • Fully rebuildable
  • Made in America
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Rebound: Yes
Adjustable Reservoir: No
Adjustable Ride Height: No
Body Color: Silver
Body Diameter: 3
Body Finish: Electric zinc plated w/ Ceramic coat
Body Material: Steel
Boot Included: Yes
Brand: ADS
Category: Suspension
Collapsed Length: 17.995
Drivetrain: 4WD
Emission Code: 6
Extended Length: 29.665
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
Internal Construction Type: Mono tube
Internal Rebound Bumper: No
Internal Rebound Spring: No
Lift Range: 0-2.5
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
part type: Suspension Shock Absorber
Position: Rear
Quantity: Sold as a pair
Requires UCA: No
Reservoir Color: Silver
Reservoir Diameter: 2.5
Reservoir Finish: Anodized
Reservoir Length: 11
Reservoir Material: 6061 Aluminum
Reservoir Type: Piggyback
Shaft Diameter: 0.875
Shaft Material: Hard-chrome plated steel
Shock Travel: Extended Travel
Stroke: 11.67
Sub Category: Shocks and Struts
Travel Length: 11.669999999999998
Type: Bypass
Upper Mount Type: Eyelet
Valving Type: Progressive
Weight: 46
