ARB 3452040 - Summit Bull Bar RAM 1500 (Fit Kit NOT Included)
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

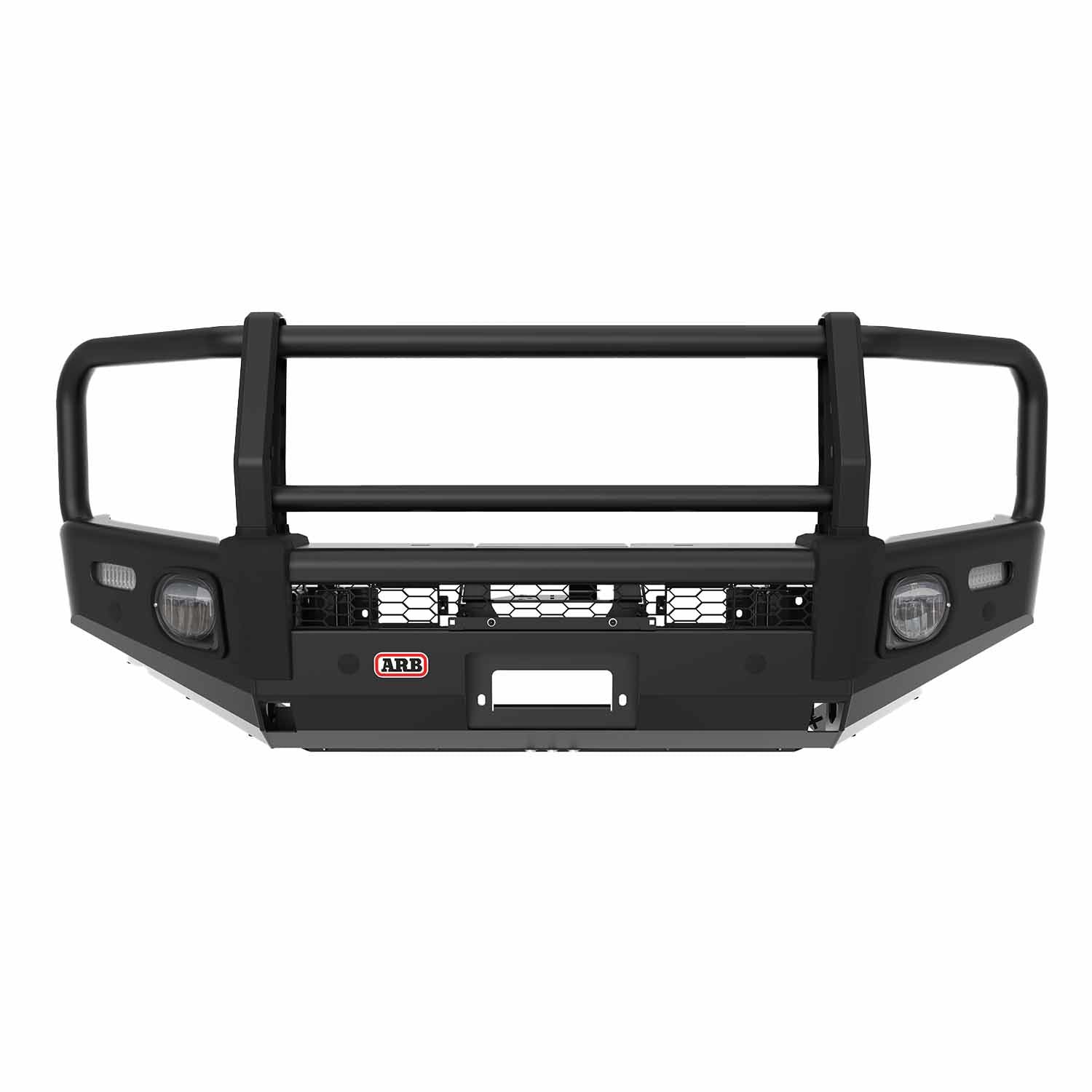

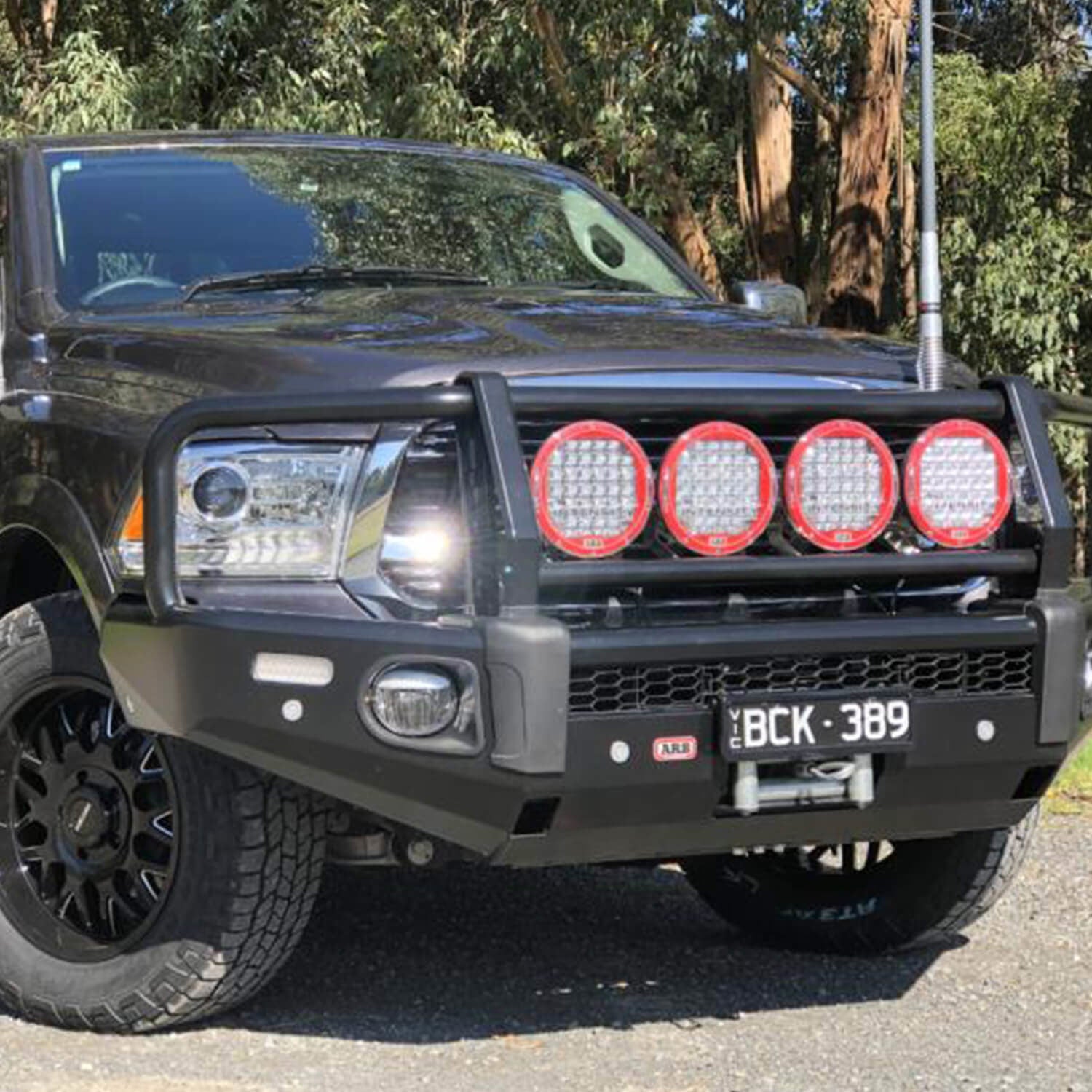

ARB 3452040 - Summit Bull Bar RAM 1500 (Fit Kit NOT Included)
ARB Summit Combination Bumper
ARB Summit Winch Bumper, Compatible with ARB Fog Lights
With the growing popularity of the Australian converted Dodge Ram 1500, ARB's engineers have designed and developed a Summit W in. Bumper to suit. Due to the size of the vehicle and its ability to tow up to 4.5 Tons (subject to vehicle specification) the Ram Summit Bumper has been designed to suit 12,000lb w inches. To accommodate the larger w in. sizes the lower pan of the Ram 1500 bar is a different profile to other Summit Bumpers and features additional bracing to achieve the higher w in. loads. Testing has been conducted via FEA simulations, testing with ARB's 30T press and fitted bar, and w in. testing with ARB's load cell to ensure that the bar assembly, chassis mounts and chassis perform as expected under w in. load conditions.
- Registered Design Of Styling And Design Components
- 30 mm. Radius On Wings And Center Section
- 3-Piece Grill and 2-Piece Buffers
- Press-Formed Cover Straps
- Durable Steel Construction For Maximum Protection
- Engineered Air Bag Compatible Mounting System
- Twin ARB Jack Or Hi-Lift Jack Points Located Beneath Each Buffer
- Provision For OE Parking Sensors
- Finished In Matt Black Powder Coat
- Provision For Optional ARB Fog Lights

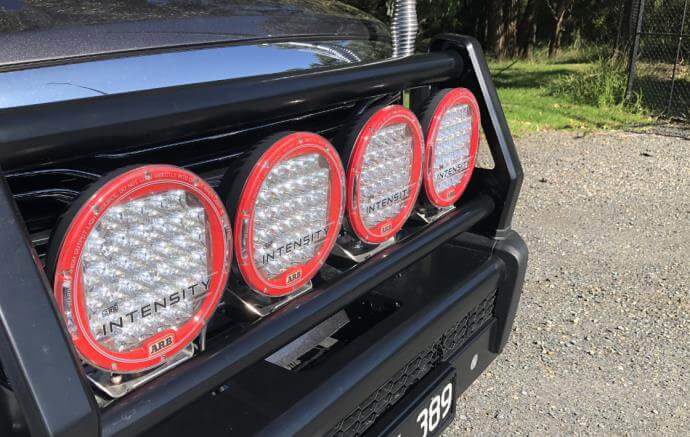

- Provision To Accommodate ARB Intensity LEDs
