APR MS100078 - Direct Injection Fuel Pump

APR MS100078 - Direct Injection Fuel Pump

APR Low Pressure Fuel Pump - 2.0T EA113/EA888 Gen 1 (FWD)

Fits Audi A3 06-13, Audi A3 Quattro 09-13, VW Beetle 12-19, VW Eos 07-16, VW GTI 06-14, VW Jetta 05-18, VW Passat 06-10, VW Tiguan 09-18, VW Tiguan Limited 17-18

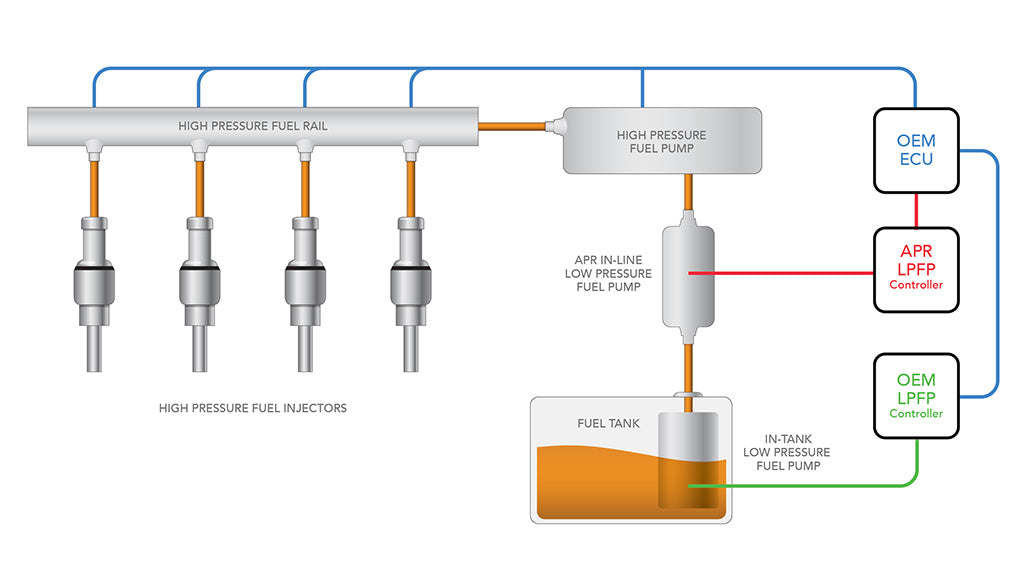

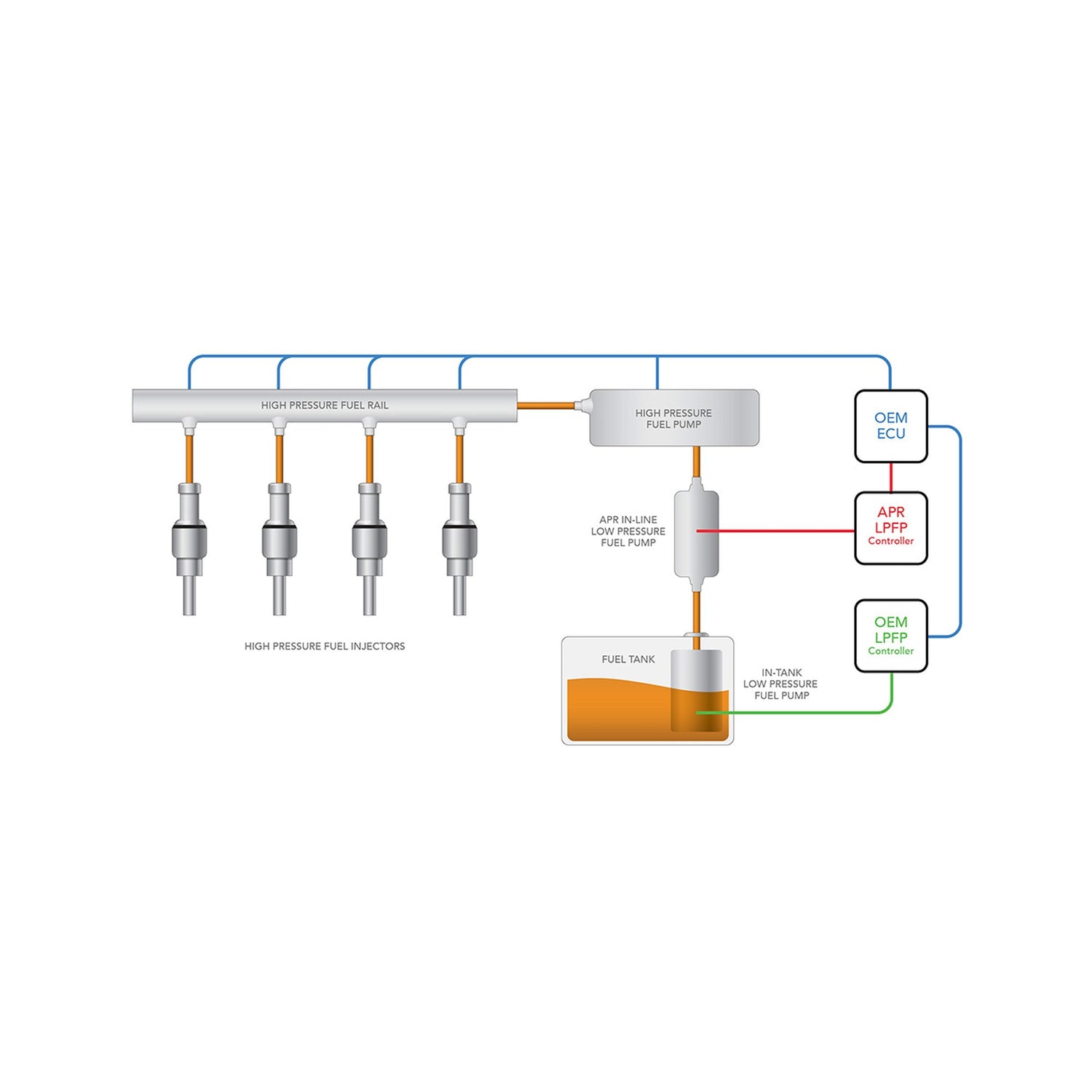

The APR LPFP System features a 255 LPH high-pressure inline fuel pump that sits between the HPFP and the factory LPFP. The included APR Auxiliary ECU sits on the factory CAN bus and receives critical operating information from the factory ECU to accurately control the pump. As fueling demands increase and decrease, the APR Auxiliary ECU controls output of the pump to deliver the desired volume of fuel to the HPFP. By connecting to the factory CAN bus, the APR Auxiliary ECU eliminate the need for less sophisticated and often problematic methods of controlling the upgraded pump. Because the pump only runs when needed, less power is consumed, fuel temperature is lower and noise, especially at idle, is essentially non-existent. Finally, with the fuel line disconnected, with the click of a button the APR Auxiliary ECU allows the user to quickly and easily empty the vehicle's fuel tank to make way for switching to higher octane fuels or for dry storage and transportation.

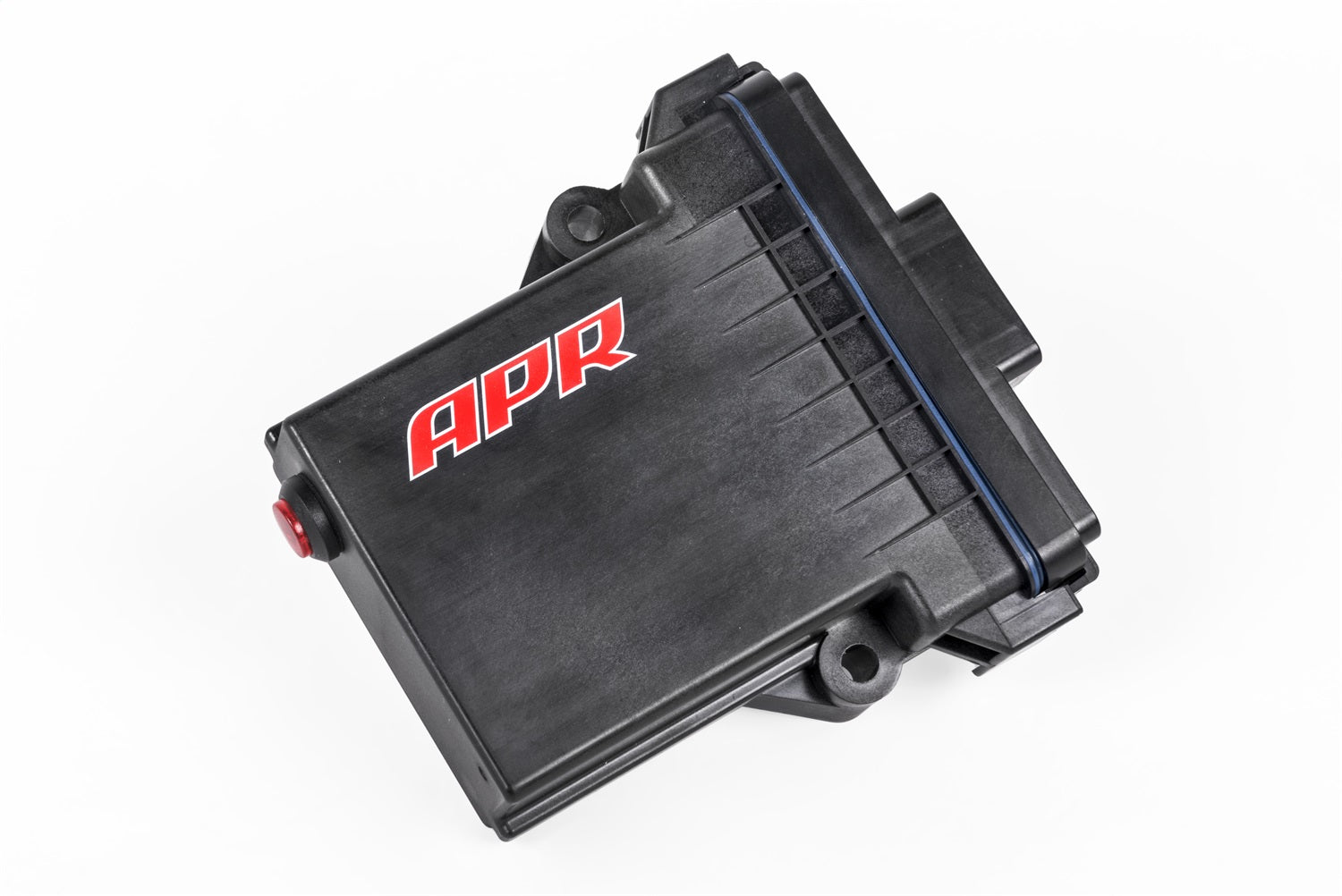

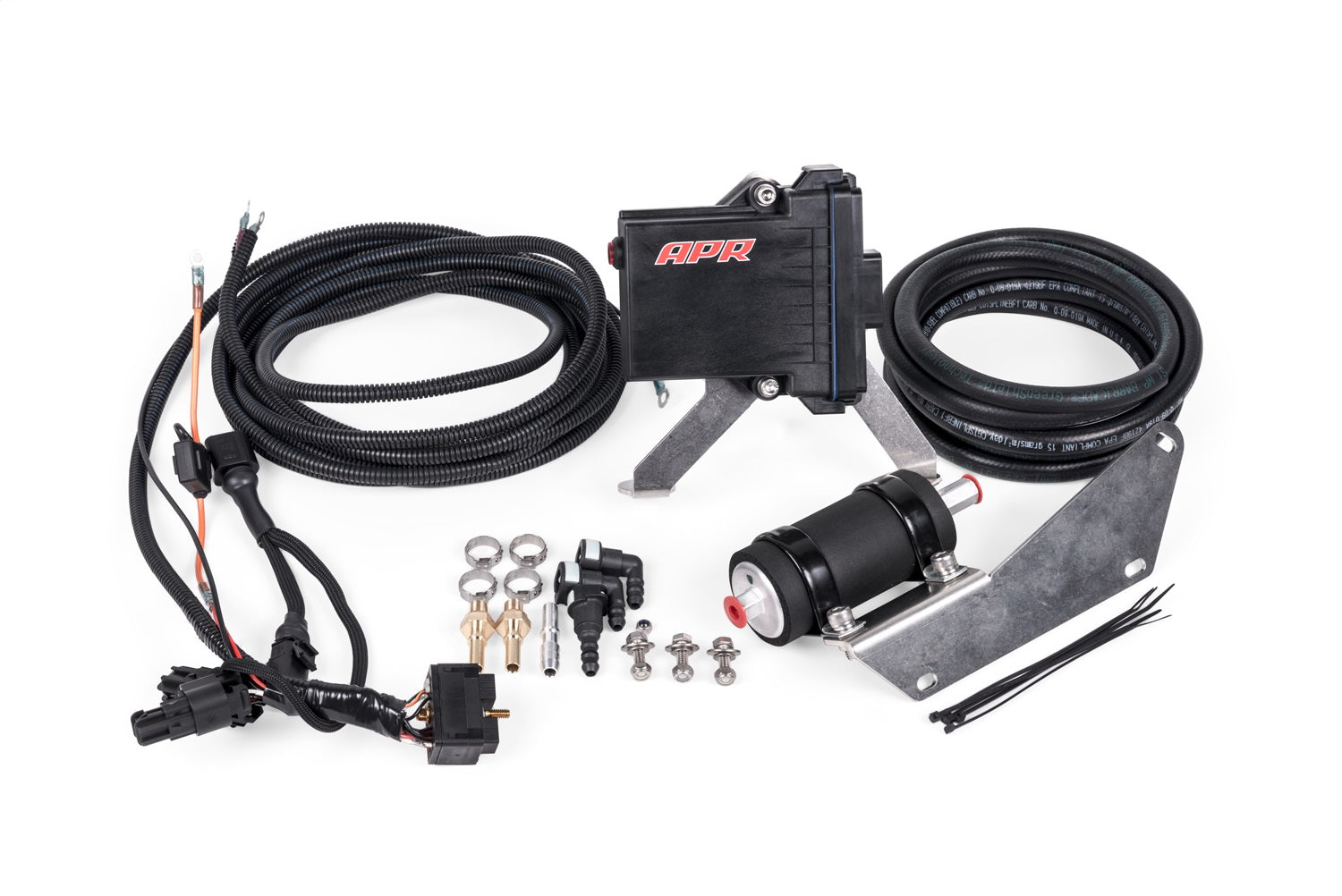

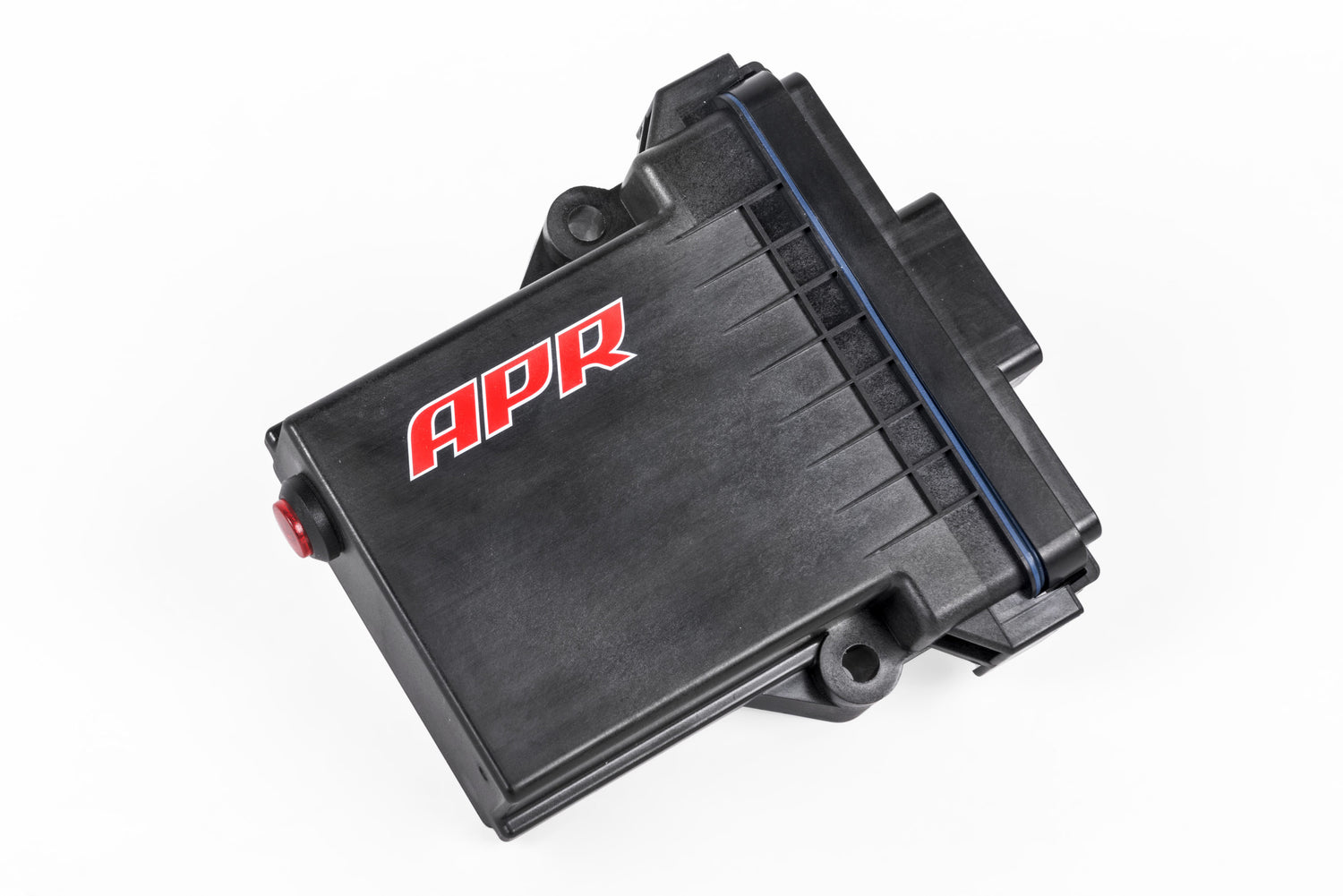

• APR LPFP ECU; Harness And Bracket

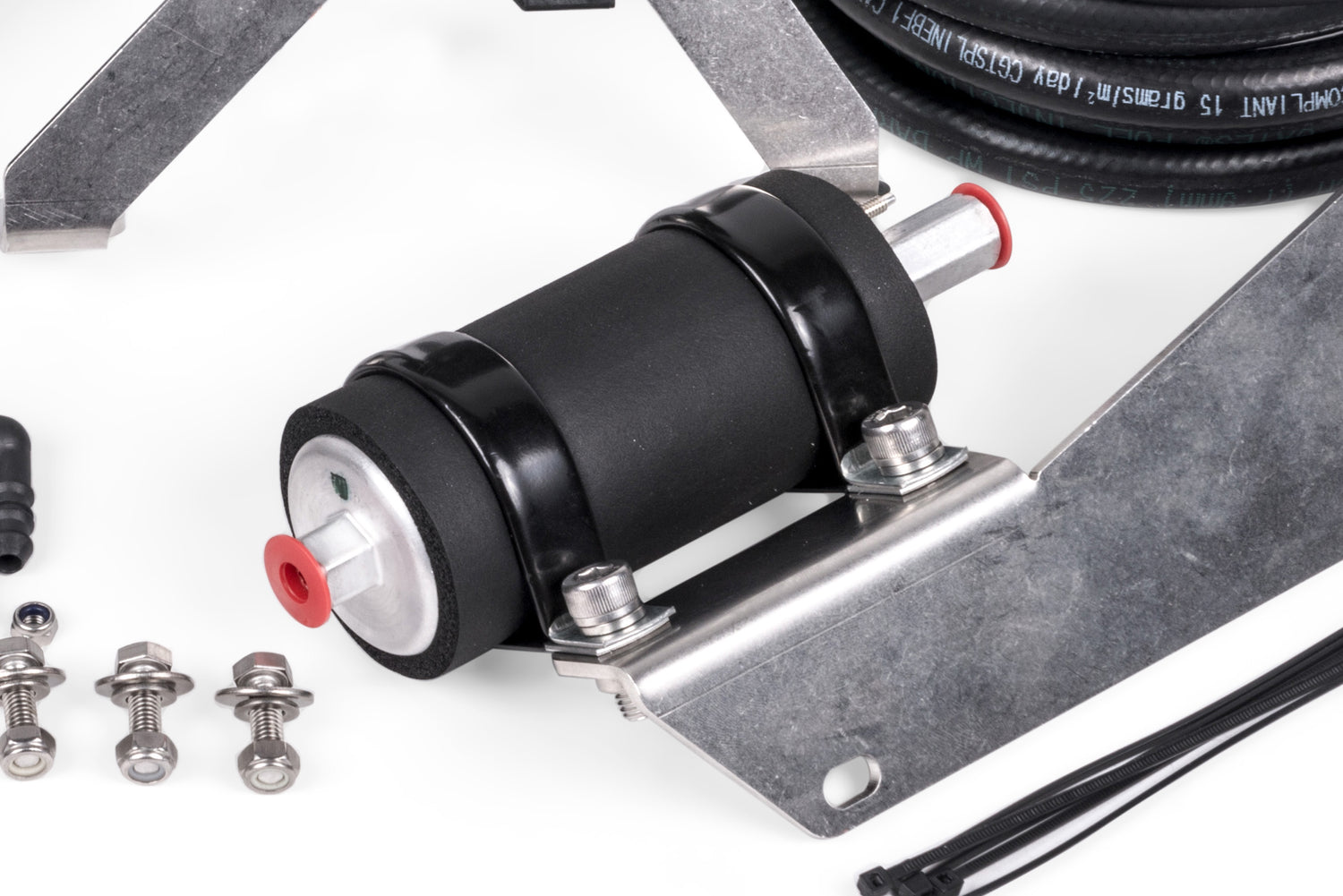

• APR 255 LPH High Pressure Inline Fuel Pump And Bracket
• OEM Quality Fuel Lines; Crimp Clamps And Quick Connectors
• Clean and simple solution to OEM low pressure fueling system
• Allows For Higher Output Calibrations
• Integrated into factory CAN bus
• Quiet And Cool Low Power Operation; Only On When Needed
• Quick Fuel Tank Emptying Mode For Use w/ Switching Fuel Grades
• No unintended side effects common with other parts
• No ECU software required
• Only needed where specified by APR
