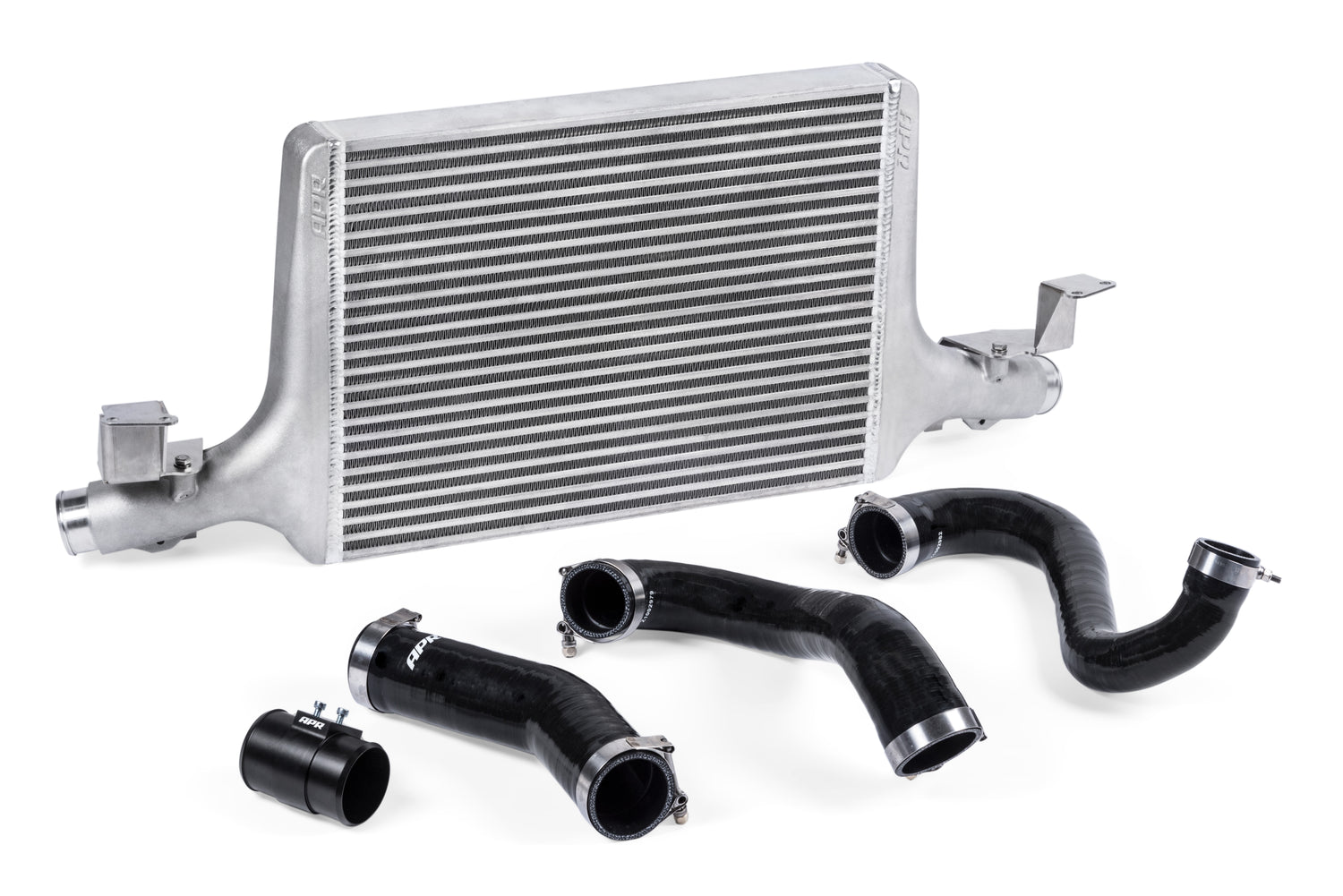

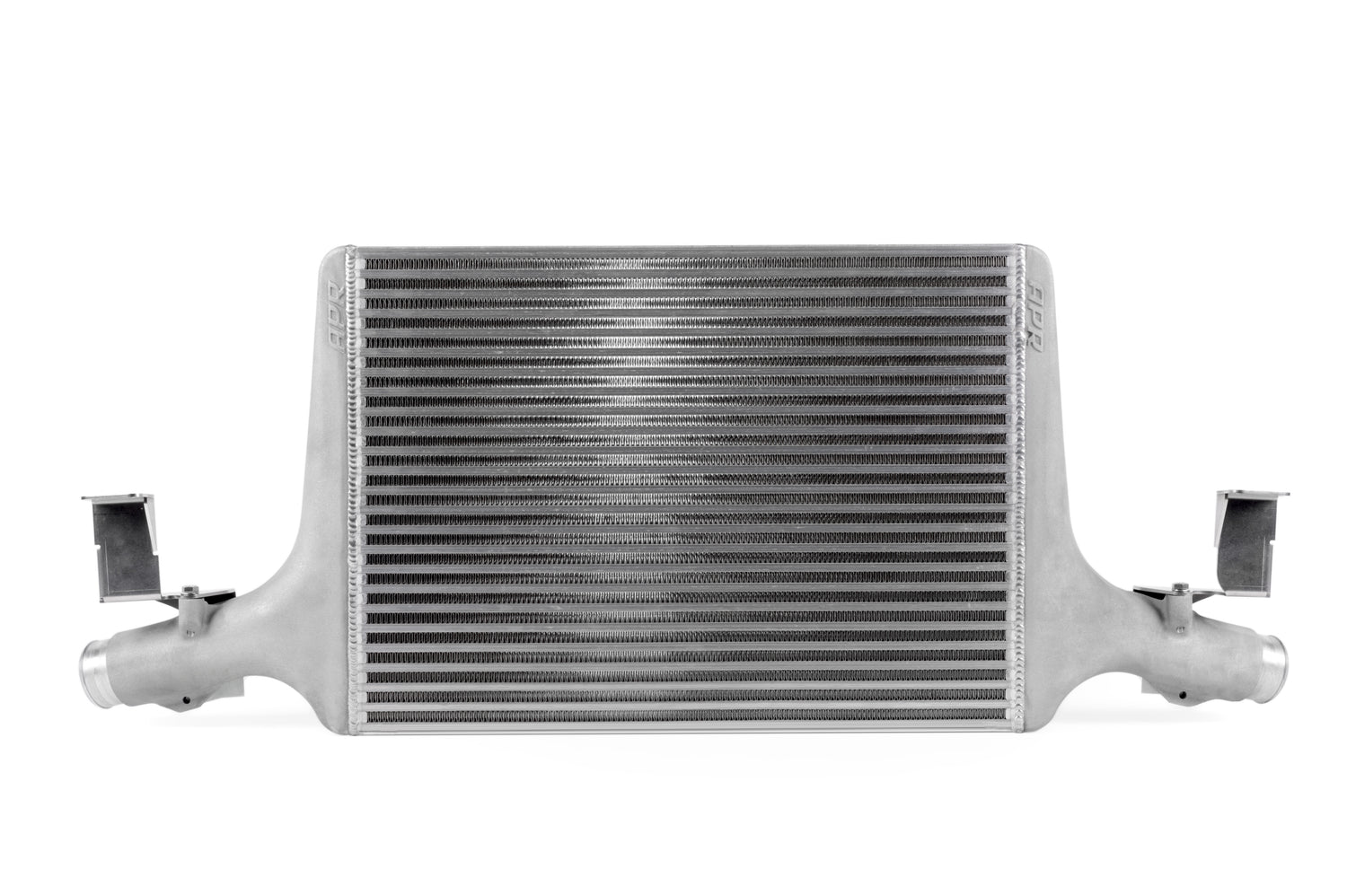

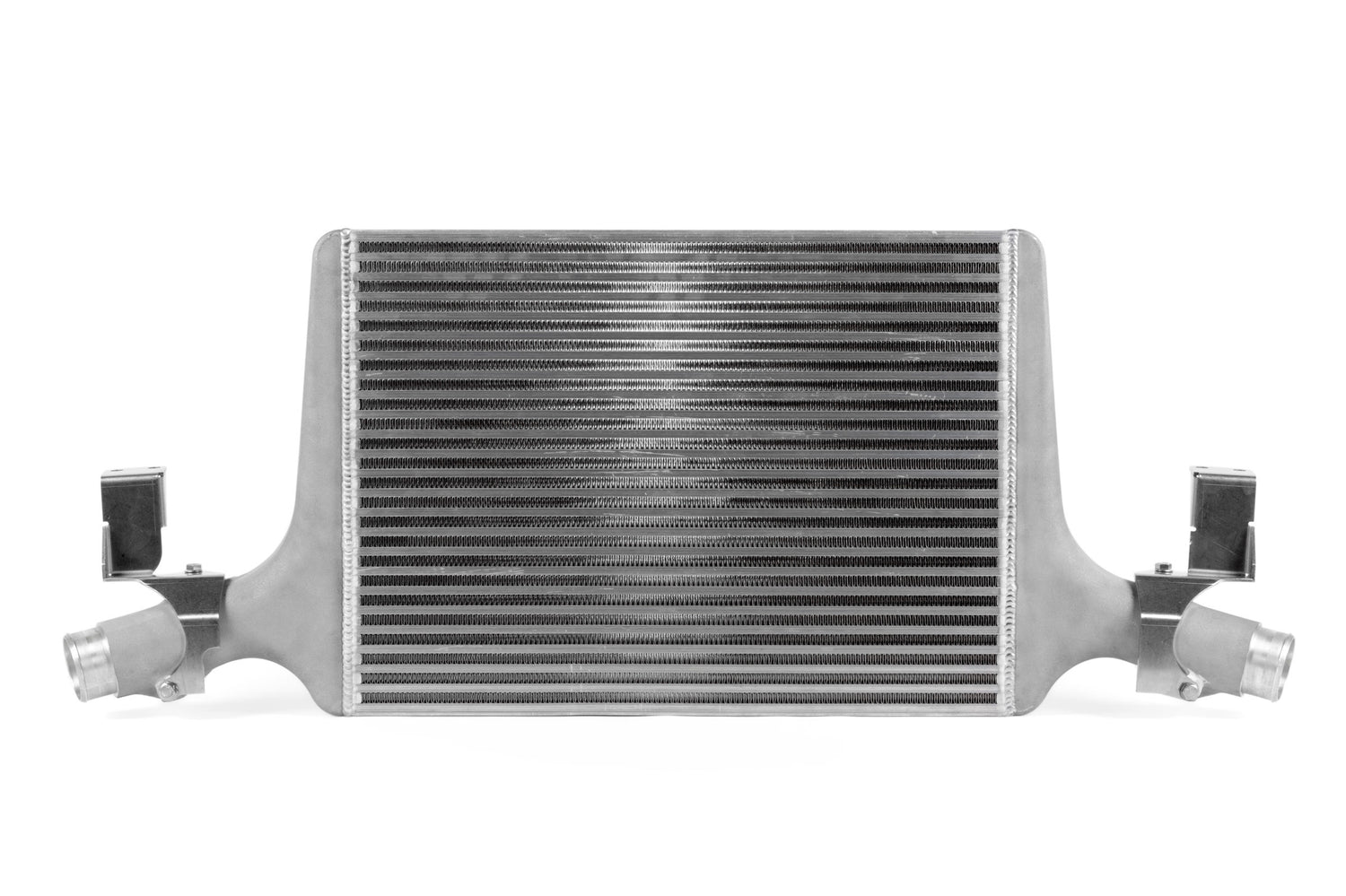

APR Intercooler System - B9 1.8/2.0 TFSI

Intercooler System; Front Mounted Upgrade; Direct Bolt-On Design; w/Smooth Cast End Tanks; 30 lbs.;

The APR Intercooler System dramatically lowers charge air temperature and resists heat soak far better the factory intercooler system. Through a massively increased core volume, superior intercooler core design and smooth, cast end tanks, APR's engineers were able to create an intercooler capable of supporting power levels well beyond that of the factory unit. Expect increased horsepower and torque and dramatically prolonged performance.

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Retained as high as 45 AWHP compared to the factory system!

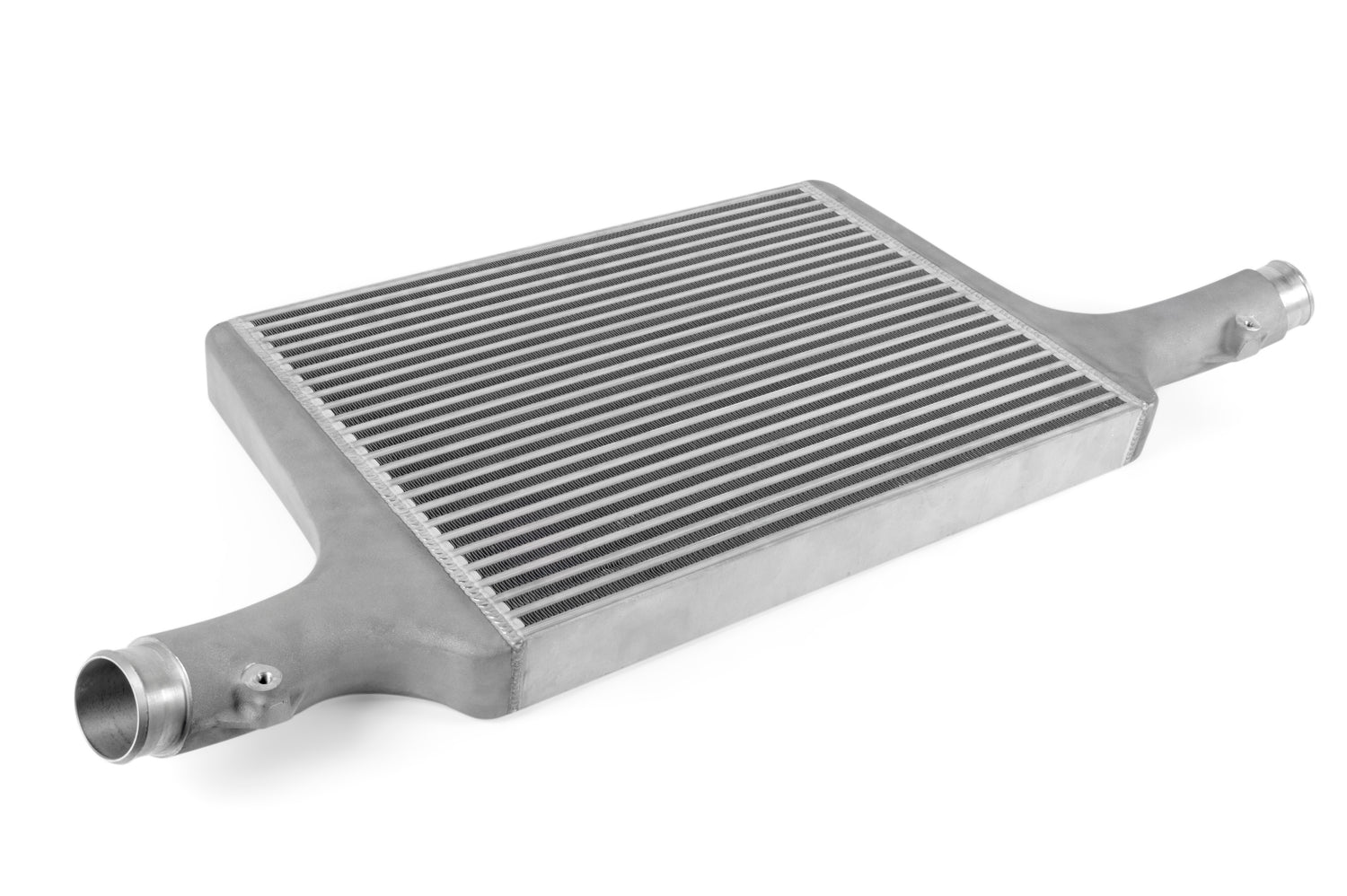

• Massive frontal surface area and core volume
• 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
• 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR

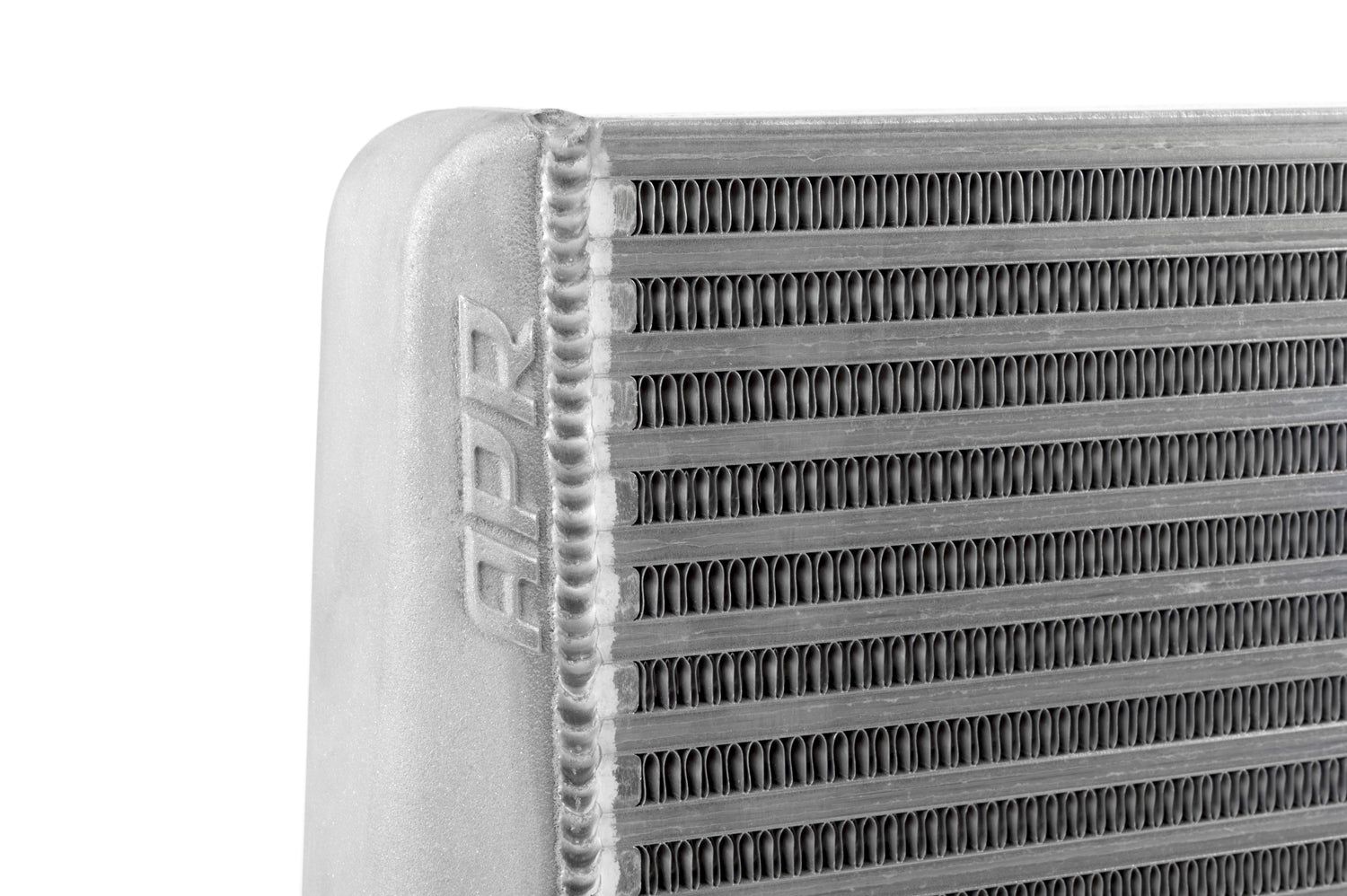

• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!

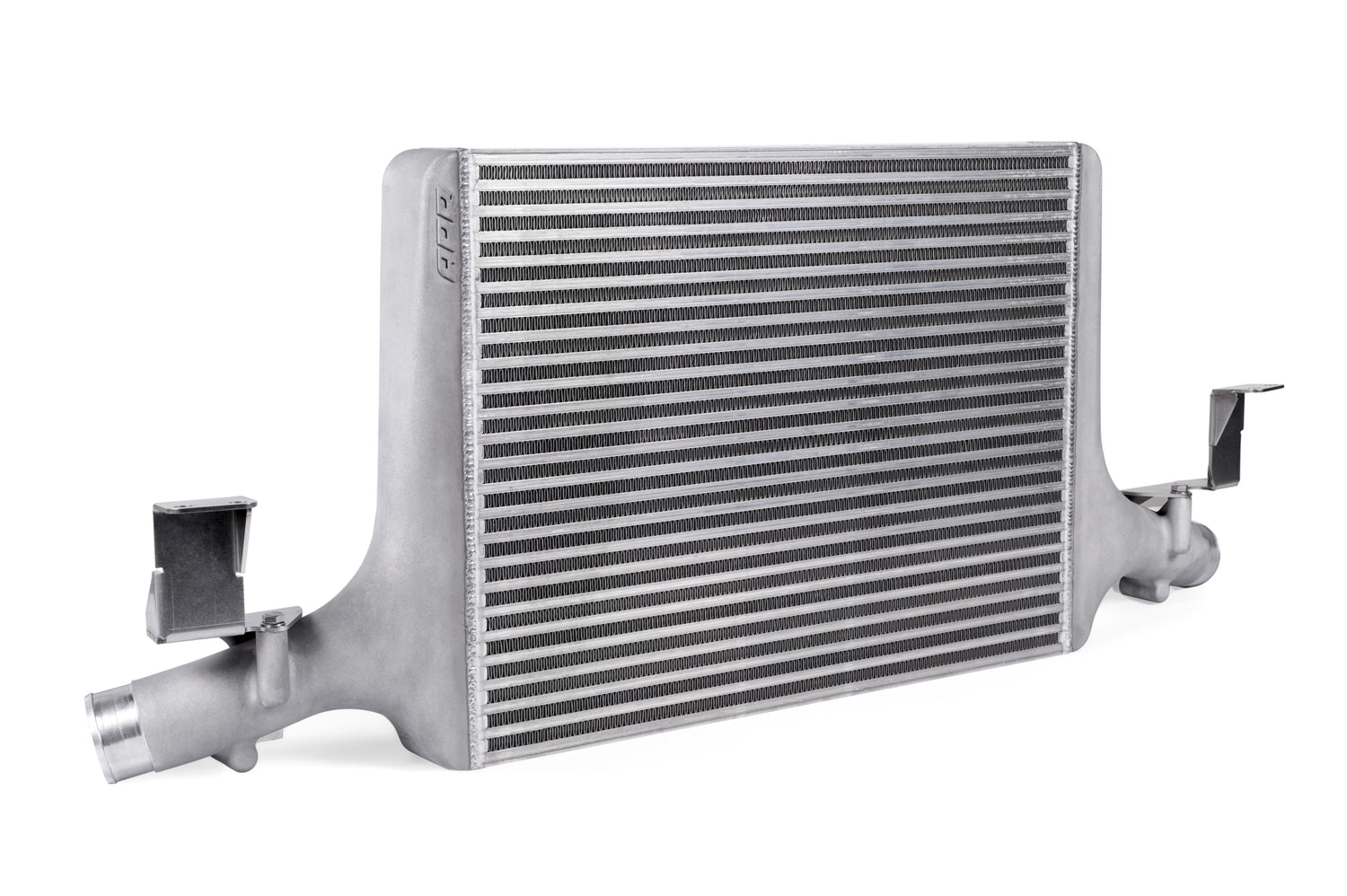

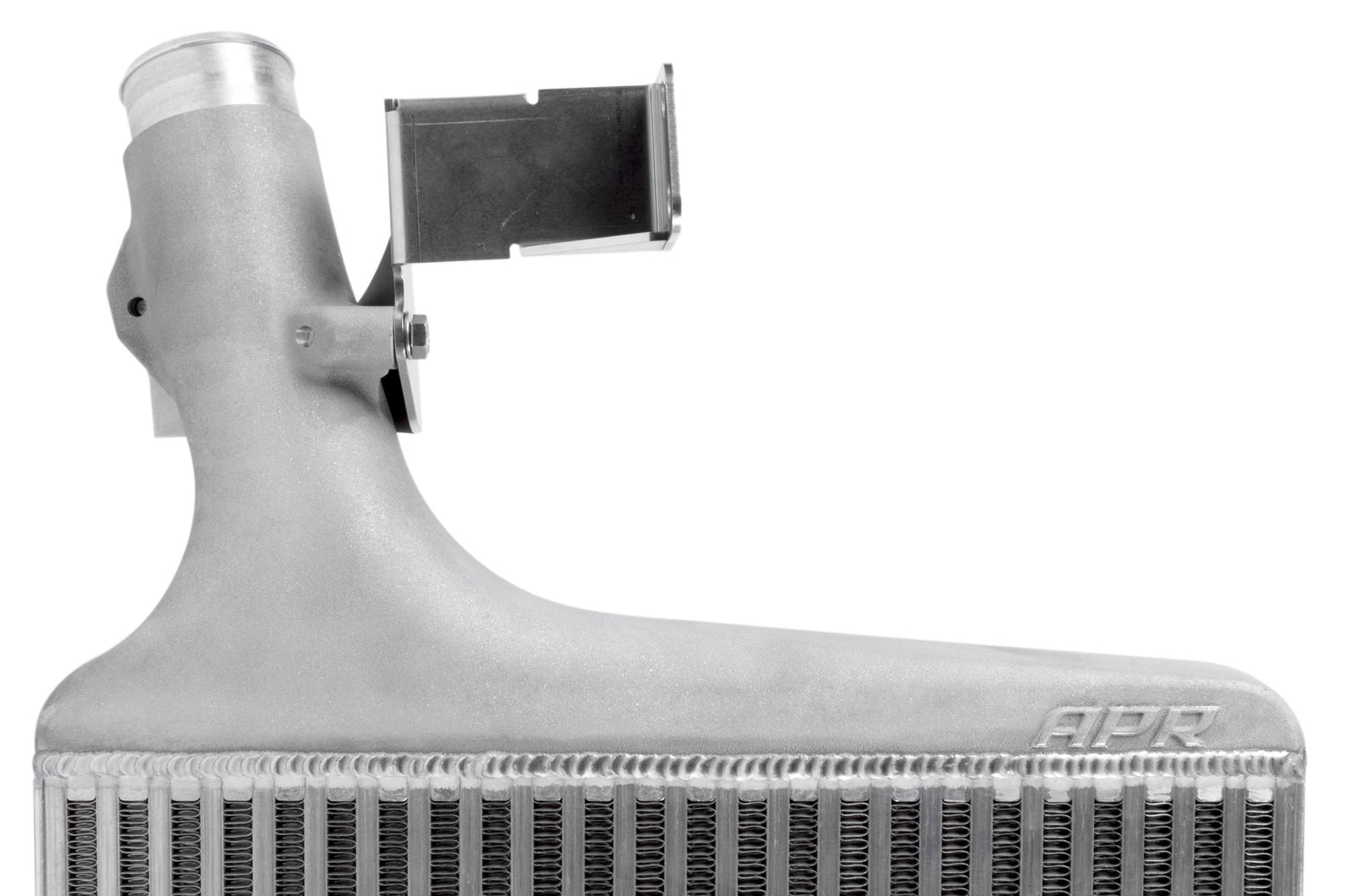

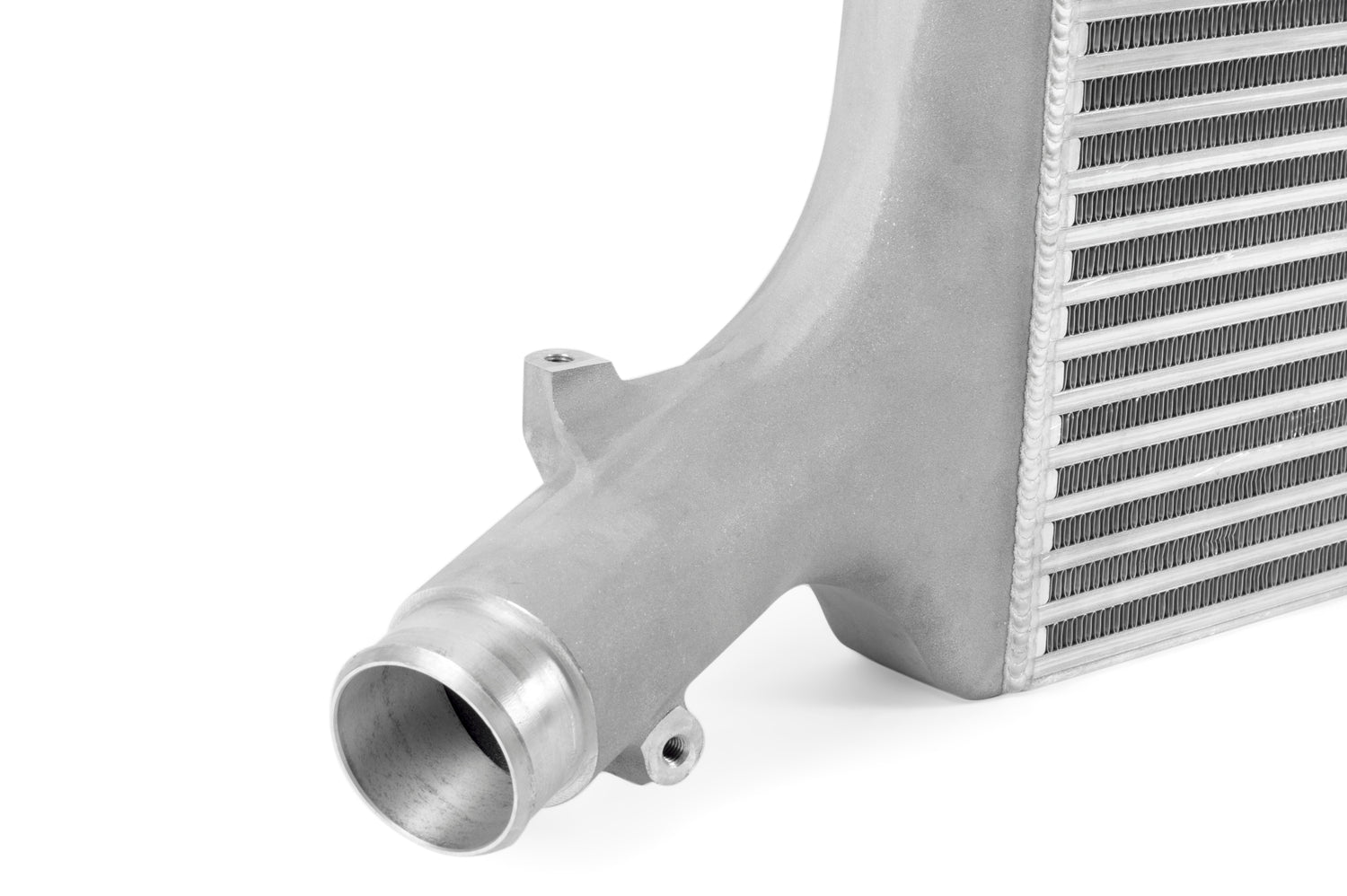

• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.

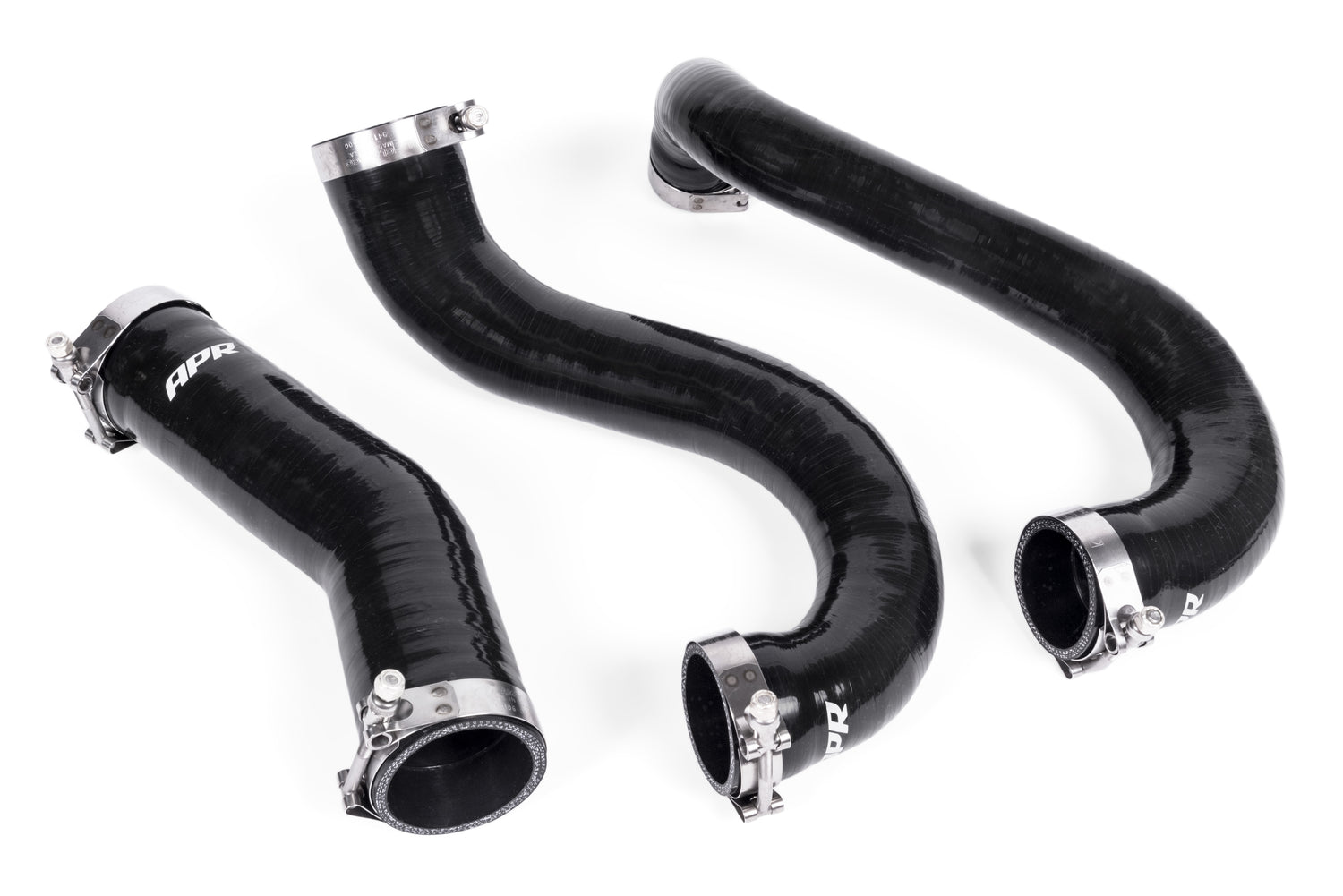

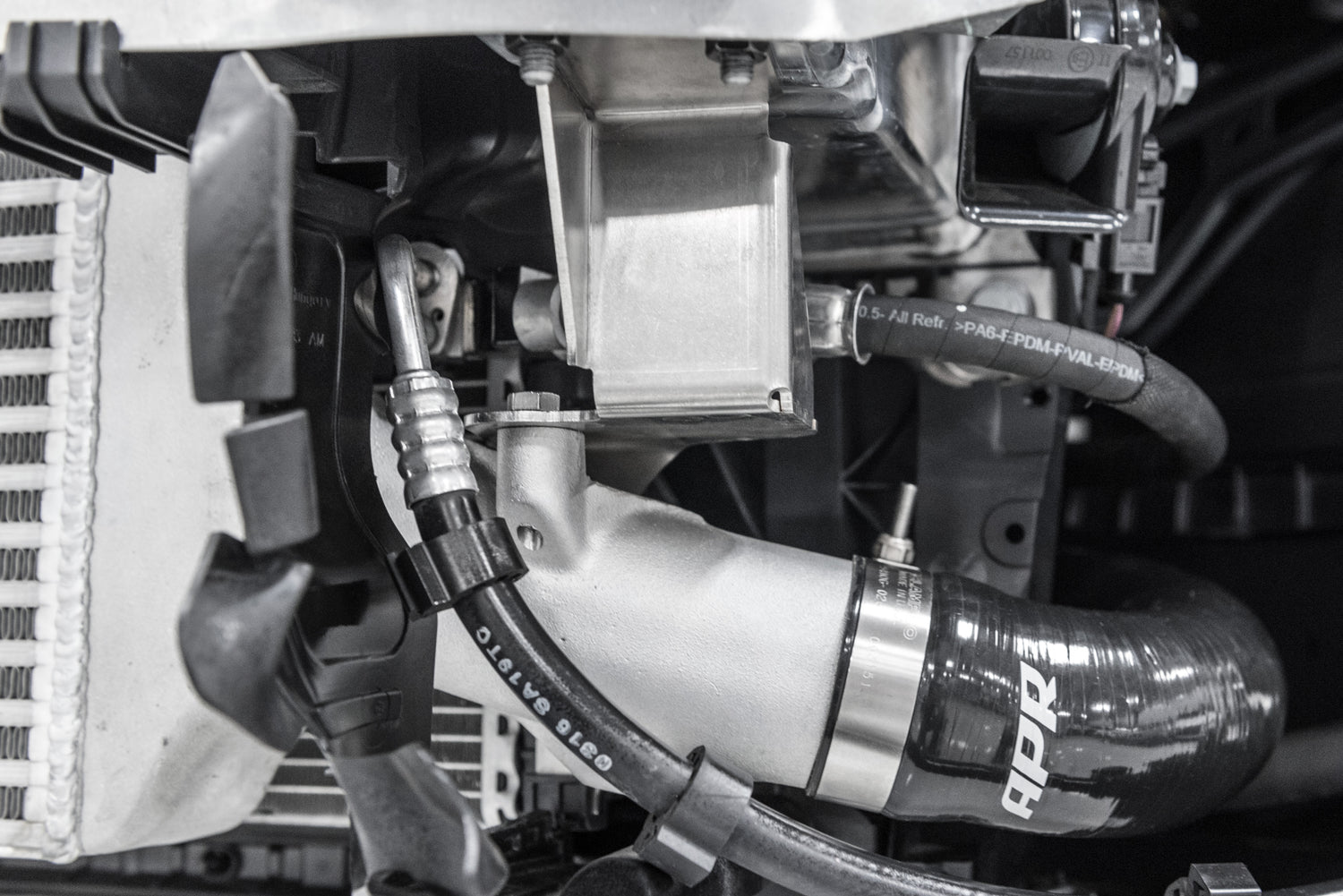

• Silicone inlet and outlet hoses
• Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
• Clampco T-bolt clamps
• Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

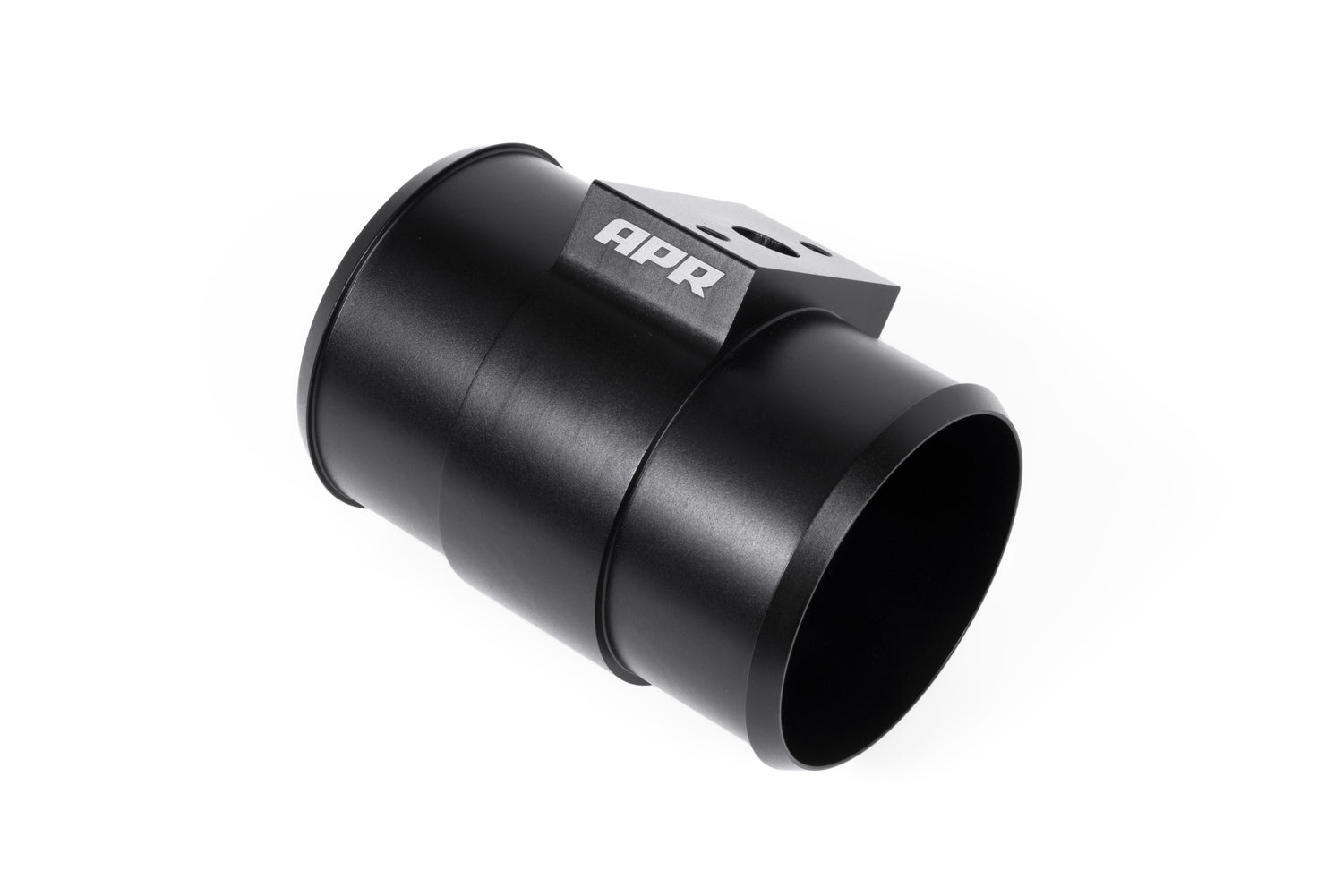

• Billet MAP housing
• Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
• Easy to install

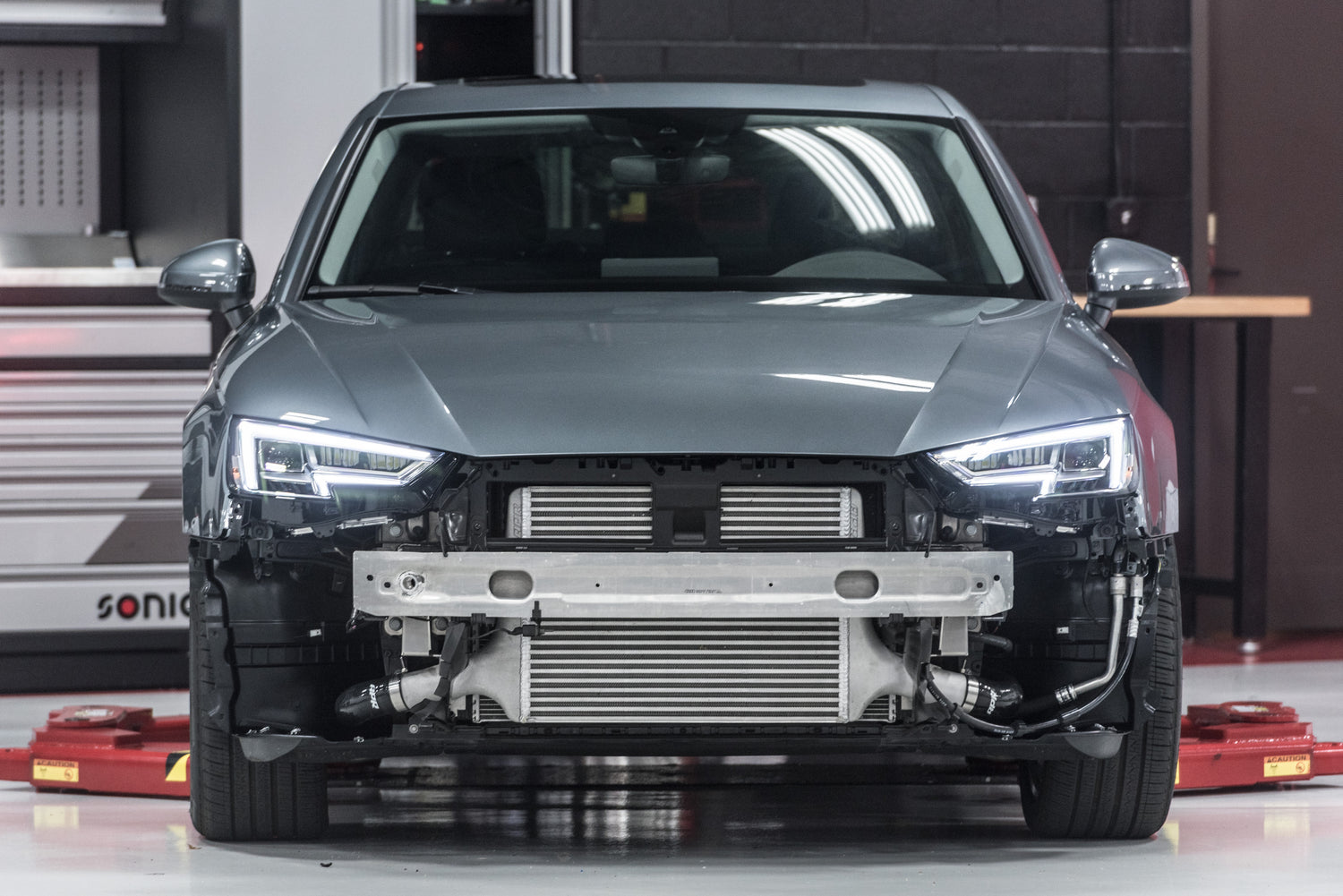

• Simple bolt-on install with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!
