Air Lift 27485 - ALP4 Air Management 3/8in Airline (No Tank/Compressor)

Air Lift 27485 - ALP4 Air Management 3/8in Airline (No Tank/Compressor)

ALP4 3/8in. line pressure-based air management system

Air Lift Performance’s ALP4 is a pressure-based air management system with preset ride pressures and real-time monitoring, allowing for fine-tuning of your suspension and a user-friendly design, PN 27485

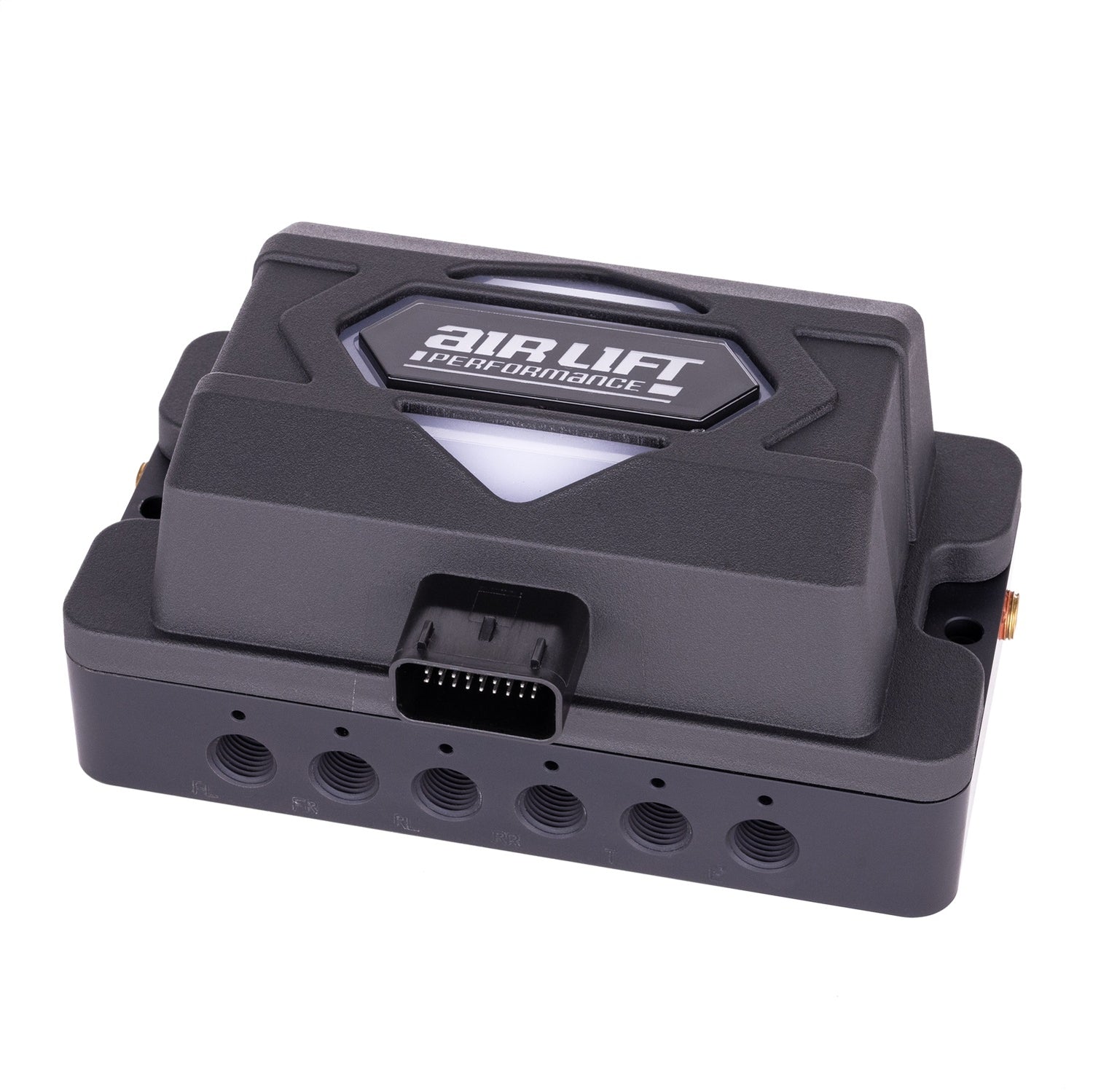

The ALP4 pressure-based air management system redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality. This system features a compact, all-in-one manifold, which houses the ECU, solenoids, and pressure sensors, crafted from anodized black billet aluminum for durability and a sleek, show-ready appearance. The manifold’s customizable LED-lit top cover lets builders match their system’s color to their vehicle. ALP4 offers multiple preset ride pressures and full manual control, allowing for instant air-outs and show-ready configurations. Paired with a full-color touchscreen controller framed in anodized aluminum and equipped with four tactile physical buttons, this system offers immediate control for your presets, 4-corner manual control, axle adjustments, or full air-out. With mobile app integration, ALP4 allows you to use and fine-tune your setup from anywhere, ensuring ultimate control. ALP4 can be run as a height-based air management by simply incorporating our Height Upgrade Kit. Designed for plug-and-play installation, the ALP4 harness reduces wiring complexity, requiring only power, ground, and keyed ignition, thereby eliminating the guesswork common in air suspension installations. Plus, built-in diagnostics with user-friendly messaging ensure real-time system feedback, giving drivers the confidence to hit the road or the show floor without surprises.

• Pressure-based system with an all-in-one manifold with sensors built in
• Upgradeable to a height-based system by incorporating our Height Upgrade Kit

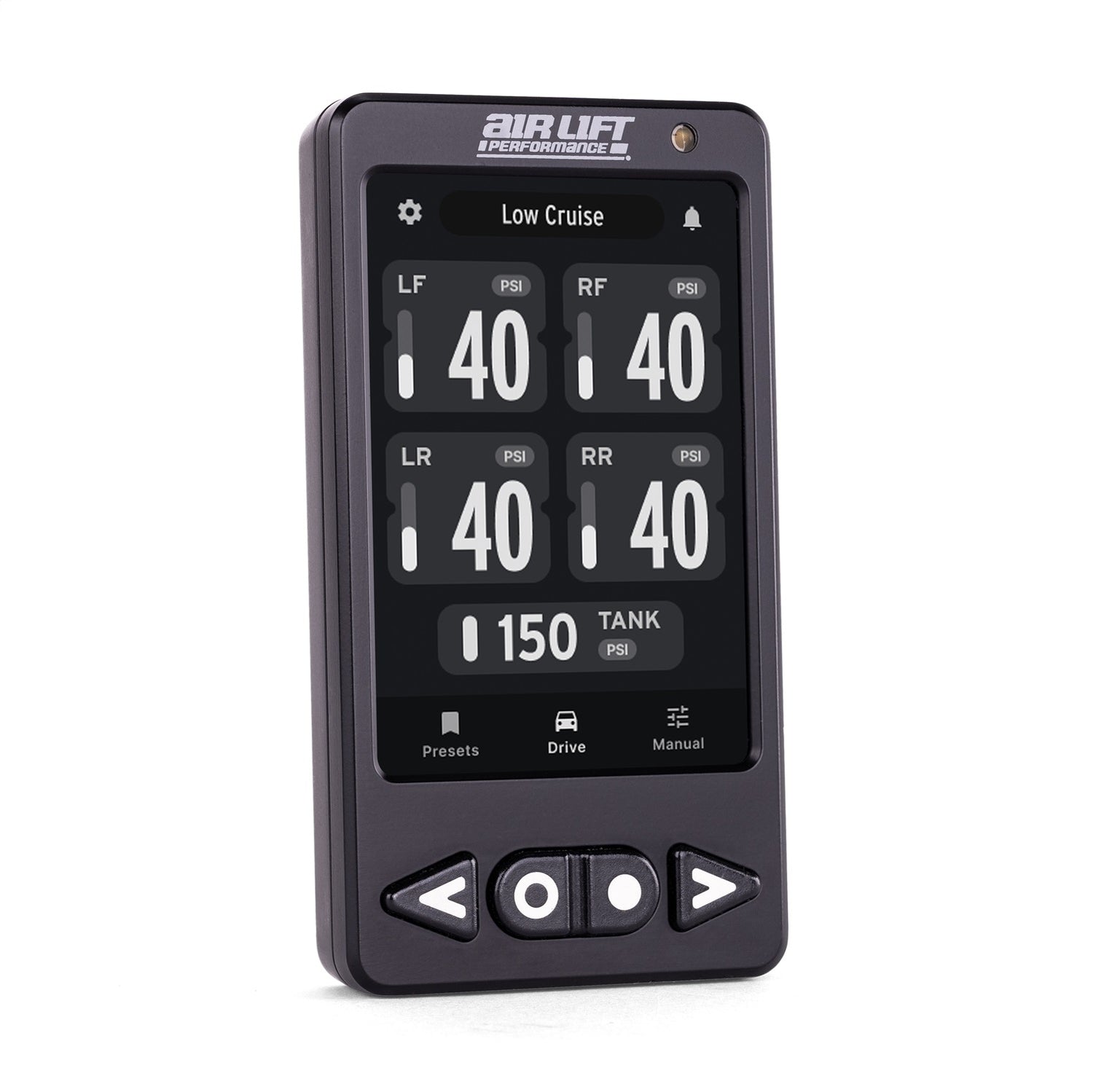

• 3.5-inch full-color touchscreen controller with four physical buttons, and auto-dimming ambient light sensor

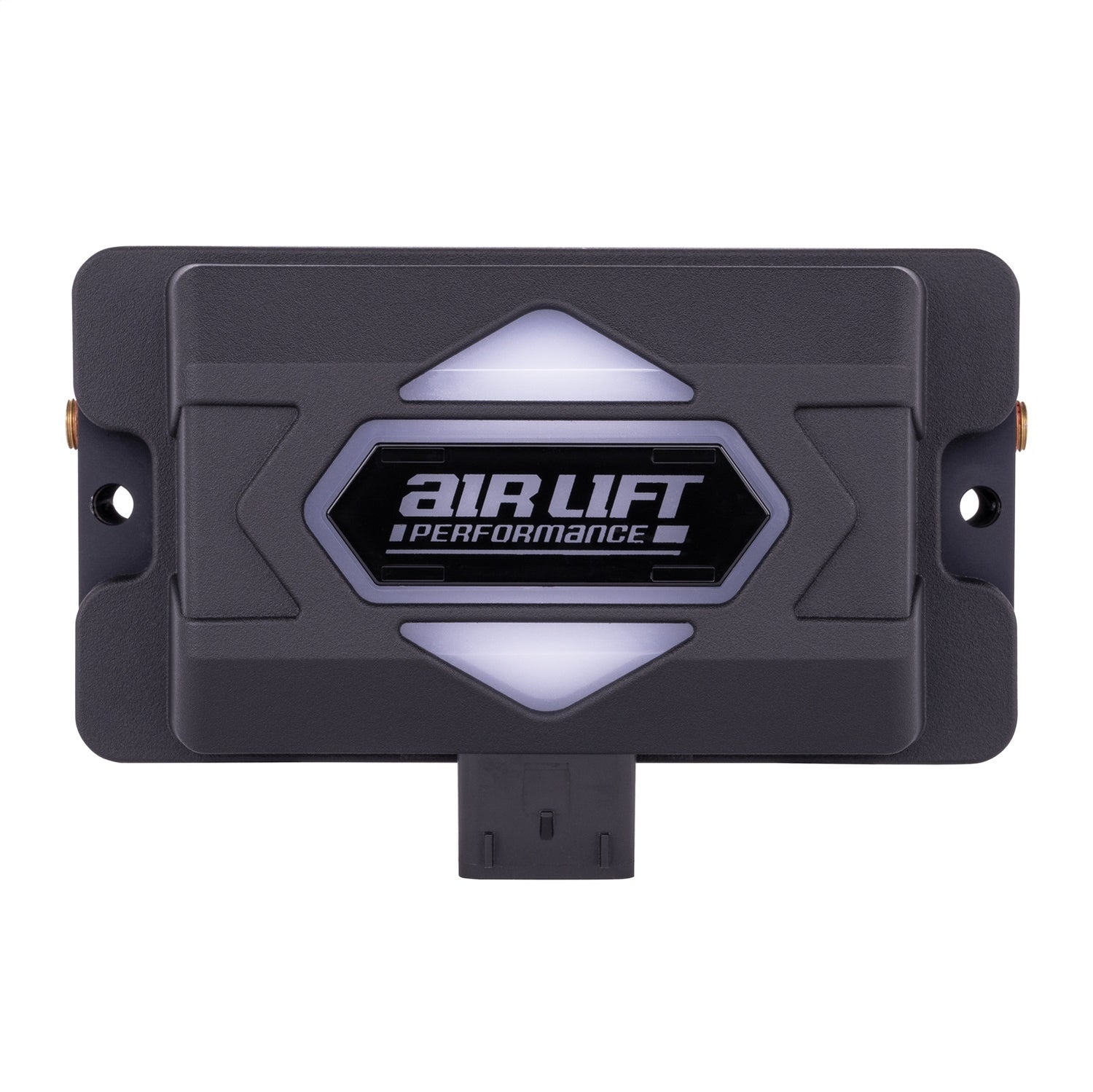

• Adjustable LED colors for manifold cover, controller backlight, and buttons
• Plug-and-play harness for easy installation
• Free mobile app with improved connectivity for full system control
• Built-in diagnostics with clear, easy-to-understand system messages
• Compressor performance test and diagnostics to track compressor health
• Adjustable pulse rate for fine-tuning responsiveness
• Valet Mode with customizable lockout settings
• Show Mode which allows full use of the system with the vehicle off
• Standby mode which allows wireless connectivity and use of the system with the vehicle off
• Adjustable preset maintain sensitivity
• Slow Lift/Lower Zone for pulsed movement near minimum ride height to manage ground contact smoothly
• ¼” FNPT manifold ports
• Improved ride adjustment algorithms with learning and road filtering
