Aeromotive 18861 - 68-69 Dodge Dart Hellcat Swap Fuel Tank
Aeromotive | SKU:
AFS-18861
Sale price
$1,05499
Regular price
$1,10980
Unit price
/
Unavailable
$54.81 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

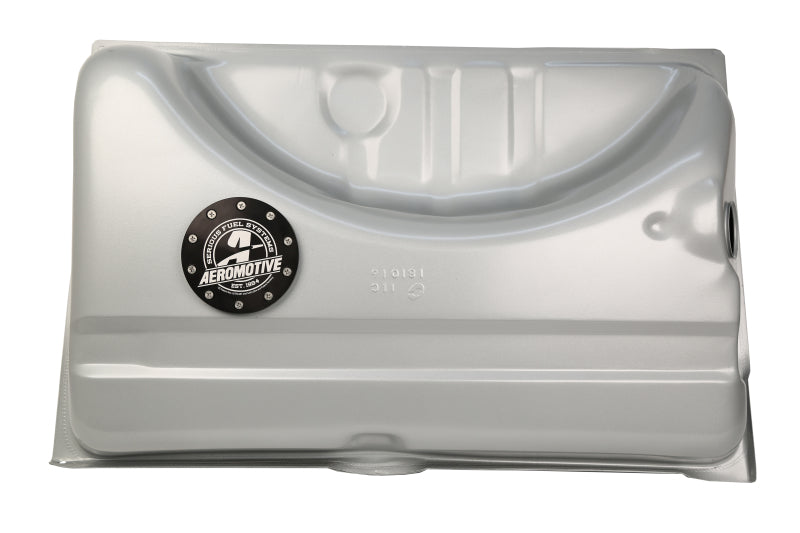

Aeromotive 18861 - 68-69 Dodge Dart Hellcat Swap Fuel Tank
Gen II Stealth Fuel Tank 68-69 Dart - 525lph
Fuel Tank, 525lph, 68-69 Dodge Dart Hellcat Swap.
525 LPH 68-69 Dodge Dart Hellcat Fuel Tank.
Attached Sump: No
Baffled: Yes
Capacity: 18
Color: Silver
Filler Neck Attached: Yes
Finish: Powder Coated
Fuel Cap Included: No
Fuel Pump Included: Yes
Fuel System Compatibility: Carburation & Fuel Injection
Fuel Type: Gas
Grade Type: Performance
Height: OEM
Integrated Controller: No
Length: OEM
Lock Ring Included: Yes
Material: Steel
Maximum Current Draw: 17A @ 40PSI
Maximum Flow Rating: 525LPH
Maximum Pressure: 105PSI
Motor Style: Brushed
Mounting Hardware Included: No
Mounting Straps Included: No
Negative Ground: Yes
O-Ring Included: Yes
Outlet Outside Diameter: ORB-06
Outlet Type: Female
Pressure Range: 3-80
Pulse Width Modulation Compatible: Yes
Pump Design: Turbine Impeller
Return Fitting Size: ORB-06
Sender Ohm Range: 73-10
Sending Unit Included: Yes
Series: Gen II Stealth
Terminal Gender: Male
Terminal Quantity: 3
Terminal Type: Threaded Stud
Universal Or Specific Fit: Specific
Voltage: 12-16V
Width: OEM
