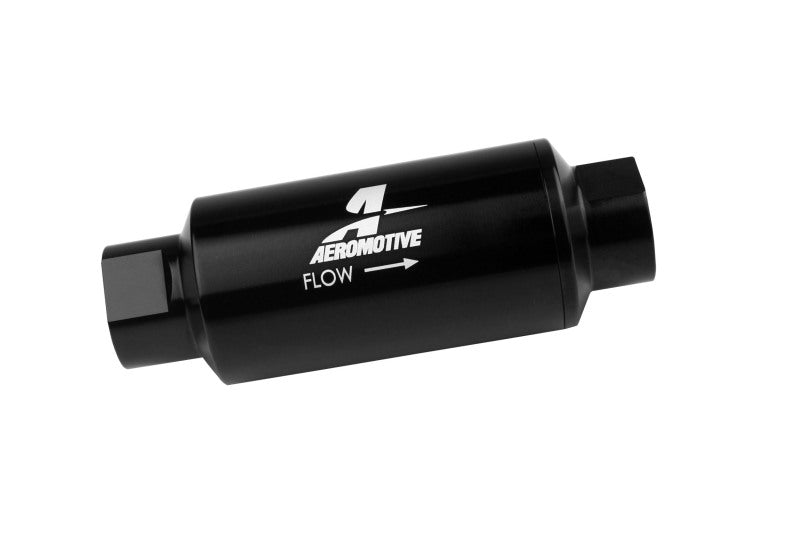

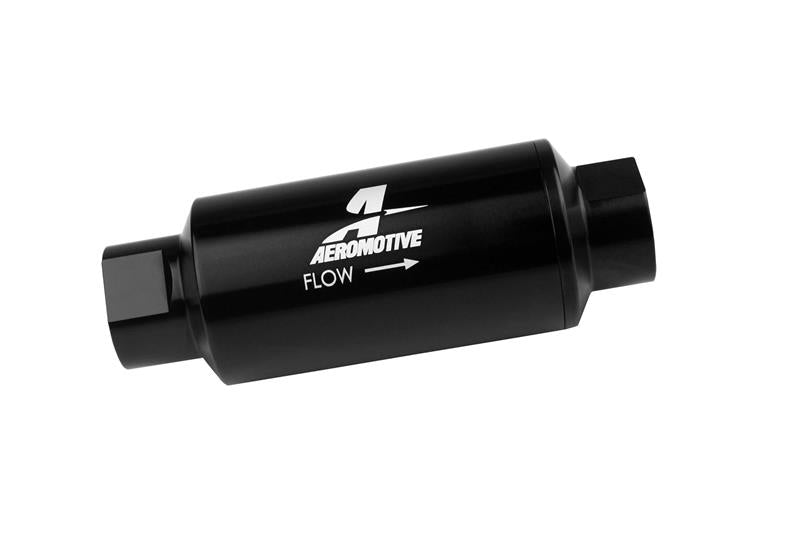

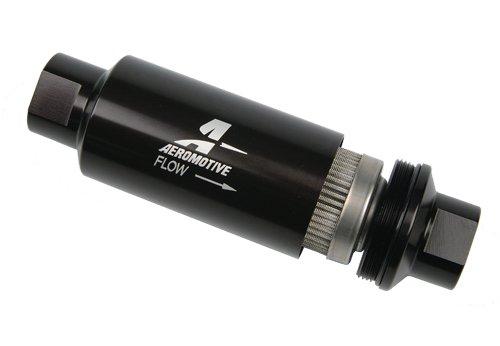

Aeromotive 12330 - In-Line Fuel Filter 40-M Stainless Mesh Element ORB-10 Port (Bright-Dip Black) 2in. OD

Aeromotive  |  SKU: AFS-12330
$20199 $21215
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Aeromotive 12330 - In-Line Fuel Filter 40-M Stainless Mesh Element ORB-10 Port (Bright-Dip Black) 2in. OD

Filter, In-Line, 40-m Stainless Mesh Element, ORB-10 Port, Bright-Dip Black, 2" OD.

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 ? 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you?ve come to expect from all Aeromotive components.

Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female

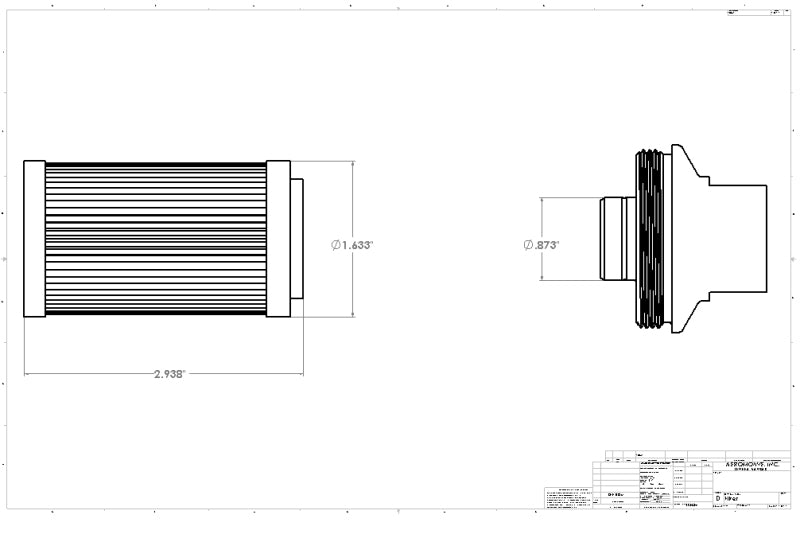

Filter Element Included: Yes
Filter Element Material: Stainless steel mesh
Filter Housing Color: Black

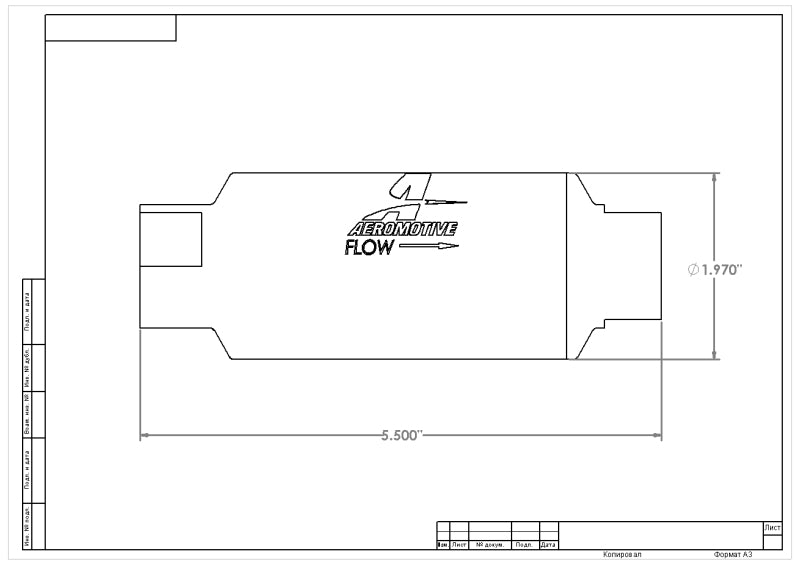

Filter Housing Diameter: 2.0
Filter Housing Finish: Anodized
Filter Housing Length: 5.5
Filter Housing Material: Billet Aluminum
Fitting Type: AN-10
Fittings Included: No
Flow Rate: 2000
Fuel Filter Style: Inline
Fuel Type: All Fuels
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-10
Inlet Quantity: 1
Inlet Size: AN-10
Length: 5.5
Maximum Fuel Pressure (psi): 70
Micron Rating: 40
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-10
Outlet Quantity: 1
Outlet Size: AN-10
Outside Diameter: 2.0
Outside Diameter (In): 2.0
Overall Length: 5.5
Overall Length (In): 5.5
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 40 microns
Universal Or Specific Fit: Universal
