Aeromotive 12311 - Marine AN-12 Fuel Filter - 10 Micron

Aeromotive  |  SKU: AFS-12311
$30799 $32390

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

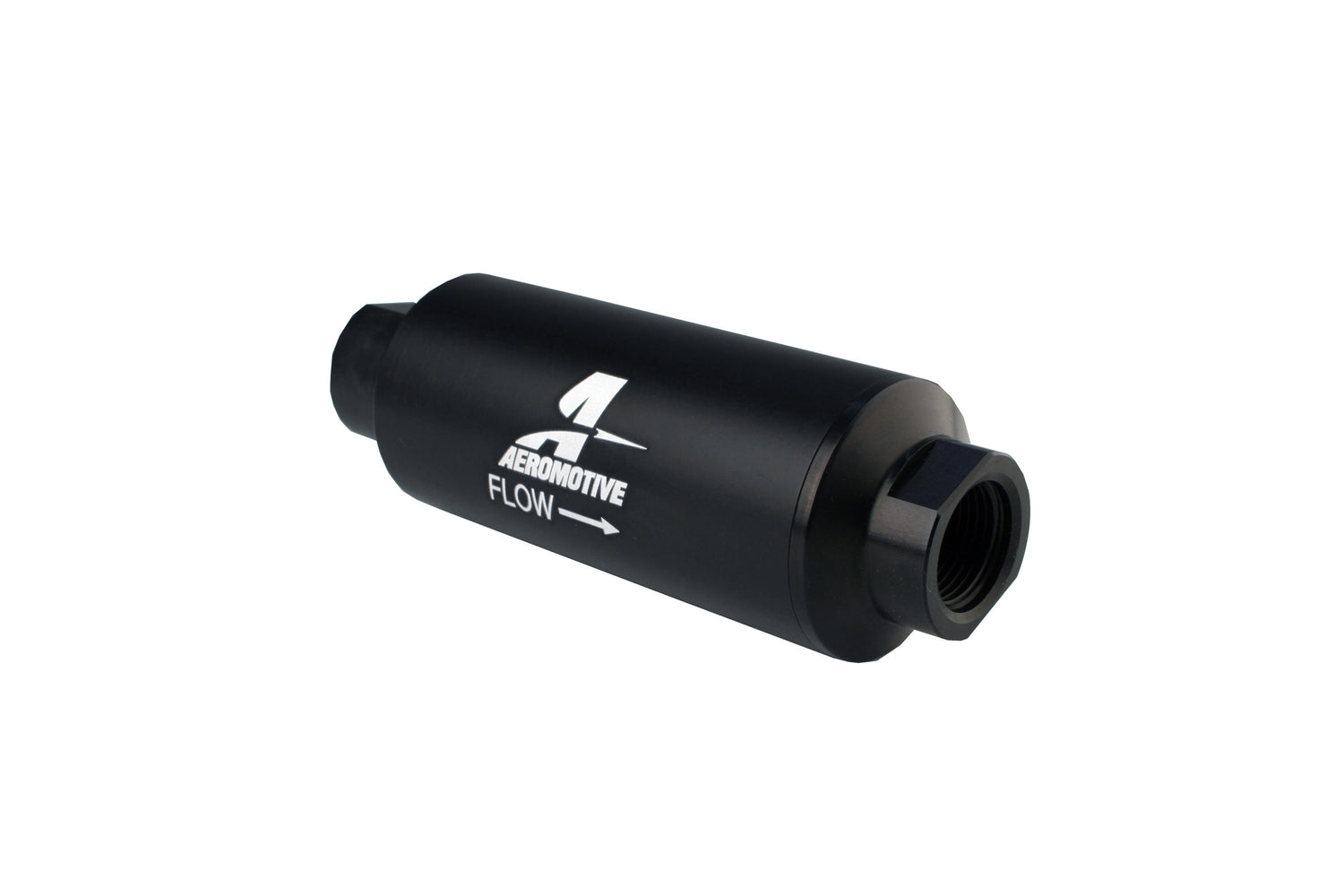

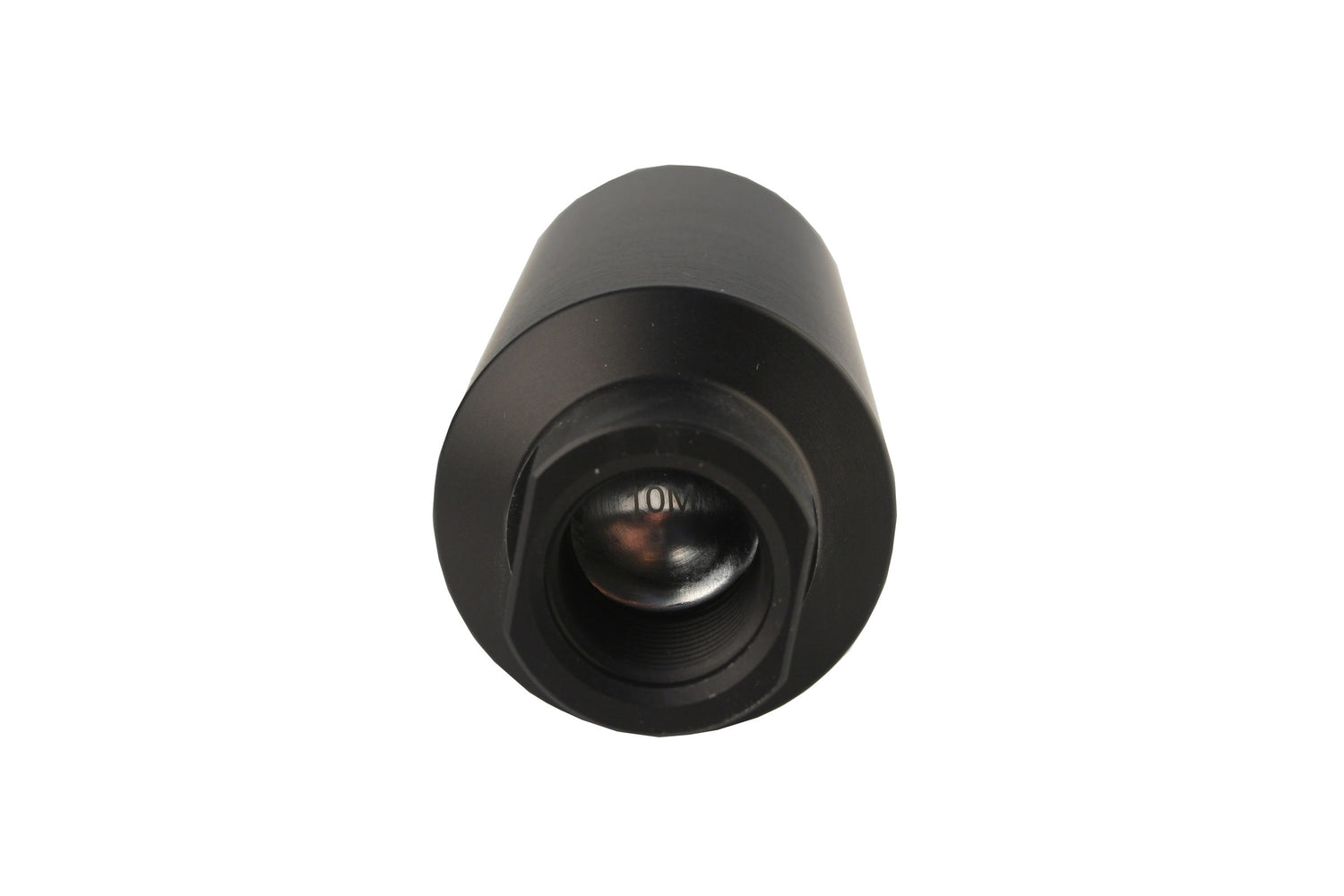

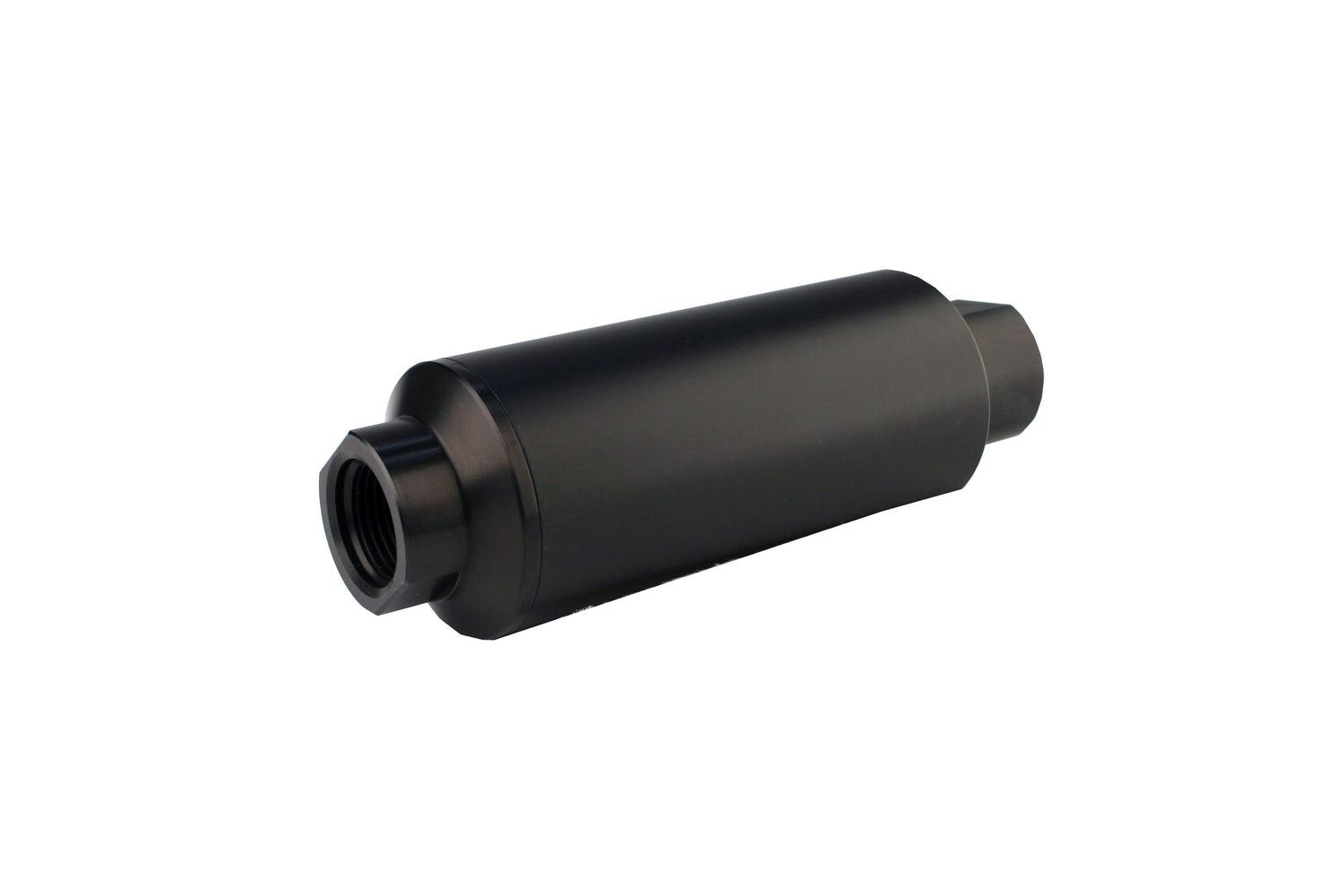

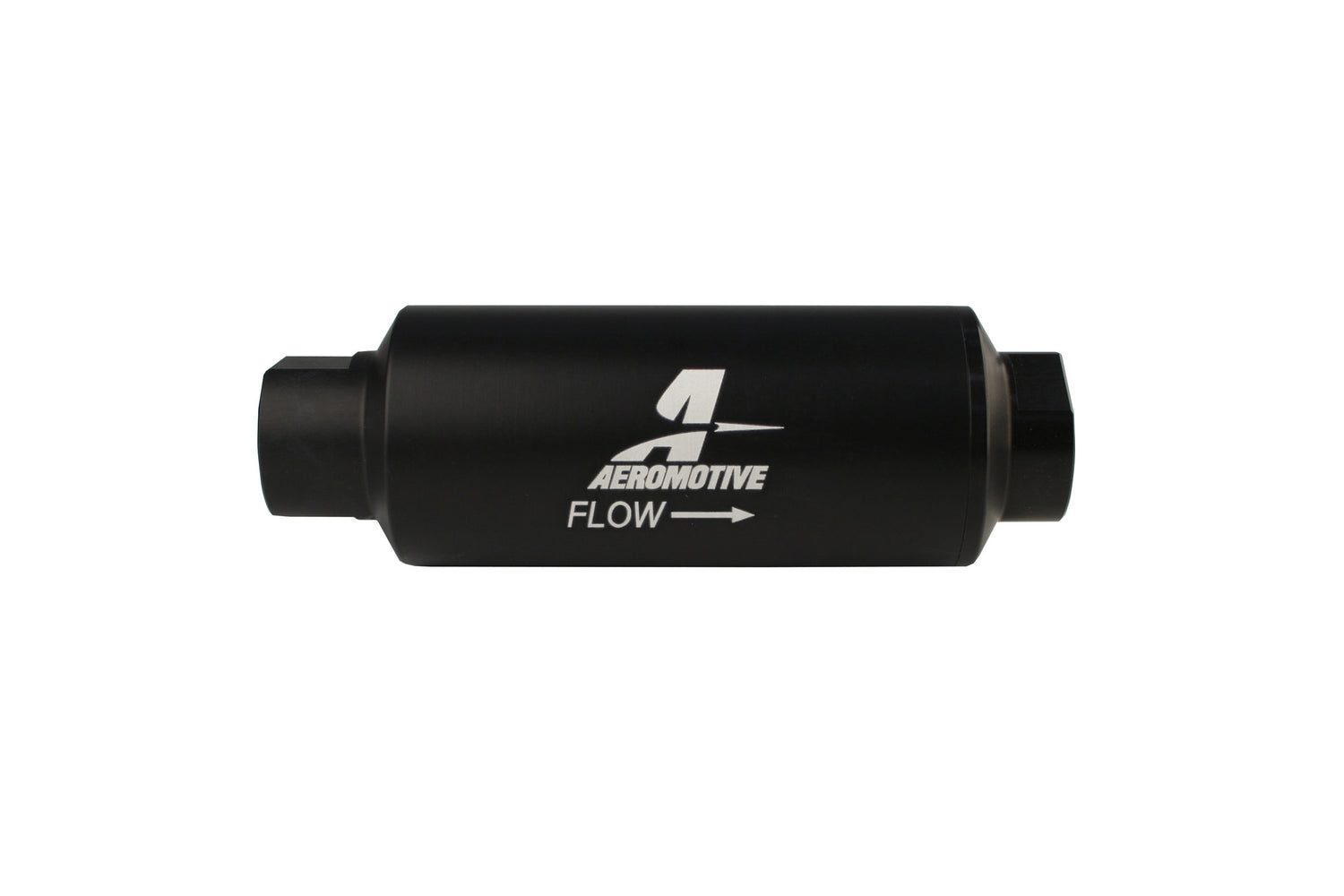

Aeromotive 12311 - Marine AN-12 Fuel Filter - 10 Micron

Marine Outlet, ORB-12 Fuel Filter

Filter, In-Line, 10-m Fabric Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.

High flow 10-micron fabric (fine) replaceable element. Flows 2,000 lb/hr with a pressure drop of less than 0.5 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. Pro-Series filters feature an indestructible electroless nickel finish. 7? long x 2.5? diameter.

Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Cellulose
Filter Housing Color: Black
Filter Housing Diameter: 2.5
Filter Housing Finish: Anodized
Filter Housing Length: 7
Filter Housing Material: Billet Aluminum
Fitting Type: AN-12
Fittings Included: No
Flow Rate: 2000
Fuel Filter Style: Inline
Fuel Type: Gas / Diesel
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-12
Inlet Quantity: 1
Inlet Size: AN-12
Length: 7
Maximum Fuel Pressure (psi): 70
Micron Rating: 10
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-12
Outlet Quantity: 1
Outlet Size: AN-12
Outside Diameter: 2.5
Outside Diameter (In): 2.5
Overall Length: 7
Overall Length (In): 7
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 10 microns
Universal Or Specific Fit: Universal
