Aeromotive 12309 - Marine AN-12 Fuel Filter - 100 Micron - SS Element
Aeromotive | SKU:
AFS-12309
Sale price
$34999
Regular price
$40497
Unit price
/
Unavailable
$54.98 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

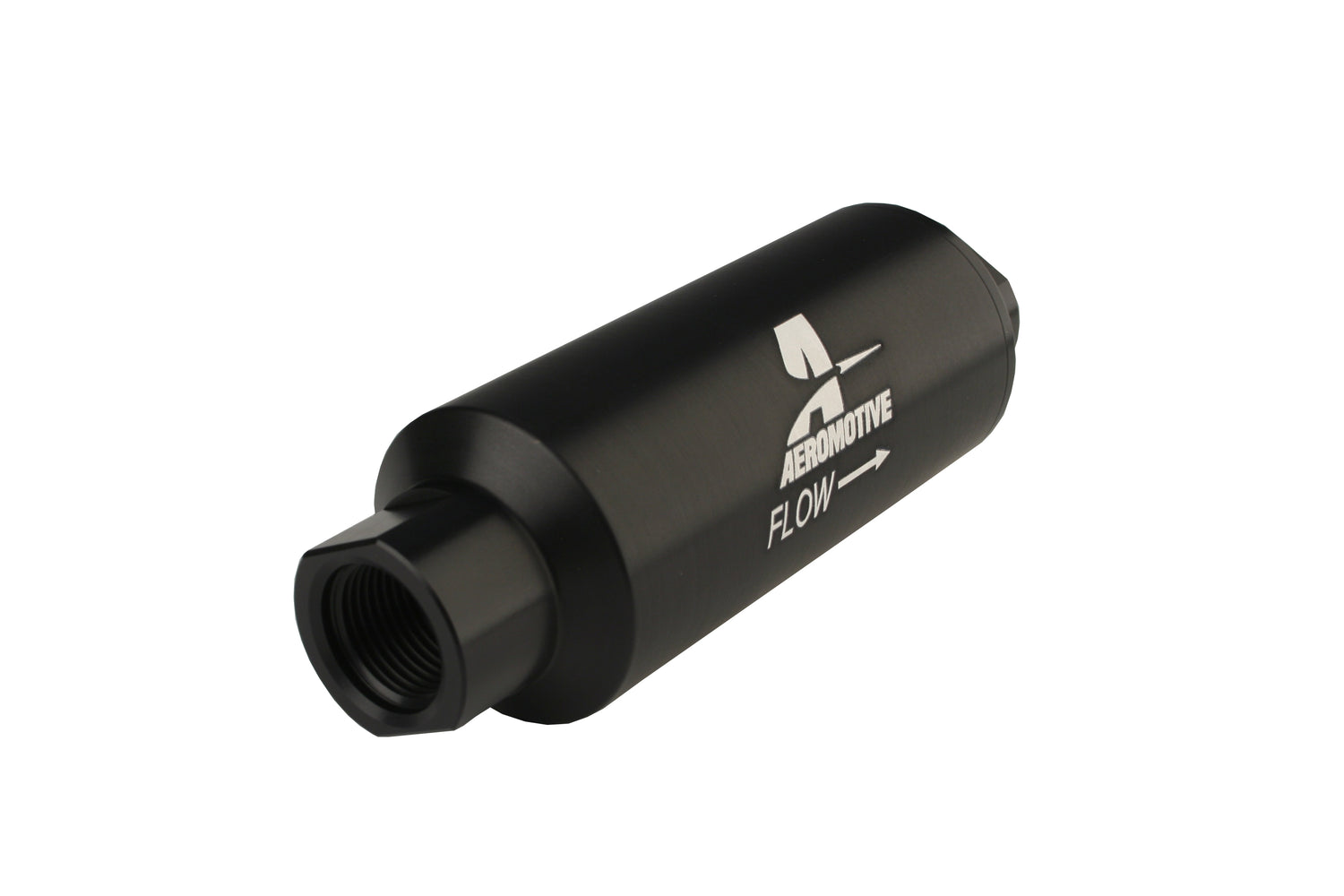

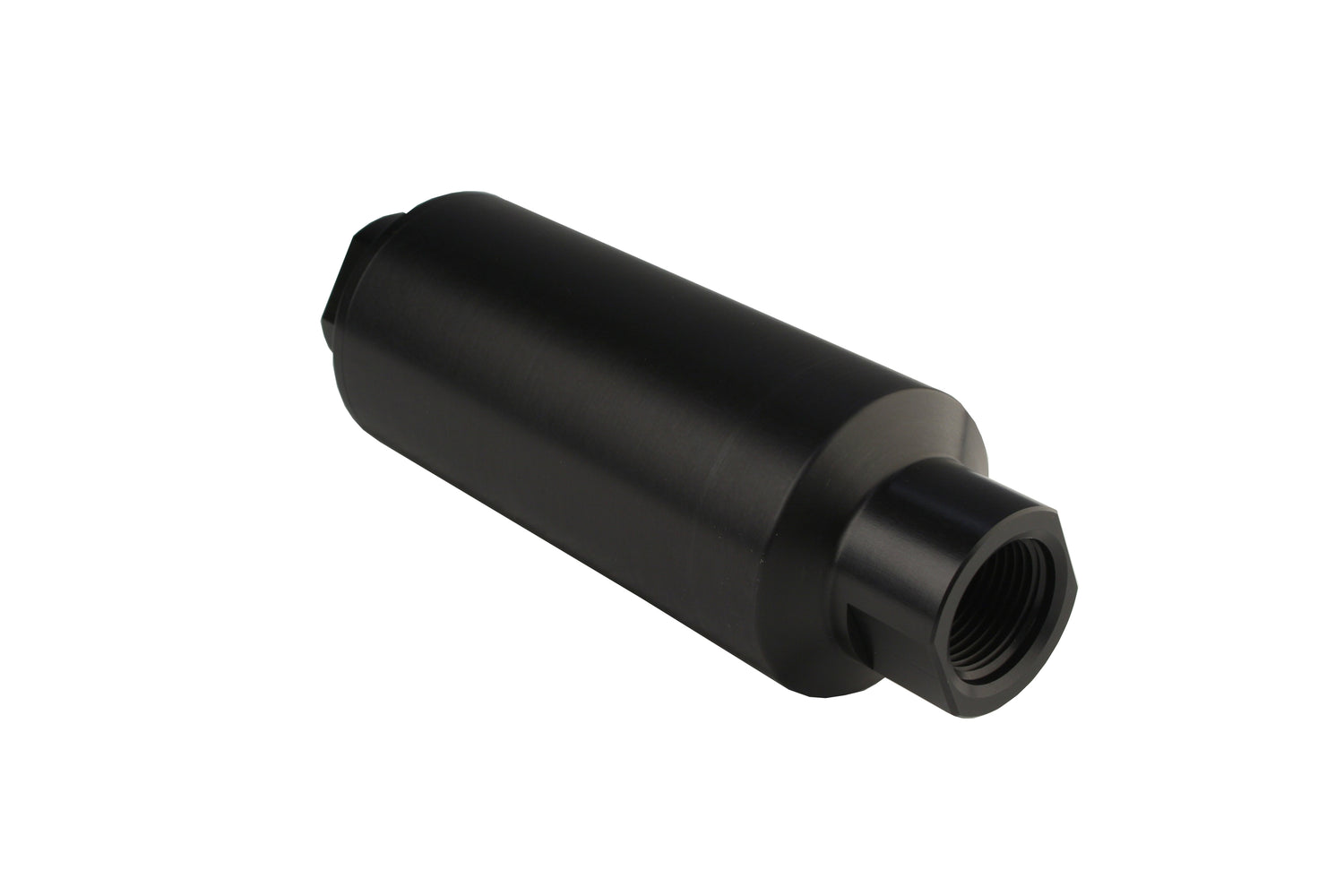

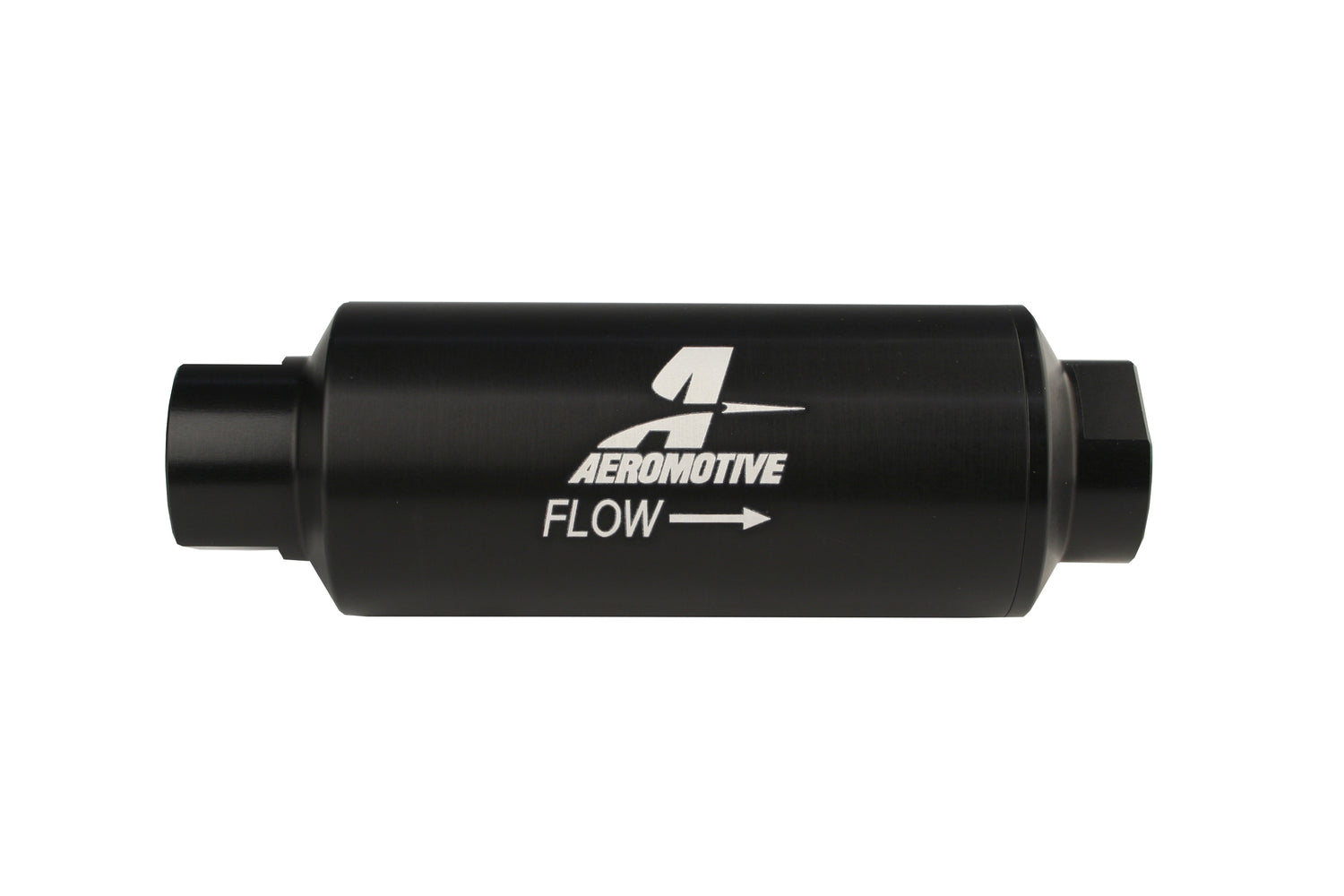

Aeromotive 12309 - Marine AN-12 Fuel Filter - 100 Micron - SS Element
Fuel Filter - Marine - In-Line - 100 Micron - Stainless Element - 12 AN Female O-Ring Inlet - 12 AN Female O-Ring Outlet - Aluminum - Black Anodized - Each
Filter, In-Line, 100-m Stainless Mesh Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.
High-flow 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. 7" long x 2.5" diameter.
Clamps Included: No
Color: Black
End 1 Gender: Female
End 2 Gender: Female
Filter Element Included: Yes
Filter Element Material: Stainless steel mesh
Filter Housing Color: Black
Filter Housing Diameter: 2.5
Filter Housing Finish: Anodized
Filter Housing Length: 7
Filter Housing Material: Billet Aluminum
Fitting Type: AN-12
Fittings Included: No
Flow Rate: 2000
Fuel Filter Style: Inline
Fuel Type: All Fuels
Gasket Or Seal Included: Yes
Housing Material: Aluminum
Inlet Attachment: Female Thread
Inlet Outside Diameter: AN-12
Inlet Quantity: 1
Inlet Size: AN-12
Length: 7
Maximum Fuel Pressure (psi): 70
Micron Rating: 100
Mounting Bracket Included: No
Mounting Type: External
Outlet Attachment: Female Thread
Outlet Outside Diameter: AN-12
Outlet Quantity: 1
Outlet Size: AN-12
Outside Diameter: 2.5
Outside Diameter (In): 2.5
Overall Length: 7
Overall Length (In): 7
Quantity: Sold individually.
Shape: Straight
Smallest Particle Filtered: 100 microns
Universal Or Specific Fit: Universal
