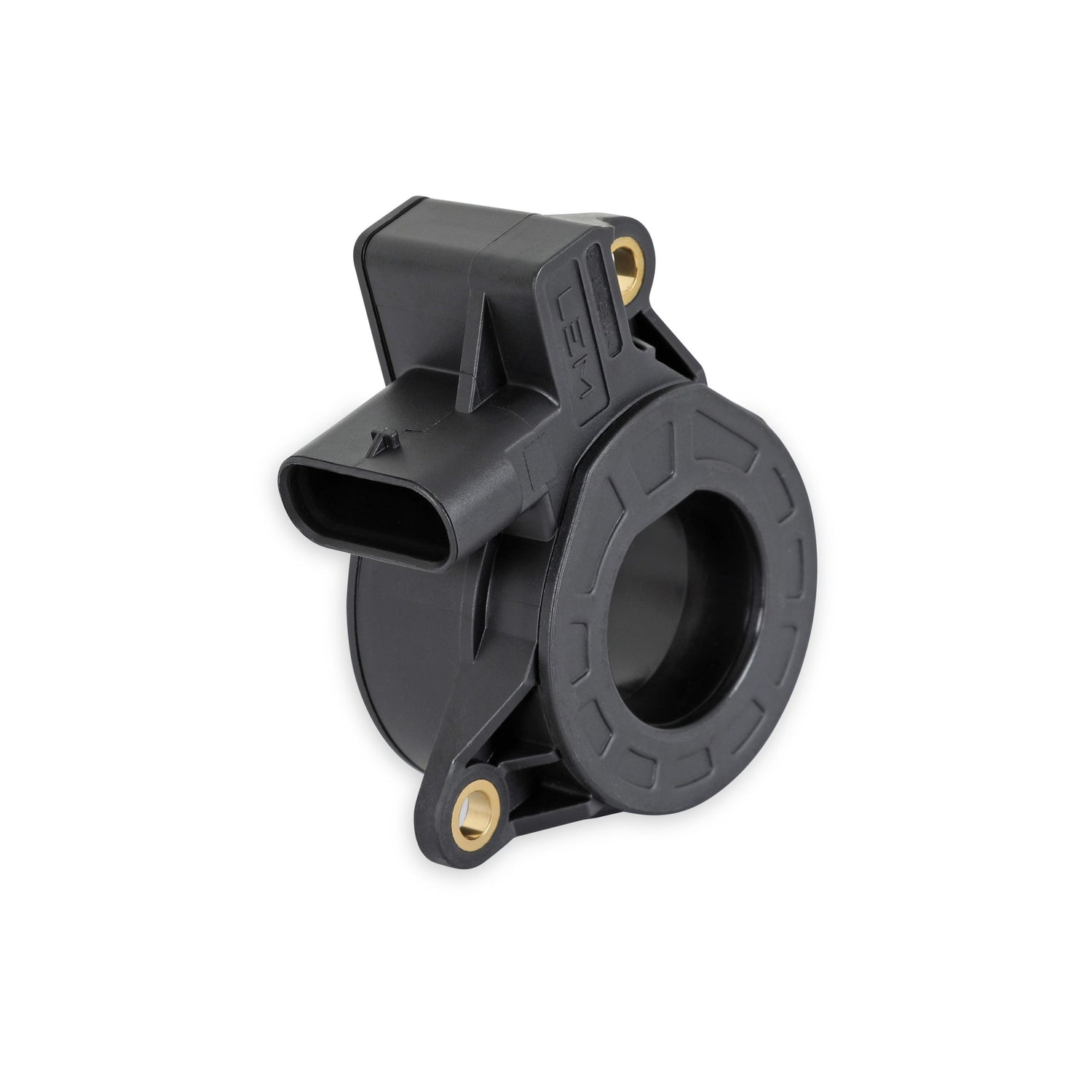

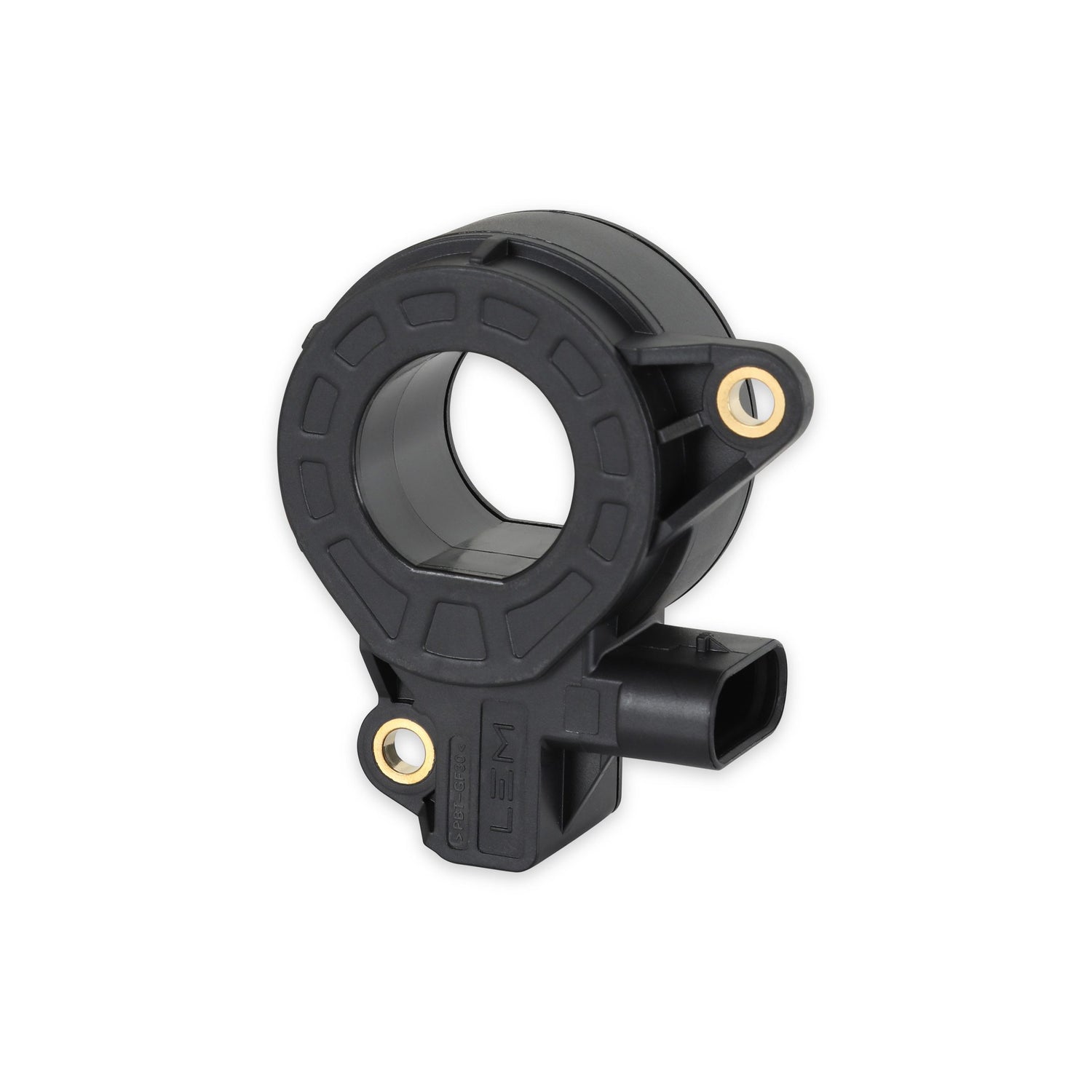

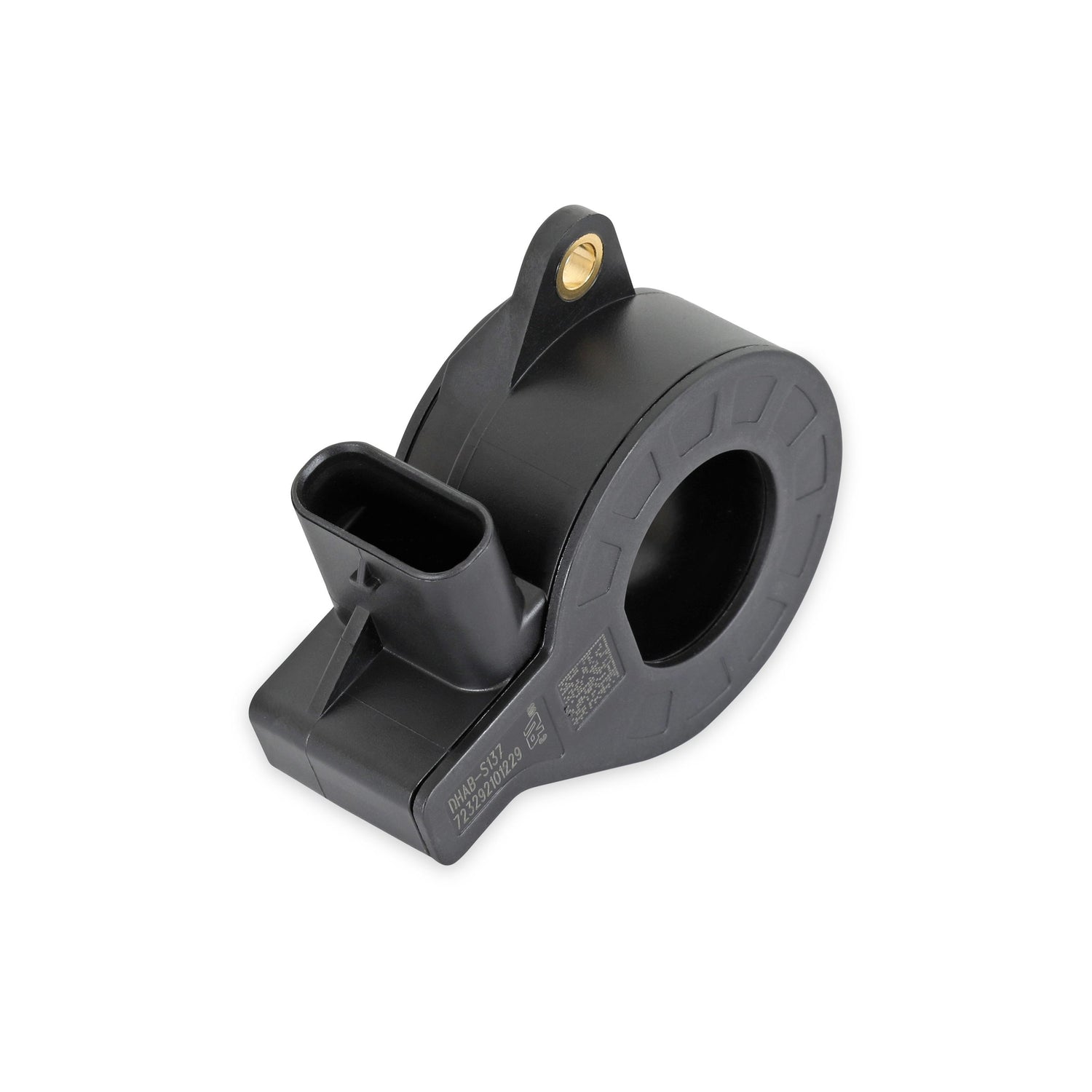

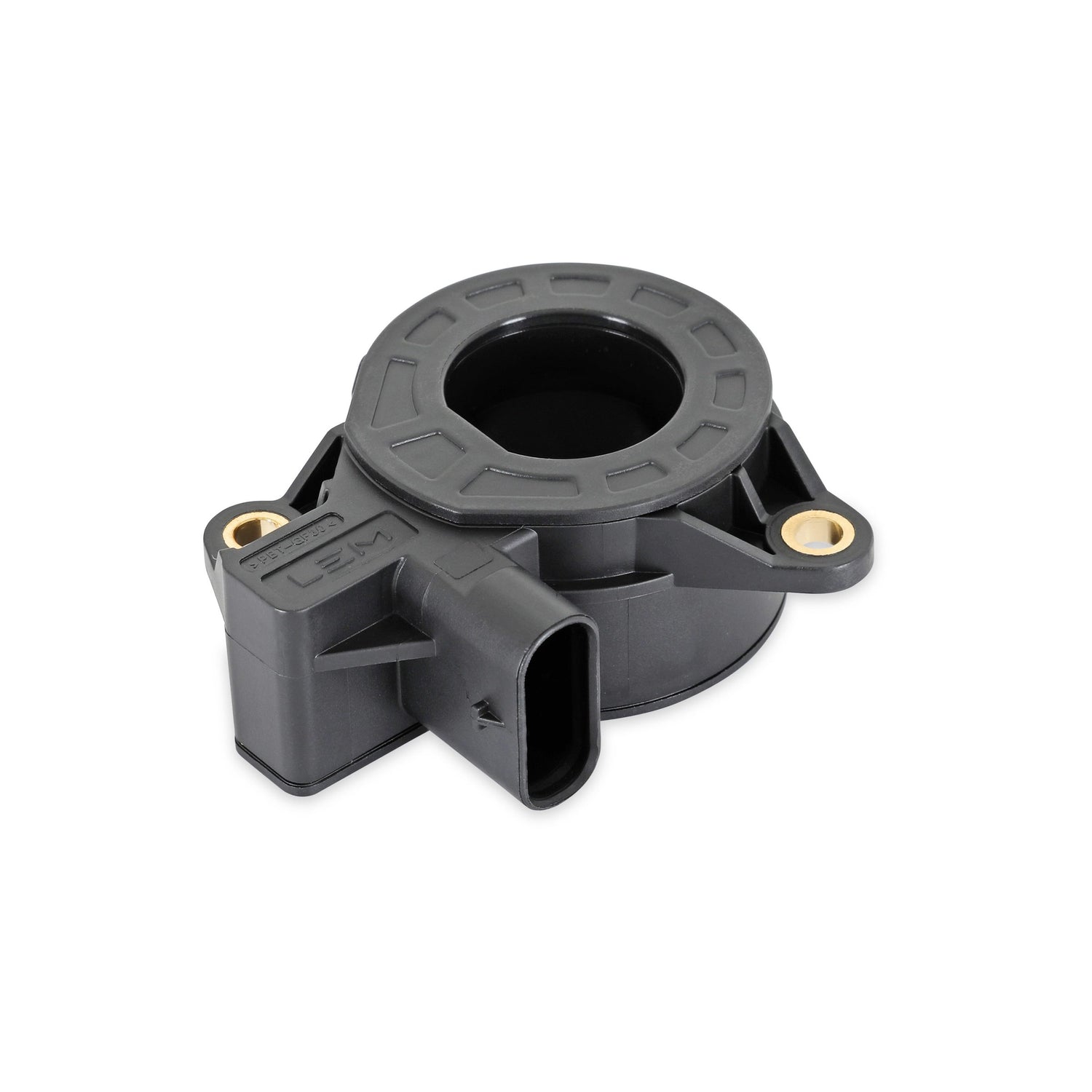

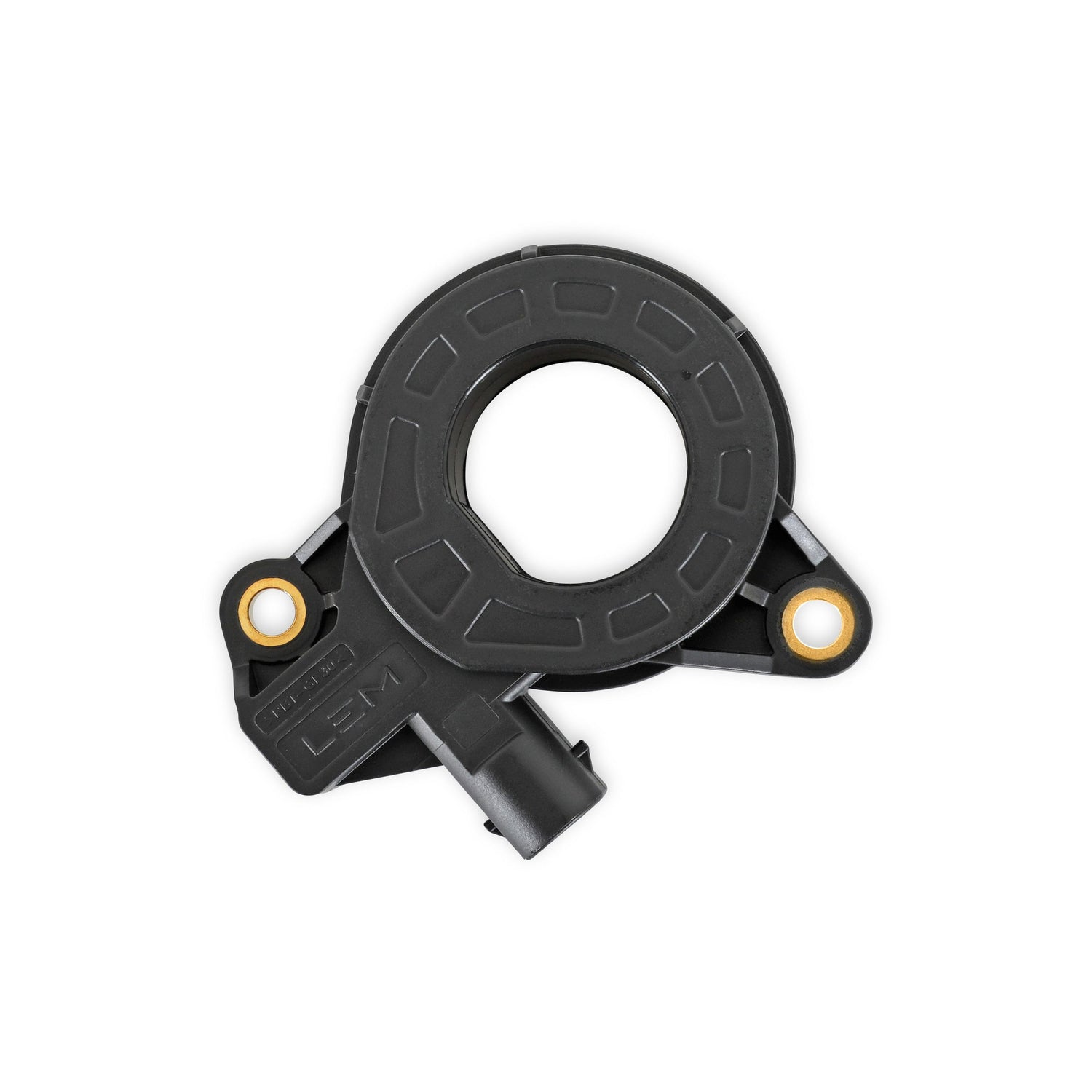

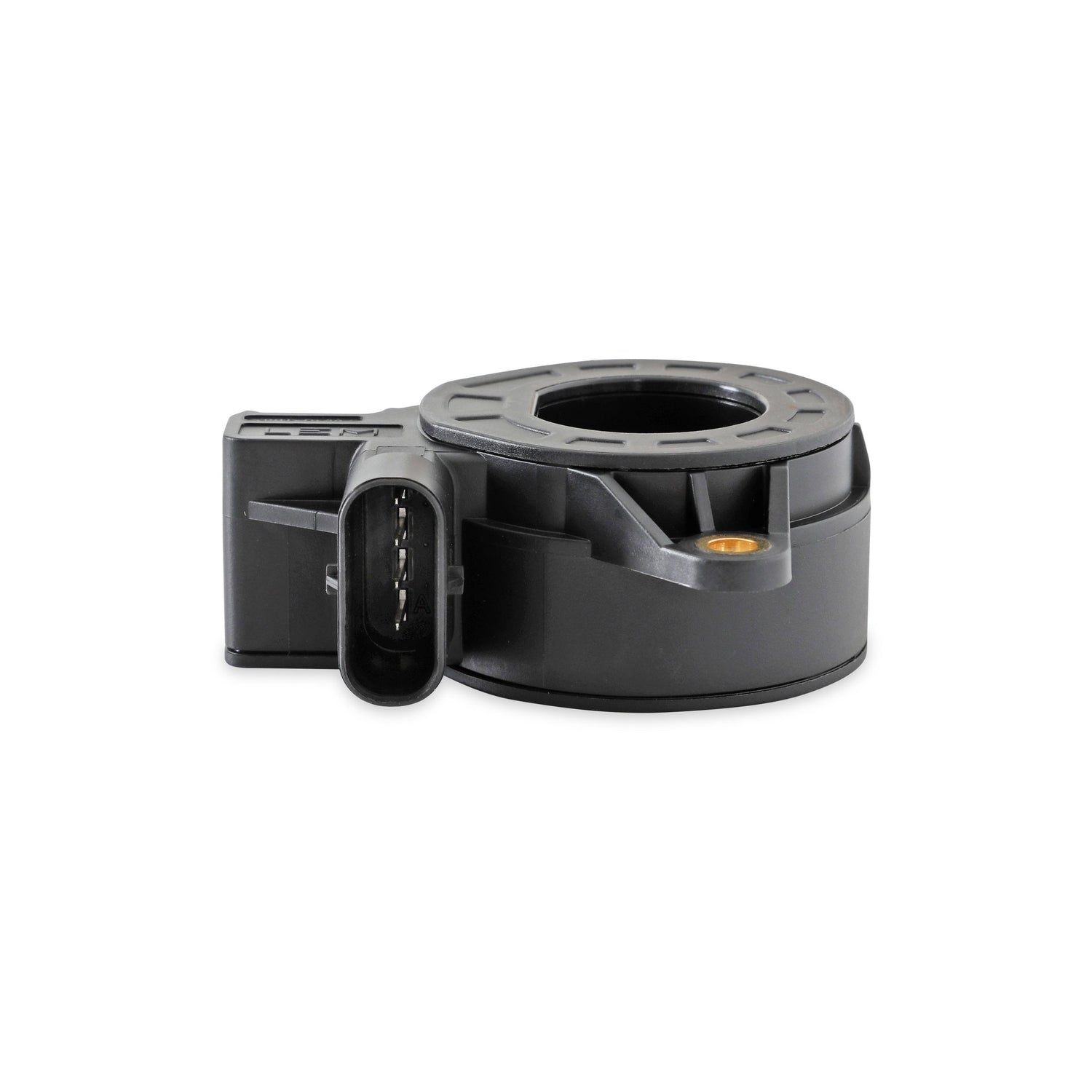

1000A Dual Channel Analog Current Sensor

The AEM Dual Channel Hall-Effect Analog Current Sensor plays a critical role in EV drive systems. It's job is to measure current in and out of the vehicles High Voltage battery pack and report this data back to the VCU to be used for battery current limiting and management as well as energy tracking.

• Dual Channel range ±75 A for Channel 1 and ±1000 A for Channel 2
• Unipolar +5 V DC Power Supply
• Operating Temperature Range of -40 to 257 Fahrenheit
• -Good accuracy for high and low current.
• -The inner diameter is 21.55mm.
• -Primary current measuring range up to ±75 A for channel 1.
• -Operating Temperature Range of -40 to 257 Fahrenheit.
