AEM 30-5702 - CD-7 Non Logging GPS Enabled Race Dash Carbon Fiber Digital Display w/o VDM (CAN Input Only)

AEM 30-5702 - CD-7 Non Logging GPS Enabled Race Dash Carbon Fiber Digital Display w/o VDM (CAN Input Only)

CD-7G non-logging, GPS enabled racing dash,CAN input only,carbon fiber enclosure

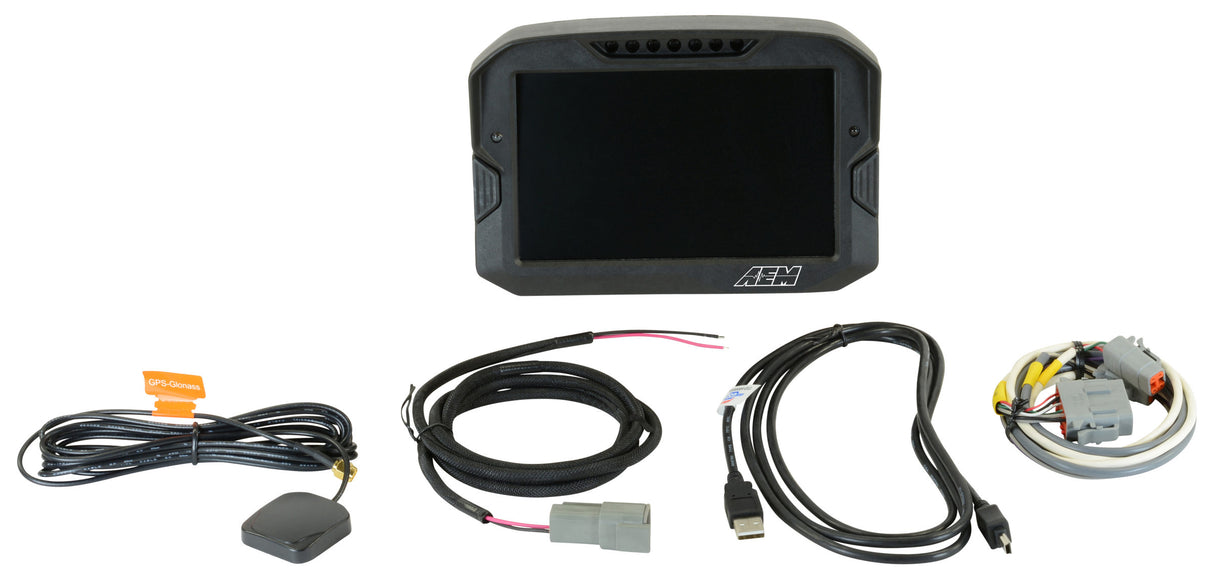

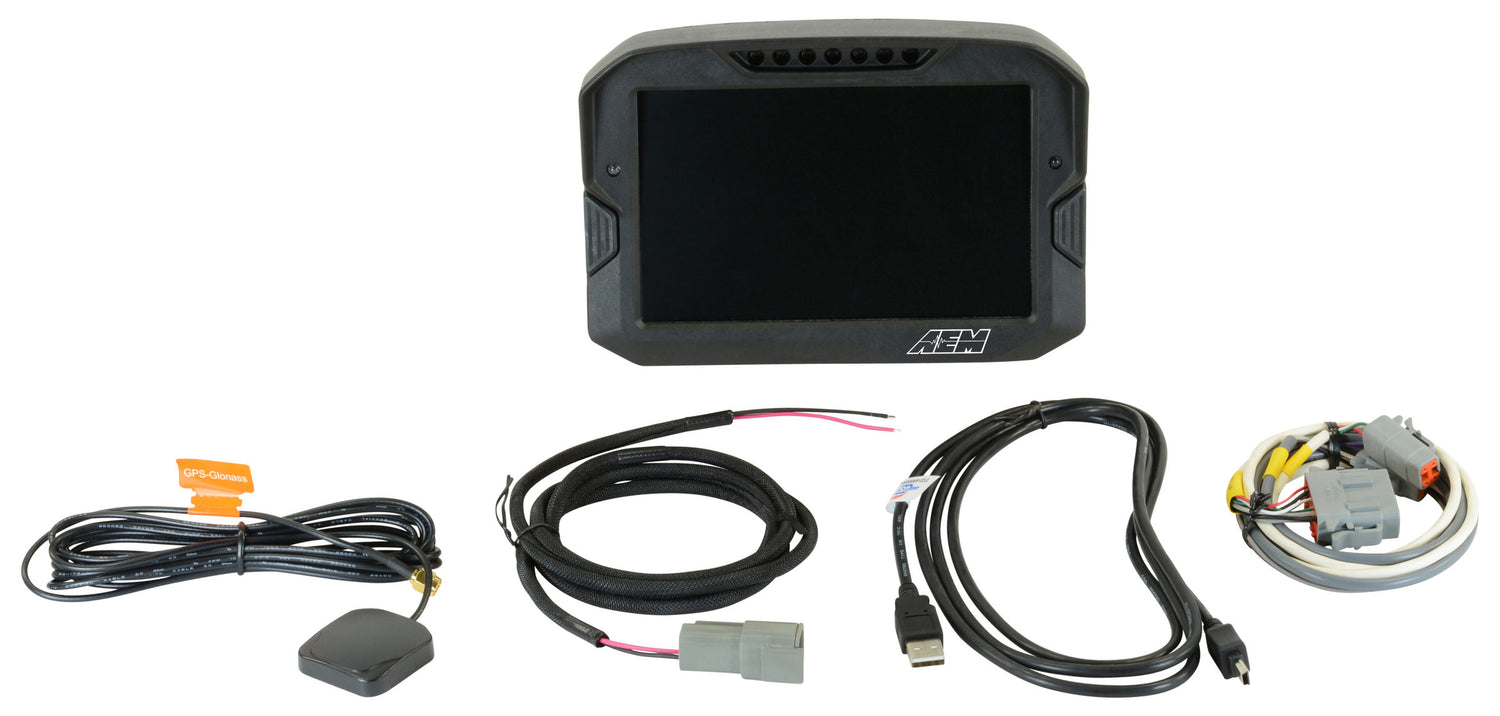

Digital Dash Display, CD-7G non-logging, GPS enabled racing dash, CAN input only, 7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included (Does NOT Include Vehicle Dynamics Module)

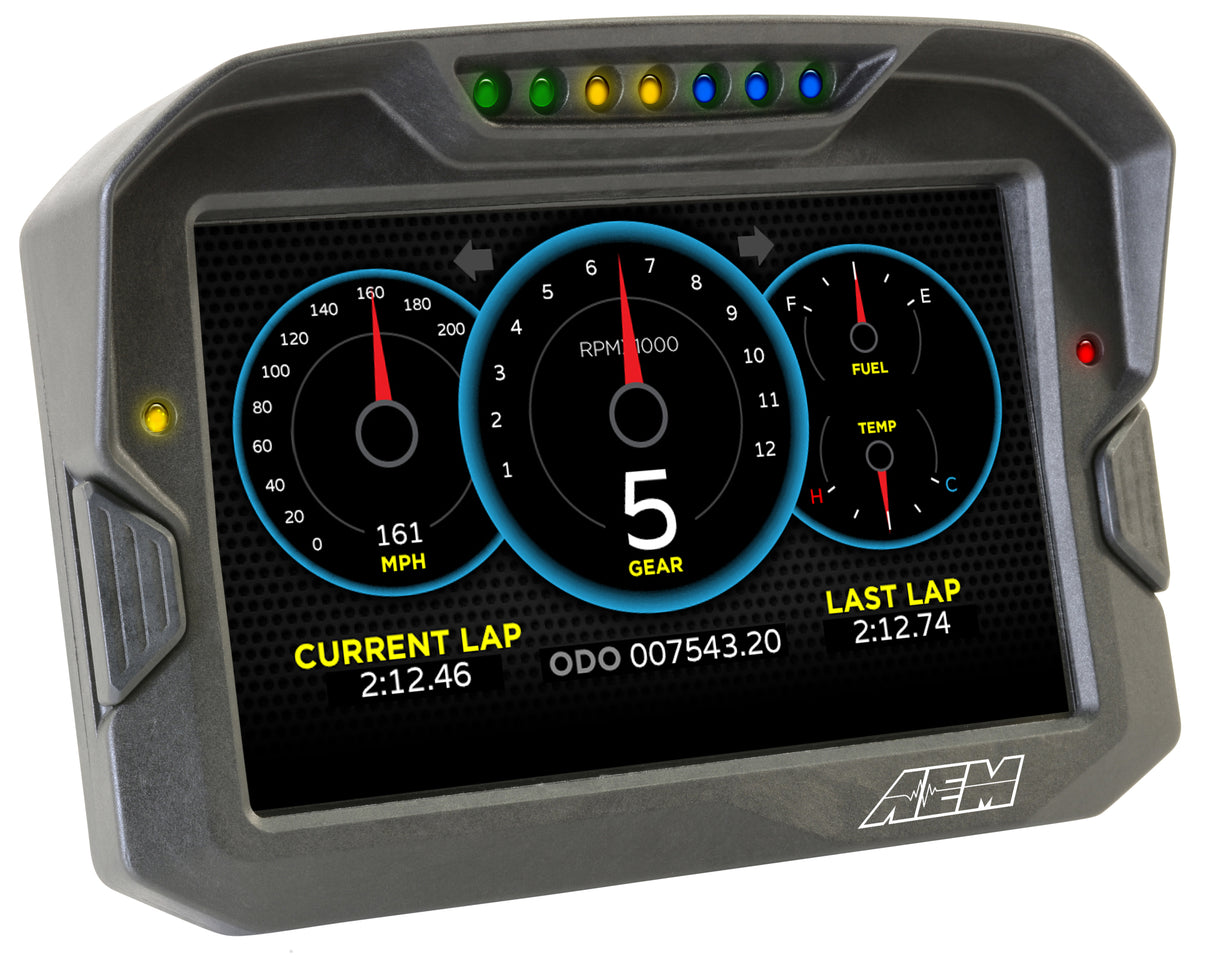

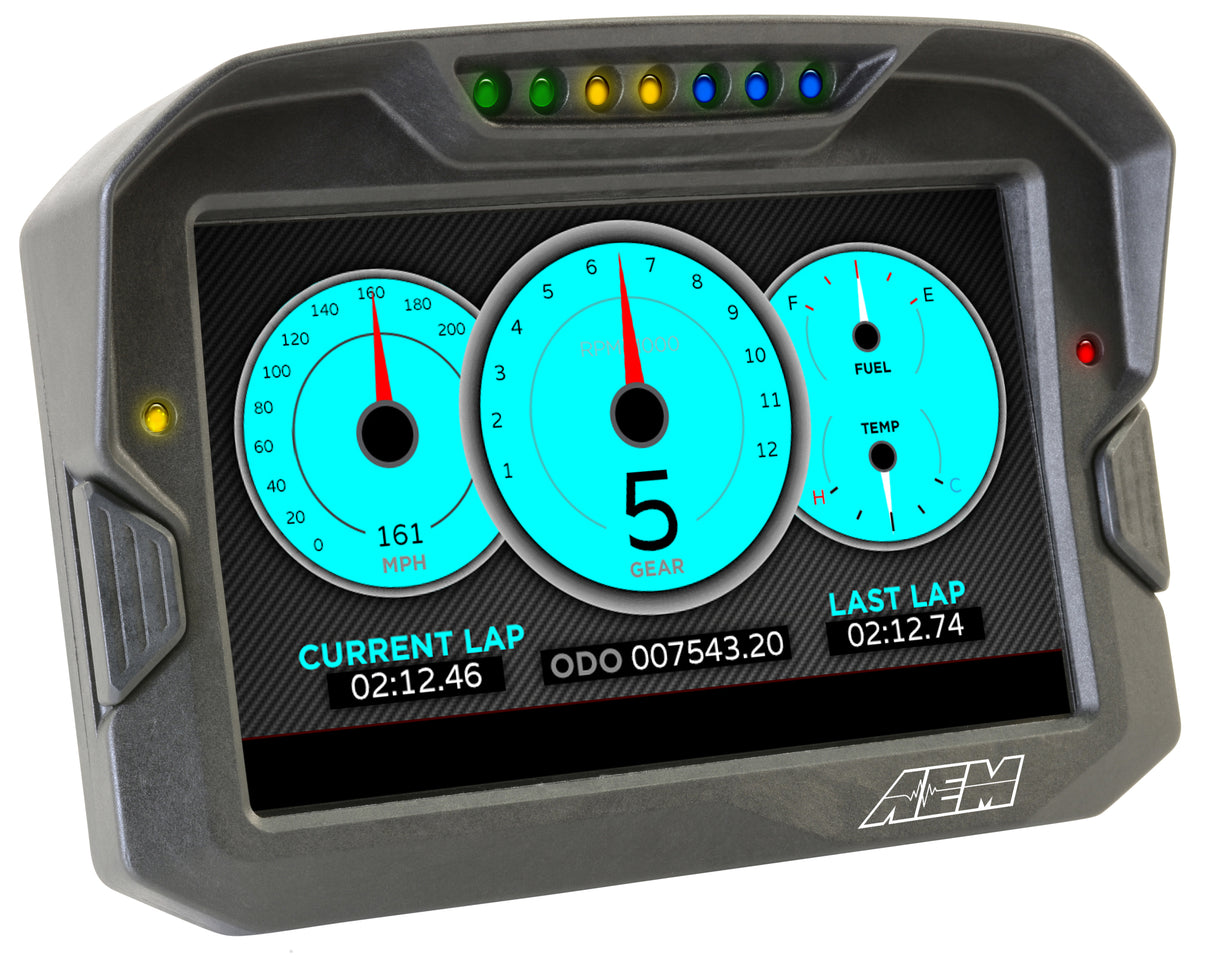

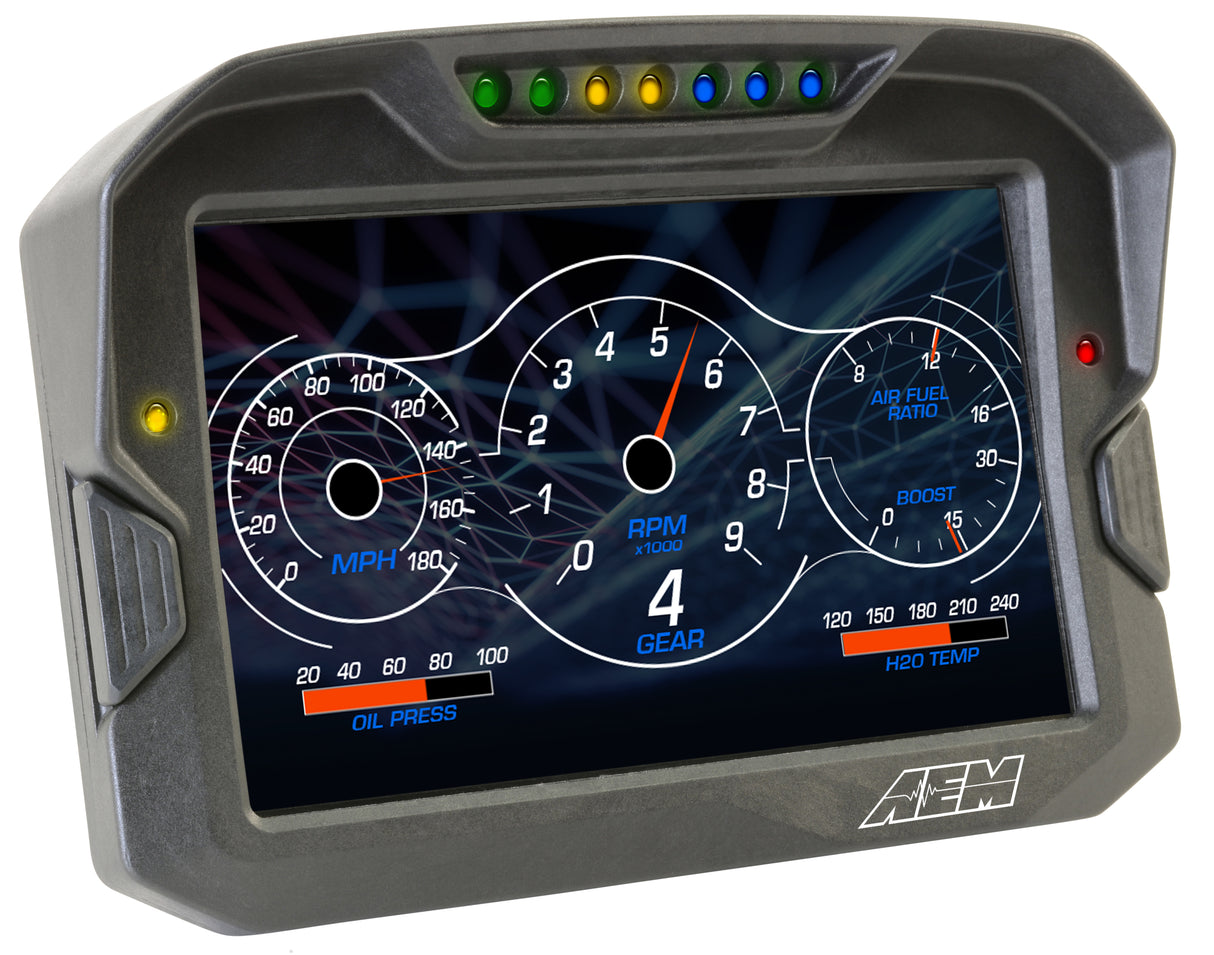

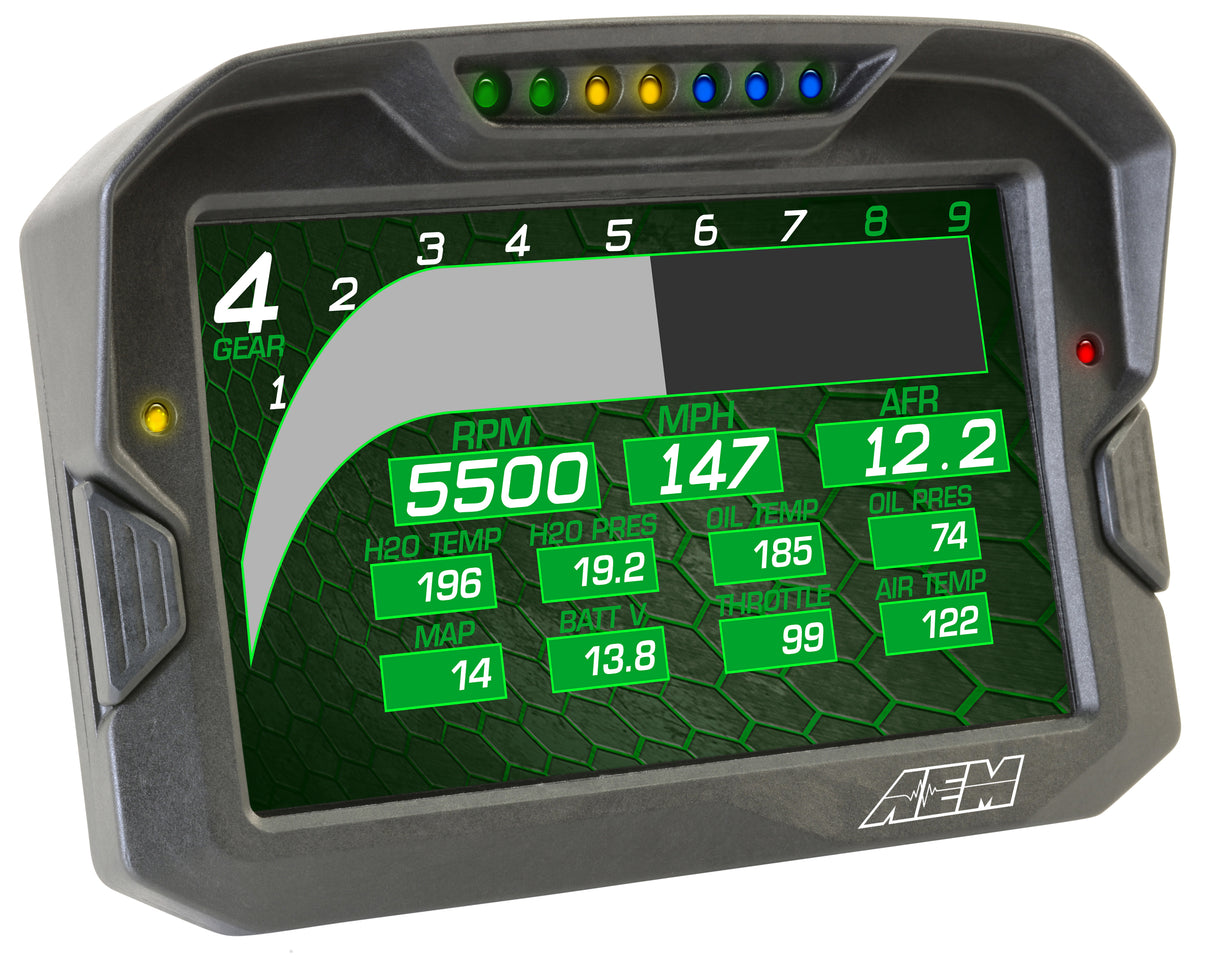

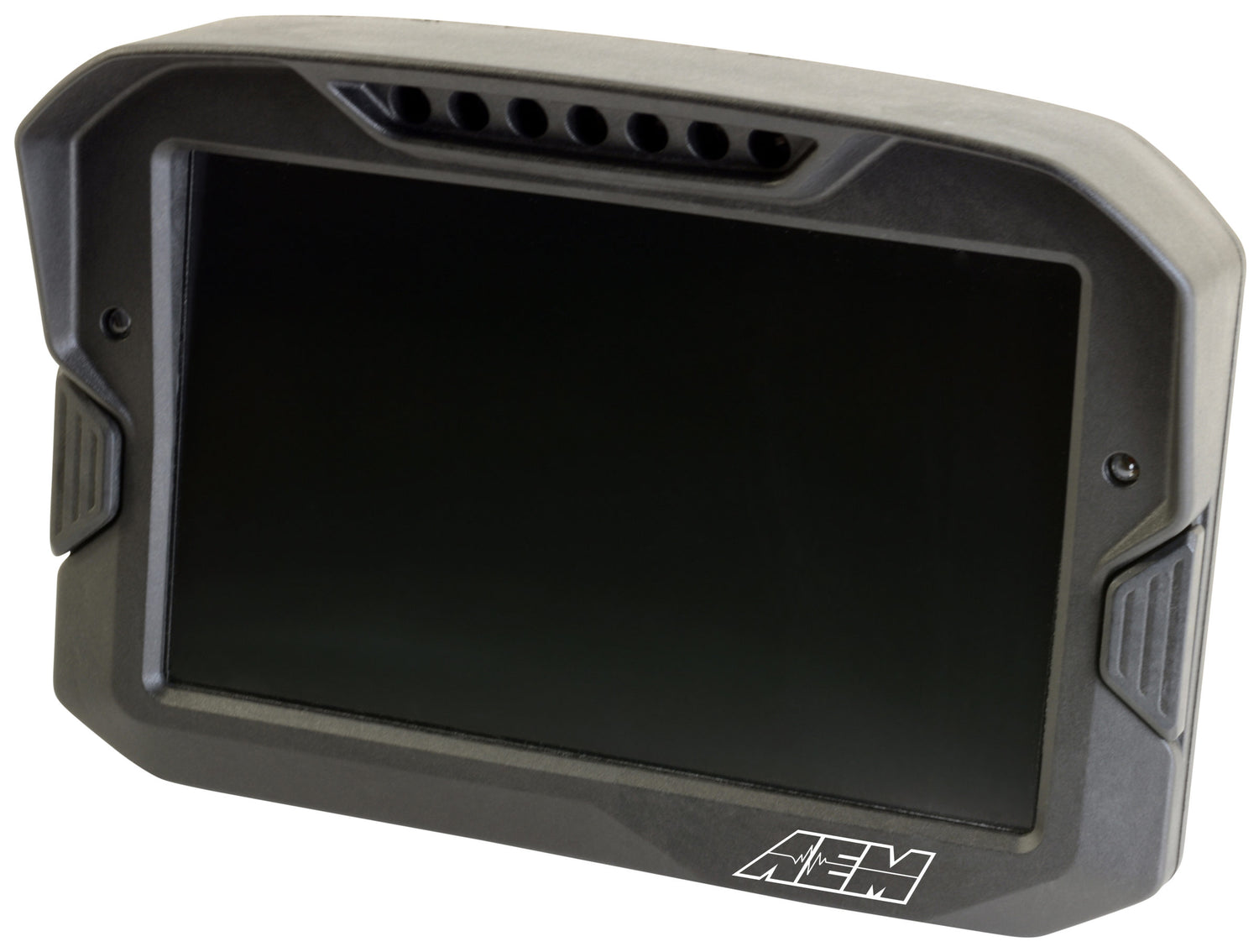

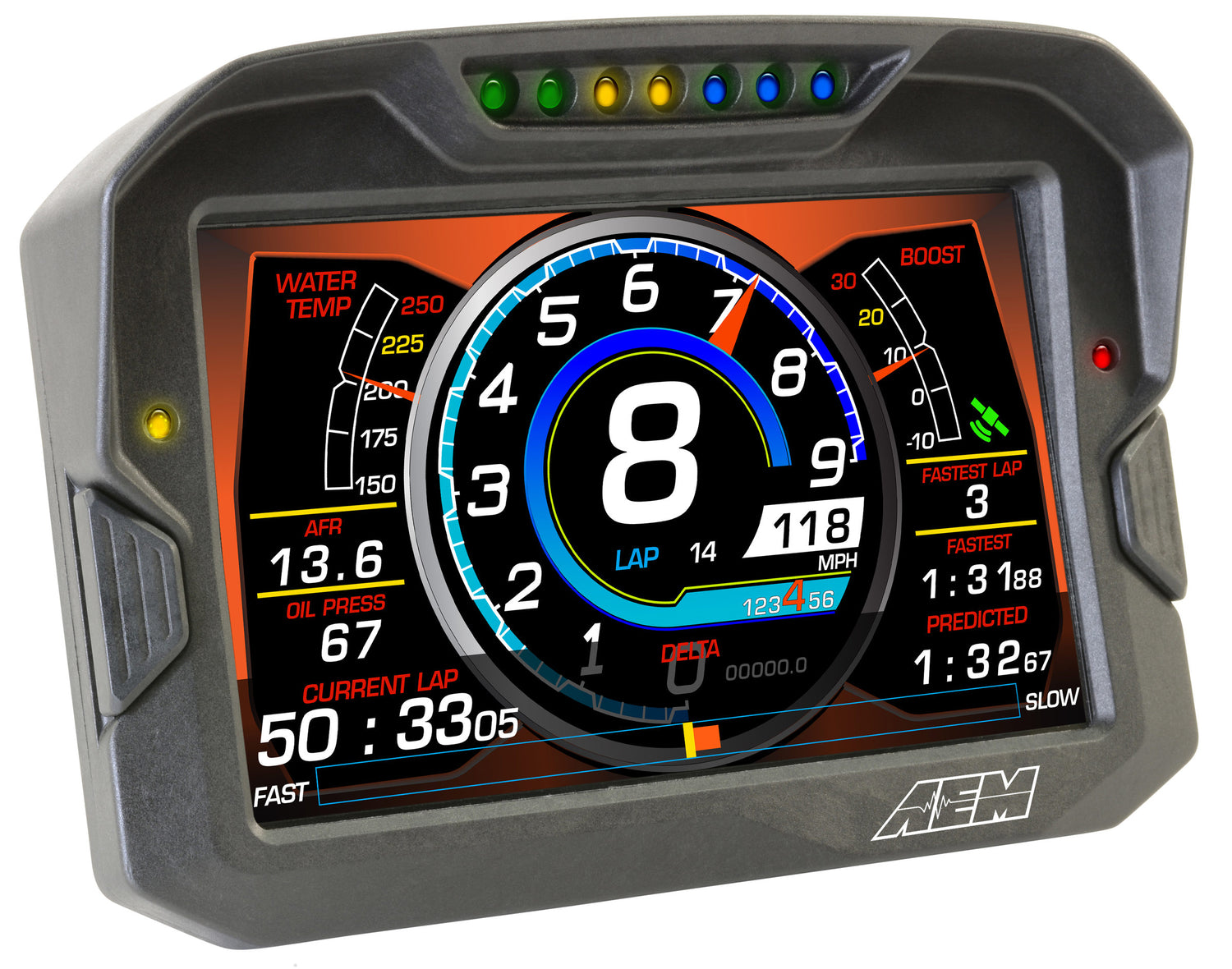

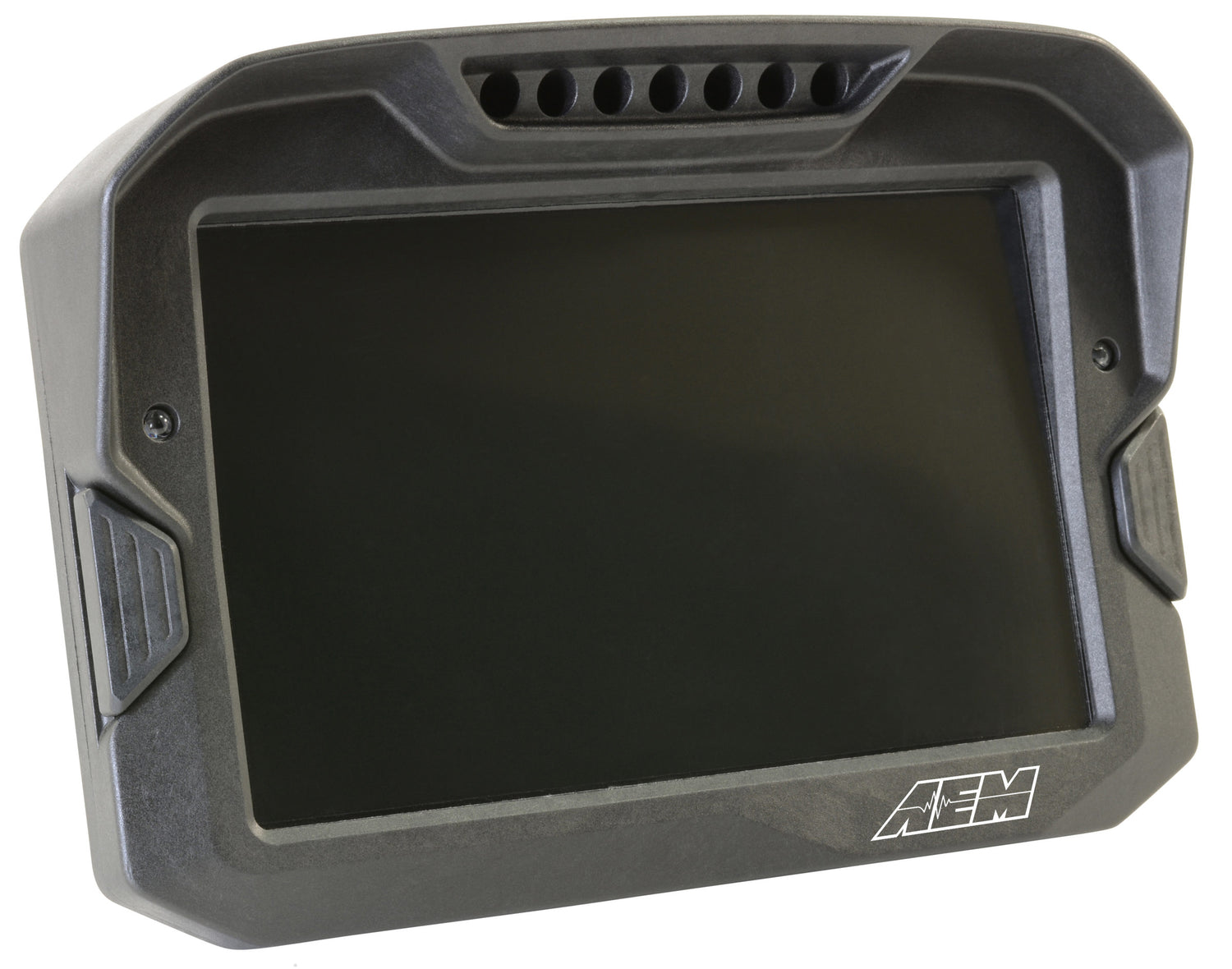

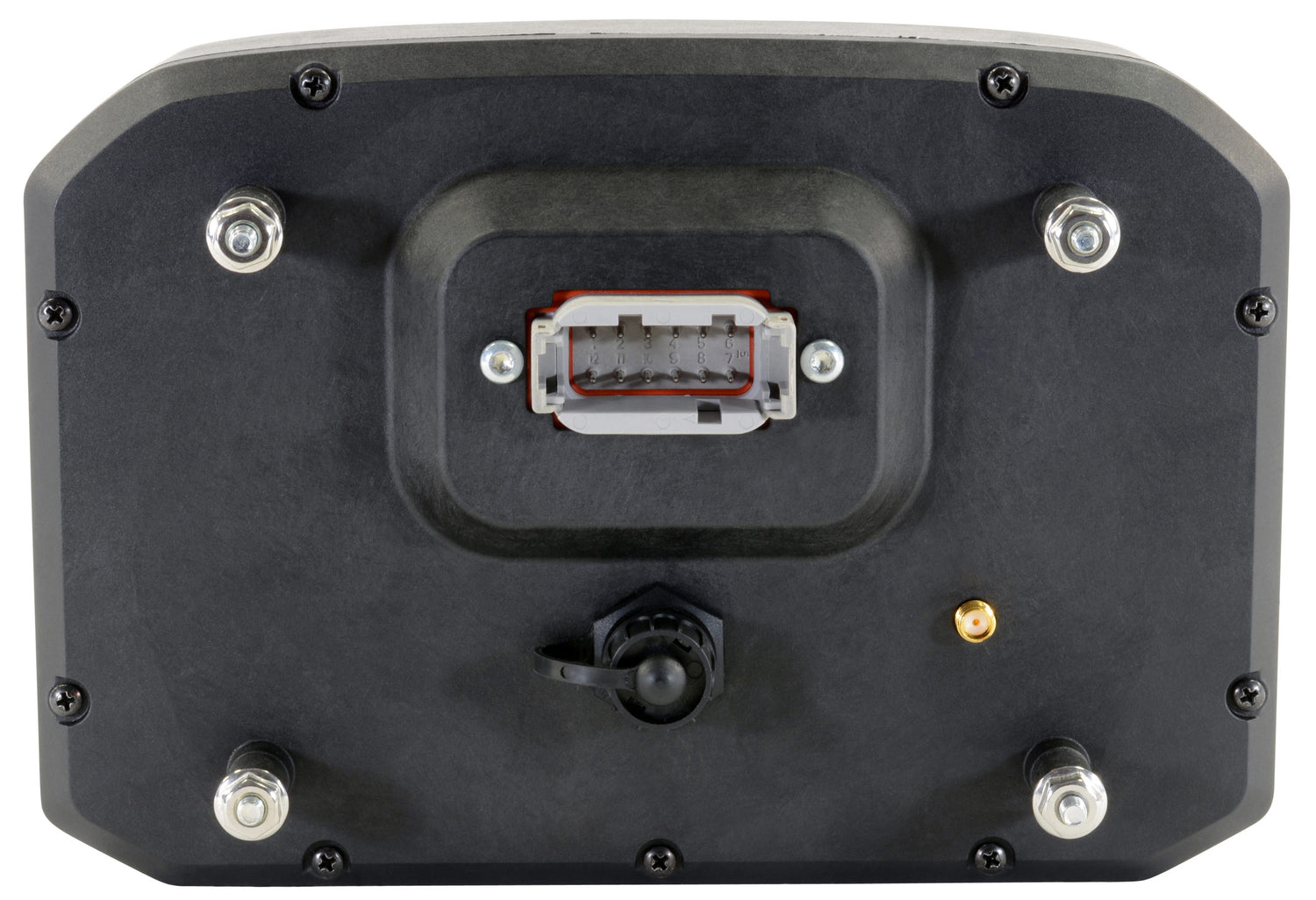

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.

• Total display weight of 20.9 oz. / 595 grams
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Wiring interface/harness is identical to the CD-5 Carbon
• User supplied graphics can be changed based on channel values (up to the full screen size)
• Free DashDesign Graphics Editor software
• Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
• Odometer function
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• 'Headlight-in' connection dims the dash and LEDs during night operation

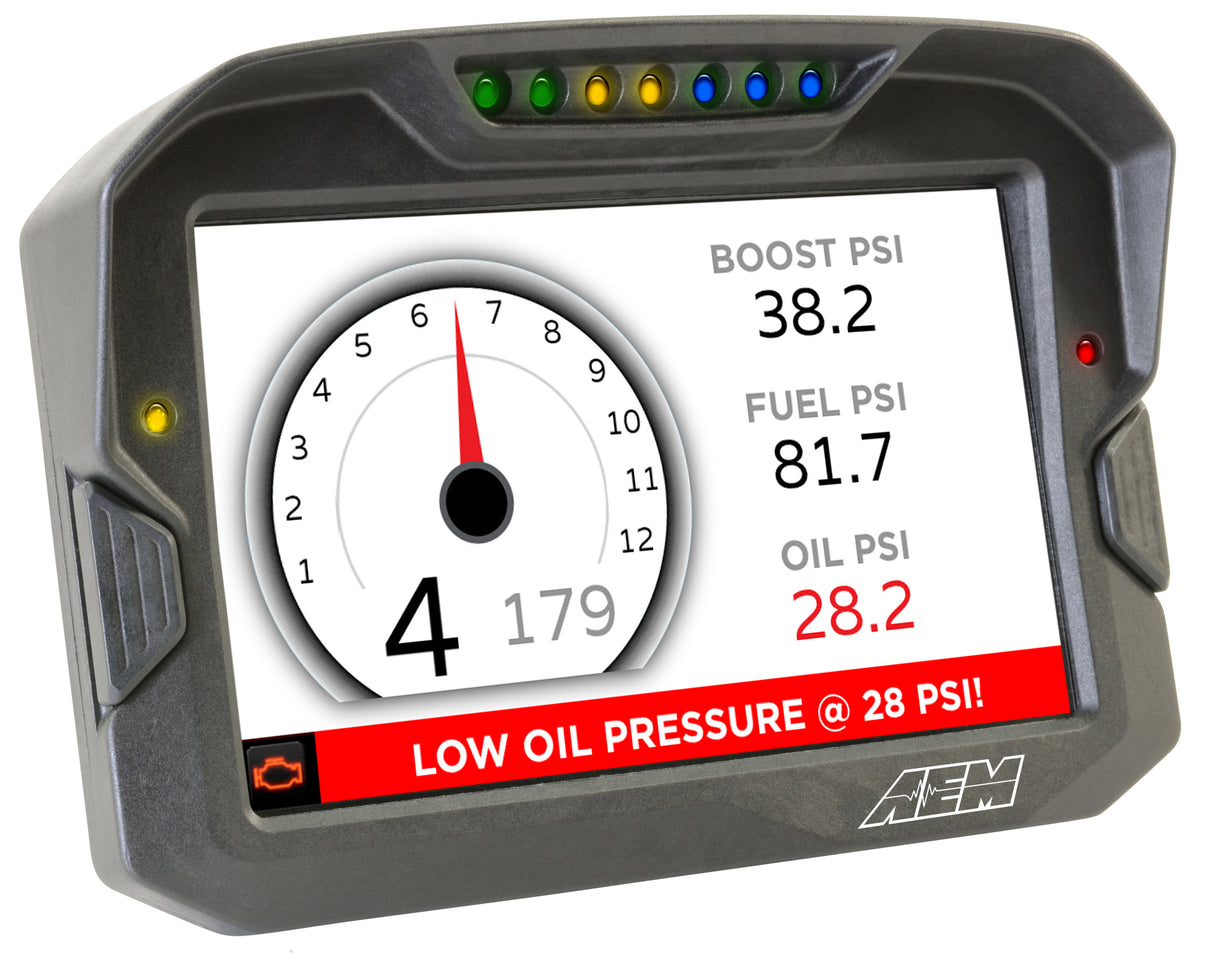

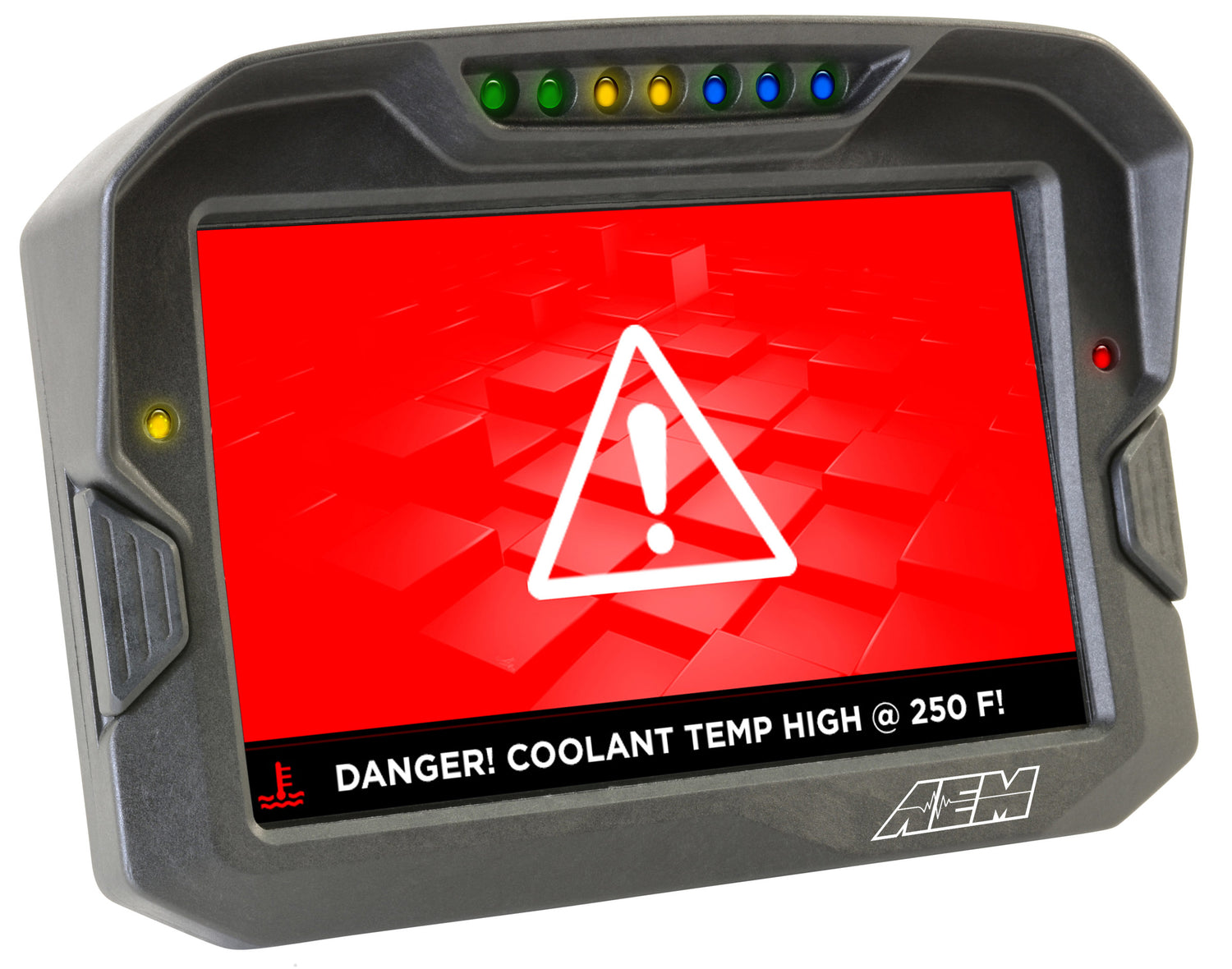

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
• Two programmable LEDs
• Layout files interchangeable with all versions of the CD-5 Carbon
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP65 water resistance - open cockpit, marine and motorcycle safe

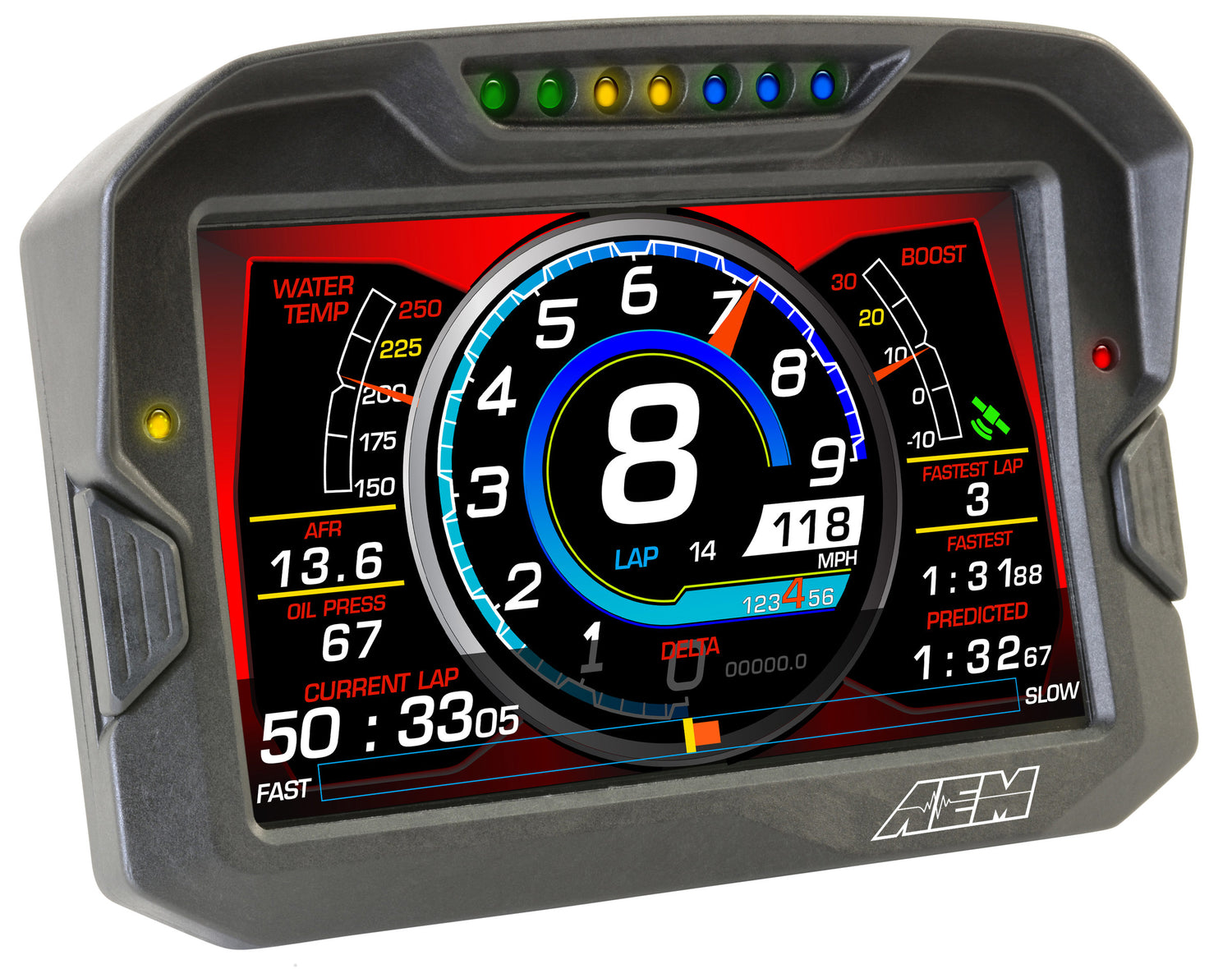

• Use included page layouts and input your channels and text, or create your own from scratch
• Full color 7" screen with 800x480 resolution
• Available with or without on-board 20Hz GPS receiver and antenna

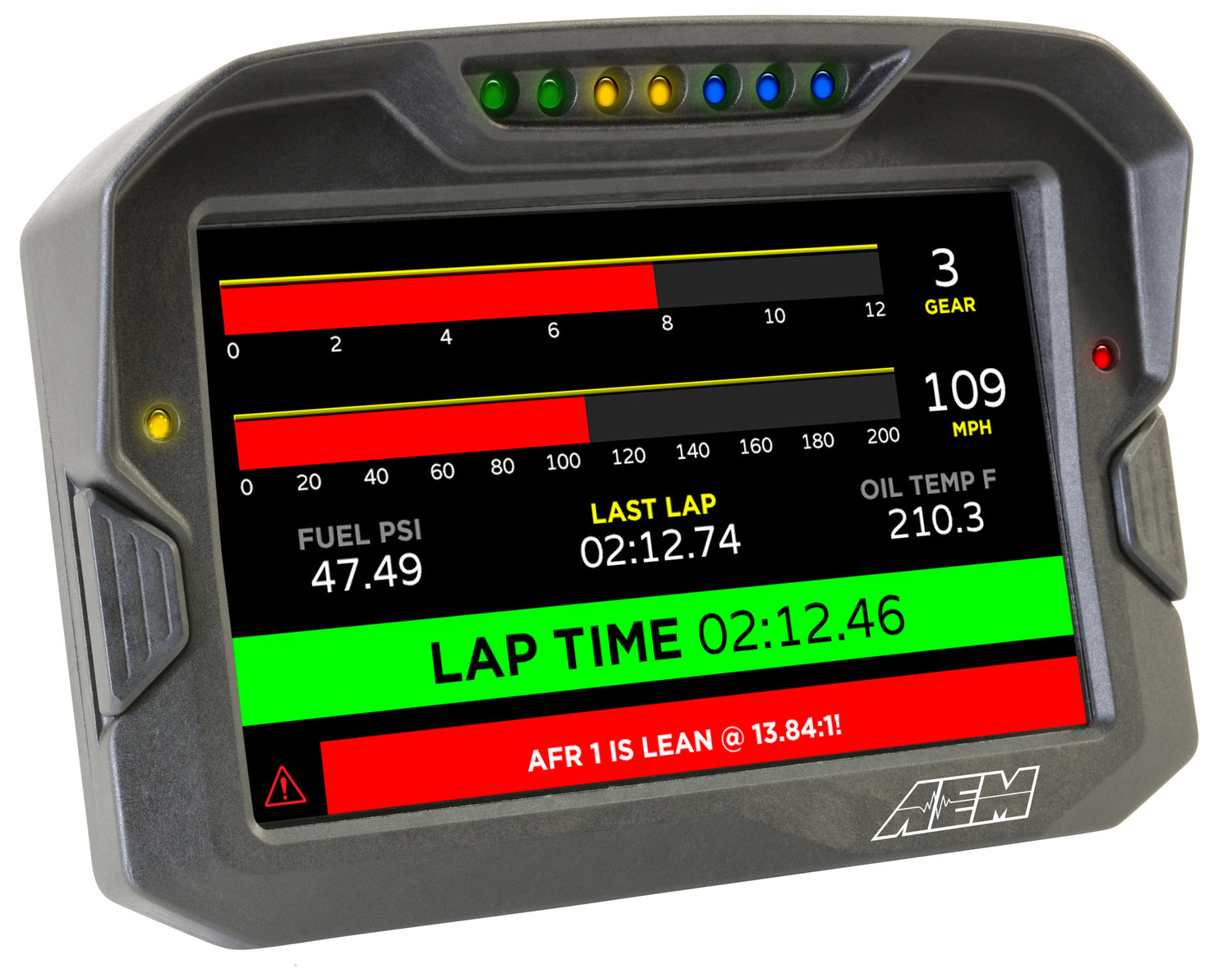

• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
• Convert CAN bus channel values to user-defined text in multiple languages
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
