AEM CD-5L Carbon Logging Display

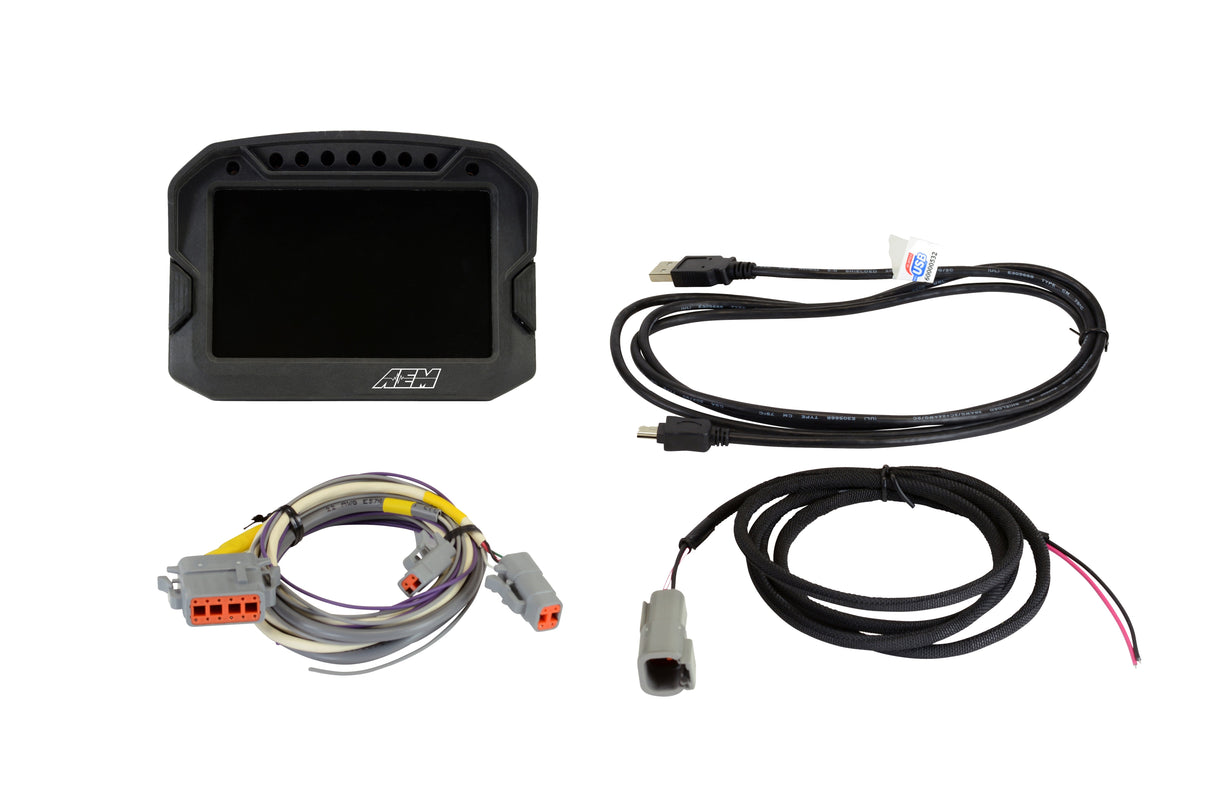

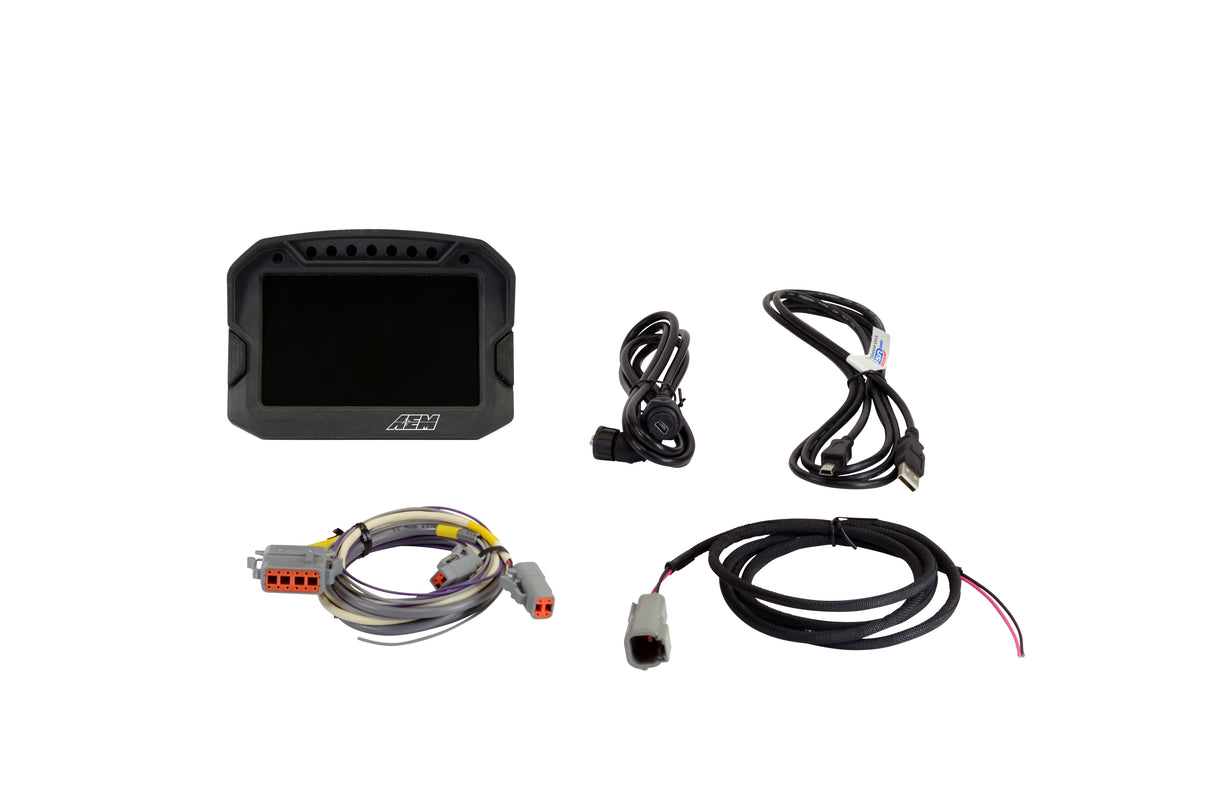

5-inch diagonal screen, carbon fiber composite enclosure, wiring harness included

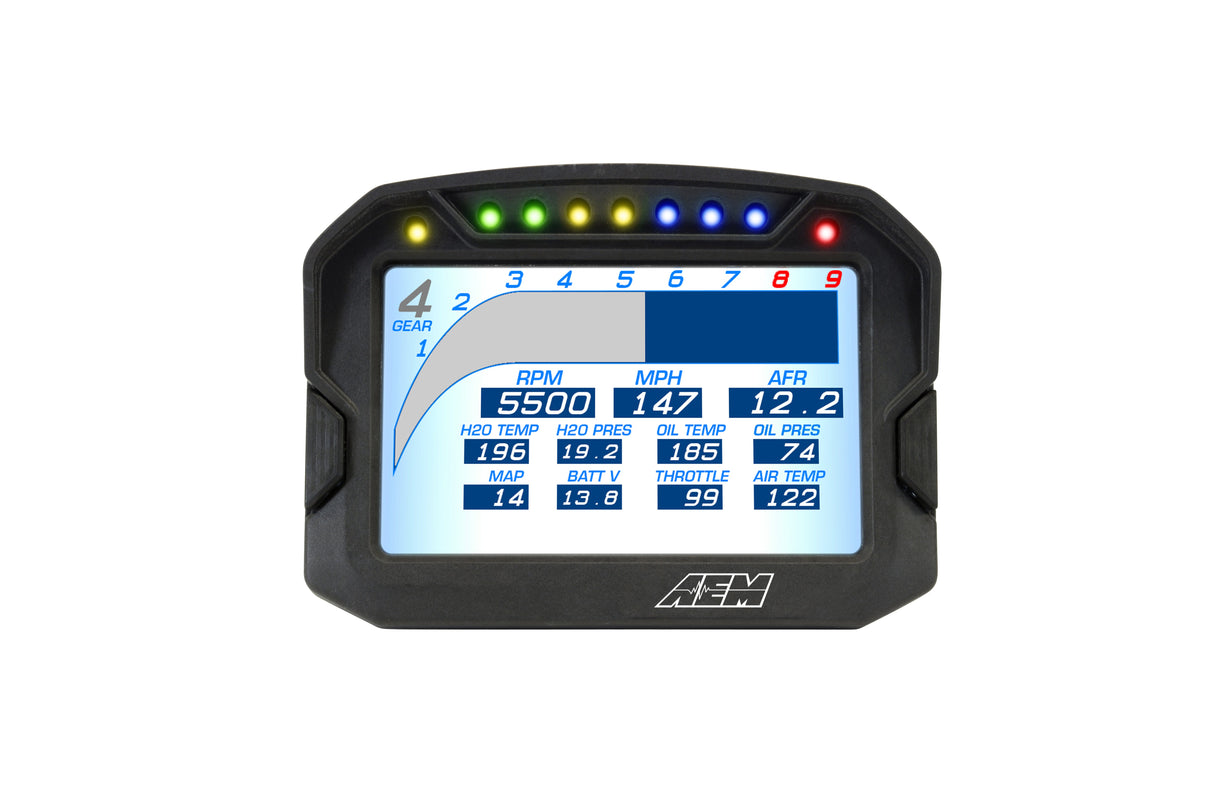

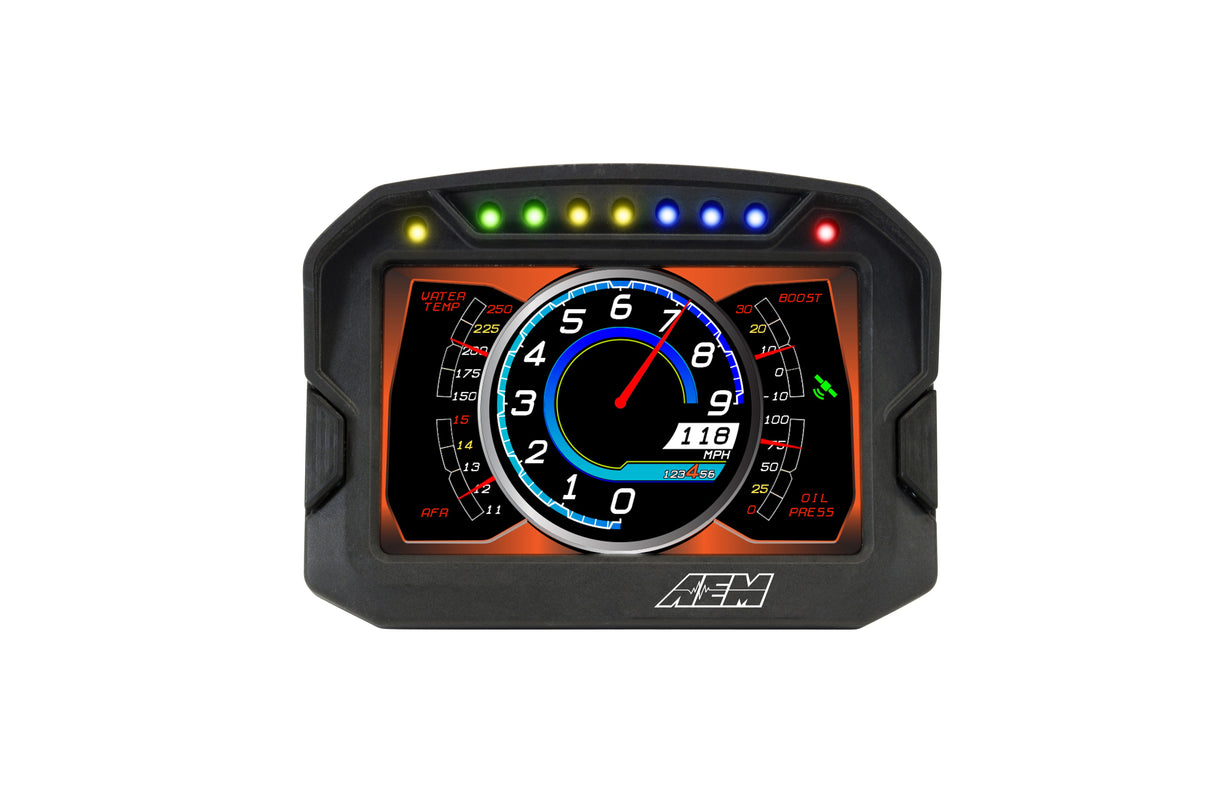

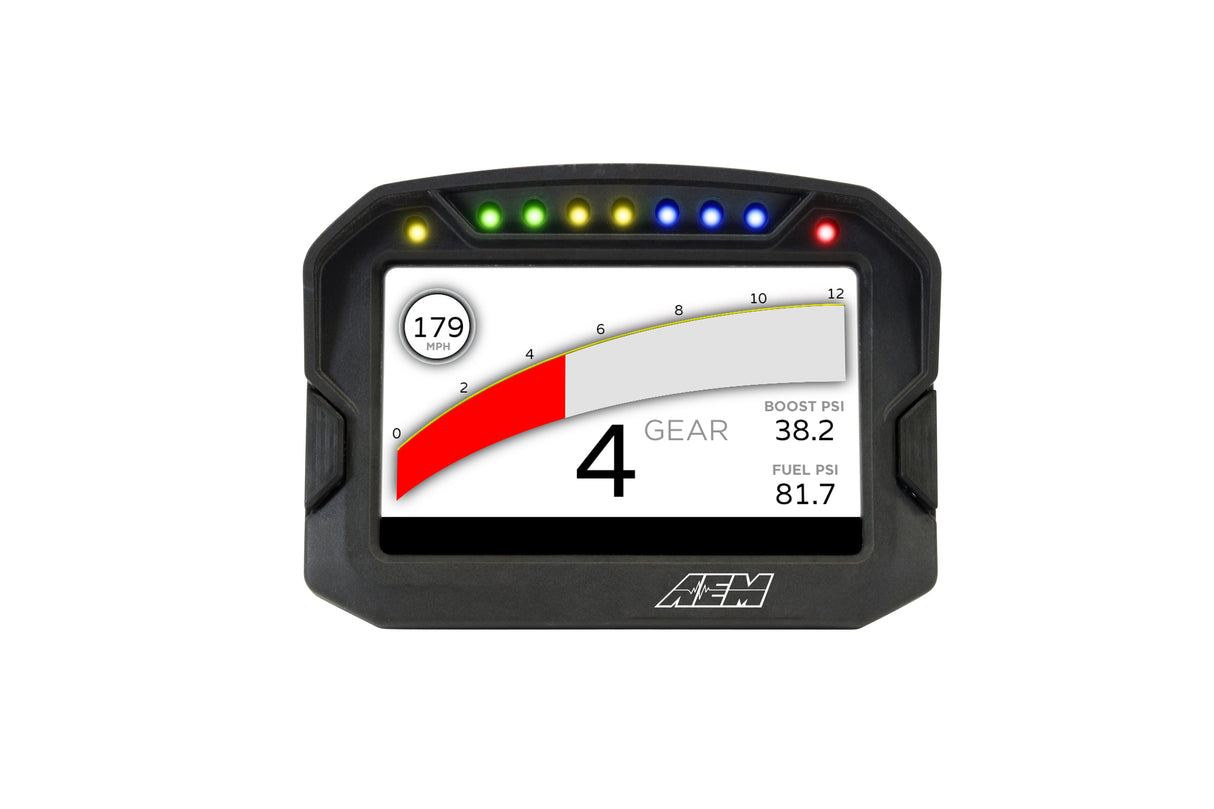

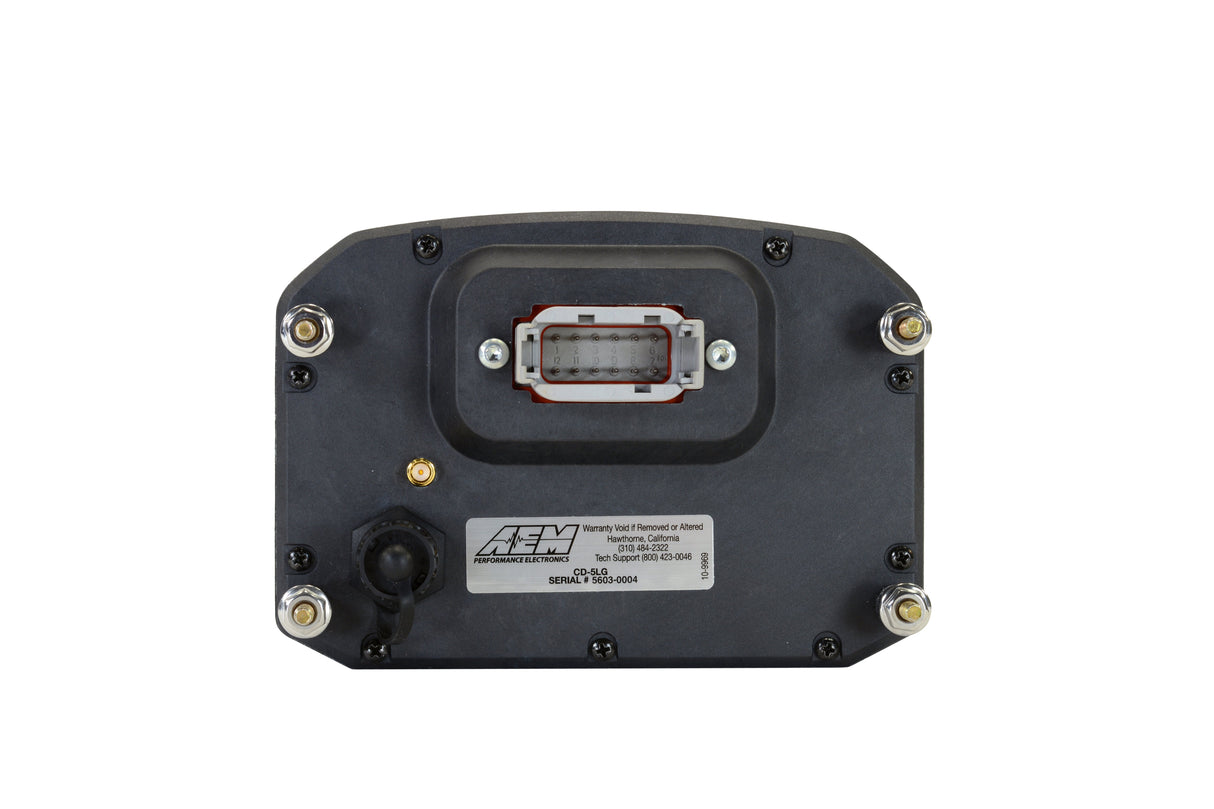

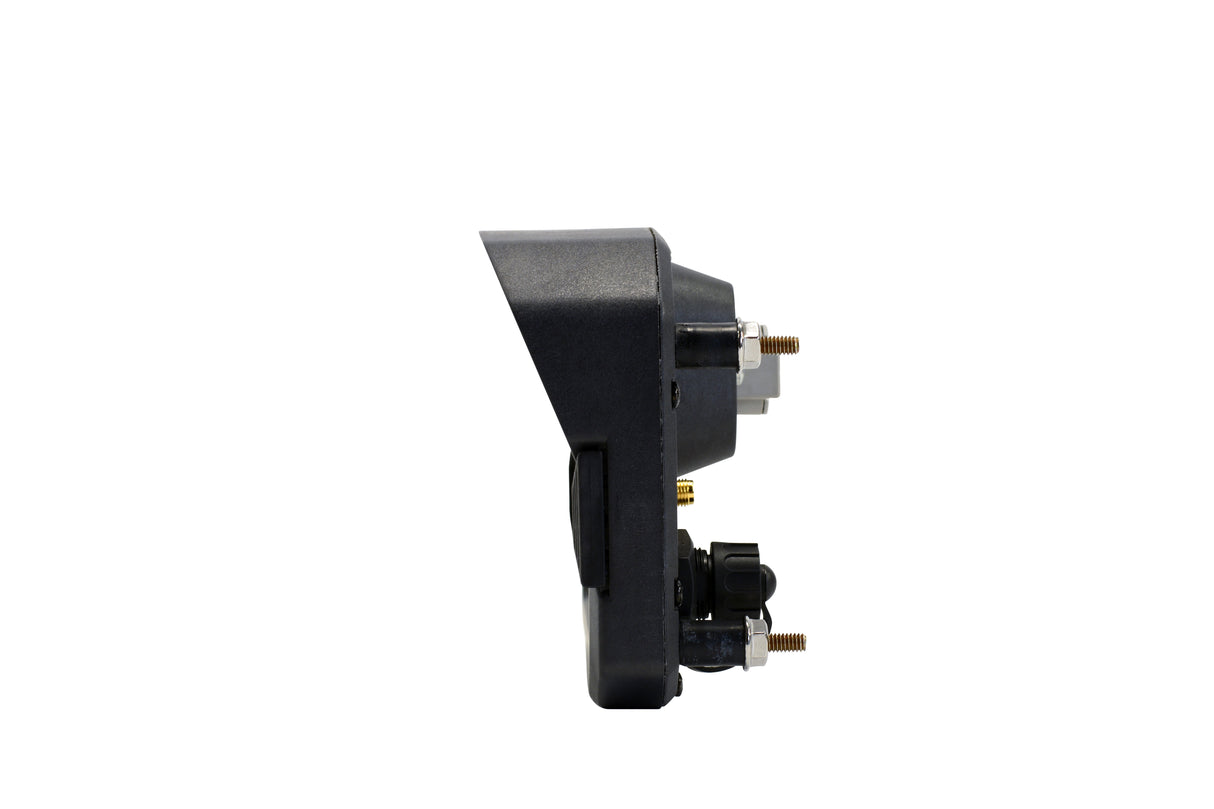

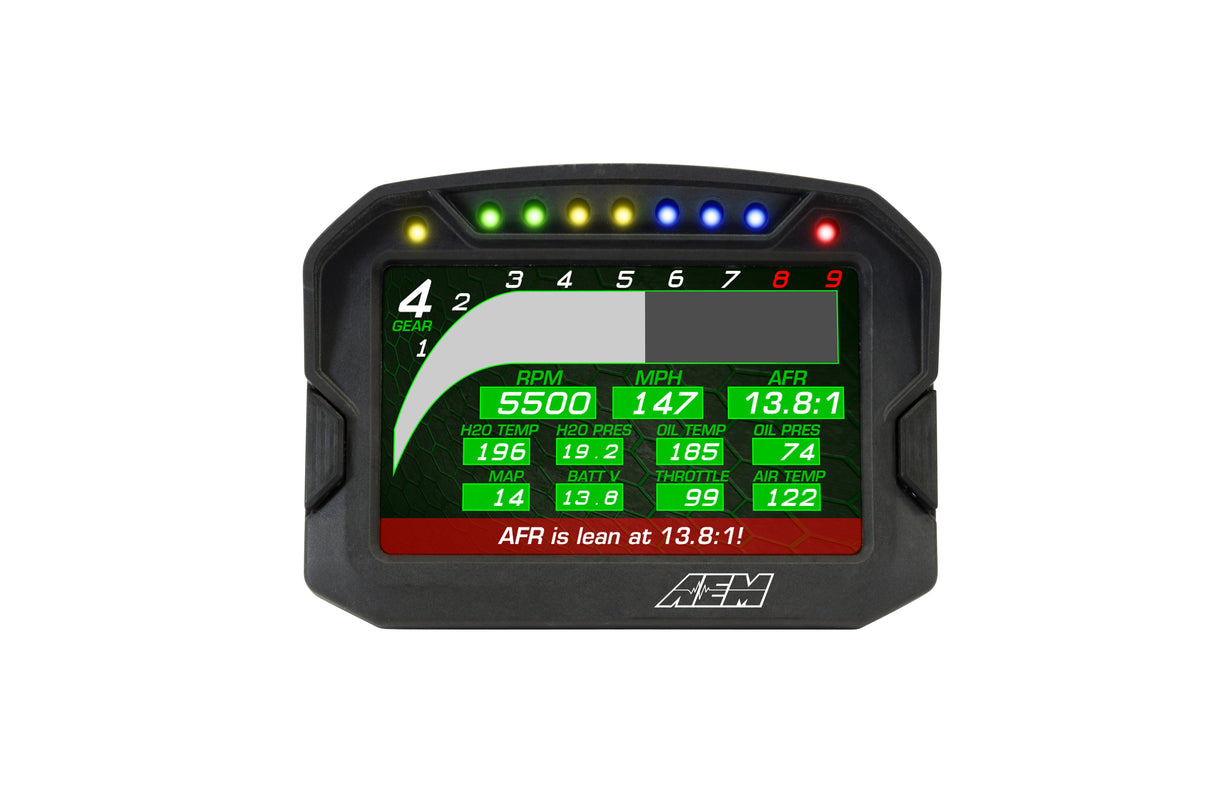

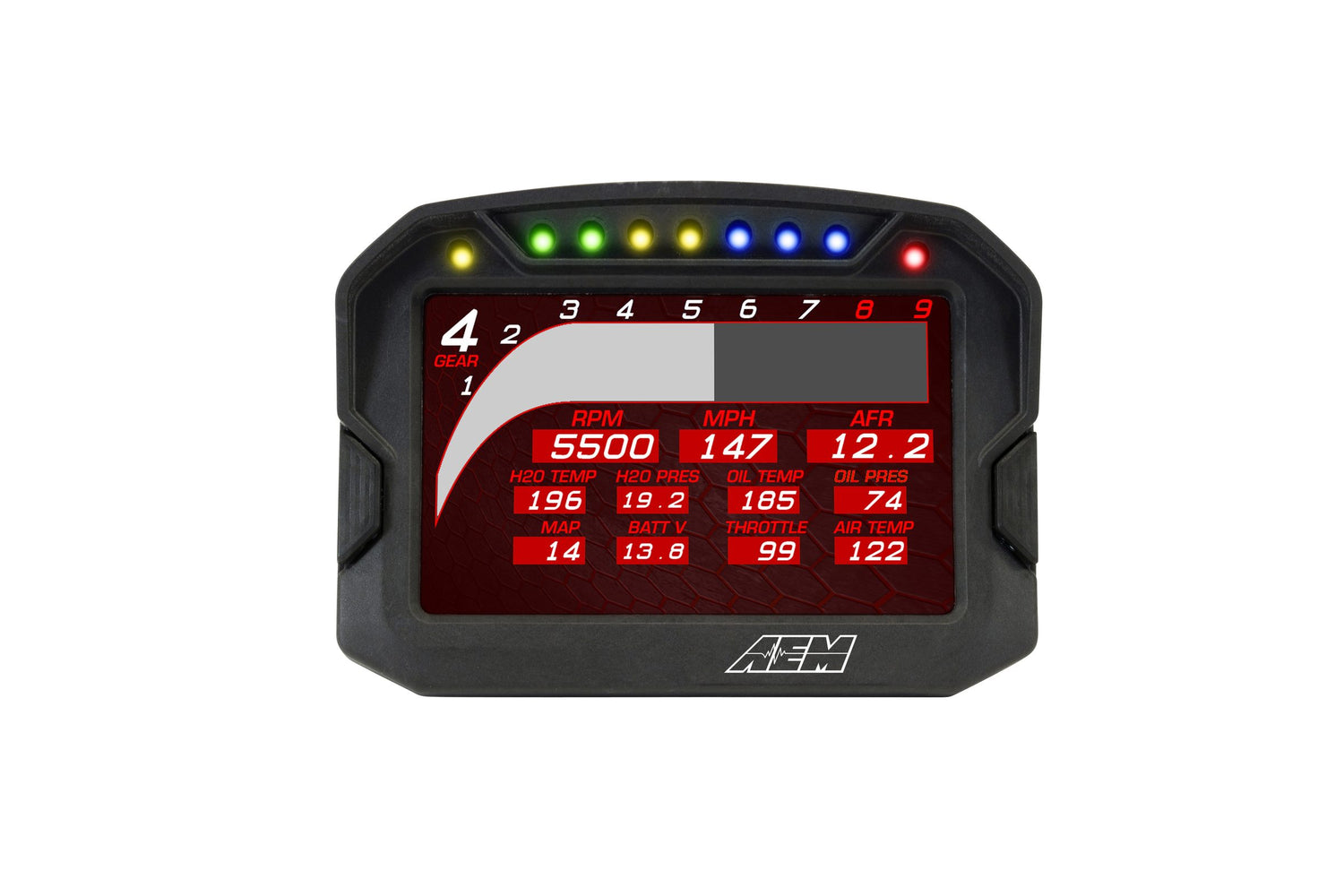

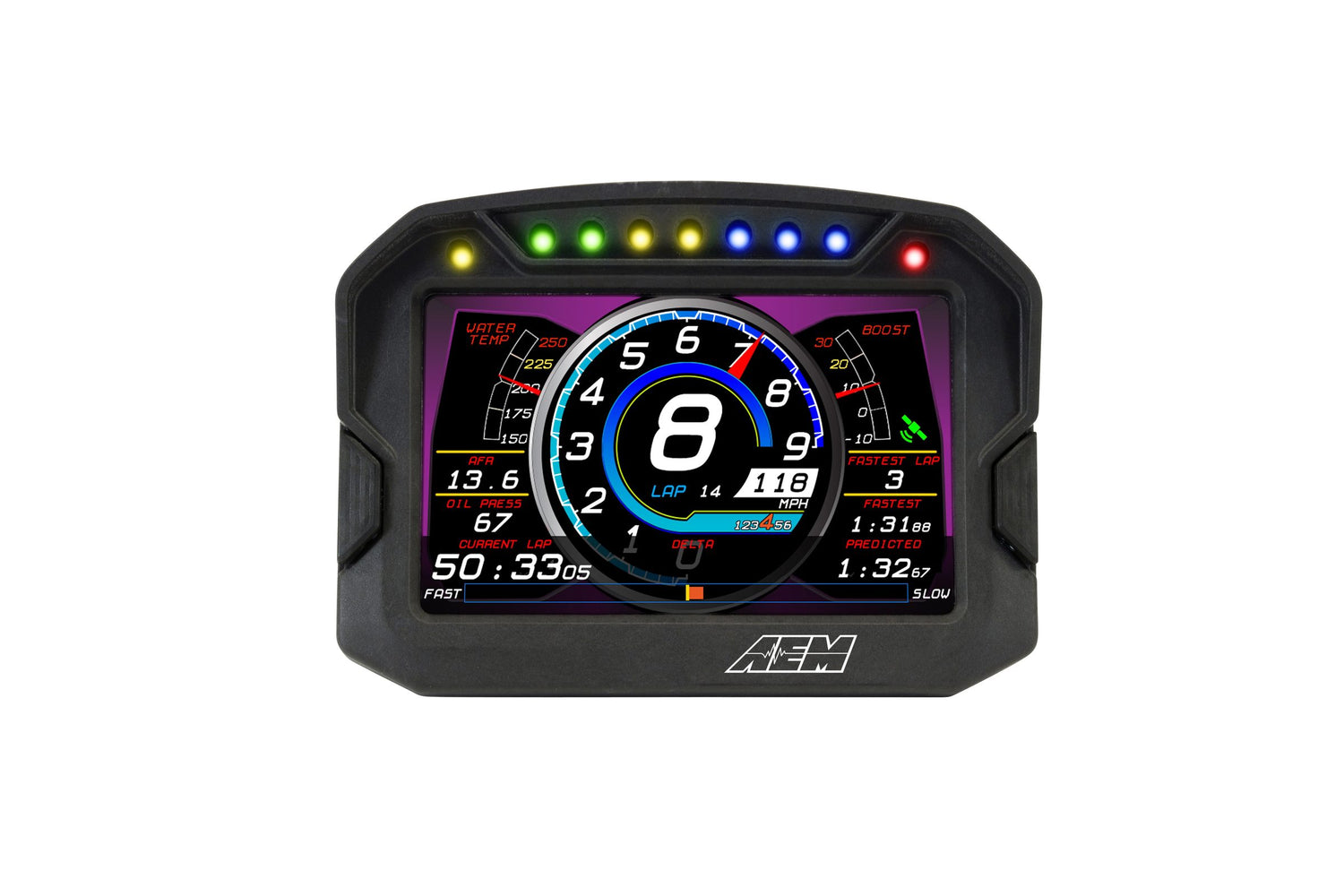

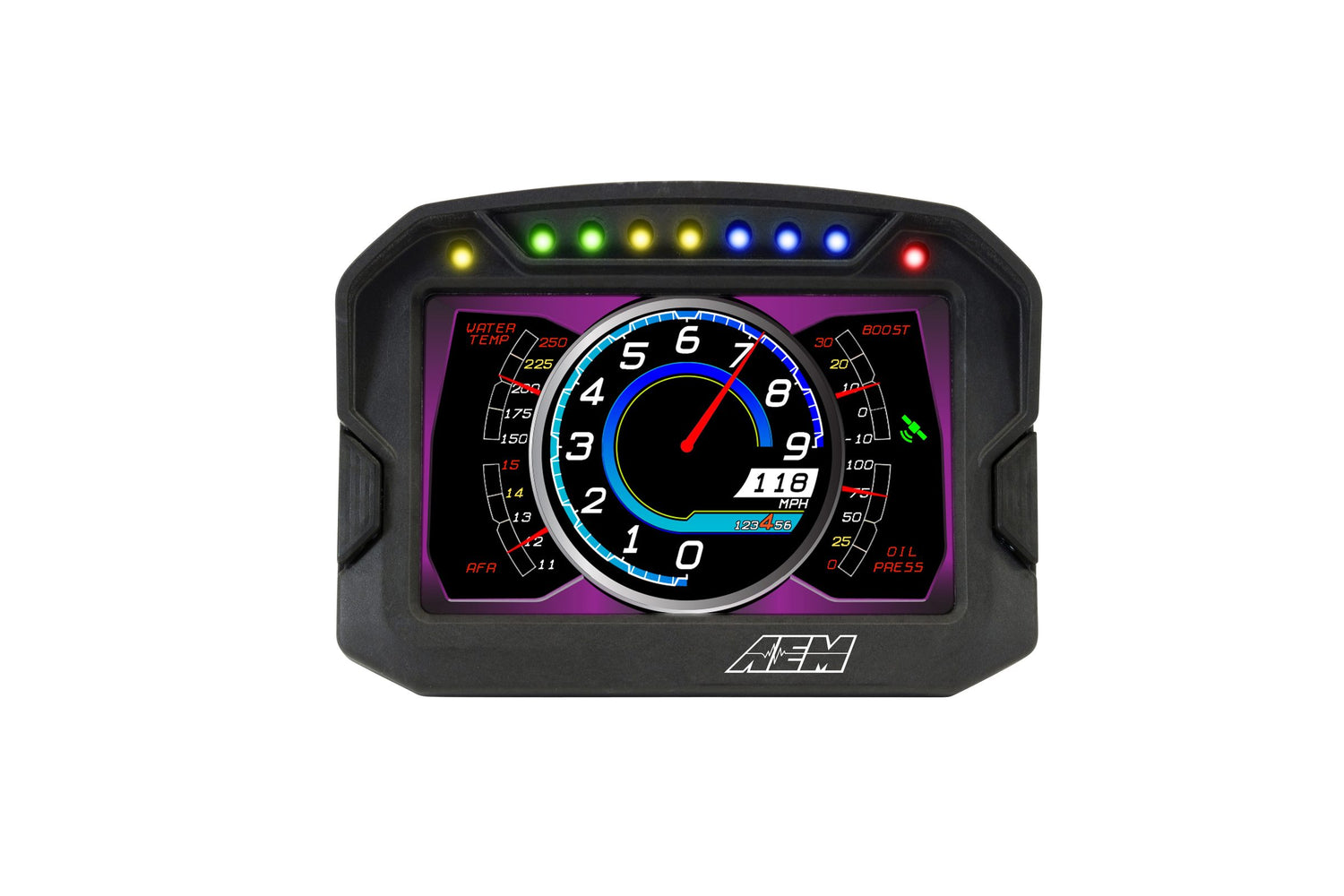

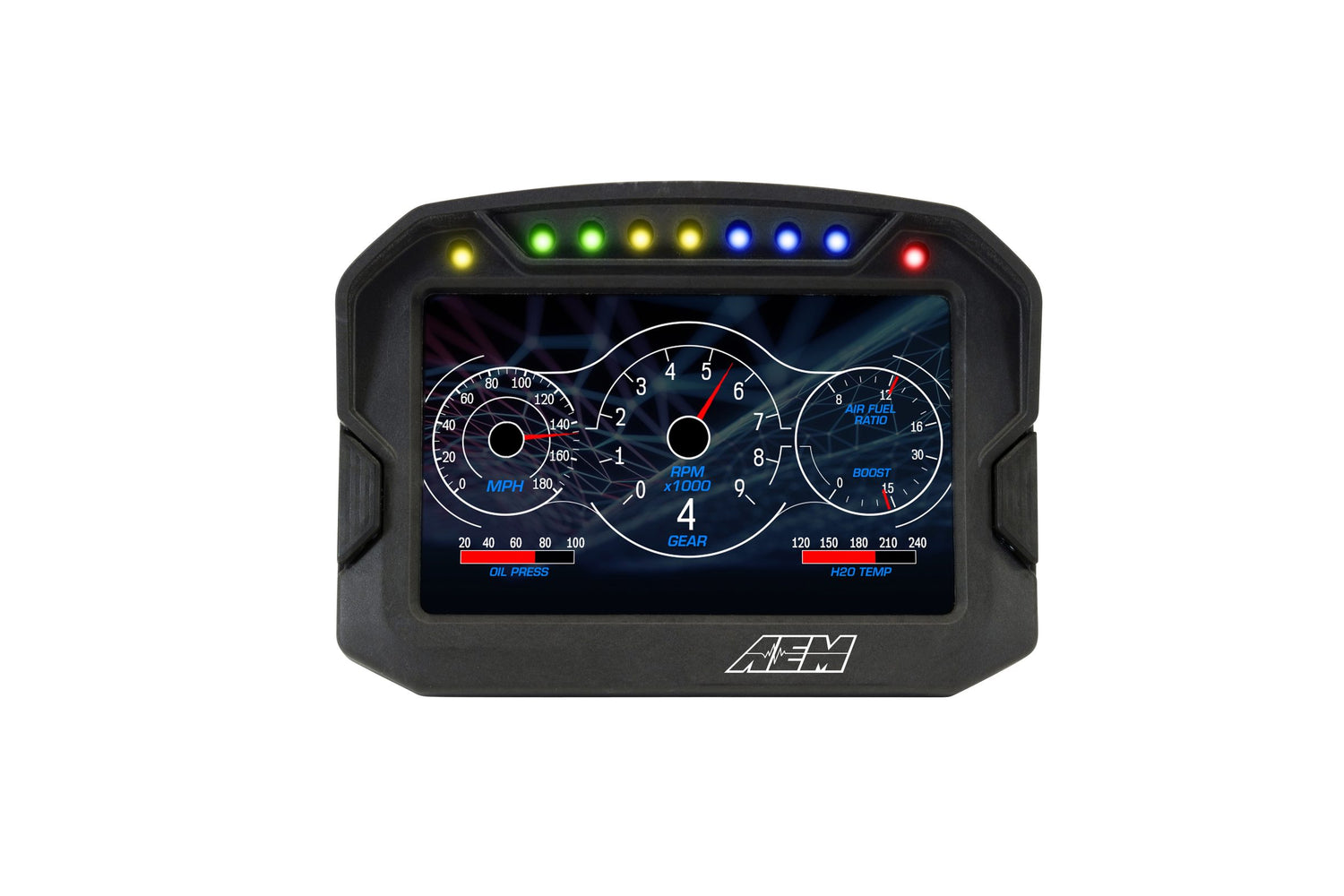

CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.

• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
• Two programmable LEDs
• Odometer function
• Layout files interchangeable with all versions of the CD-7
• Free DashDesign Graphics Editor software
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Wiring interface/harness is identical to the CD-7
• Full color 5" screen with 800x480 resolution
• IP66 water resistance allows for operation in boats and motorcycles without worry
• Total display weight of 11.7 oz./331 grams
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• 'Headlight-in' connection dims the dash and LEDs during night operation
• Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
• Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs

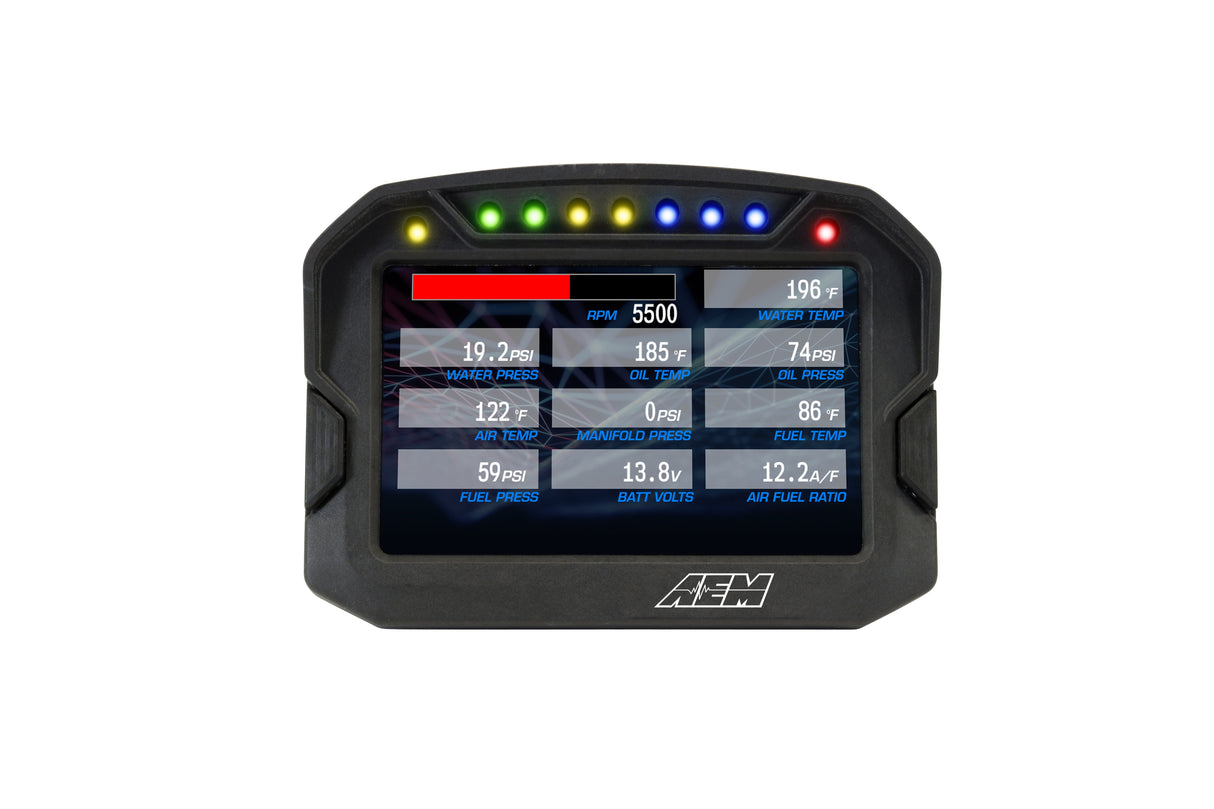

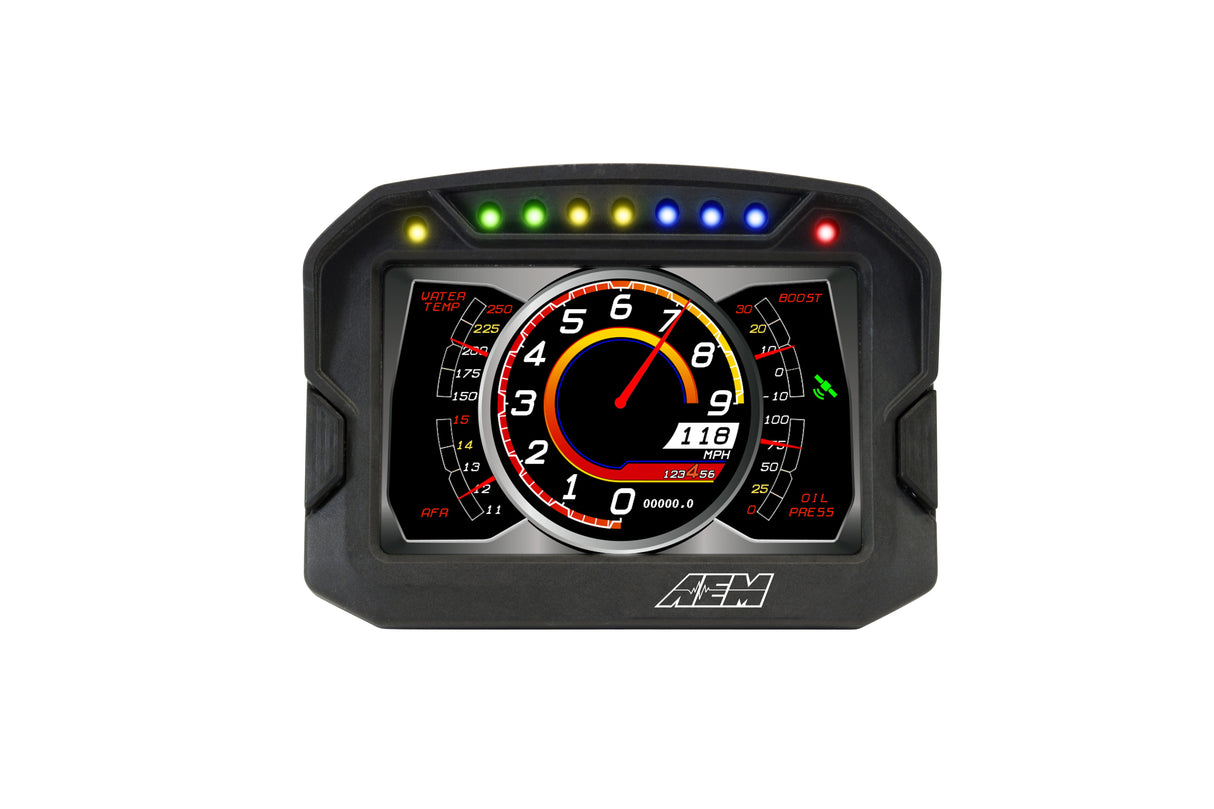

• Use included page layouts and input your channels and text, or create your own from scratch
• Available with or without 200Mb internal logging (up to 1,000Hz/channel)
• Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own

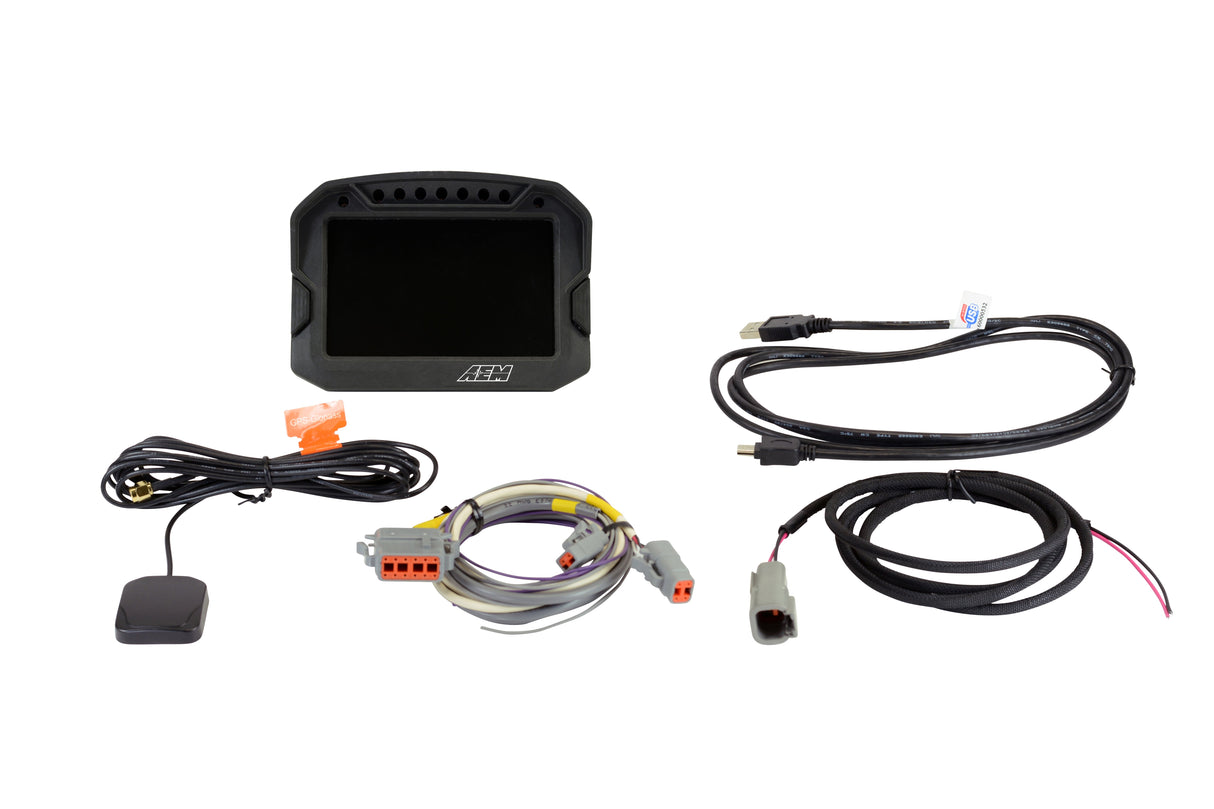

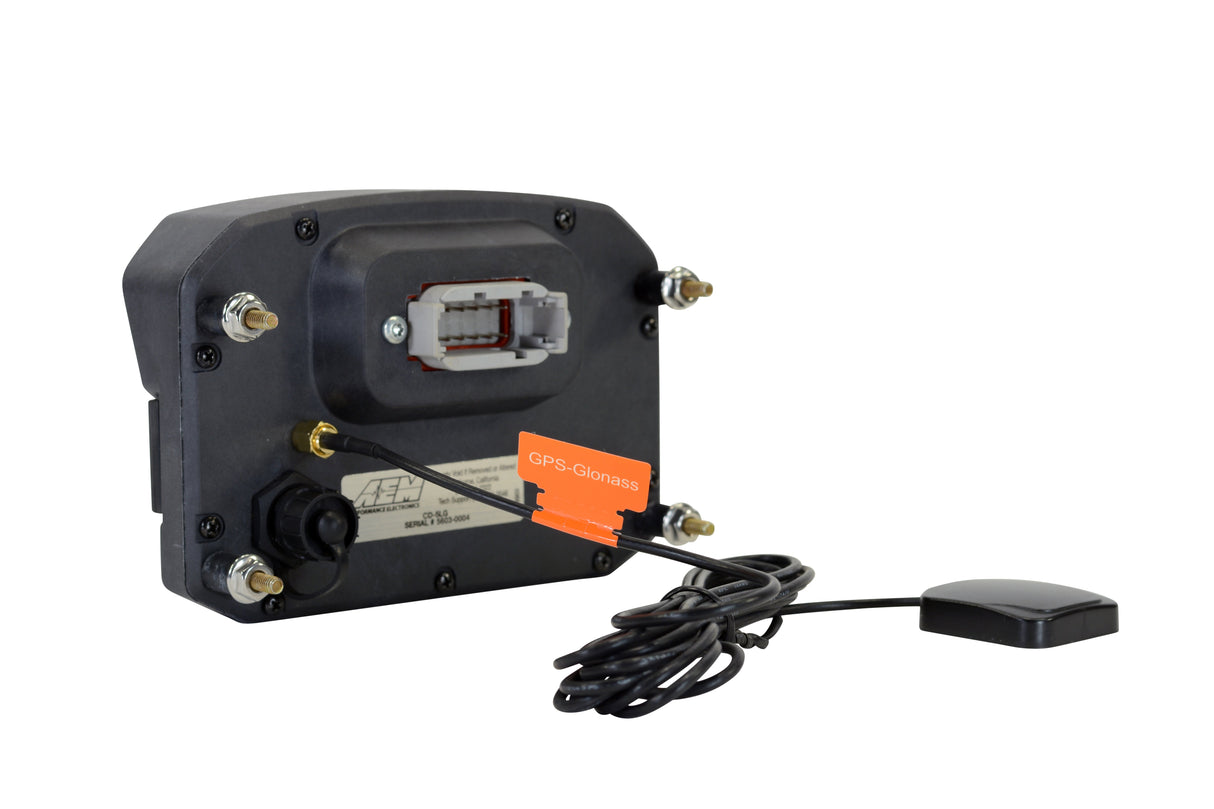

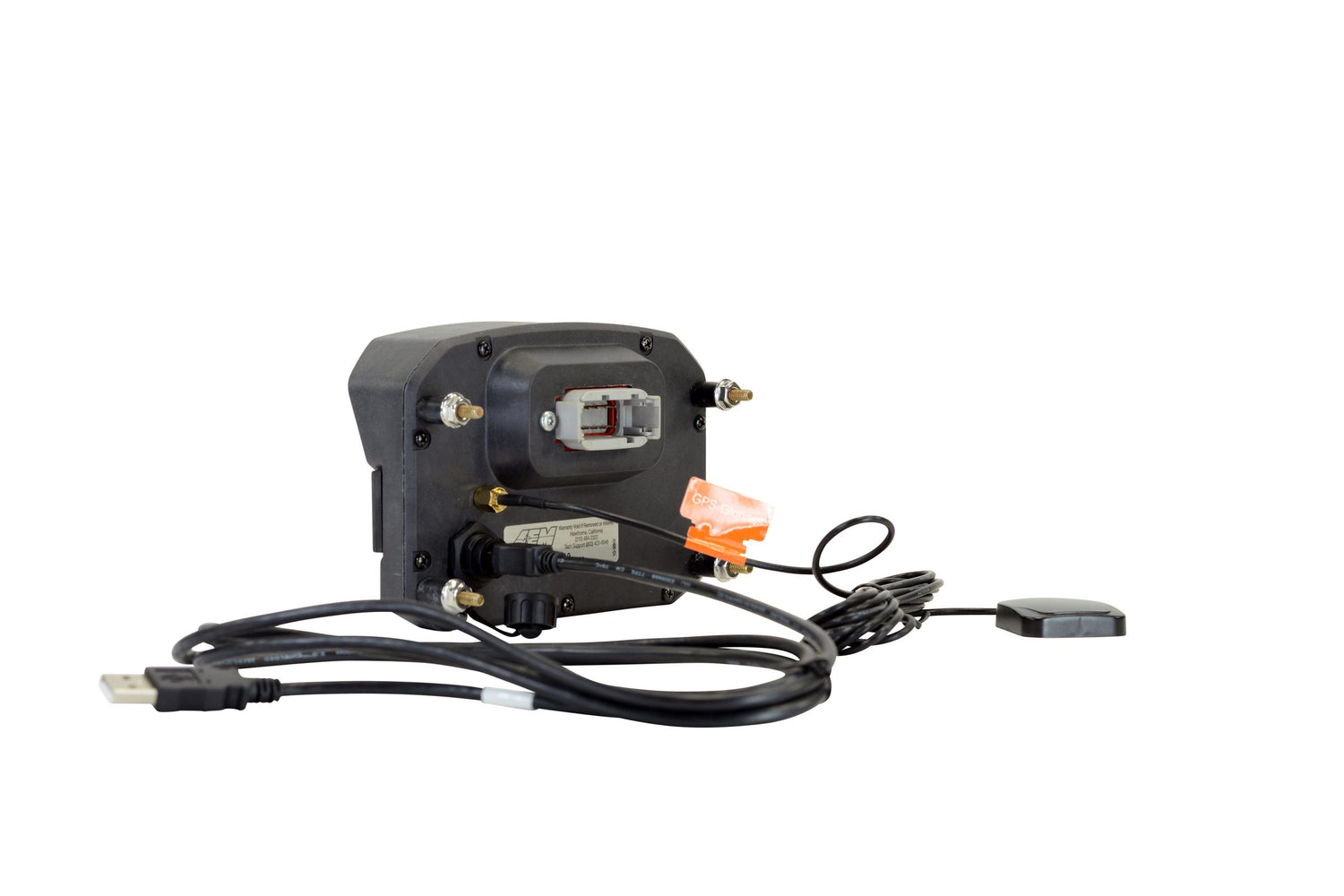

• Available with or without on-board GPS receiver and antenna

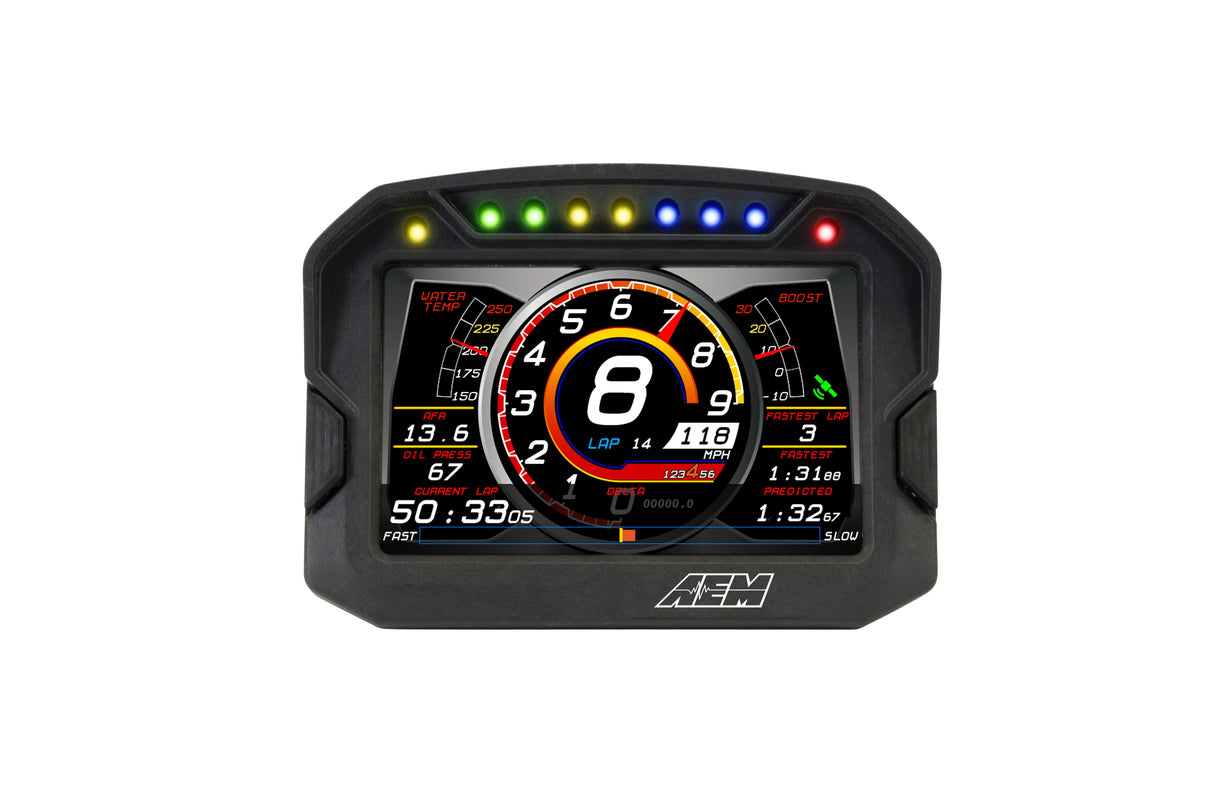

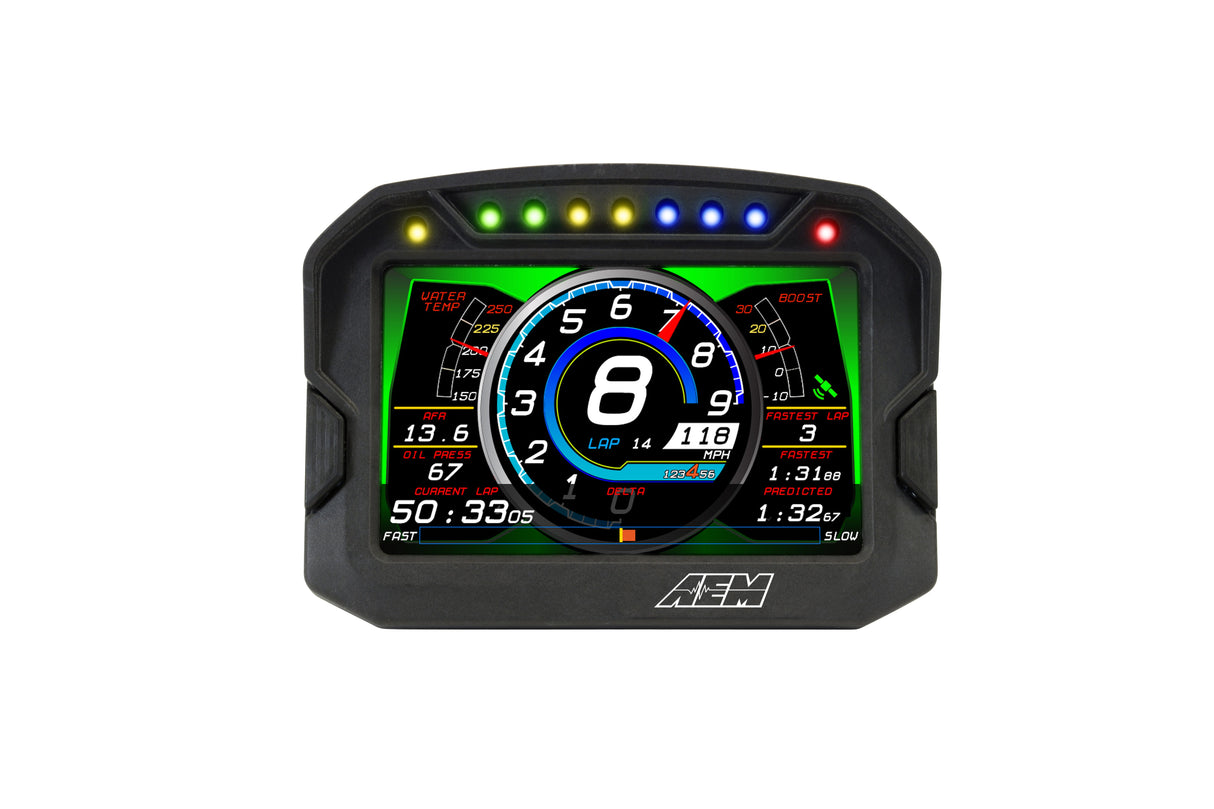

• Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)

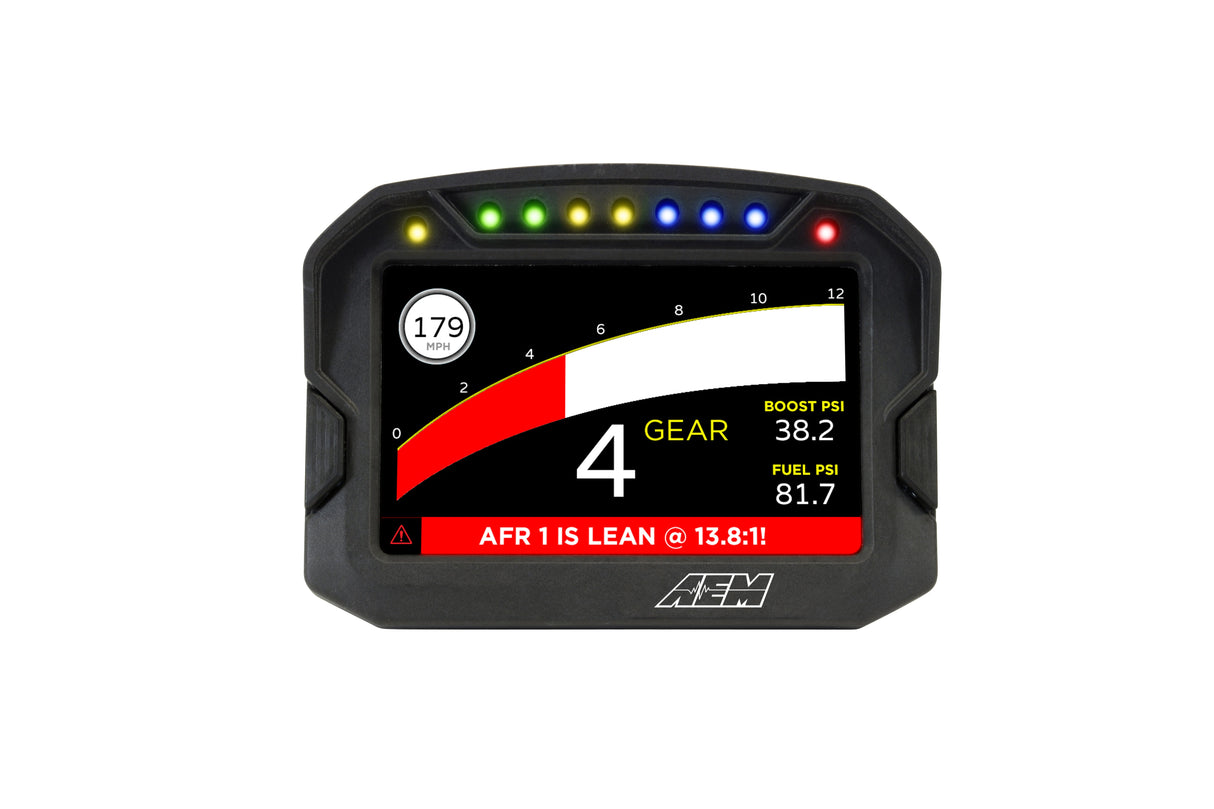

• Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)

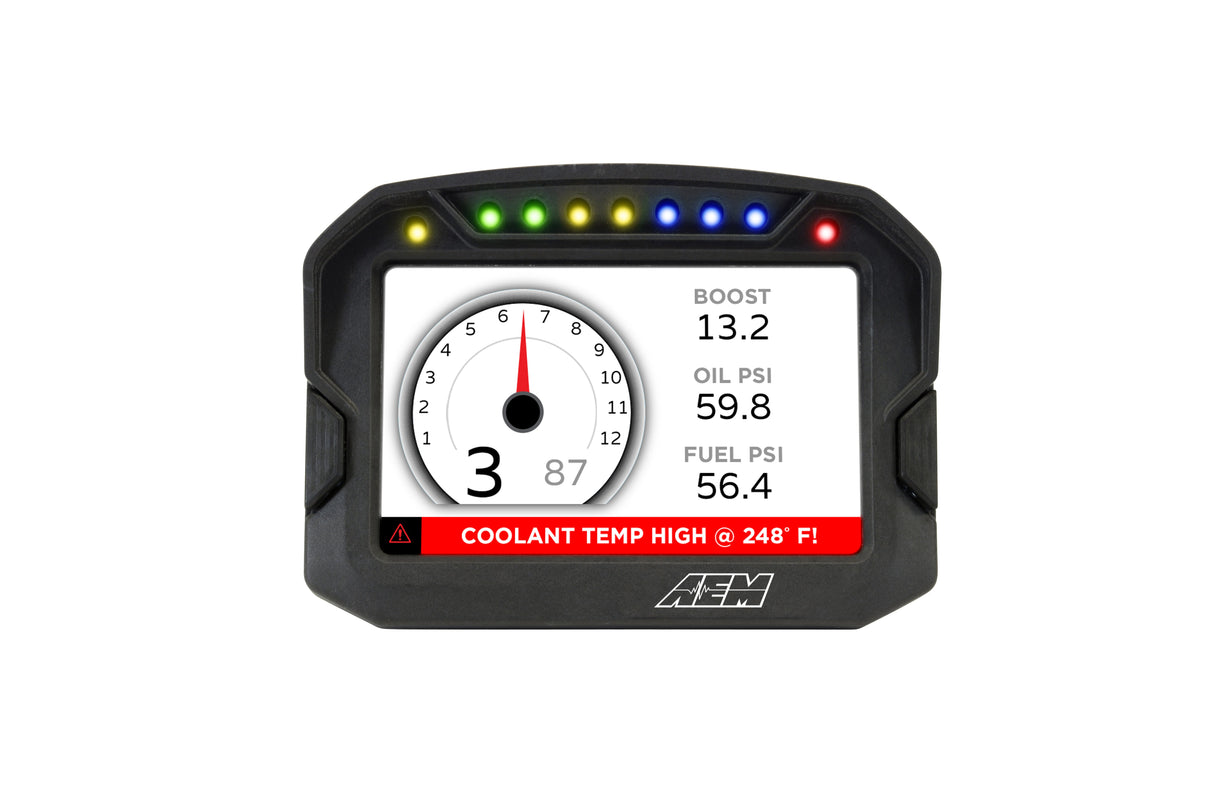

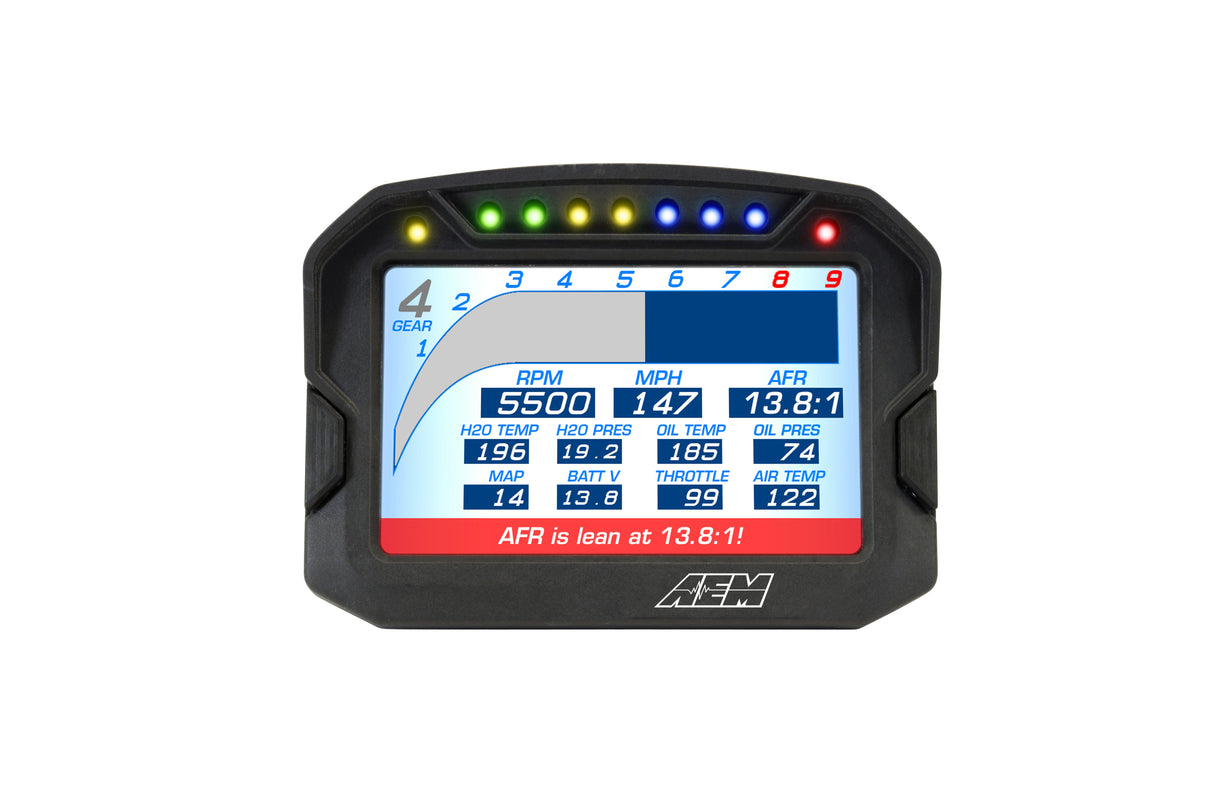

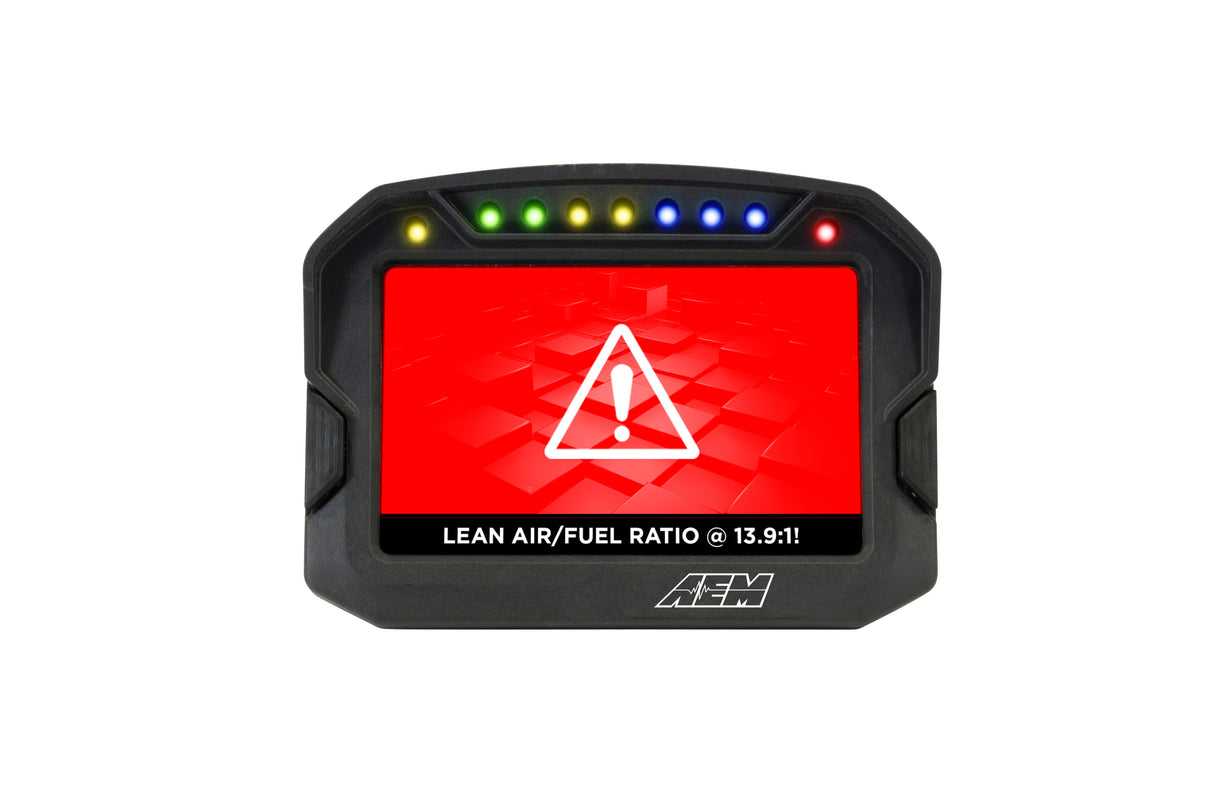

• Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
• Convert CAN bus channel values to user-defined text in multiple languages
• User supplied graphics can be changed based on channel values (up to the full screen size)
