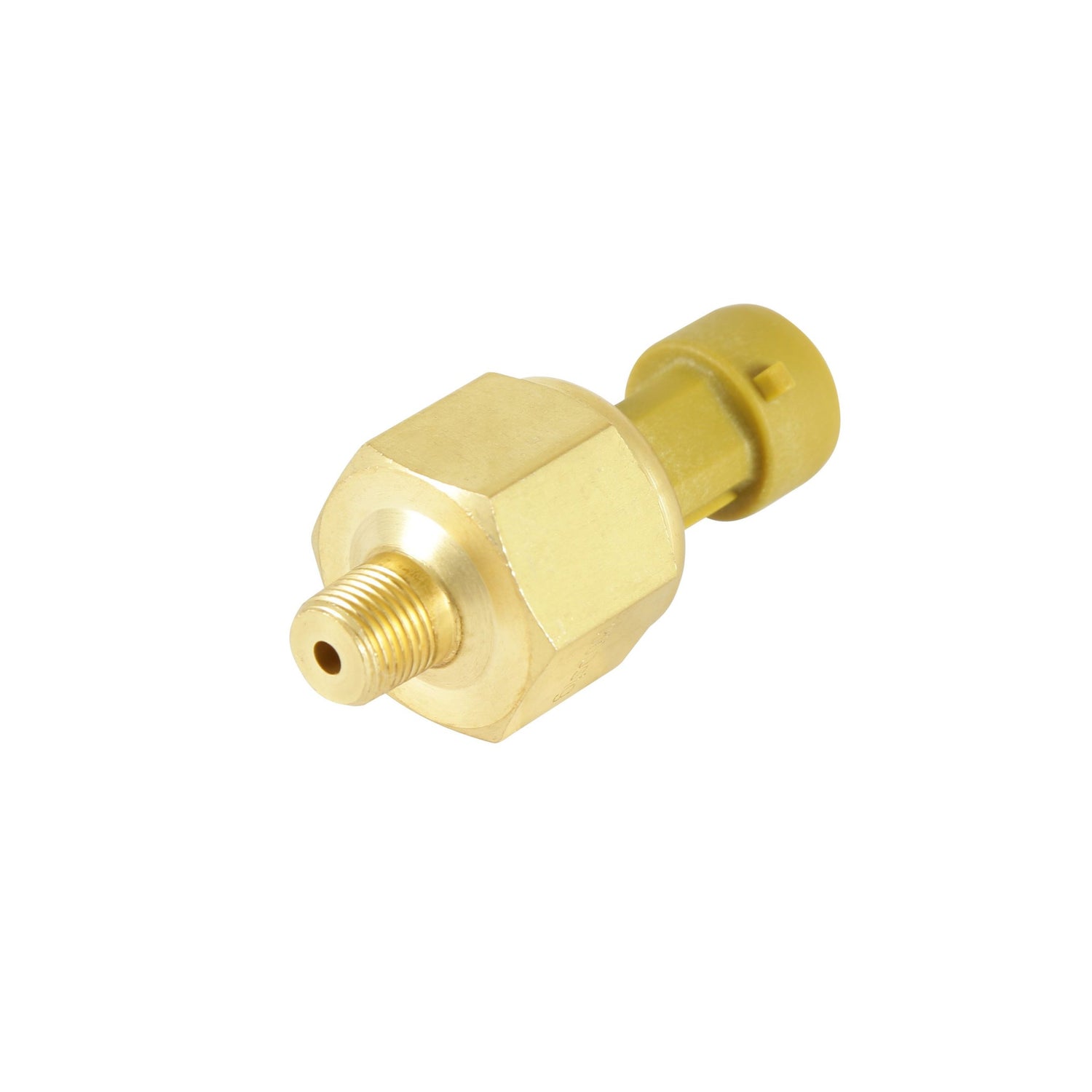

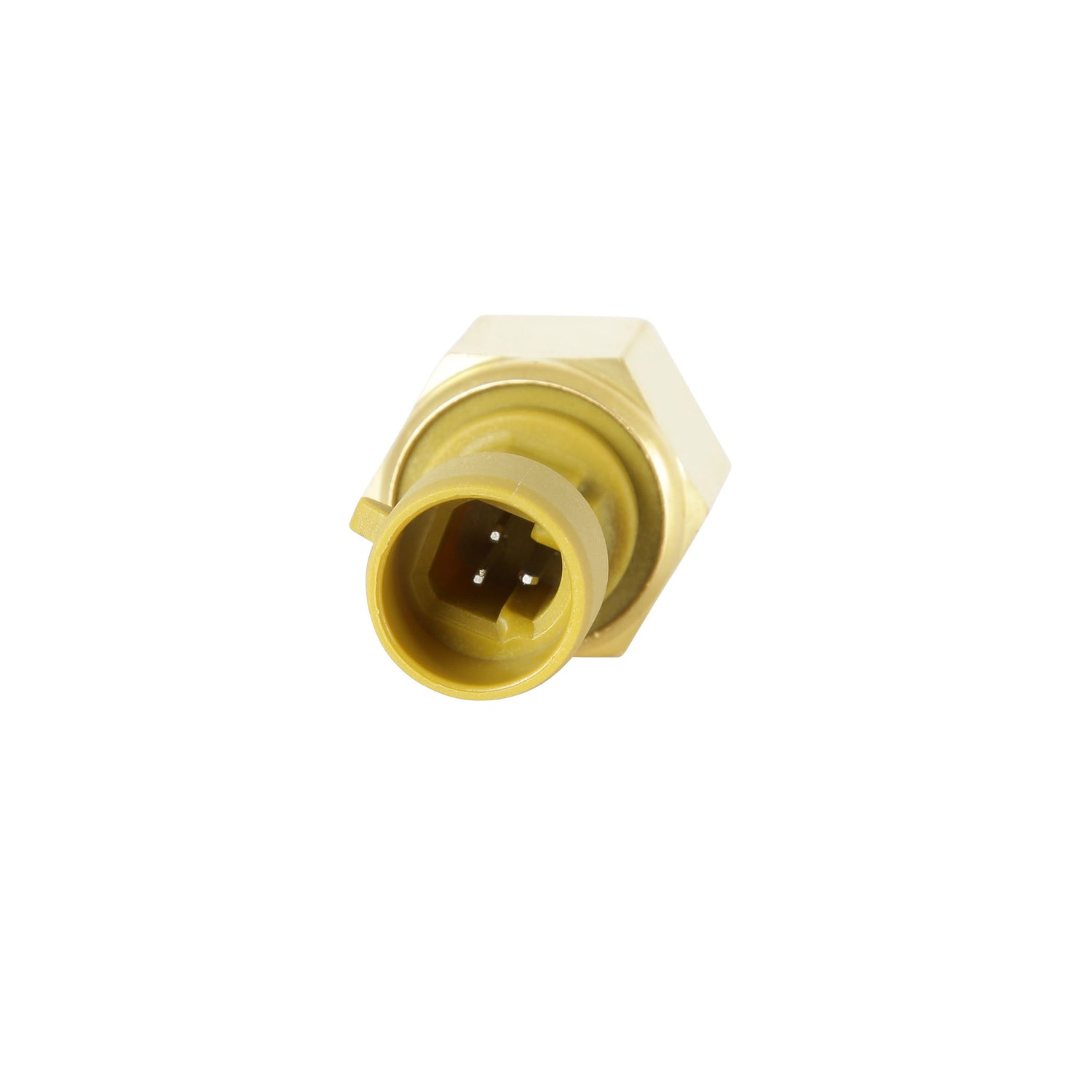

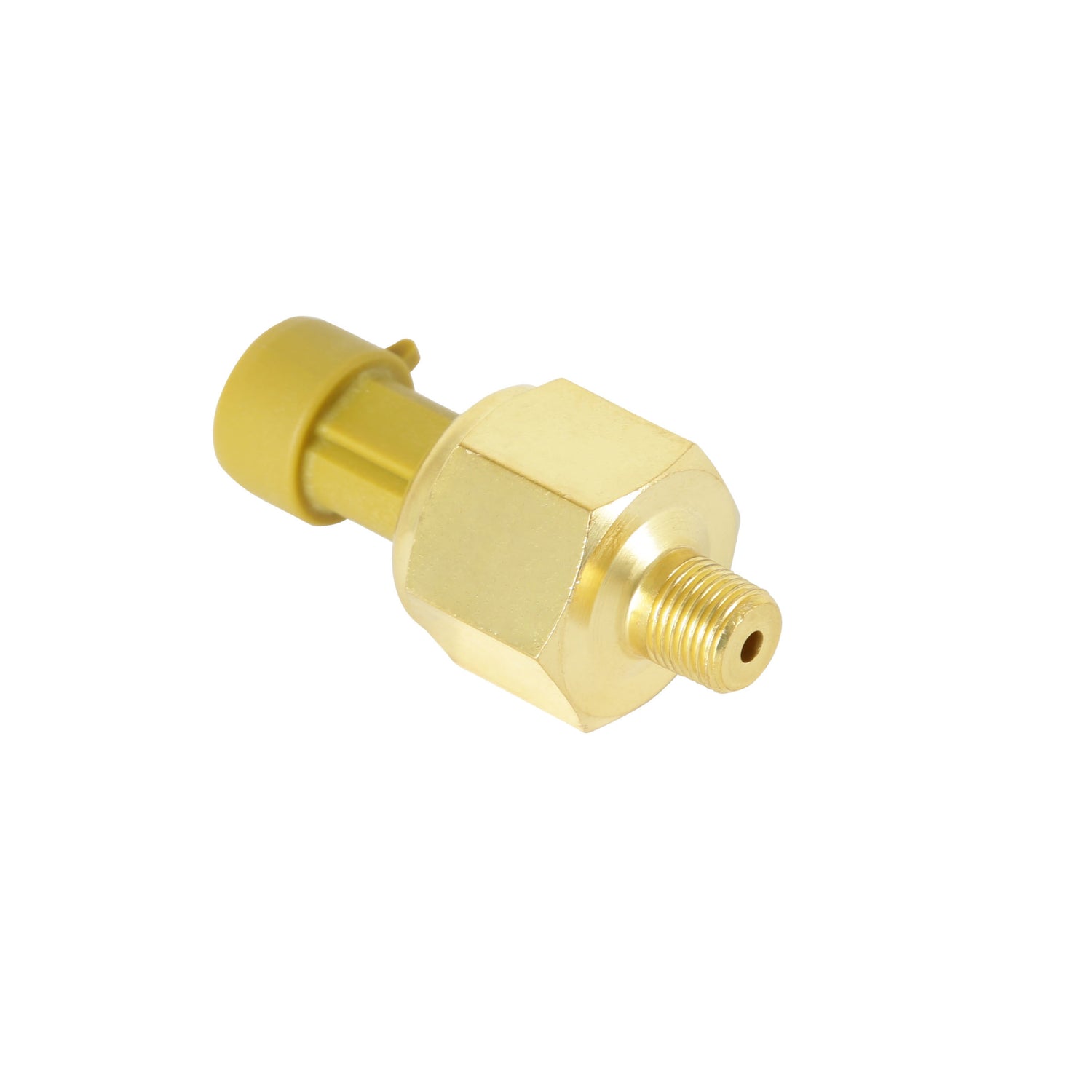

AEM 30-2131-50 - 3.5 BAR MAP or 50 PSIA Brass Sensor Kit & Flying Lead

AEM 30-2131-50 - 3.5 BAR MAP or 50 PSIA Brass Sensor Kit & Flying Lead

Map Sensor - 3.5 bar - Up to 50 psi - 1/8 in NPT Male Thread - Plug / Pins - Brass - Kit

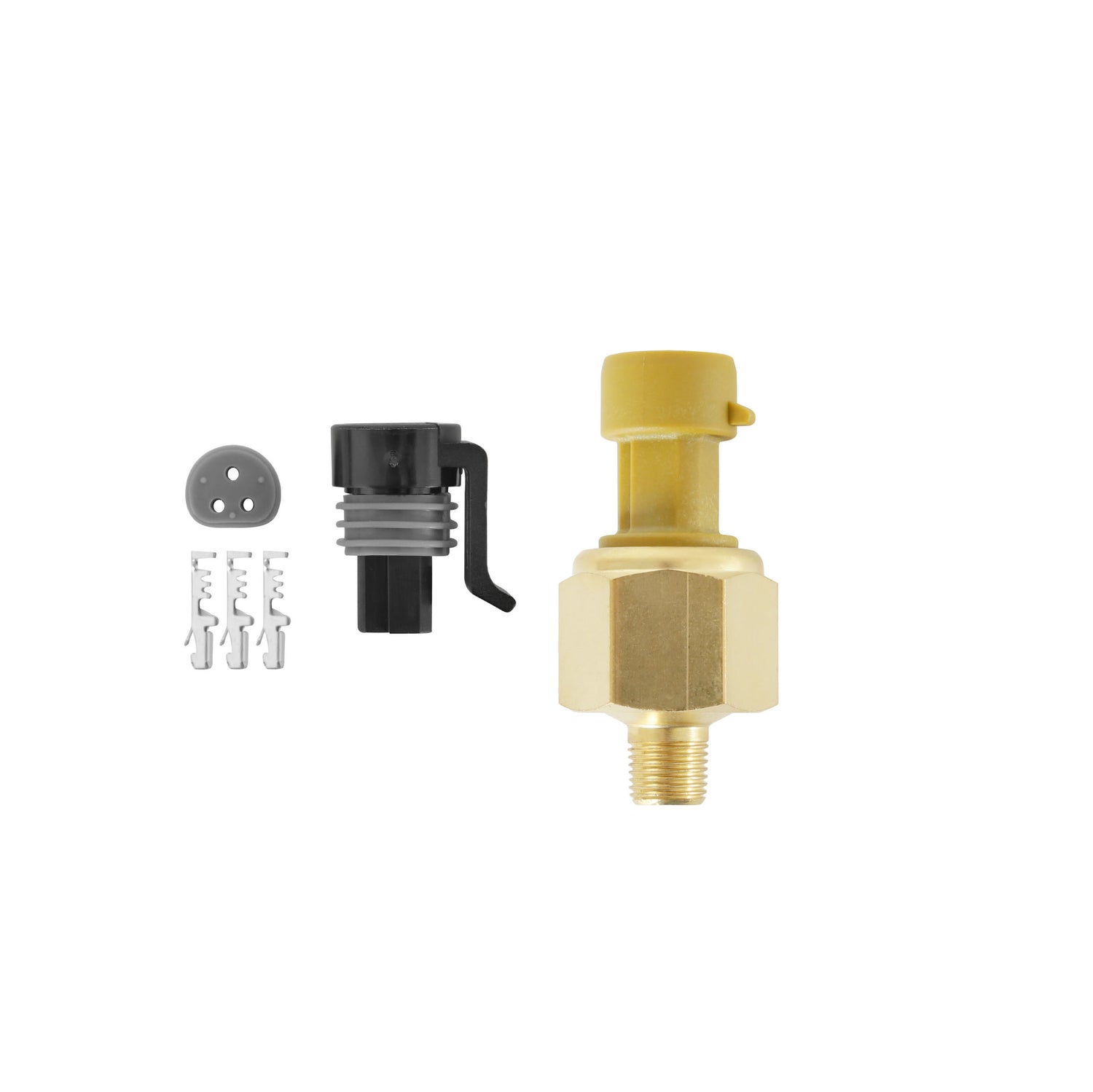

50 PSIa or 3.5 Bar Brass Sensor Kit, Brass Sensor Body, 1/8-inch NPT Male Thread, Includes 50 PSIa or 3.5 Bar Stainless Sensor, Connector and Pins

AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

• -Brass body, with high quality sealing which makes it impervious to fluids.
• -Accurate with 3% margin for error.
• -Weather resistant connector and pins included
• -Analog Data Scaled in Charts
