AEM 30-2130-7 - 7 BAR MAP or 100 PSIA Stainless Steel Sensor Kit
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description
AEM 30-2130-7 - 7 BAR MAP or 100 PSIA Stainless Steel Sensor Kit
AEM 7 BAR Stainless Steel MAP Sensor Kit

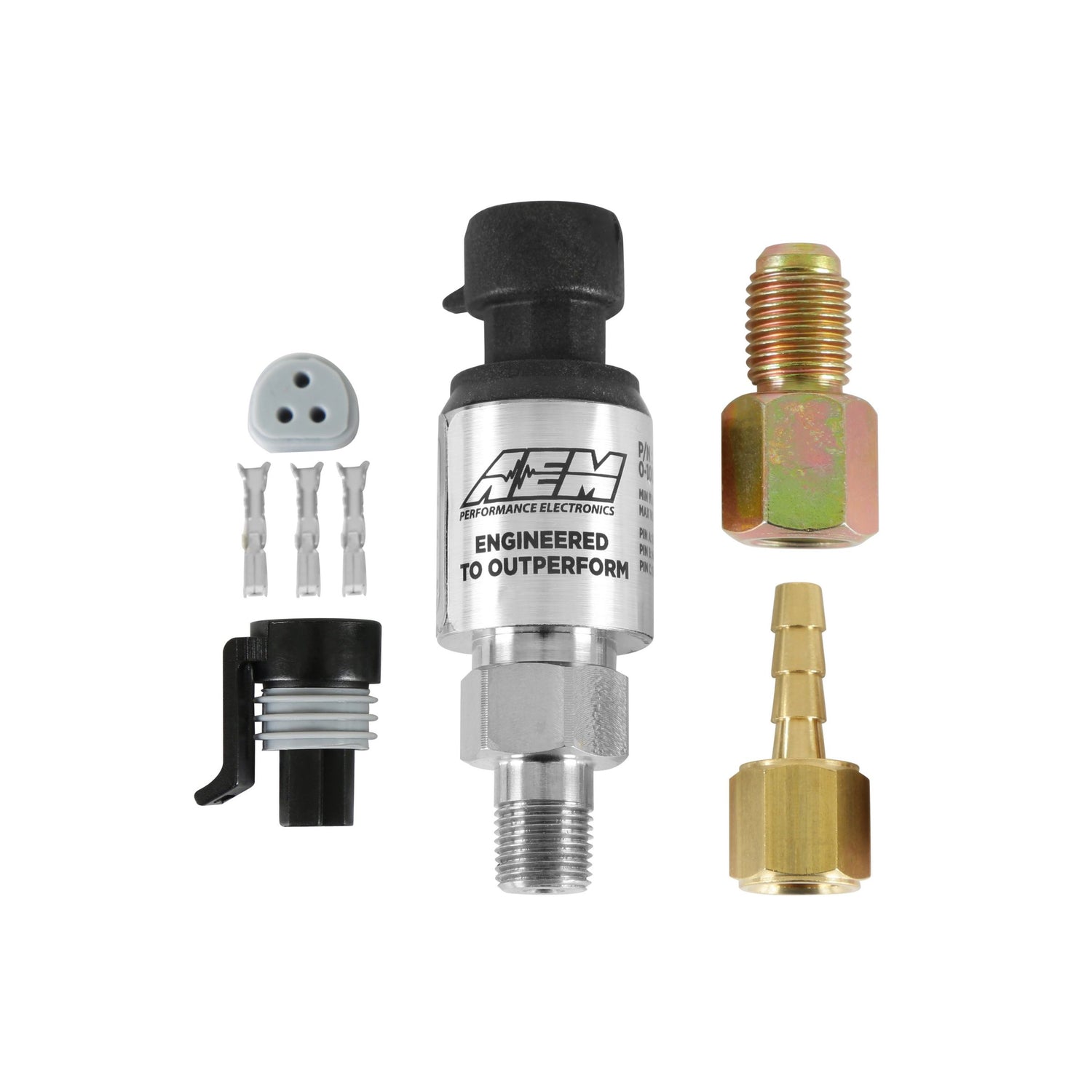

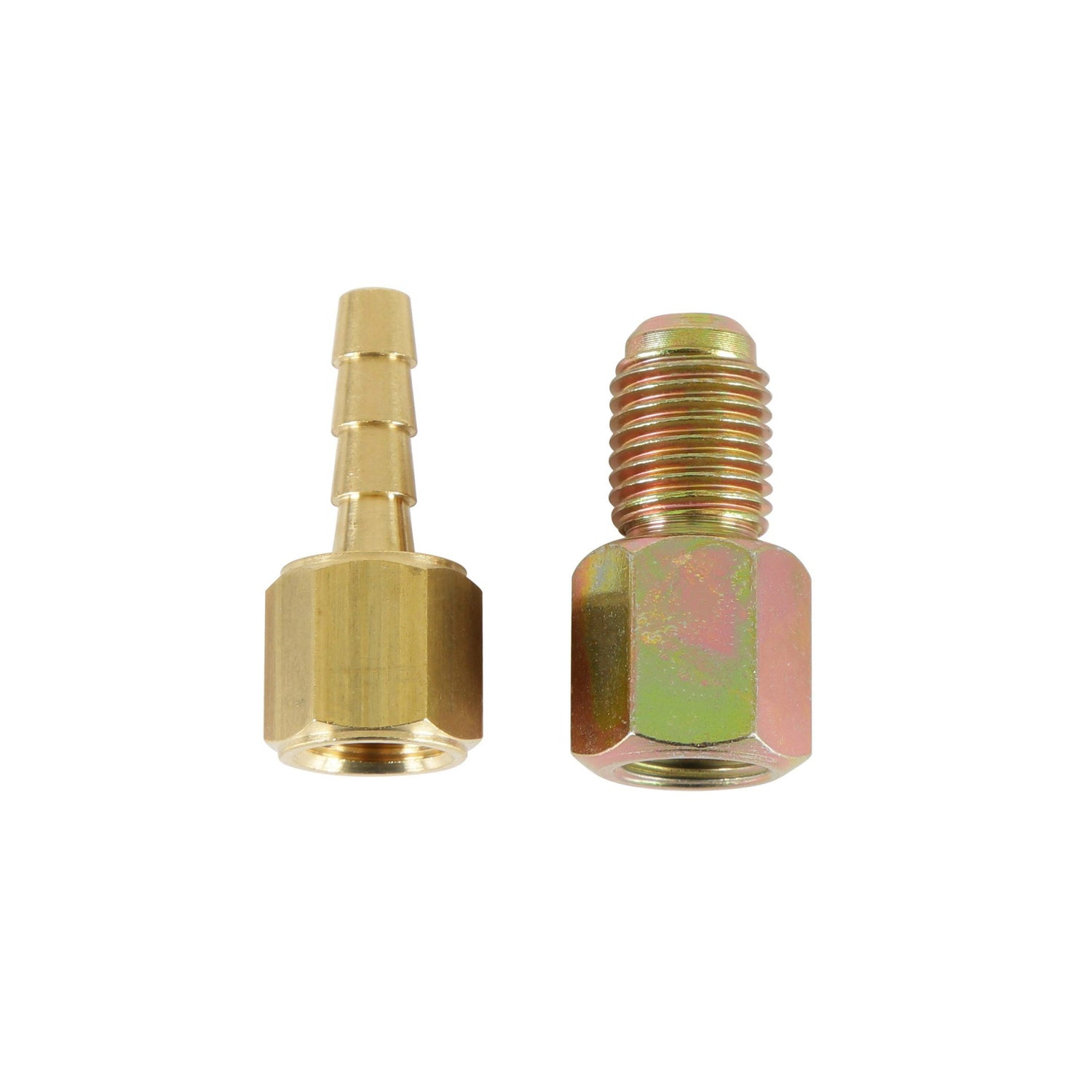

100 PSIa or 7 Bar Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8" NPT Male Thread. Includes: 75 PSIa or 5 Bar Stainless Sensor, Connector, Pins, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter
AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.
- -Stainless steel body, with high quality sealing which makes it impervious to fluids.
- -Accurate with 1% margin of error.
- -Includes 1/8" NPT to -4 AN adapter.
- -Weather resistant connector and pins included
