AEM 30-2130-50 - 3.5 BAR MAP or 50 PSIA Stainless Steel Sensor Kit

AEM 30-2130-50 - 3.5 BAR MAP or 50 PSIA Stainless Steel Sensor Kit

Map Sensor - 3.5 bar - Up to 50 psi - 1/8 in NPT Male Thread - Adapter / Plug / Pins - Stainless - Kit

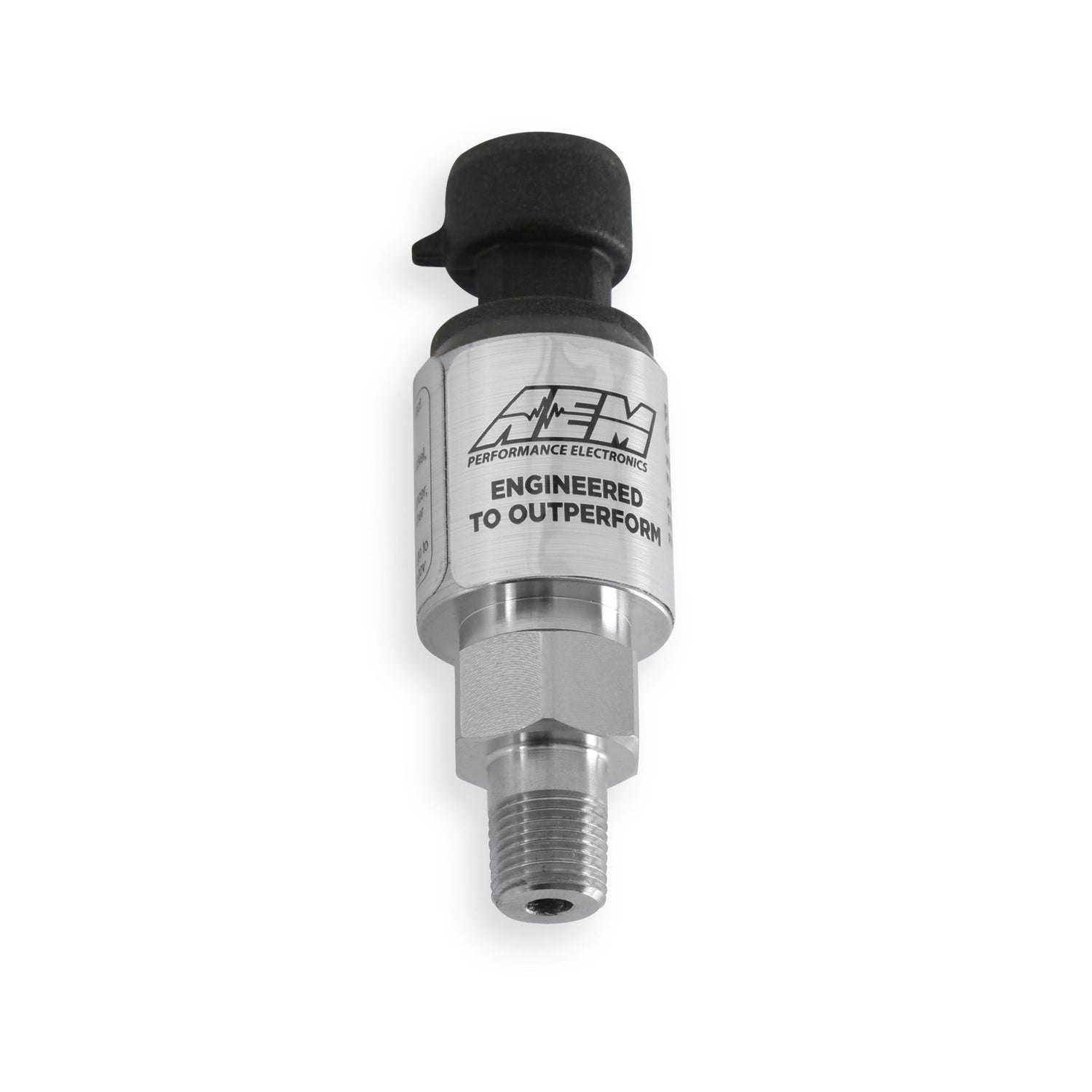

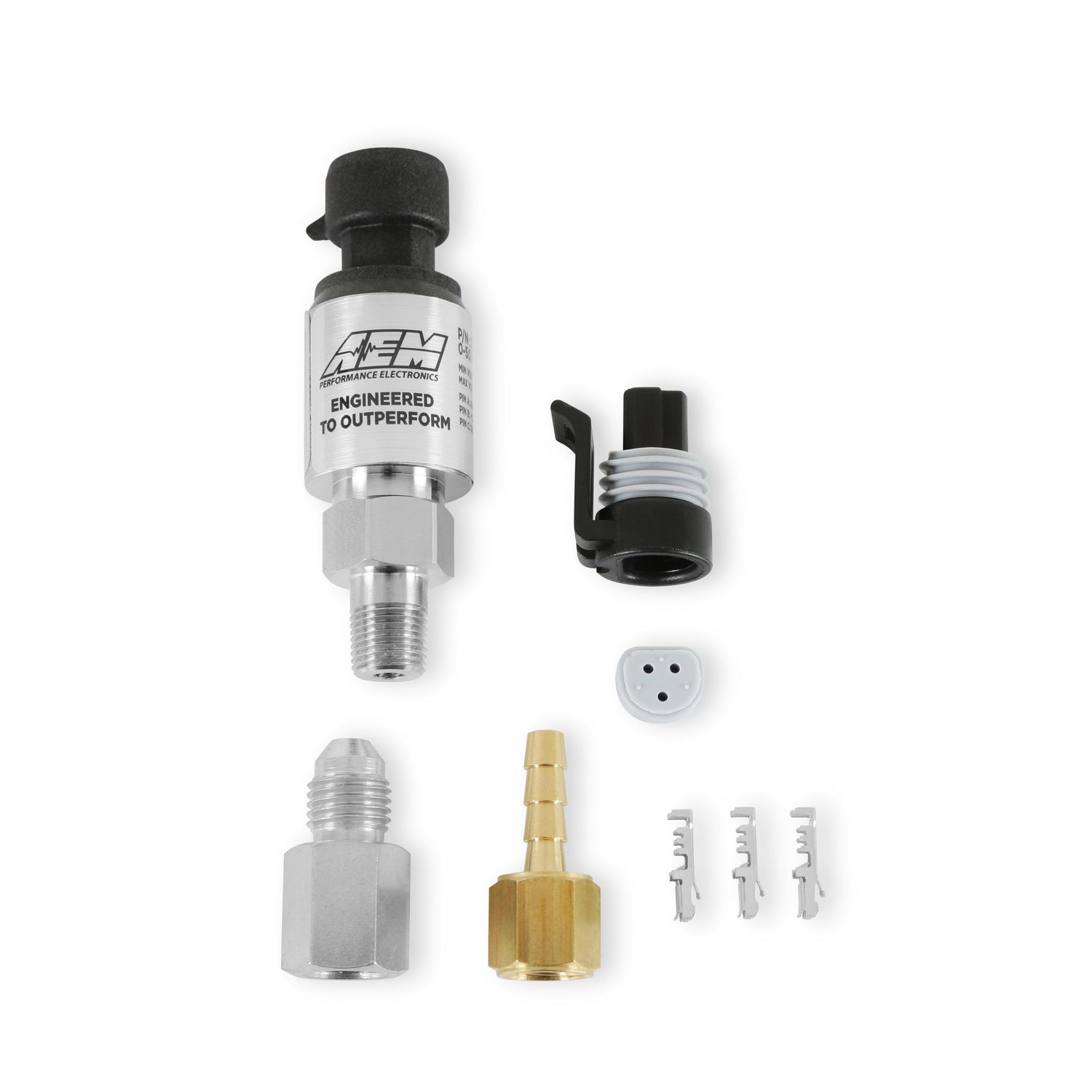

50 PSIa or 3.5 Bar Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 50 PSIa or 3.5 Bar Stainless Sensor, Connector, Pins, 1/8-inch NPT to -4 Adapter & 1/8-inch NPT to 3/16-inch Barb Adapter

AEM offers high quality stainless steel PSIa sensors in 15 (1BAR), 30 (2BAR), 50 (3.5BAR), 75 (5BAR) and 100 (7BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa pressure sensors are required if you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

• -Stainless steel body, with high quality sealing which makes it impervious to fluids.
• -Accurate to 1% margin of error.

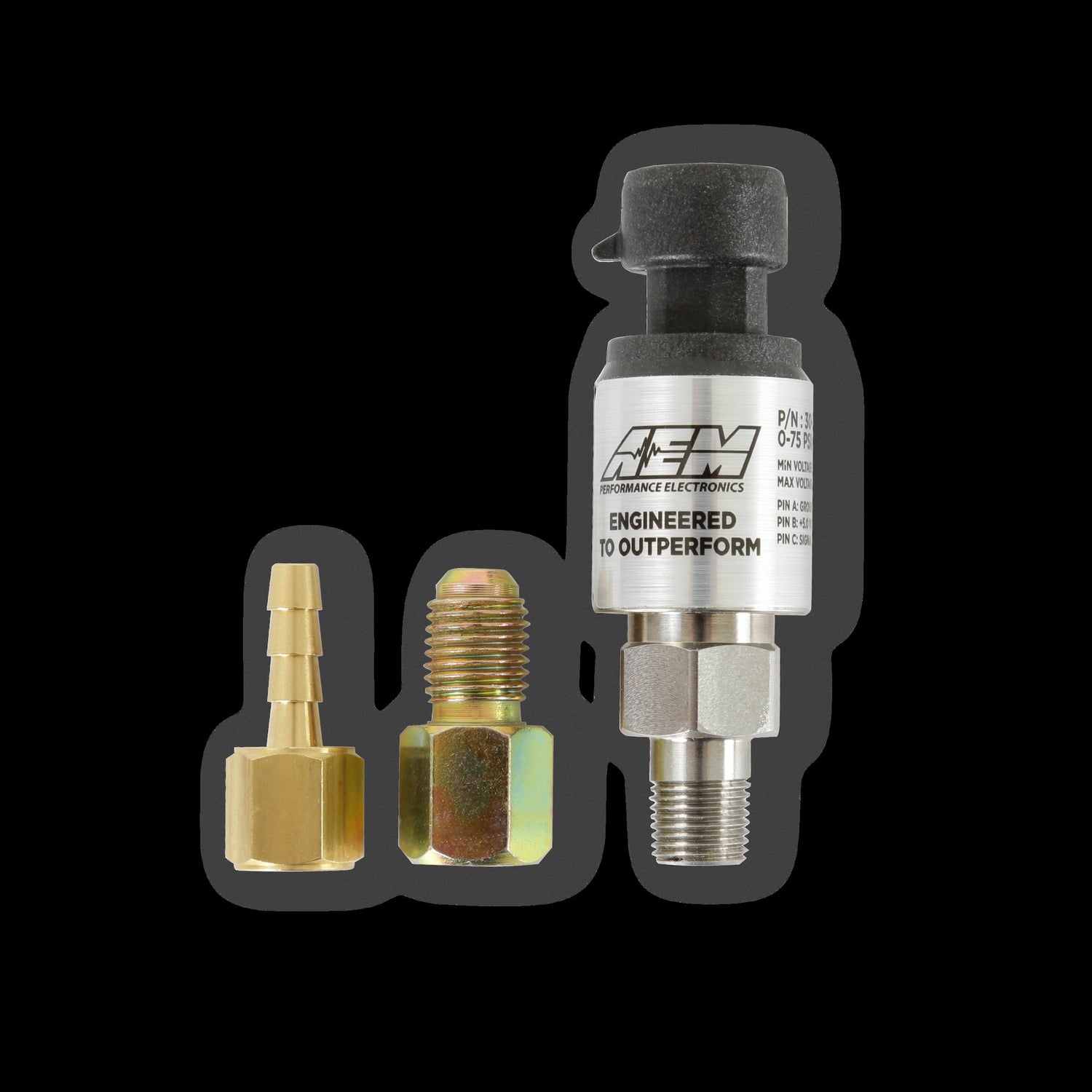

• -Includes 1/8"NPT to -4 AN adapter and barbed fitting.

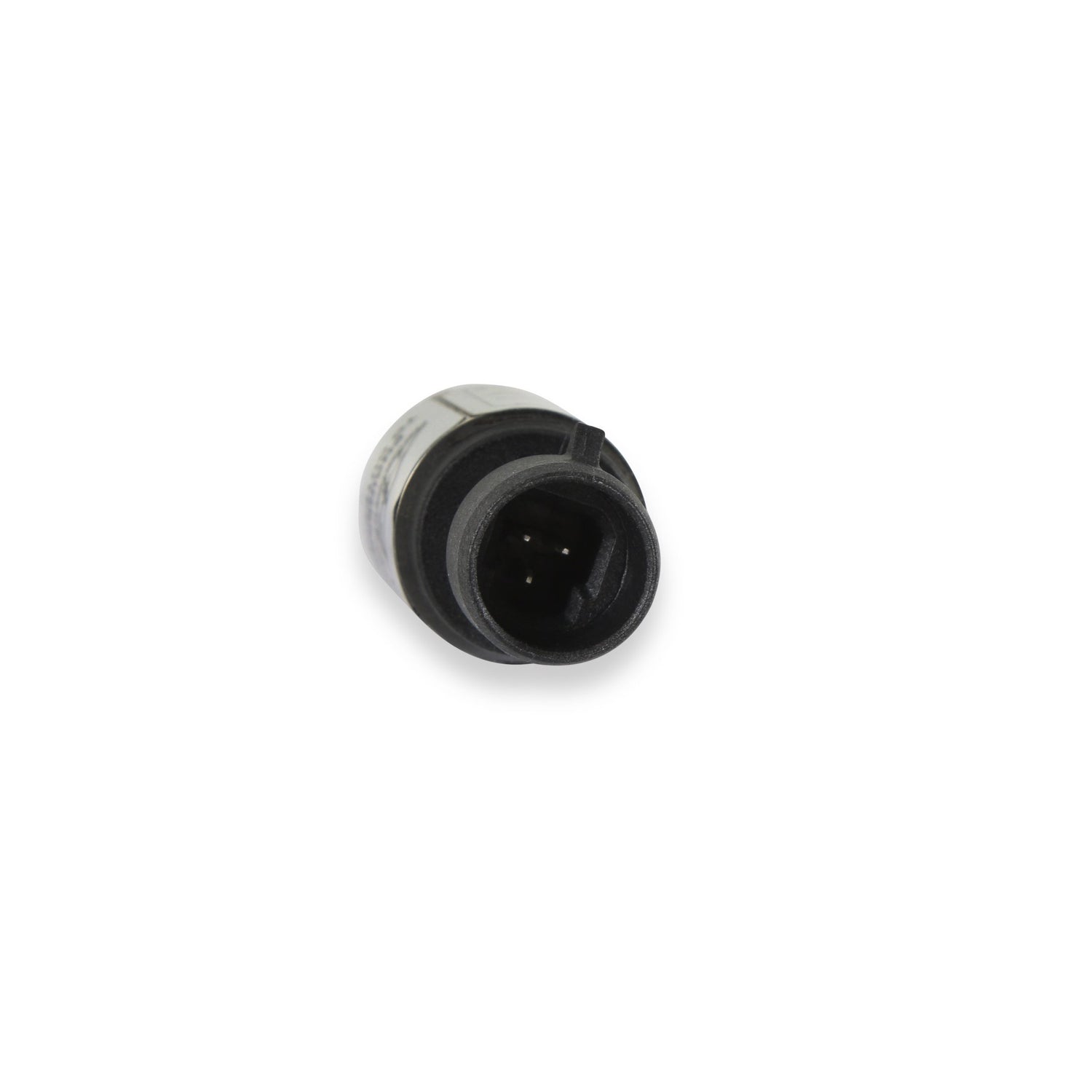

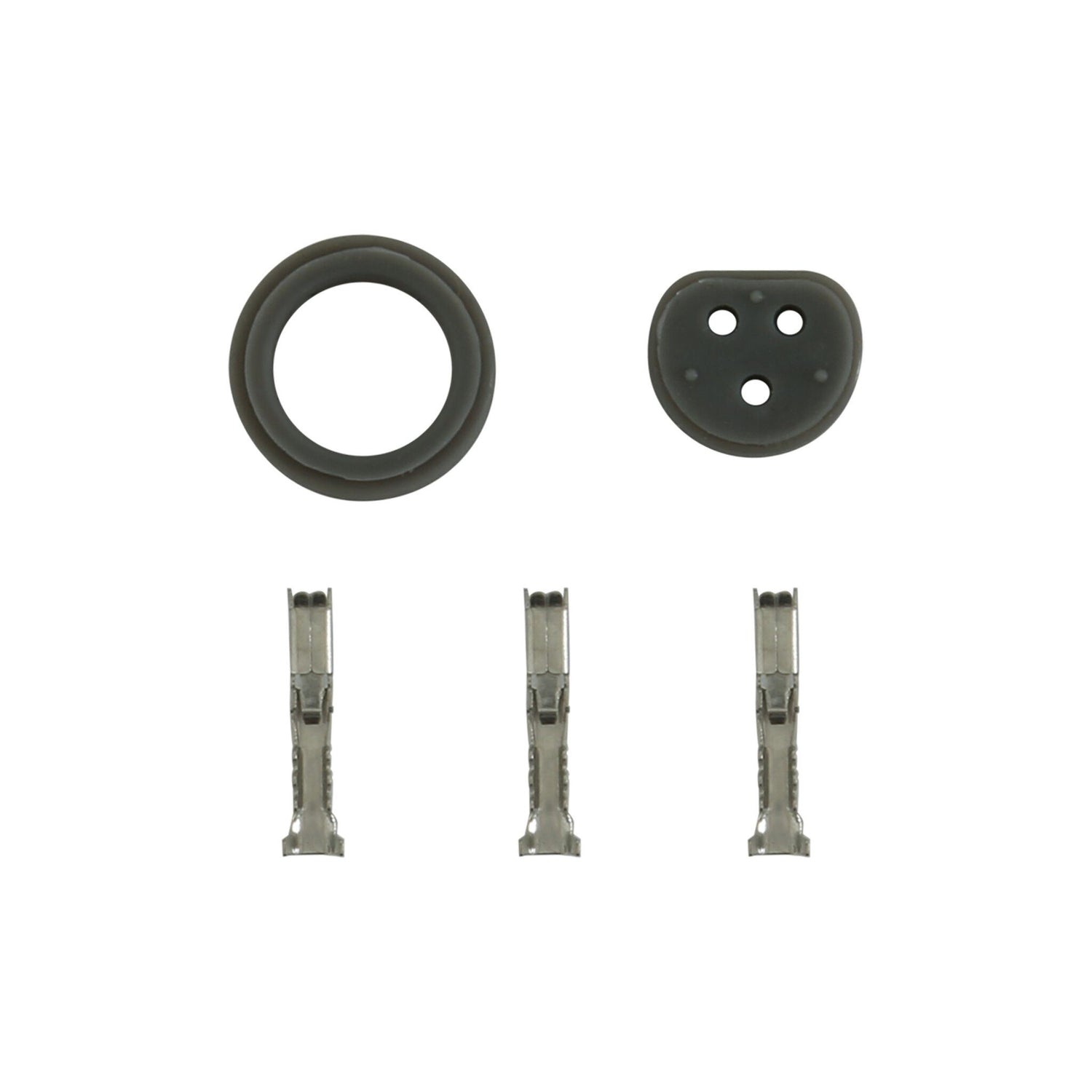

• -Weather resistant connector and pins included
