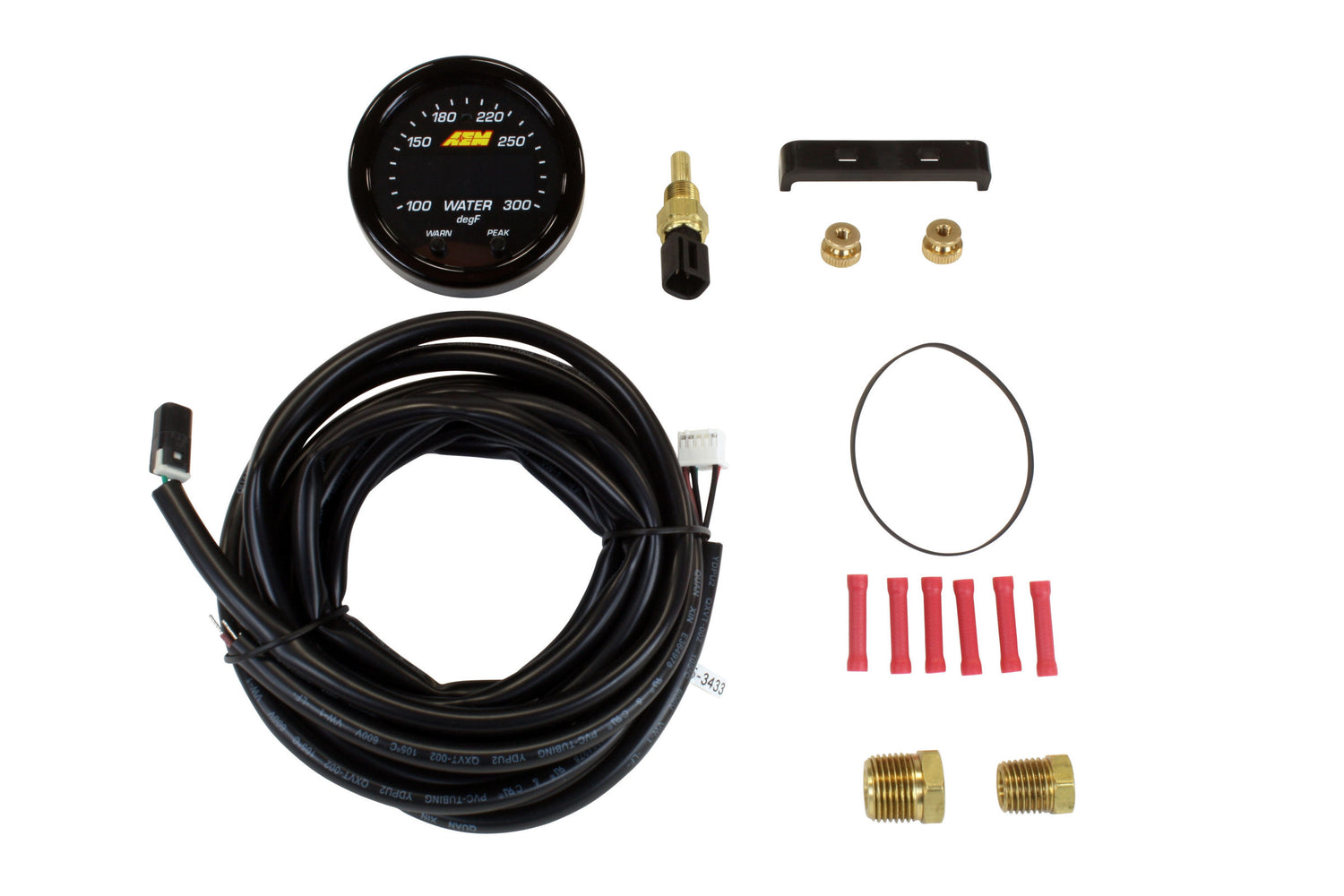

AEM 30-0302 - X-Series Temperature 100-300F Gauge Kit (ONLY Black Bezel and Water Temp. Faceplate)

AEM 30-0302 - X-Series Temperature 100-300F Gauge Kit (ONLY Black Bezel and Water Temp. Faceplate)

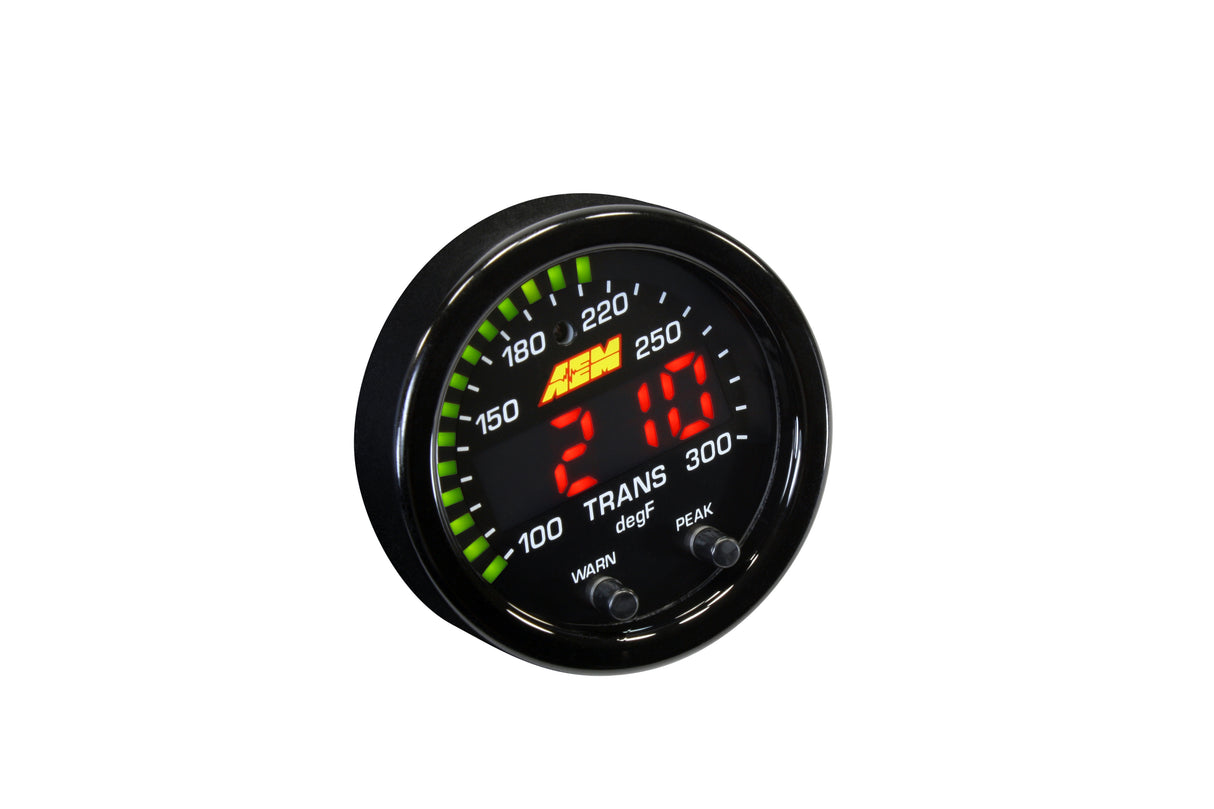

Temperature Gauge - X-Series - 100-300 Degree F - Electric - Digital - 2-1/16 in Diameter - Black Face - Oil / Trans / Water - Each

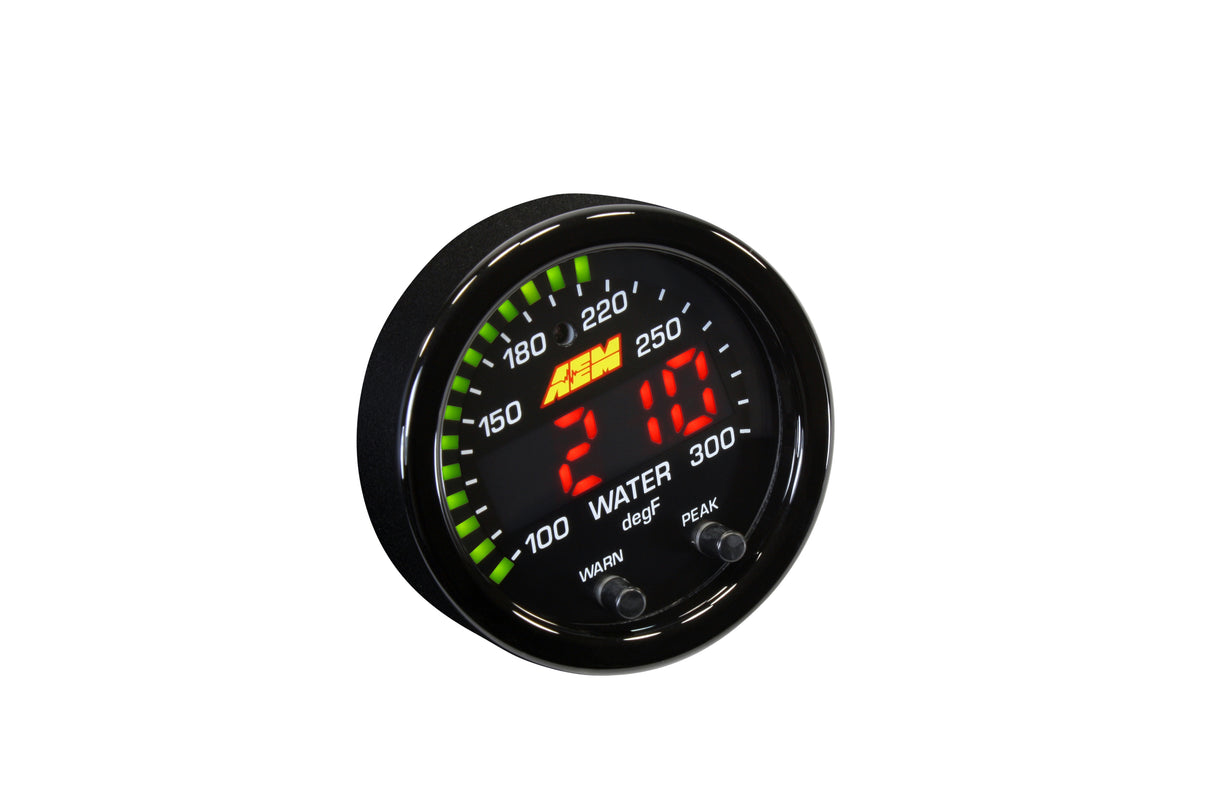

X-Series Temperature Gauge 100-300F - 40-150C, Black Bezel and Black Water Faceplate

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter

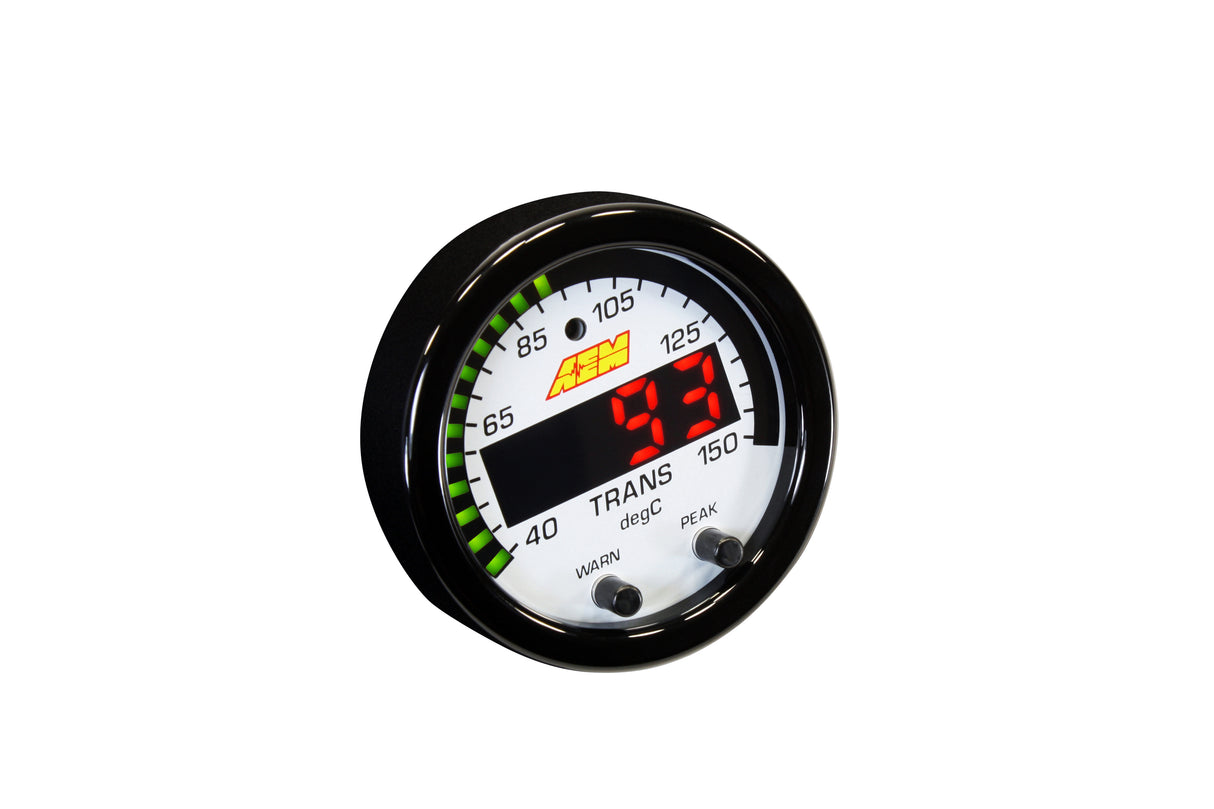

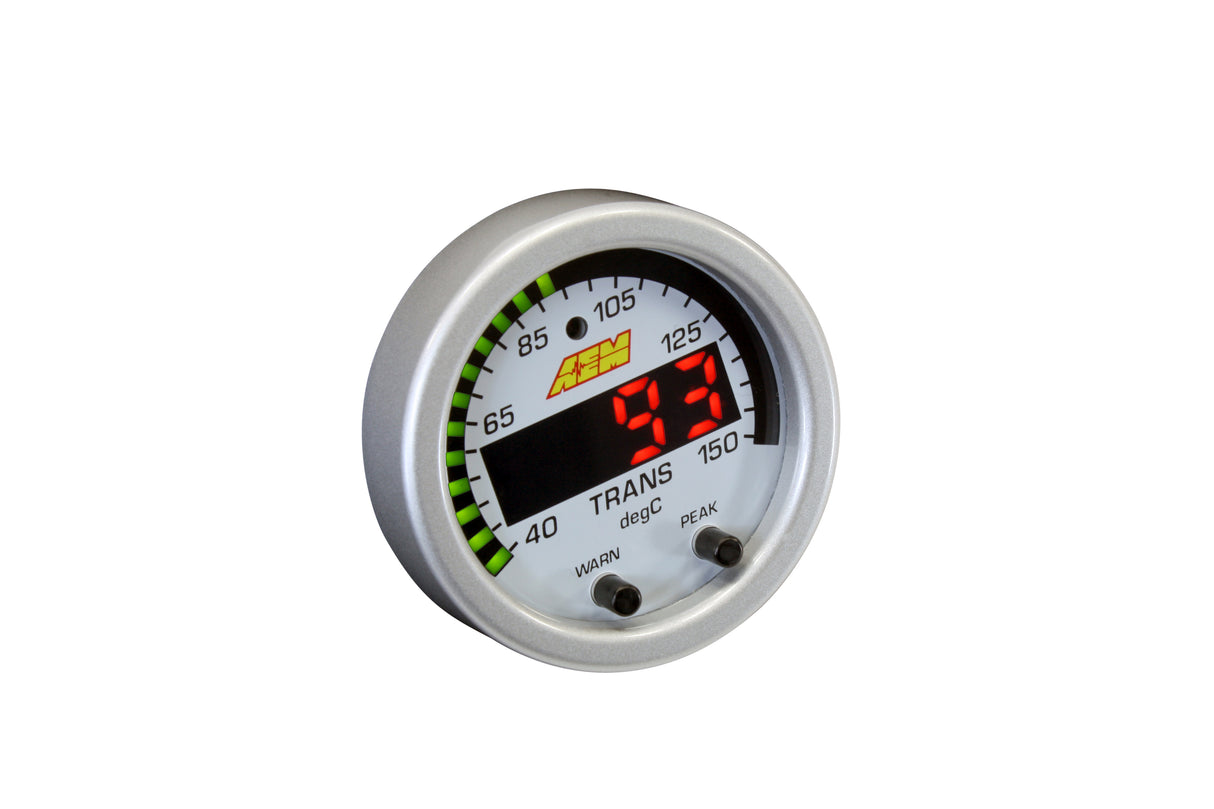

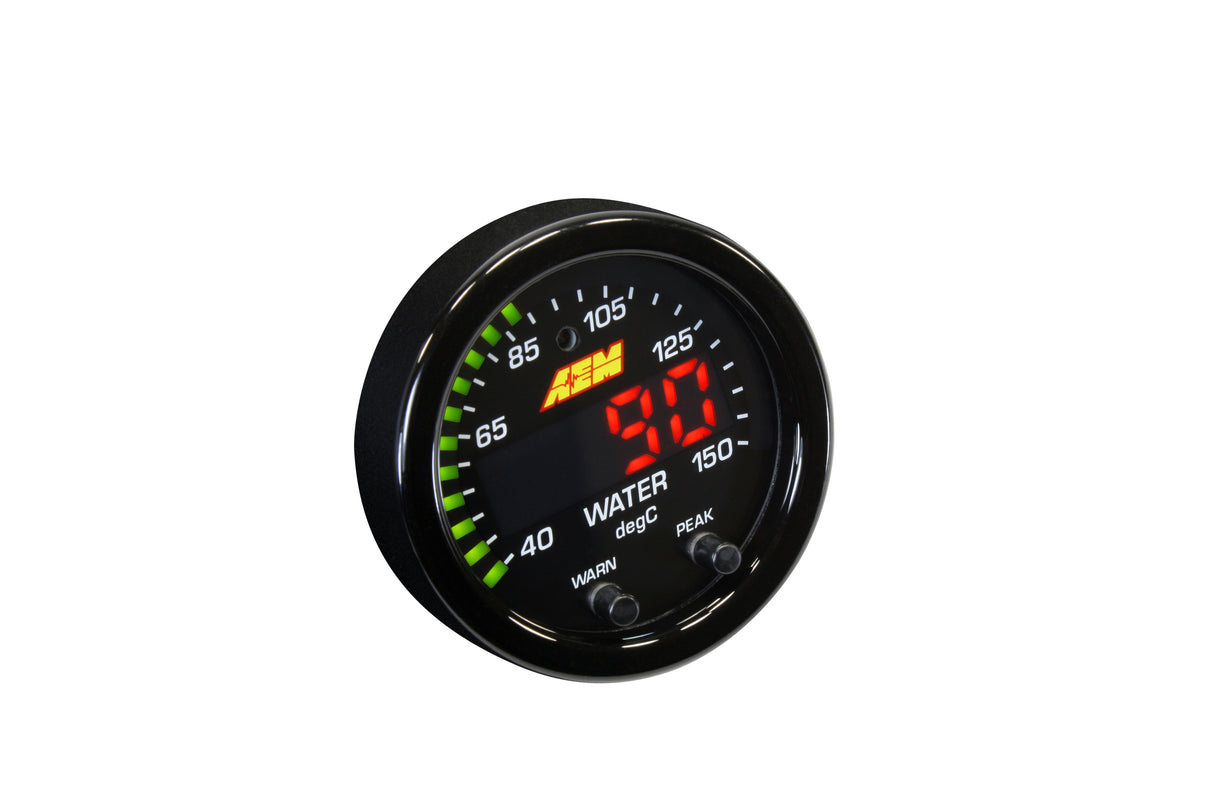

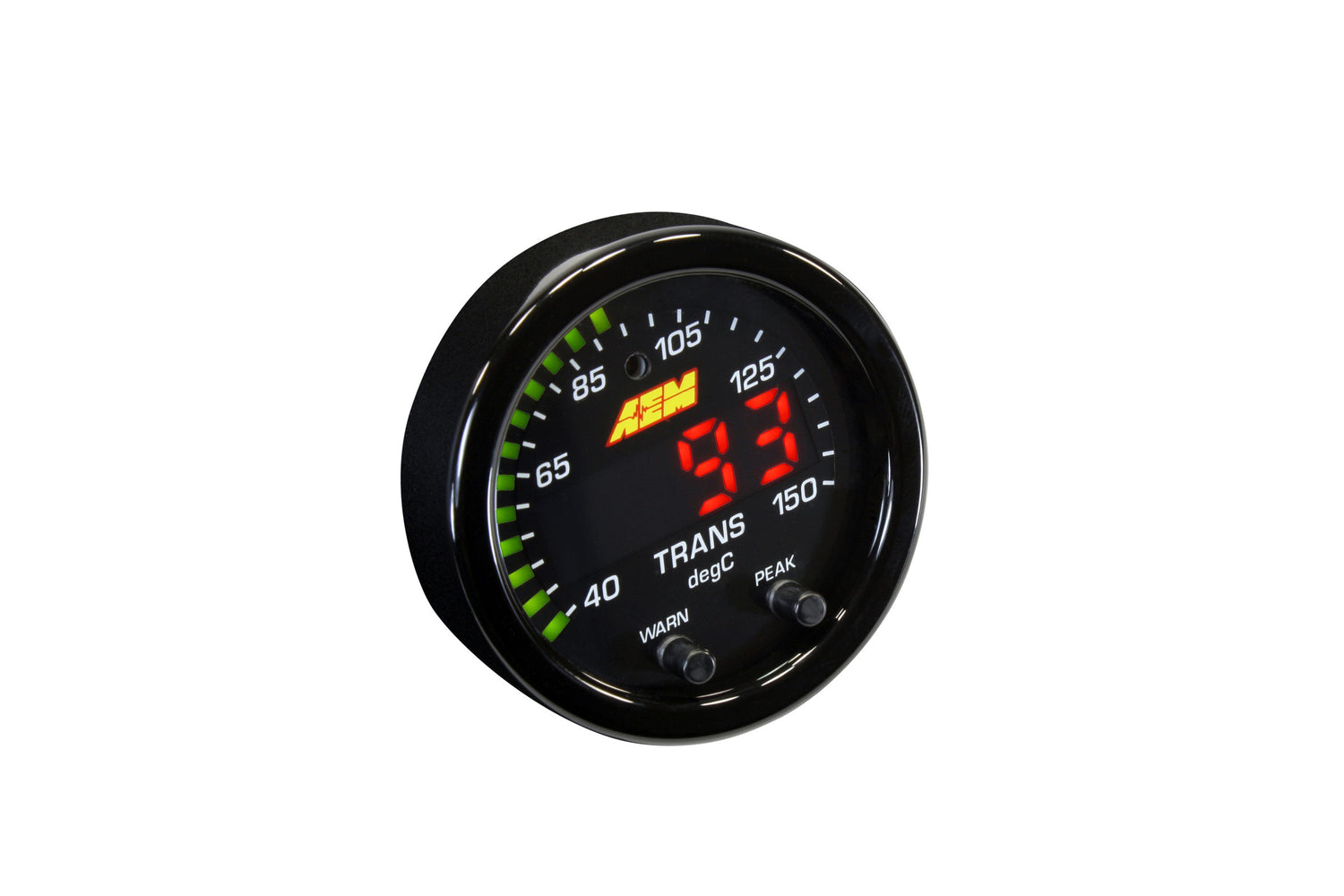

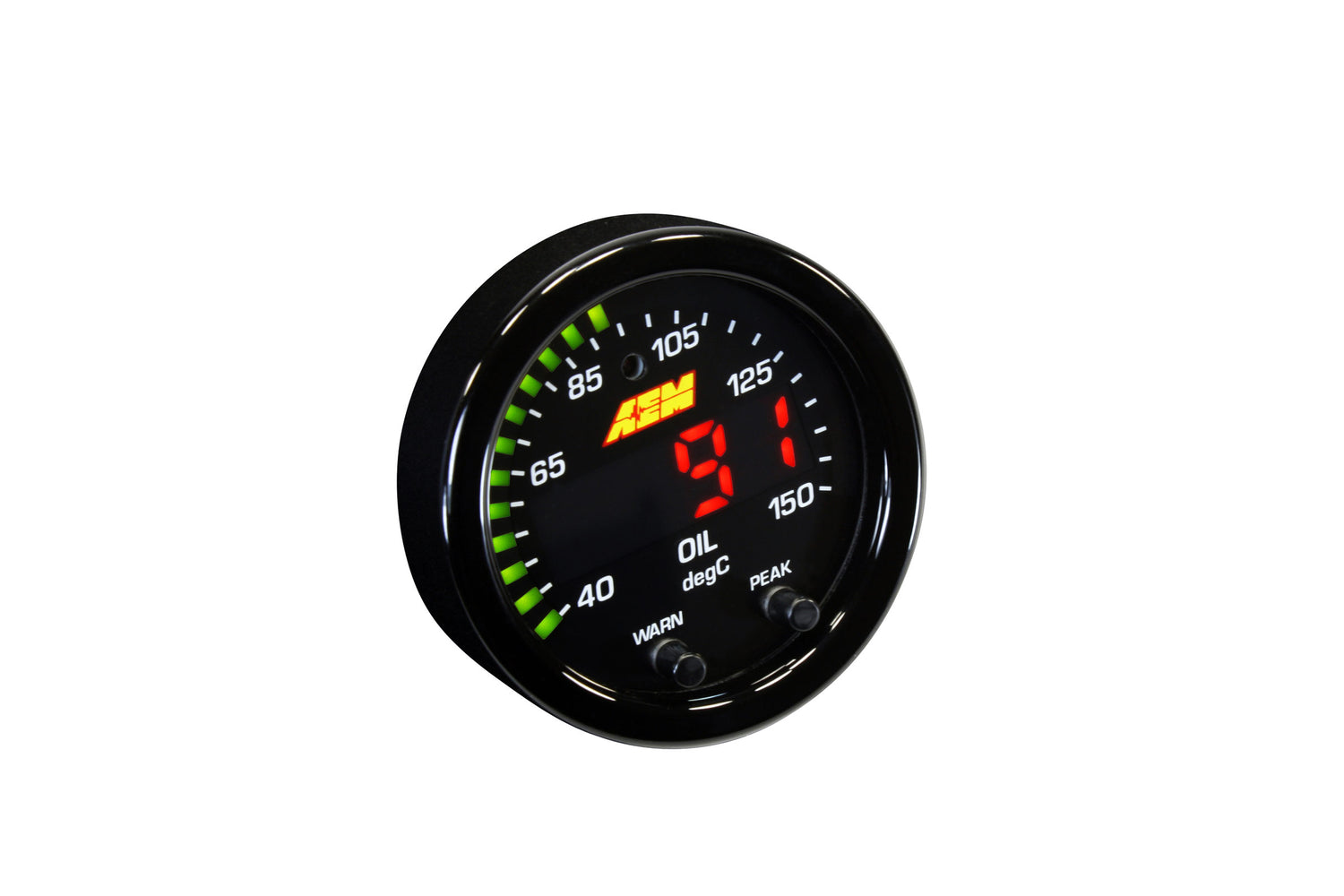

• User selectable standard or metric display (100-300F/40-150C)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings

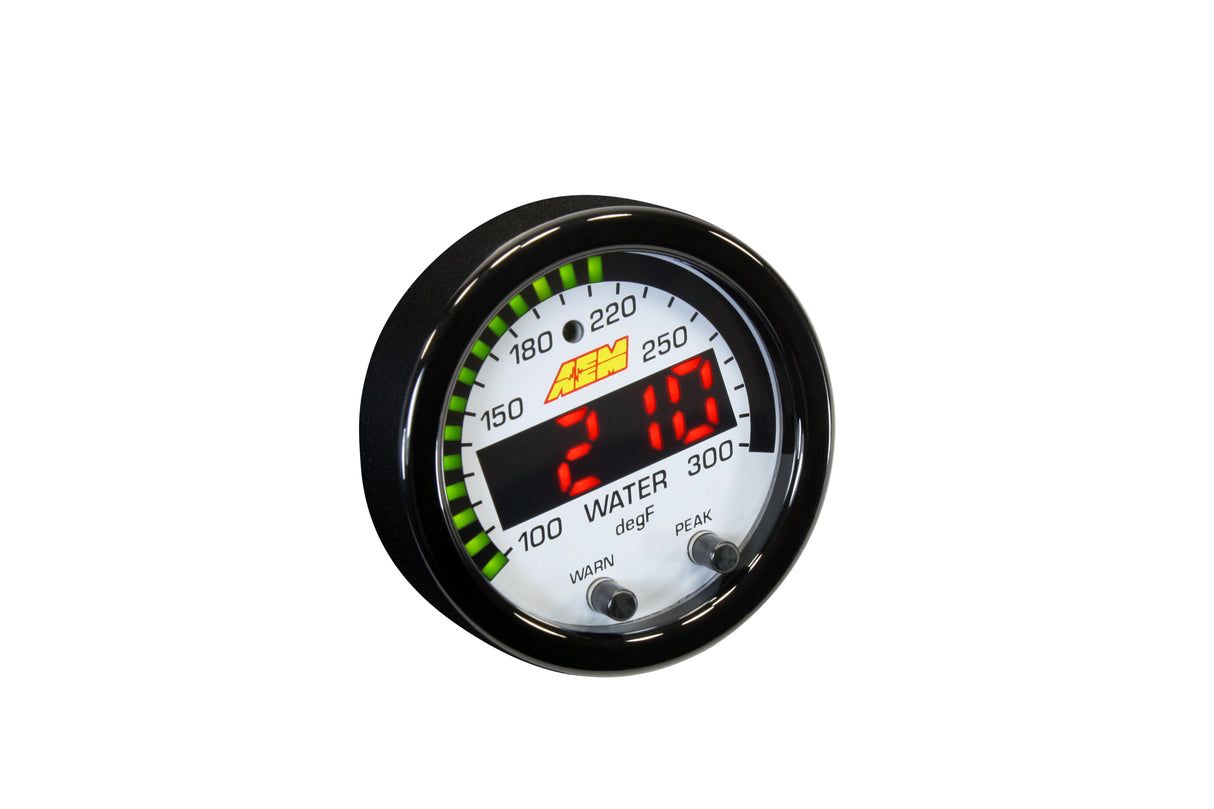

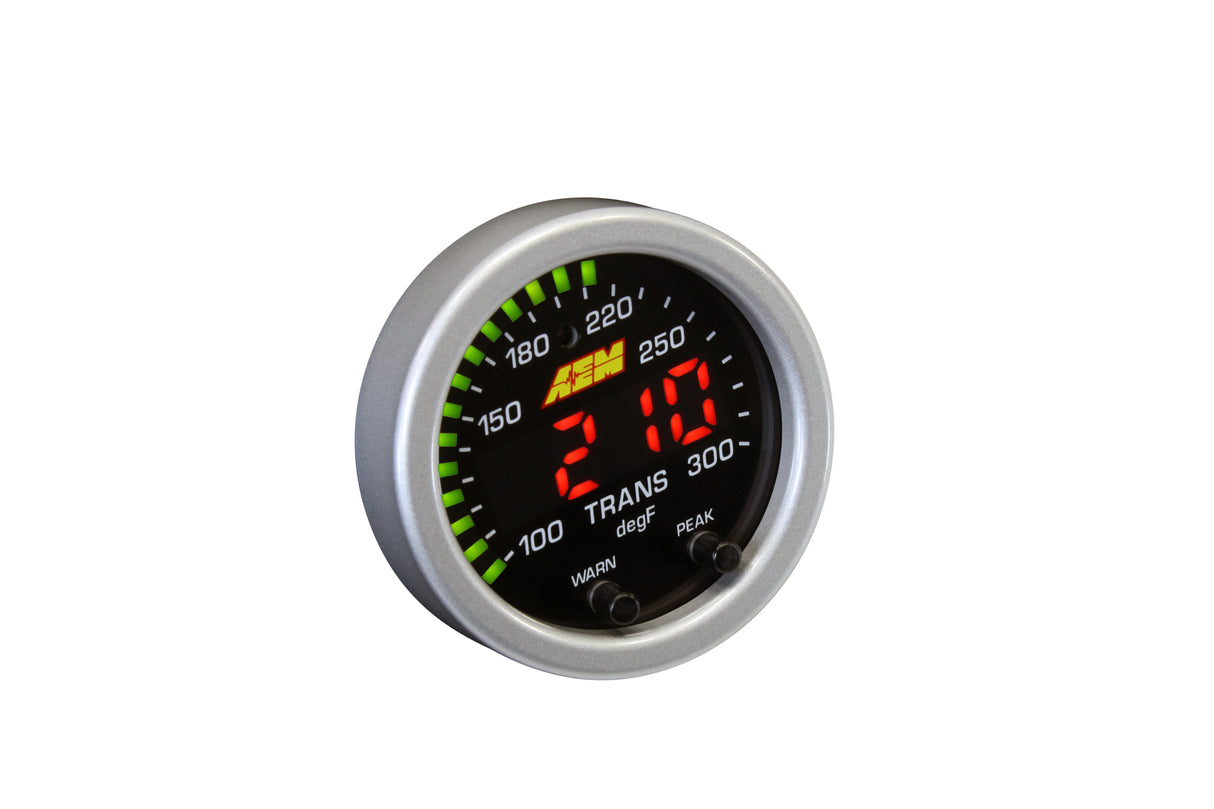

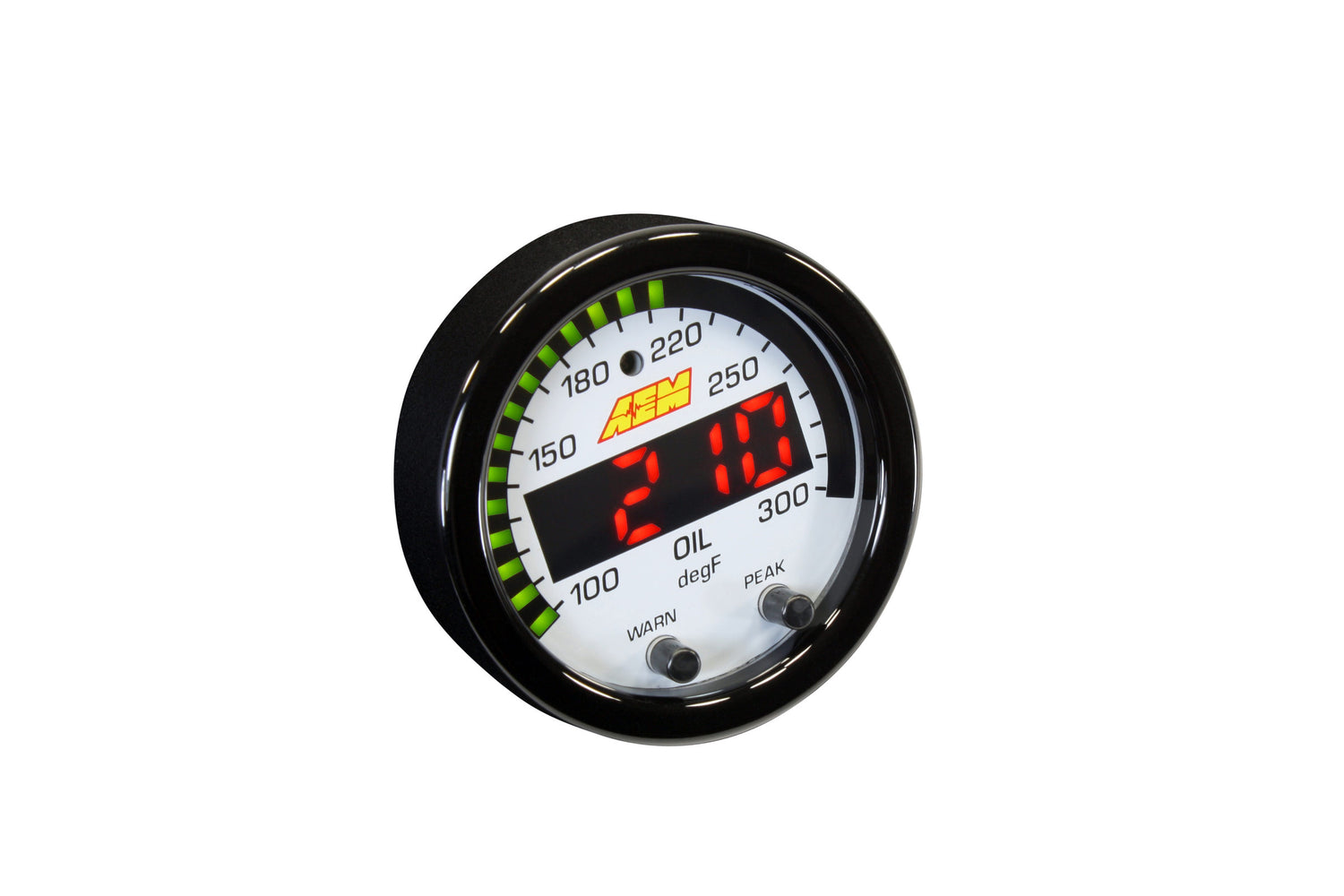

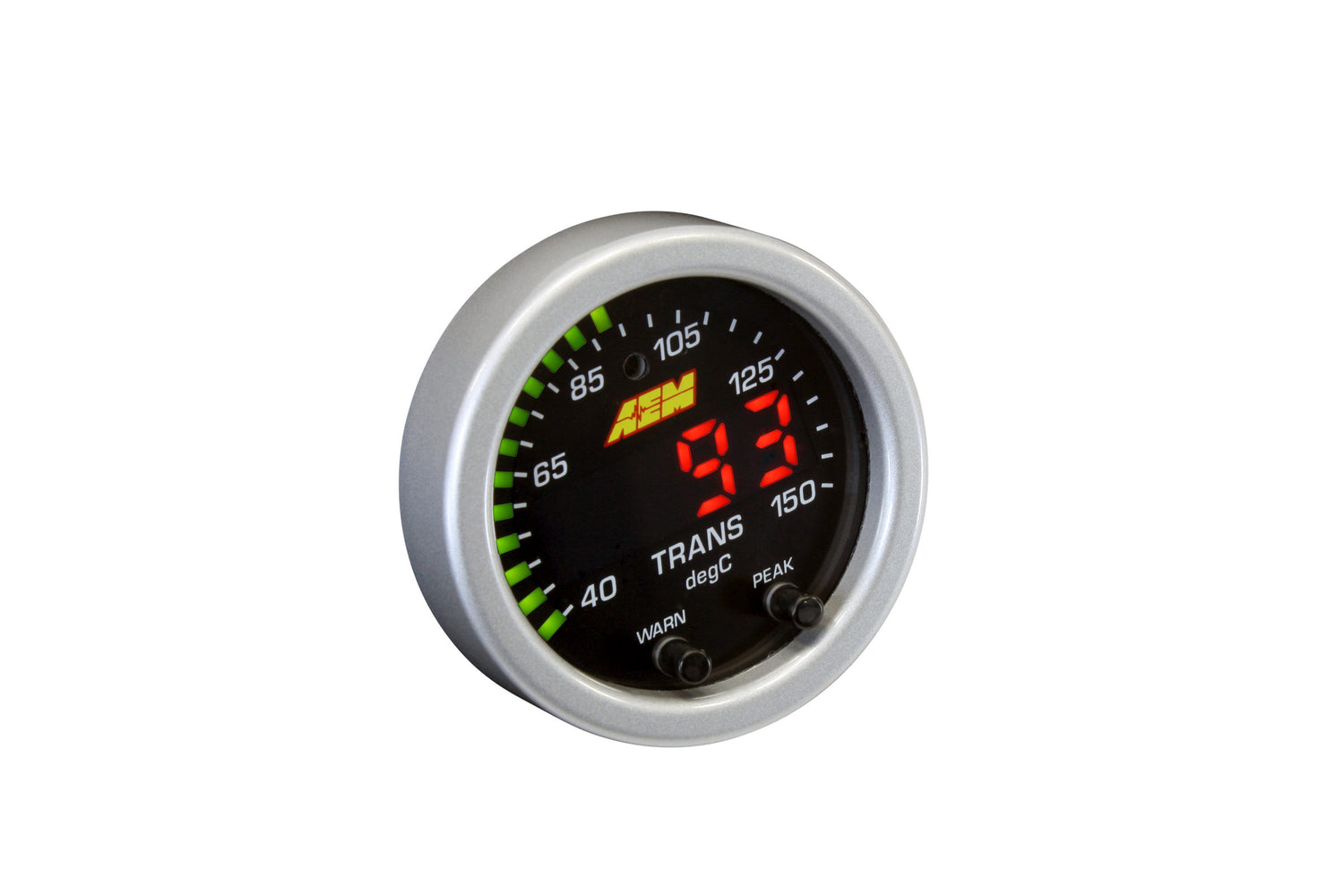

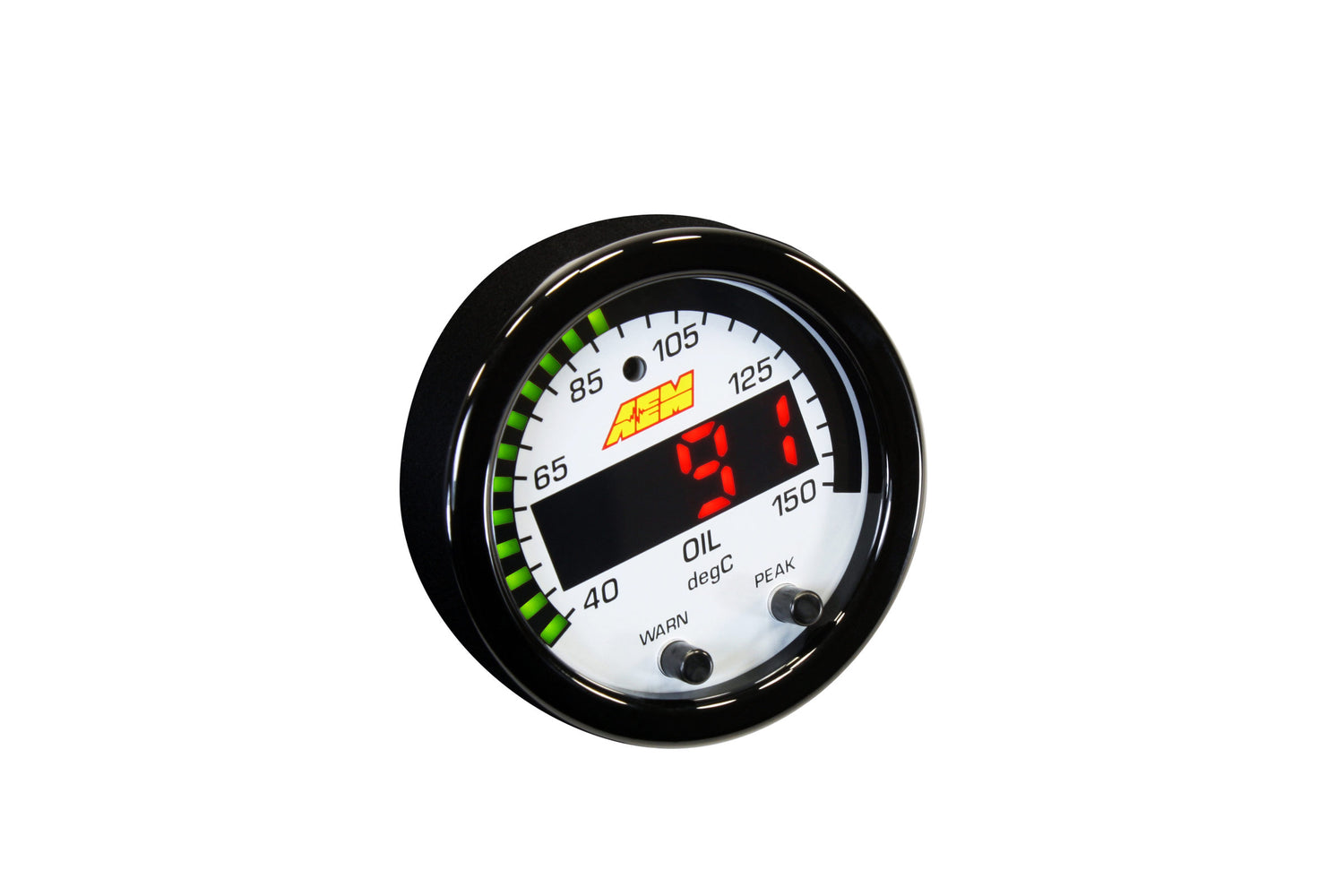

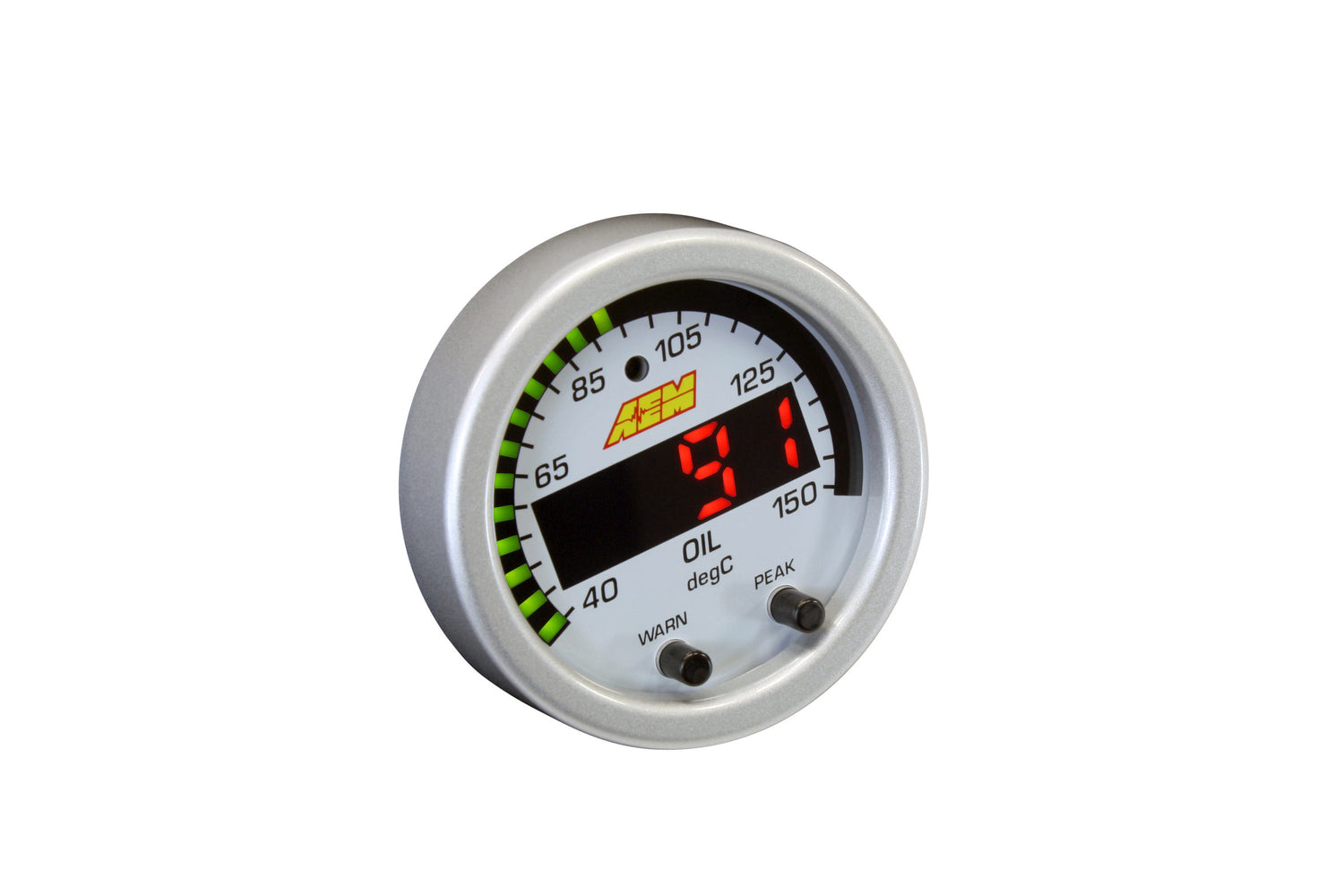

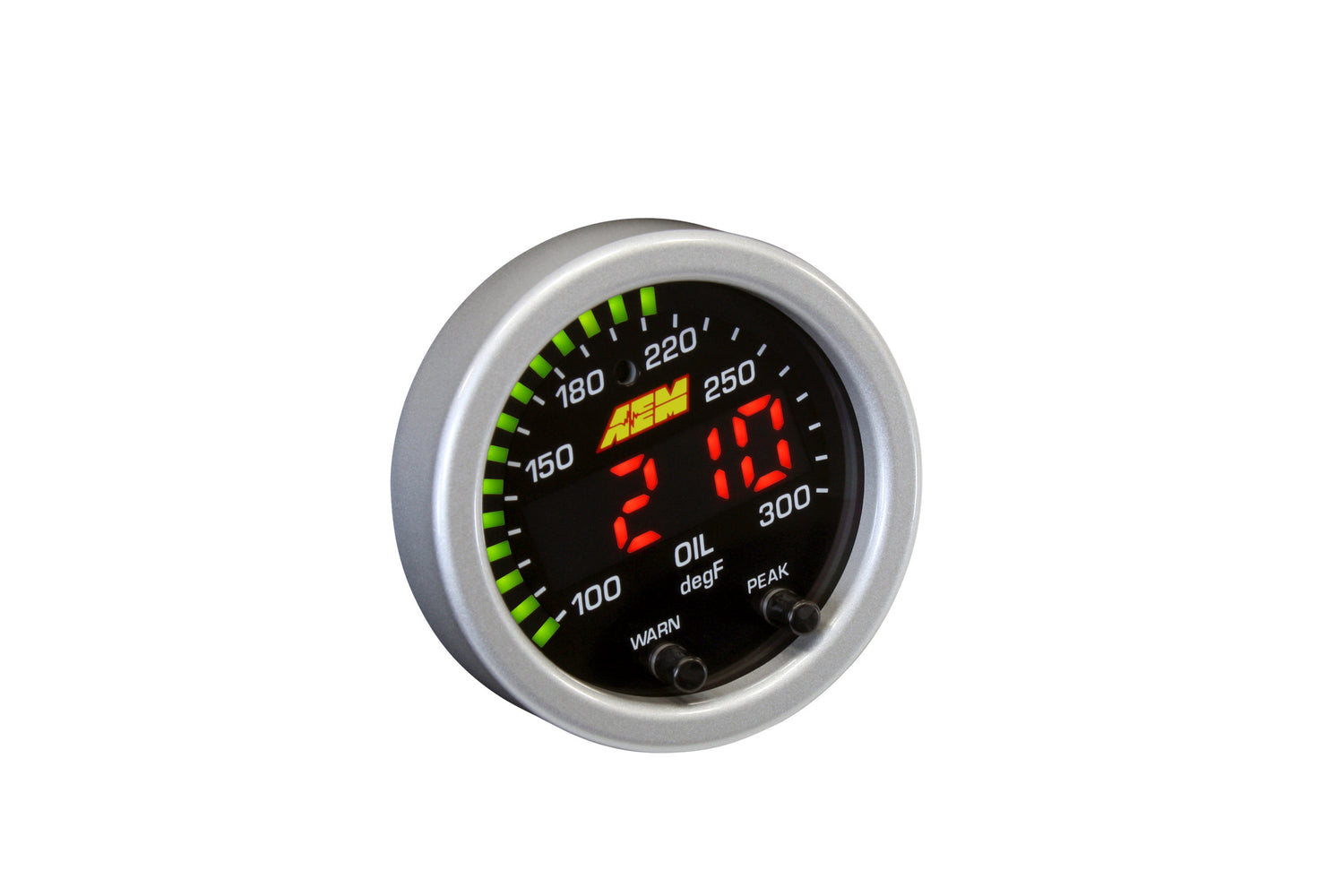

• Optional silver bezel and white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
