ACT ZM2-XTR6 - 1991 Mazda Miata XT/Race Rigid 6 Pad Clutch Kit

ACT  |  SKU: ACT-ZM2-XTR6
Sale price $60500 Regular price $74700

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

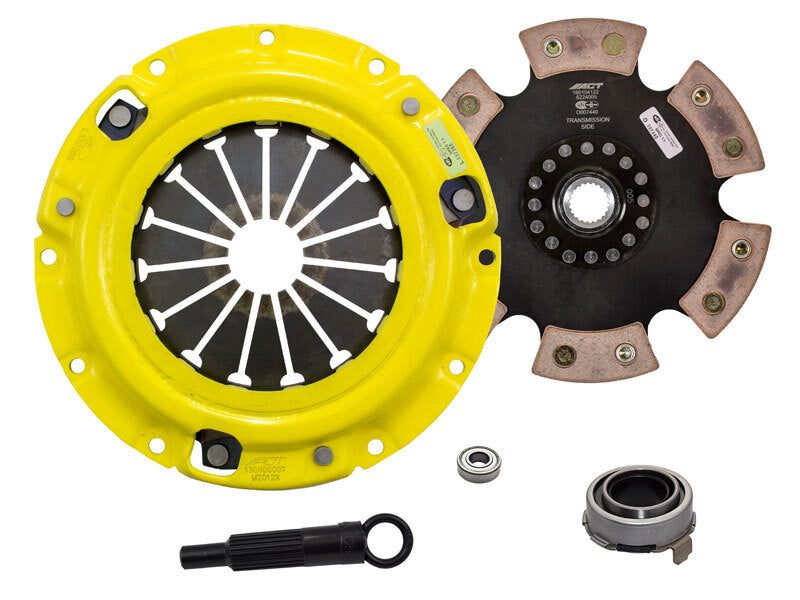

ACT ZM2-XTR6 - 1991 Mazda Miata XT/Race Rigid 6 Pad Clutch Kit

ACT Extreme Race Rigid 6 Pad Clutch Kit

XT/Race Rigid 6 Pad

ZM2-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Torque Capacity (ft/lbs.): 405
Torque Capacity Over OE: 126%
Pilot Bushing Included: No
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.8
Clutch Disc Diameter: 224
Disc Material: Ceramic
Input Spline Quantity: 22
Input Shaft Diameter: 0.9375
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
Product Weight (lbs.): 12.0
