ACT ZM10-HDR4 - 16-17 Mazda MX-5 Miata ND HD/Race Rigid 4 Pad Clutch Kit

ACT  |  SKU: ACT-ZM10-HDR4
Sale price $96000 Regular price $1,18500

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

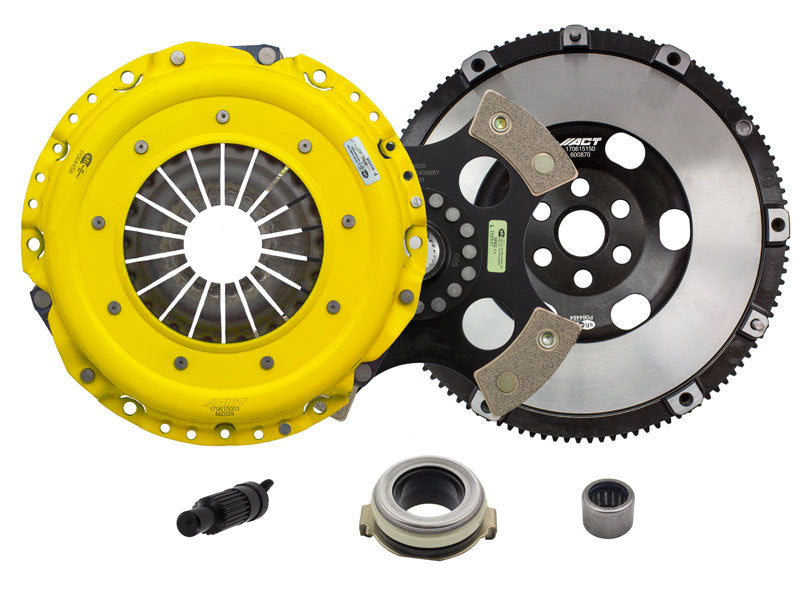

ACT ZM10-HDR4 - 16-17 Mazda MX-5 Miata ND HD/Race Rigid 4 Pad Clutch Kit

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit

HD/Race Rigid 4 Pad

ZM10-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Flywheel Type: Streetlite
Part Fitment Requirement: 225mm upgrade. Must be used with ACT flywheel (included in kit). Pressure plate bolts included (M8-1.25 x 20mm).
Product Weight (lbs.): 25.4
Torque Capacity (ft/lbs.): 399
Torque Capacity Over OE: 87%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Heavy Duty
Release Bearing Included: Yes
Clutch Disc Diameter: 8.8
Clutch Disc Diameter: 224
Disc Material: Ceramic
Input Spline Quantity: 22
Input Shaft Diameter: 0.9375
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: Yes
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
