ACT T3SS-G13 - Chevy Camaro/Corvette LS1/LS2/LS3/LS6/LS7 Mod-Twin 10.5 XX Sprung Disc Street Clutch Kit

ACT  |  SKU: ACT-T3SS-G13
Sale price $2,02600 Regular price $2,25300

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

ACT T3SS-G13 - Chevy Camaro/Corvette LS1/LS2/LS3/LS6/LS7 Mod-Twin 10.5 XX Sprung Disc Street Clutch Kit

ACT Mod-Twin 10.5 Extreme Sprung Street Clutch Kit

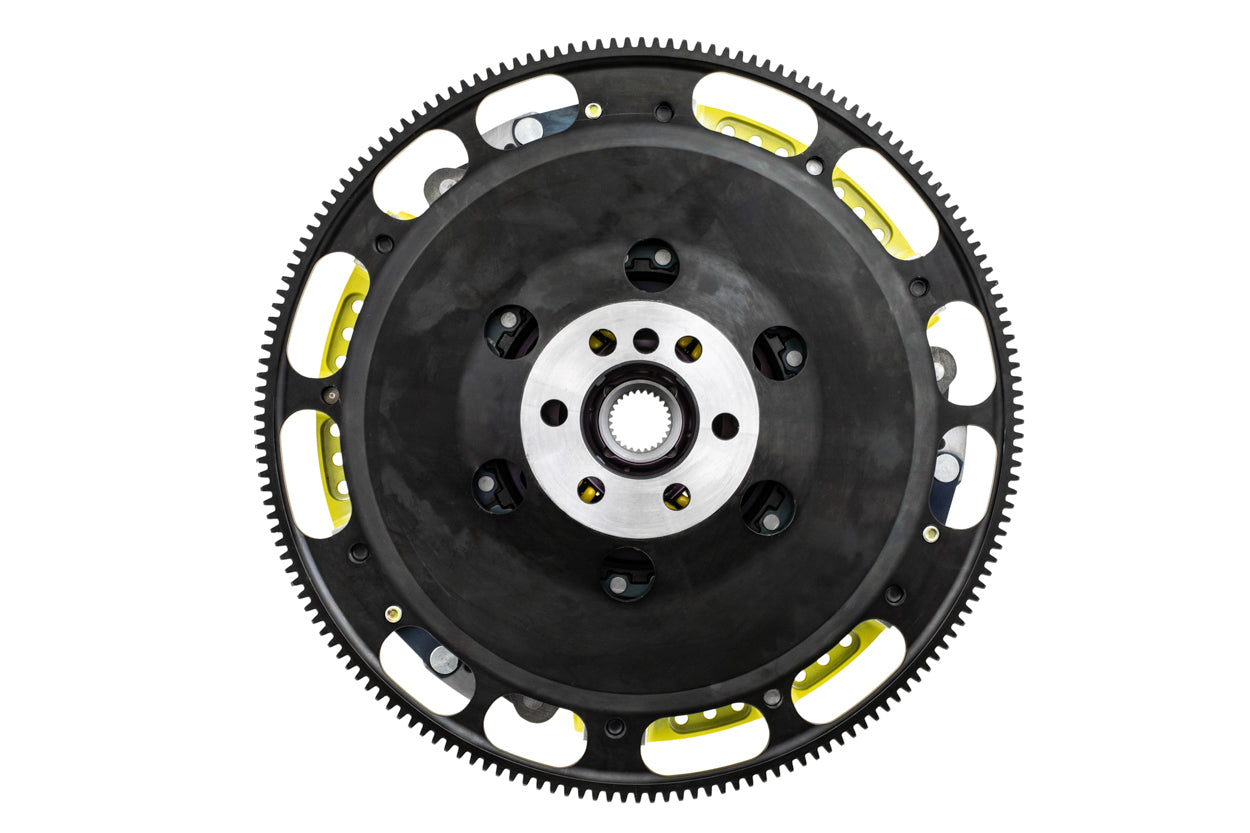

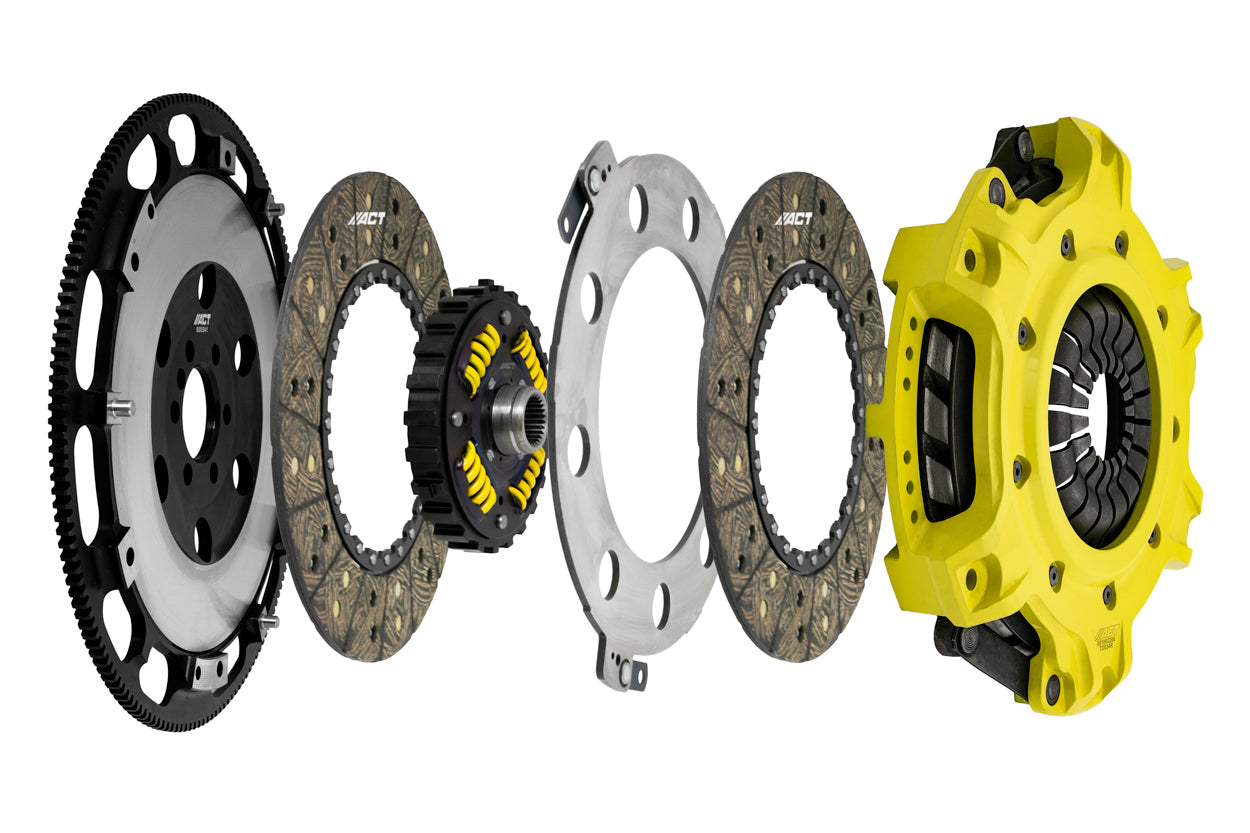

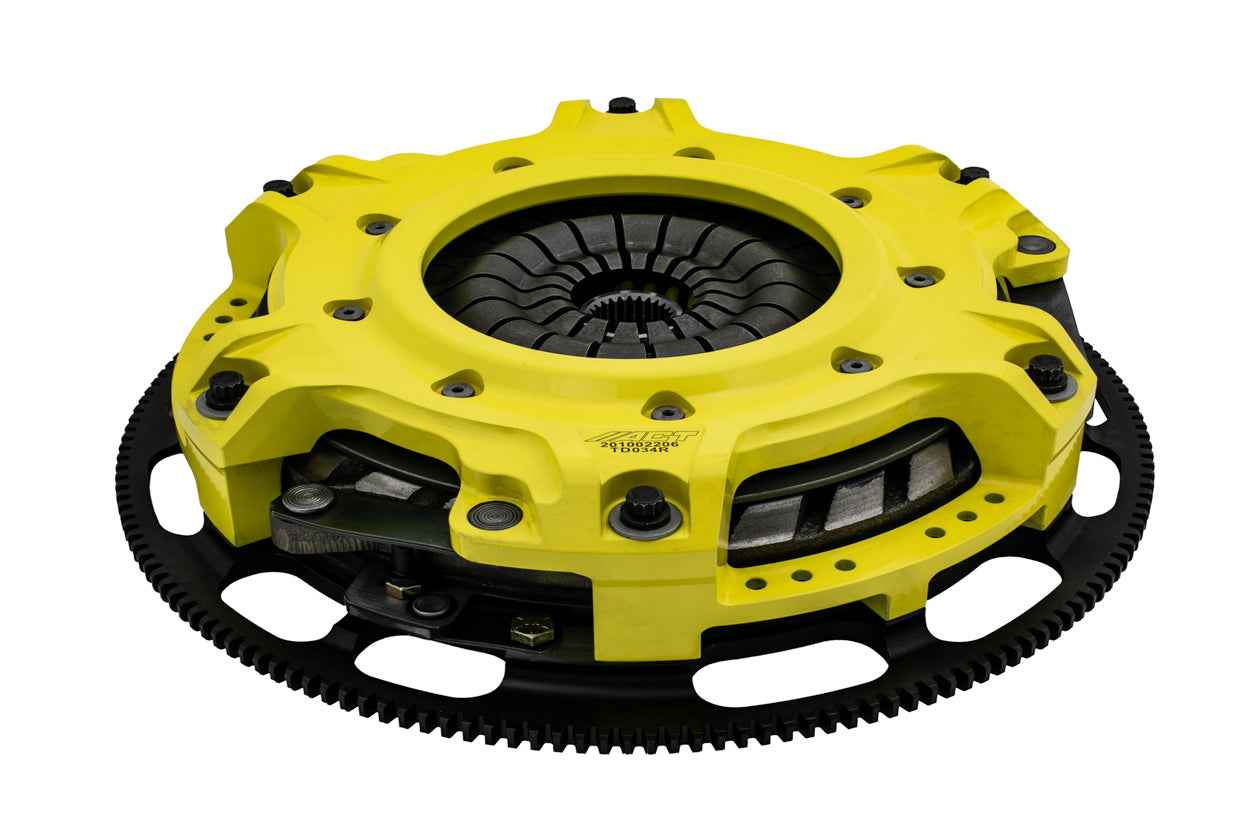

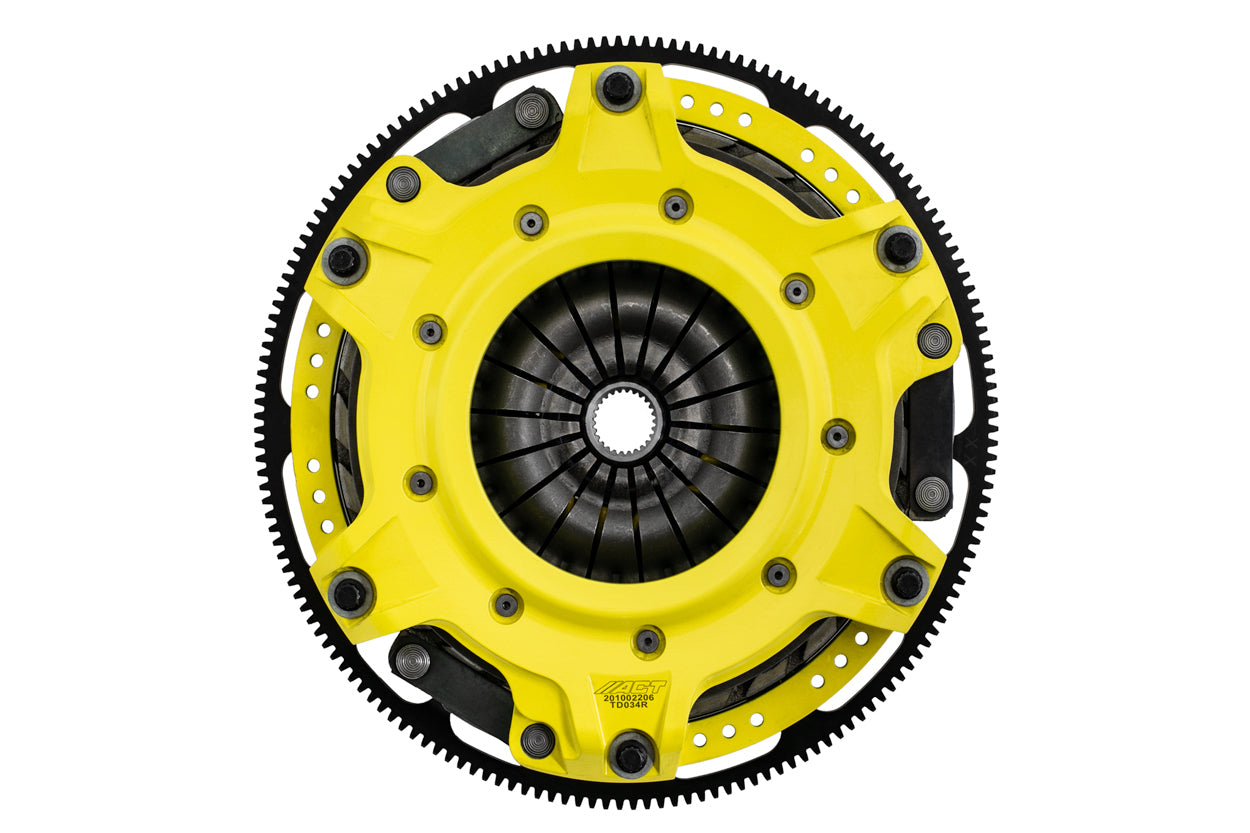

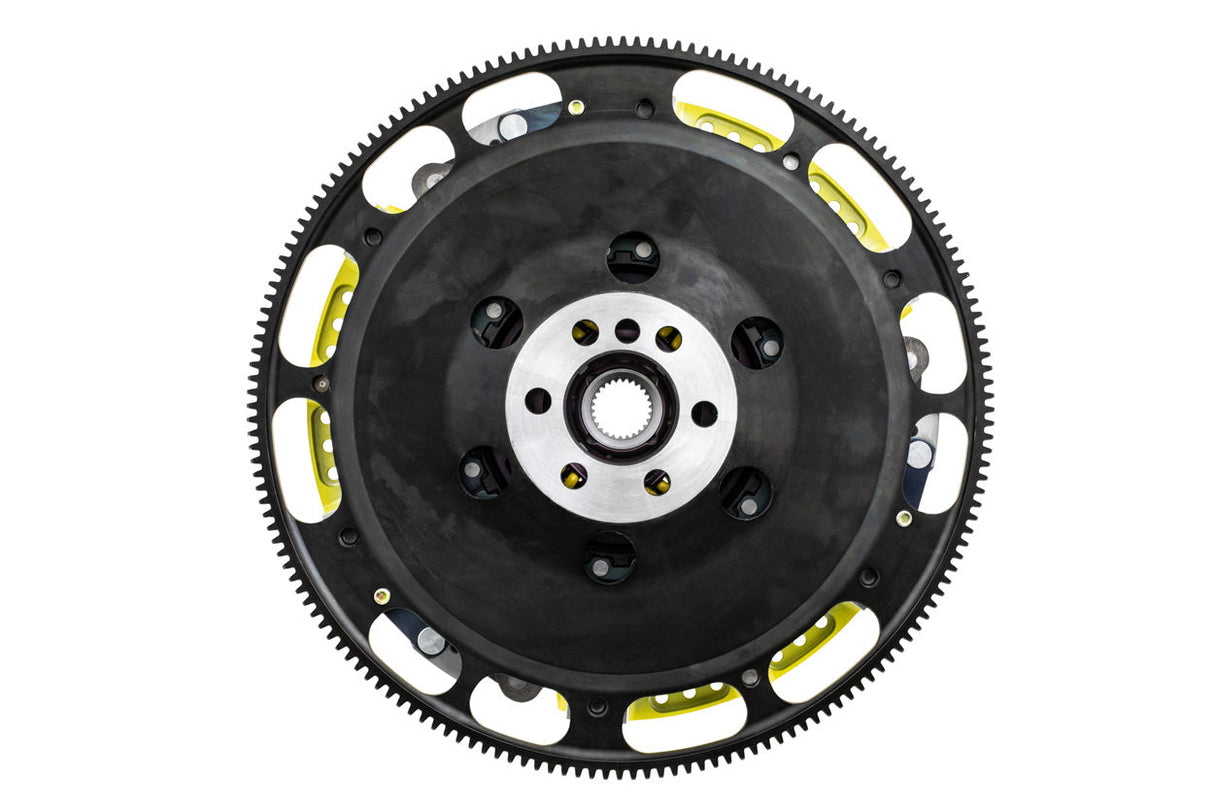

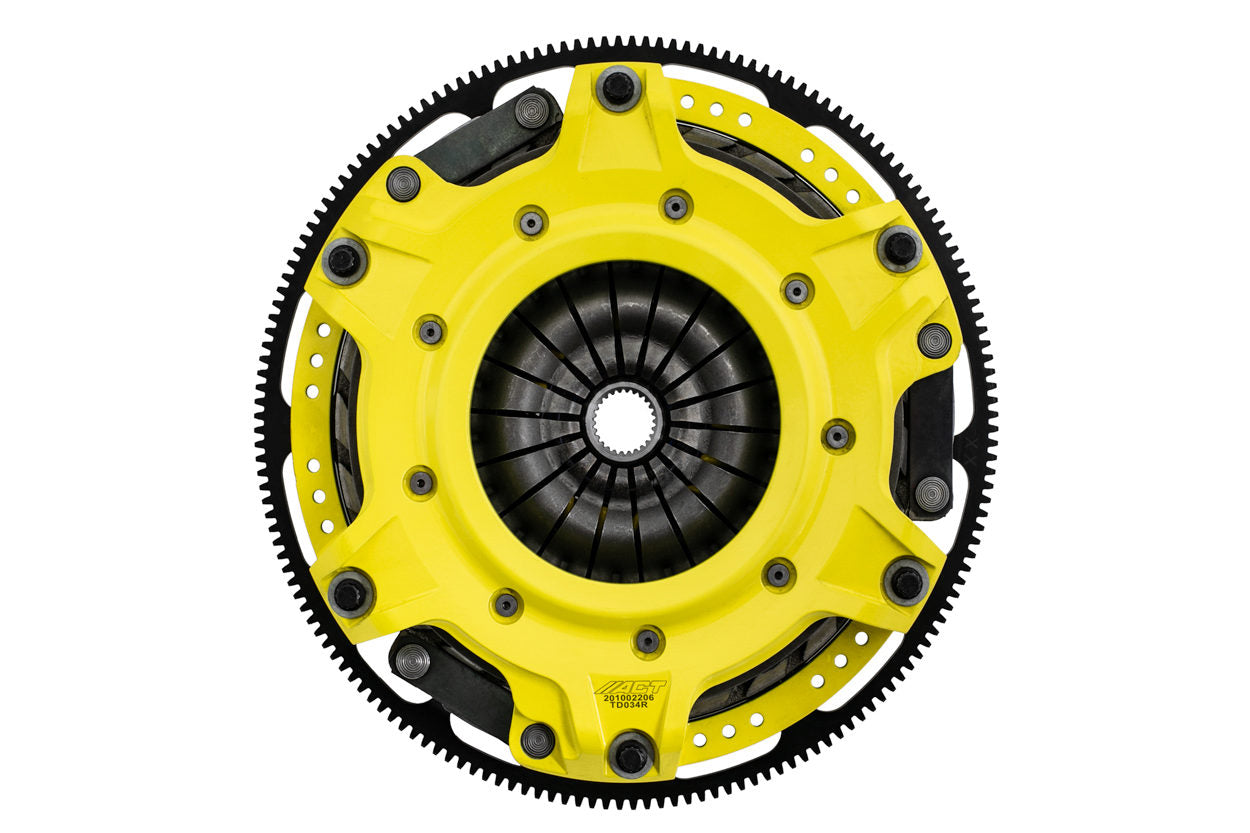

T3SS-G13 Mod-Twin 10.5 XX Sprung Street Kit is designed for high-powered street machines. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable sprung Mono-Drive hub assembly in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly, which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, release bearing, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Product Weight (lbs.): 41.6
SFI: 1.2
Torque Capacity (ft/lbs.): 1169
Torque Capacity Over OE: 198%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Maxx Xtreme
Release Bearing Included: No
Clutch Disc Diameter: 10.5
Clutch Disc Diameter: 267
Disc Material: Organic
Input Spline Quantity: 26
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
