ACT HC6-XXG4 - 1988 Honda Civic MaXX/Race Sprung 4 Pad Clutch Kit

ACT  |  SKU: ACT-HC6-XXG4
Sale price $57000 Regular price $67200

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

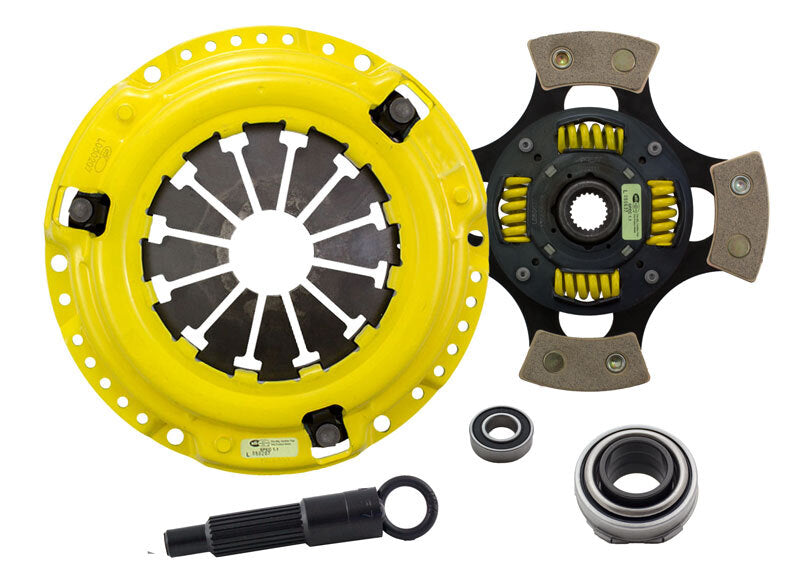

ACT HC6-XXG4 - 1988 Honda Civic MaXX/Race Sprung 4 Pad Clutch Kit

ACT Max Extreme Race Sprung 4 Pad Clutch Kit

MaXX/Race Sprung 4 Pad

HC6-XXG4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Part Fitment Requirement: Must use with 90-01 SOHC flywheel or ACT flywheel (not provided). 212mm upgrade.
Product Weight (lbs.): 10.6
Torque Capacity (ft/lbs.): 420
Torque Capacity Over OE: 173%
Pilot Bushing Included: No
Pressure Plate Type: Maxx Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.3
Clutch Disc Diameter: 212
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 0.875
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
