ACT AR2-XTG4 - 2012 Honda Civic XT/Race Sprung 4 Pad Clutch Kit

ACT  |  SKU: ACT-AR2-XTG4
Sale price $1,00300 Regular price $1,23800

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

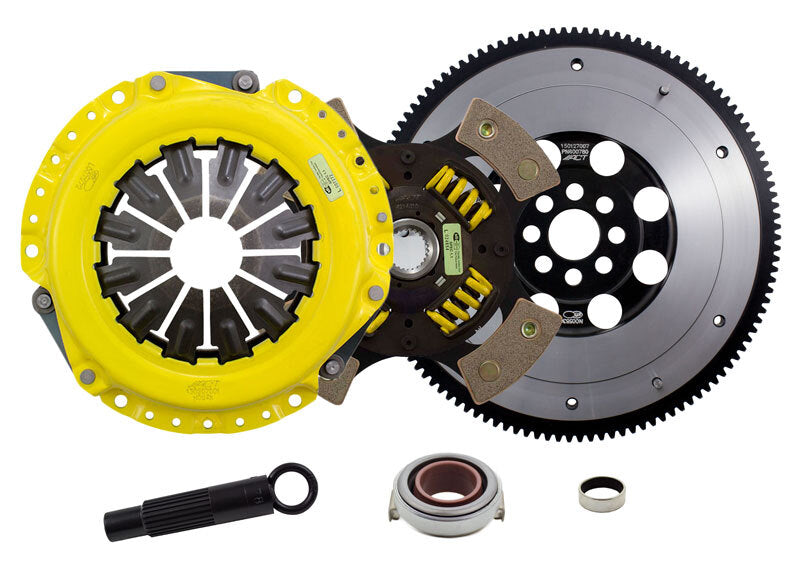

ACT AR2-XTG4 - 2012 Honda Civic XT/Race Sprung 4 Pad Clutch Kit

ACT Extreme Race Sprung 4 Pad Clutch Kit

XT/Race Sprung 4 Pad

AR2-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!
Torque Capacity (ft/lbs.): 435
Torque Capacity Over OE: 109%
Flywheel Included: Yes
Pilot Bushing Included: Yes
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 8.4
Clutch Disc Diameter: 214
Disc Material: Ceramic
Input Spline Quantity: 24
Input Shaft Diameter: 1.03125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: No
Clutch Master Cylinder Included: No
Flywheel Type: Streetlite
Part Fitment Requirement: Must use ACT flywheel (included in kit).
Product Weight (lbs.): 25.5
