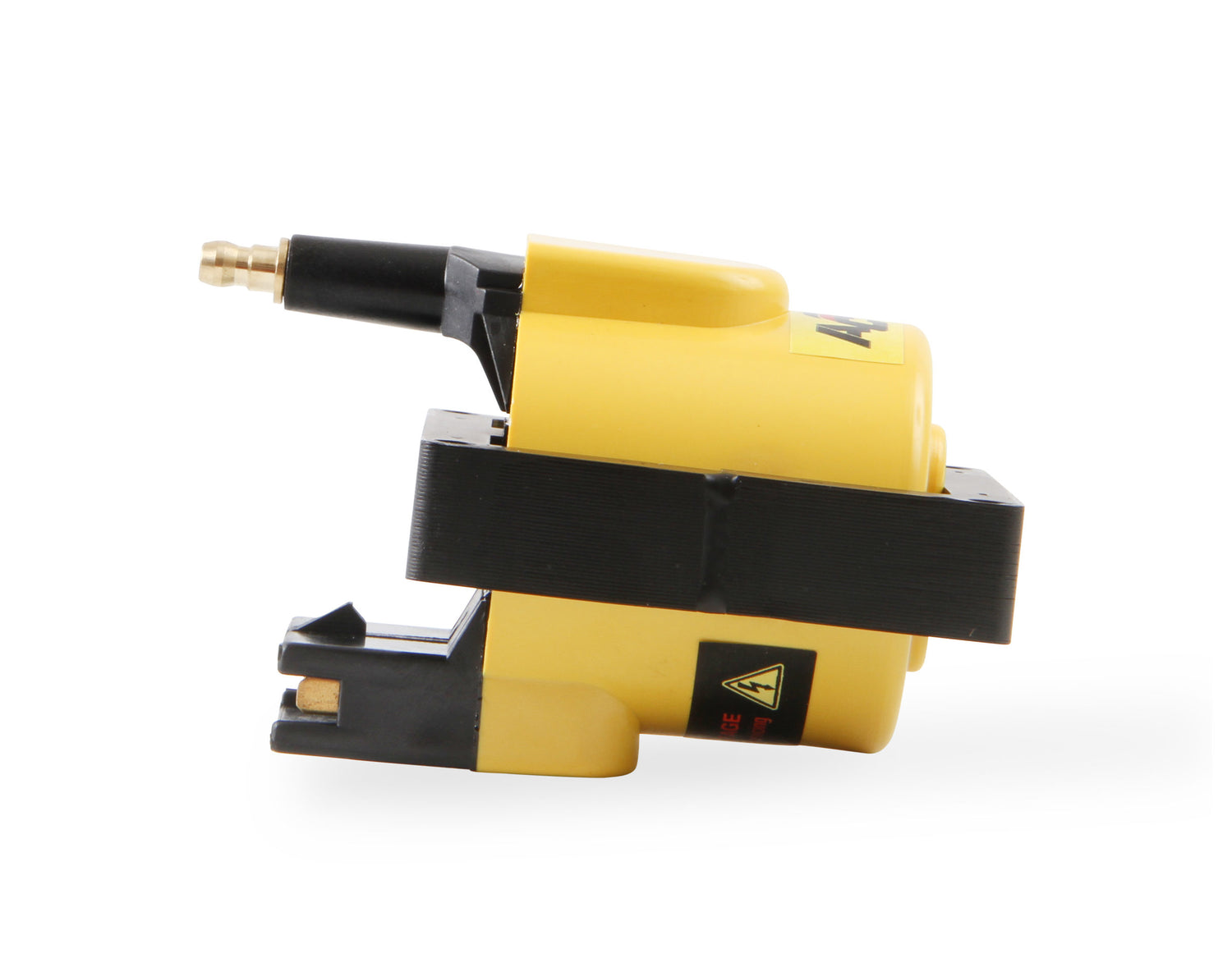

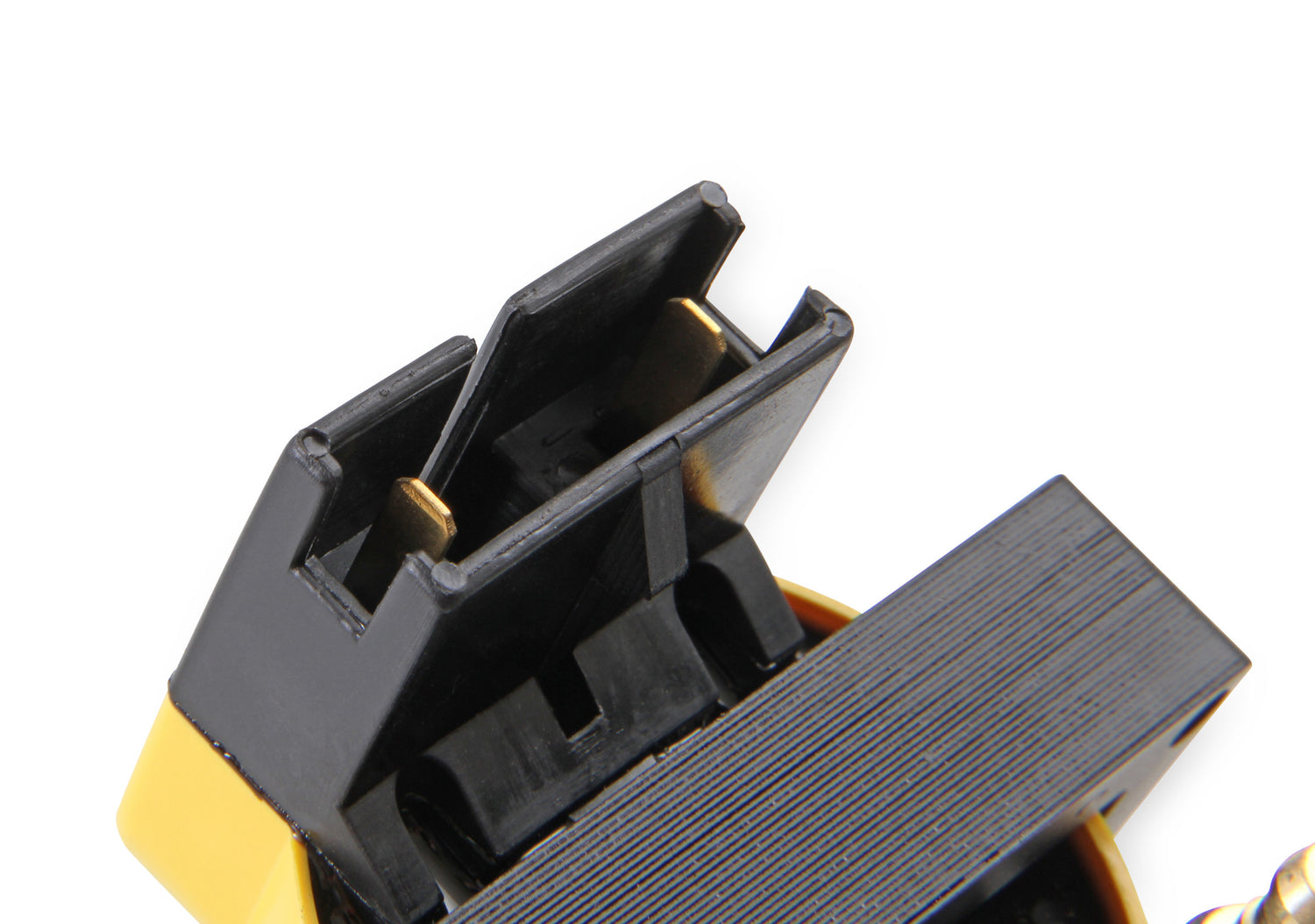

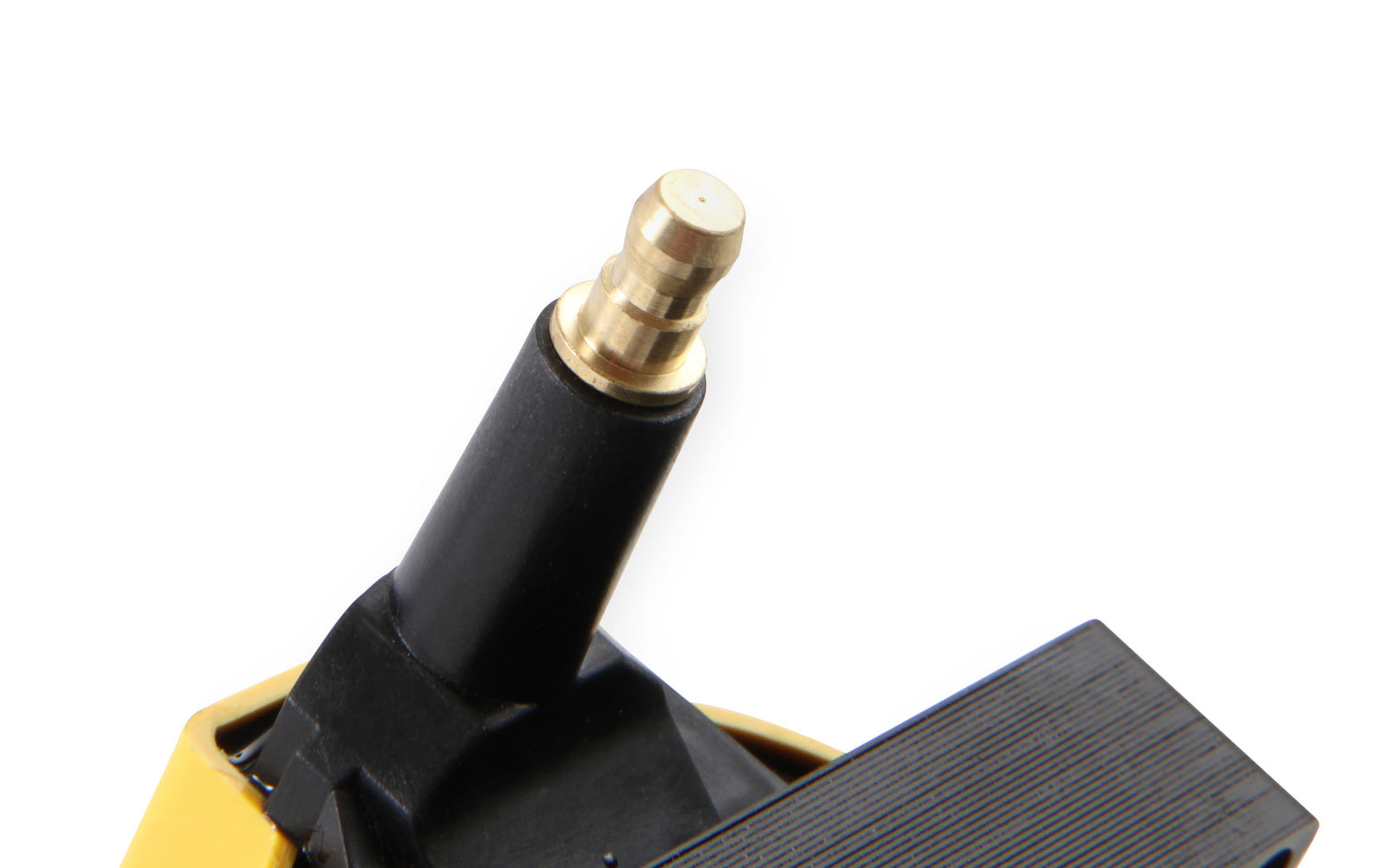

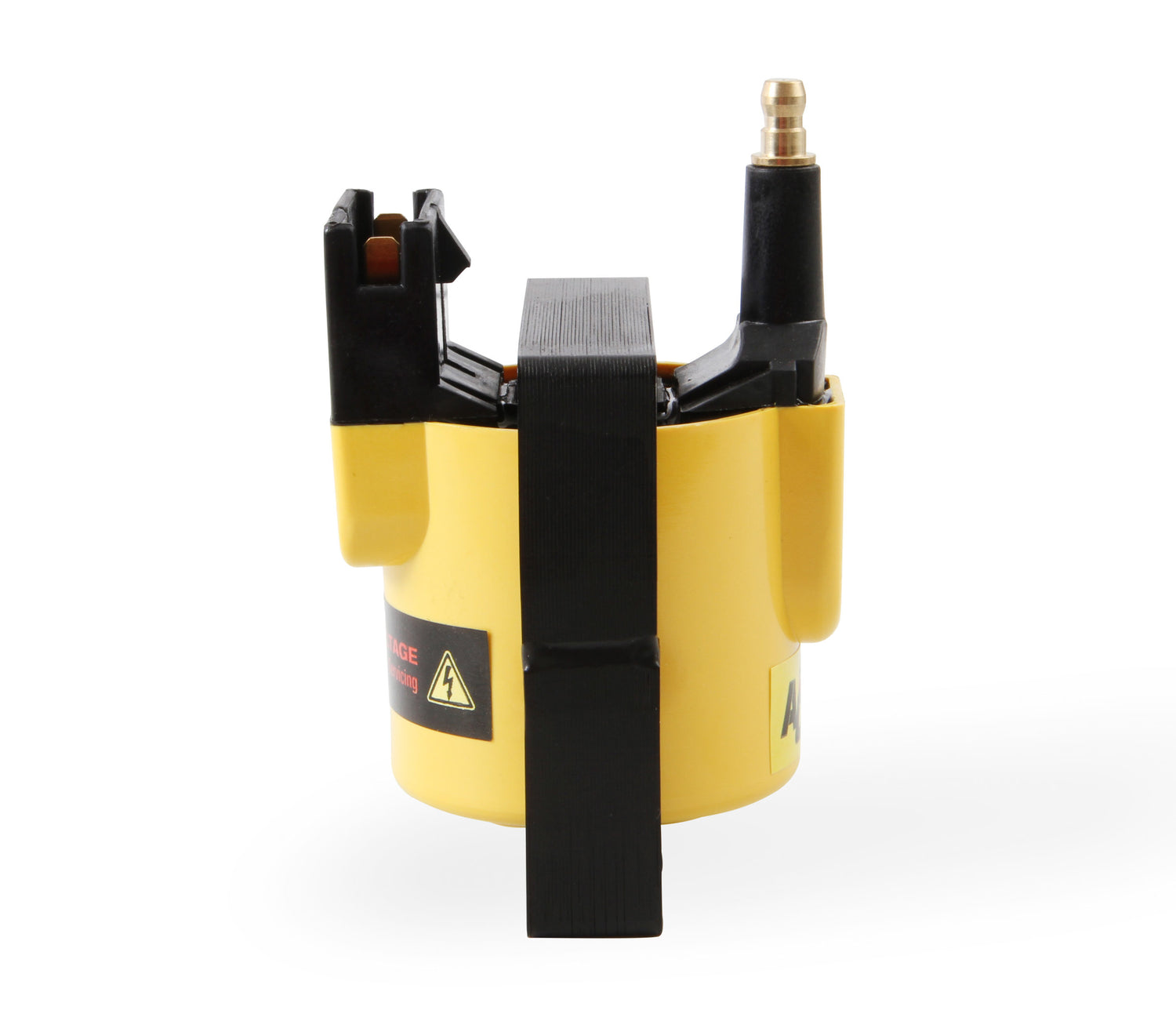

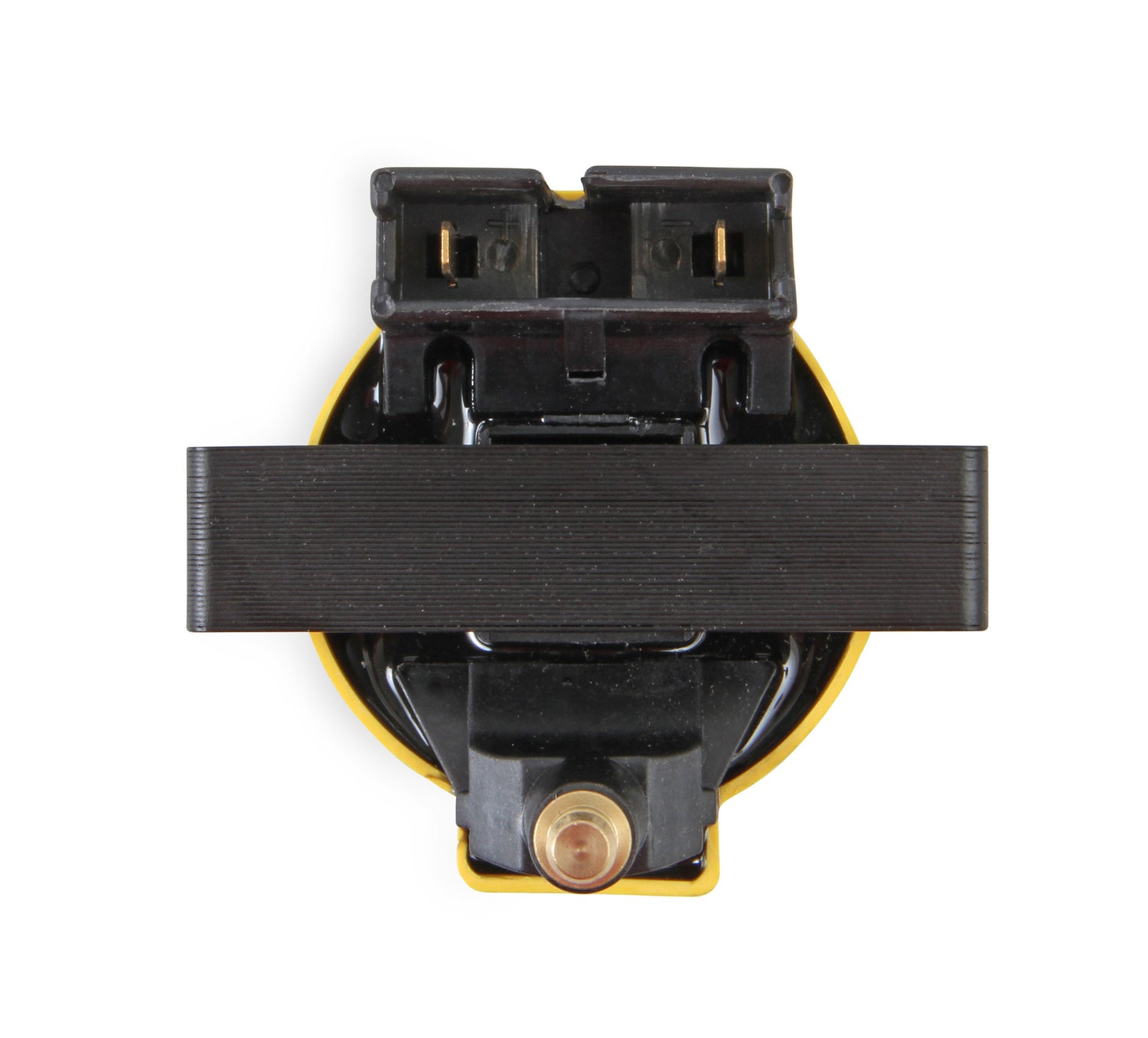

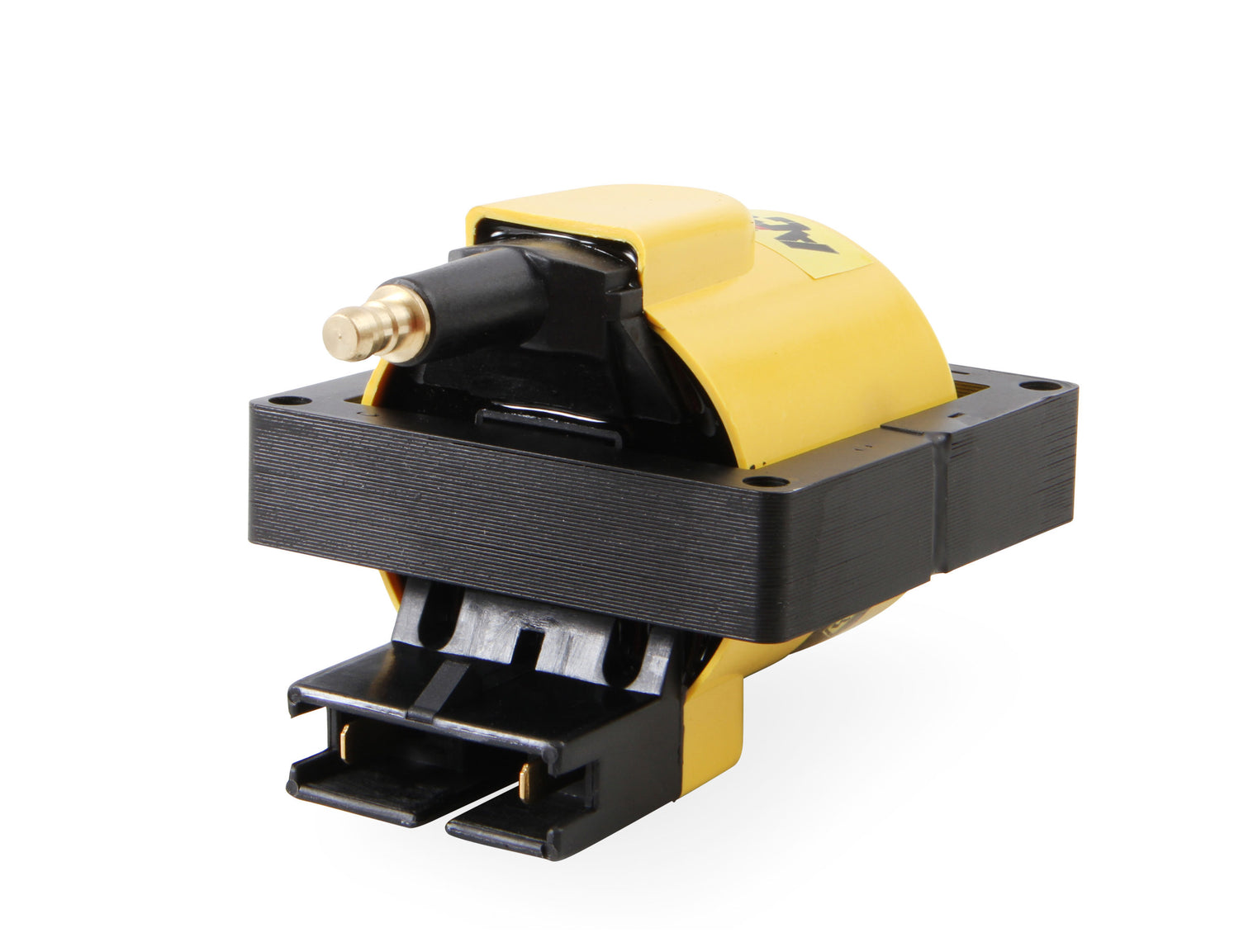

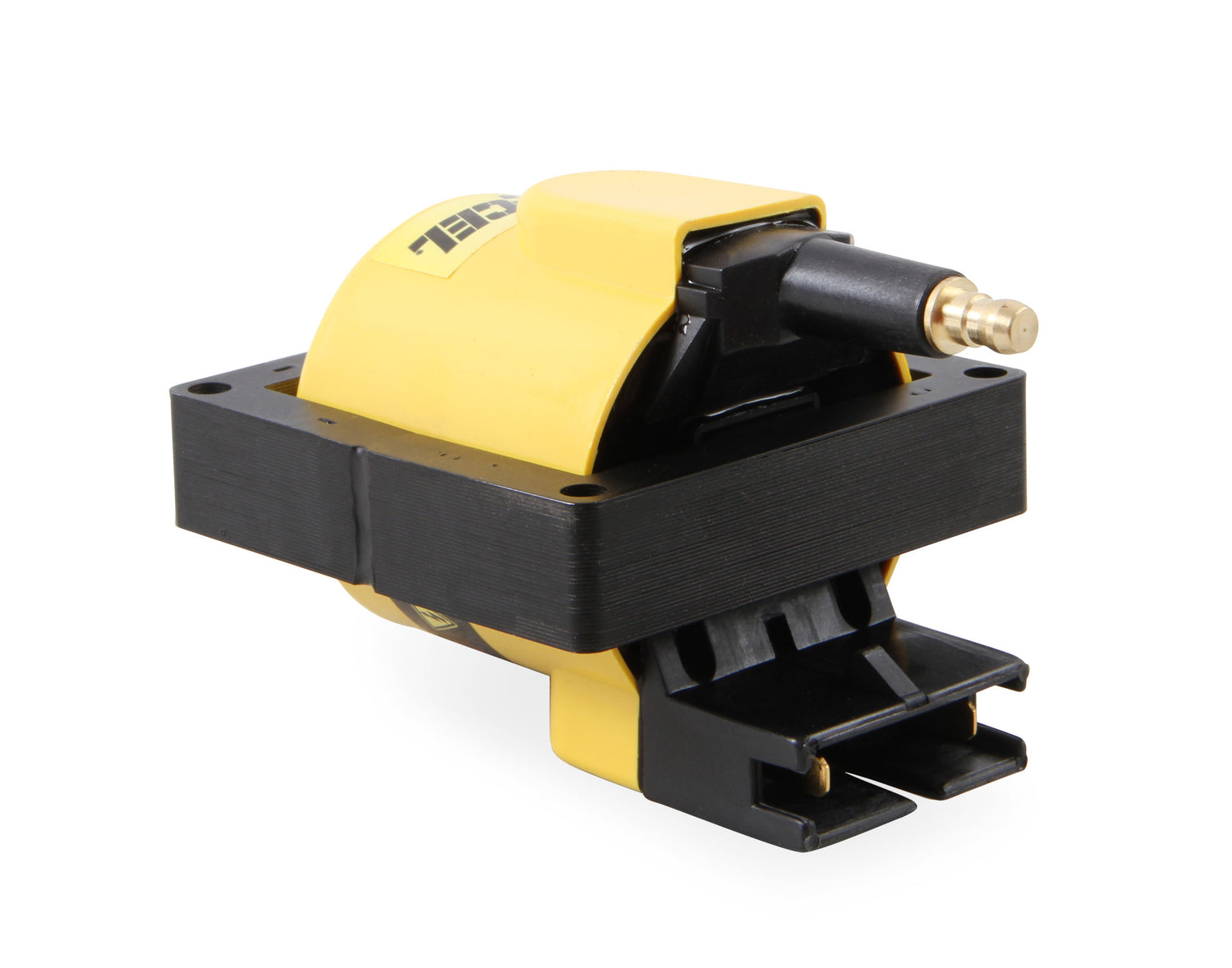

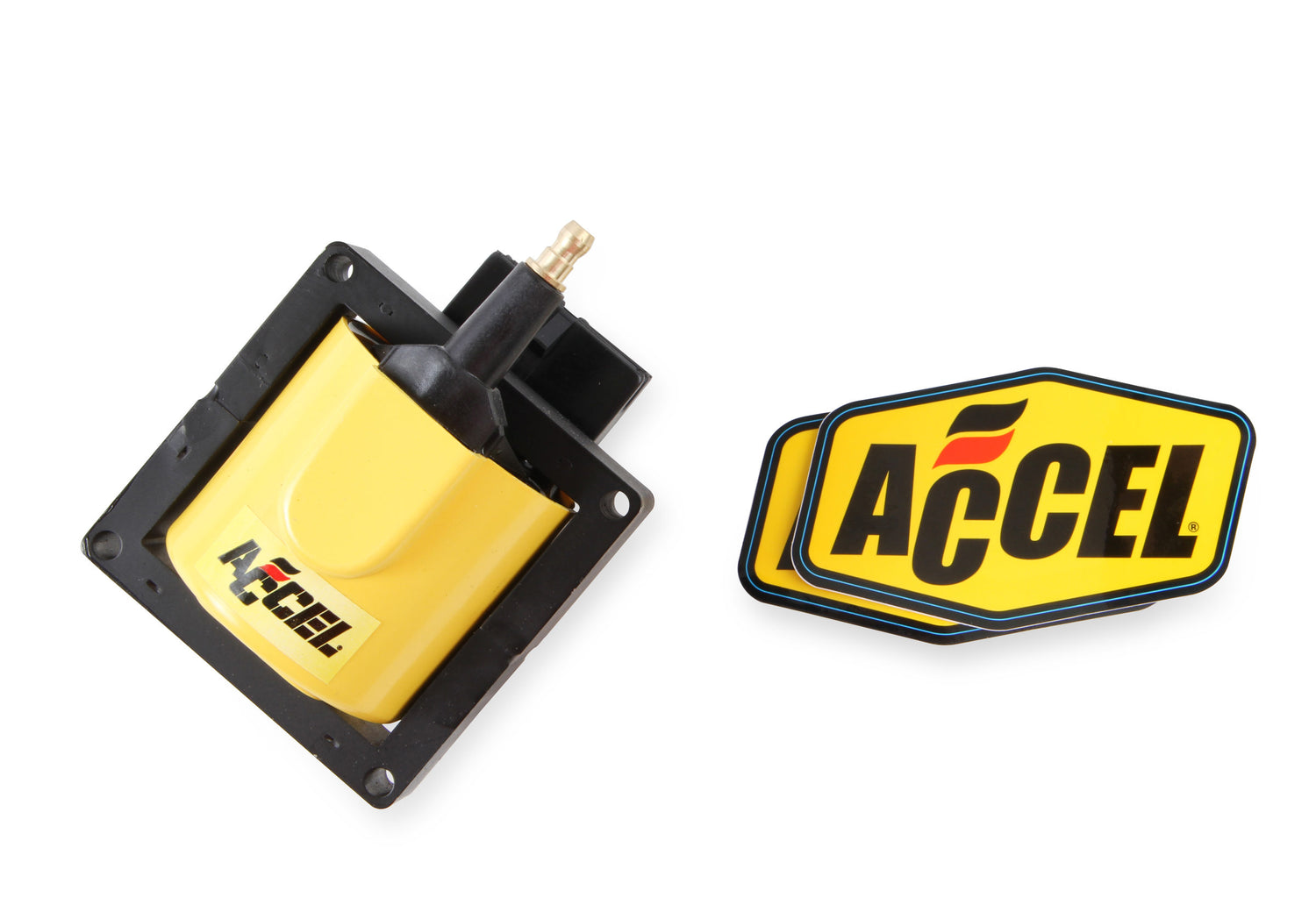

ACCEL 140012 - SuperCoil Ignition Coil

ACCEL 140012 - SuperCoil Ignition Coil

Ignition Coil - Super Coil - E-Core - 0.200 ohm - Male HEI - 48000V - Yellow / Black - Ford EEC-IV - Each

SuperCoil Ignition Coil; EEC-IV; Primary Resist 0.2 Ohms Secondary 8.8 k Ohms; Turn Ratio 132:1; Max Voltage 48000V; Yellow;

Engineered with optimized low resistance, high turns ratio windings around an M36 high silicone magnetic steel E-core for higher energy and voltage outputs. Results in quicker starts, improved idle quality, and crisper throttle response. Compatible with late model Ford EEC-IV computer controlled ignition system equipped with a TFI distributor. Direct OEM replacement. Can also be used with an ACCEL, Mallory, Crane, Holley or MSD capacitive discharge ignition system. Special high temperature epoxy resists shock and vibration, while increasing thermal conductivity. Brass coil wire contact increases energy efficiency and resists corrosion better than aluminum. High dielectric strength ACCEL Yellow over-molded housing.

• 10-15% More Energy
• Direct Plug In Replacement Direct OE Fit
• Advanced Bobbin Technology
• Highly Specialized Silicone Magnetic Steel Cores
• Standard Motor Products SMP Fd-478
• MSD 5527
