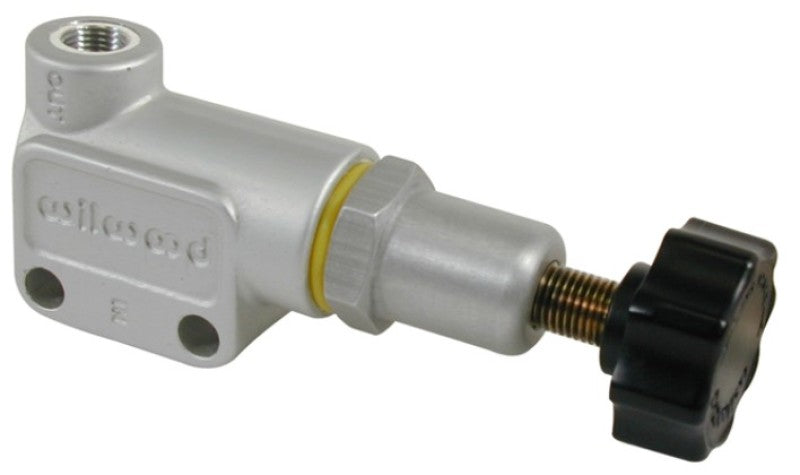

Wilwood 260-12627 - Proportioning Valve - Knob Adjust M10x1 BBF Inlet & Outlet

Wilwood 260-12627 - Proportioning Valve - Knob Adjust M10x1 BBF Inlet & Outlet

Proportioning Valve - 10 mm x 1.00 Female Inlet - 10 mm x 1.00 Female Outlet - Adjustable 100-1000 psi - Knob Type - Aluminum - Clear Anodized - Each

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.
